🌟 POWLSOJX WR48 Smart Solar Charge Controller (30A-100A) 🌟

Your Ultimate Power Management Solution for Off-Grid & RV Solar Systems

Welcome to the next generation of solar energy management! The POWLSOJX WR48 series is a high-performance, universal solar charge controller designed to maximize your solar panel efficiency while keeping your batteries perfectly safe. Whether you are building a system for your RV, boat, or off-grid cabin, the WR48 delivers unmatched stability and power.

🔥 Key Features & Benefits 🔥

• 🔋 Universal Battery Compatibility: Automatically recognizes 12V, 24V, and 48V systems. Perfectly compatible with various batteries including Lead-acid (OPEN, AGM, GEL), Ternary Lithium, and Lithium Iron Phosphate (LiFePO4).

• 🛡️ Advanced 6-Layer Smart Safety Protections: Equipped with an industrial micro controller, it features comprehensive protections: Over-charge, Over-load, Short circuit, Low voltage, Reverse polarity, and Under-current. It also features dual MOSFET reverse current protection for ultra-low heat production.

• ⚡ High-Efficiency 3-Stage Charging: Features fully 3-stage charge management to optimize battery health and lifespan, with a max efficiency of < 98%.

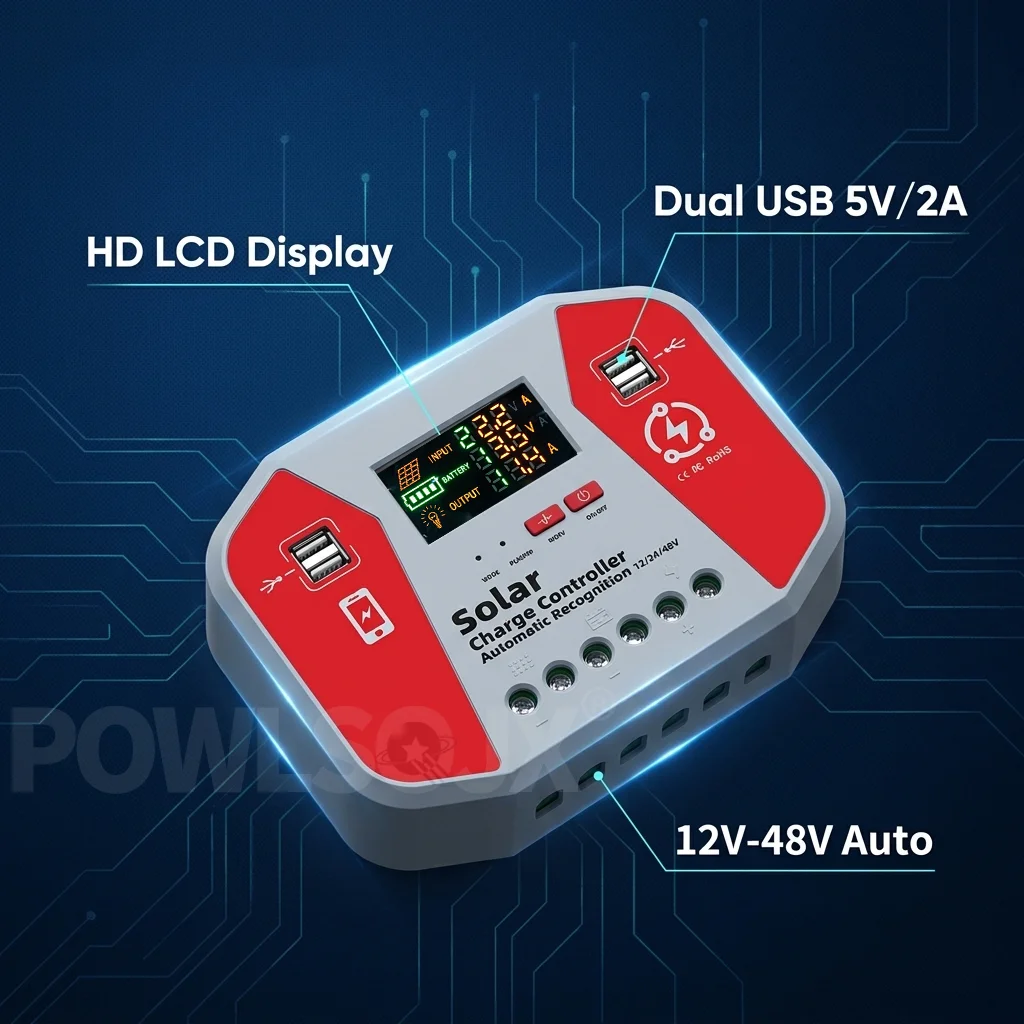

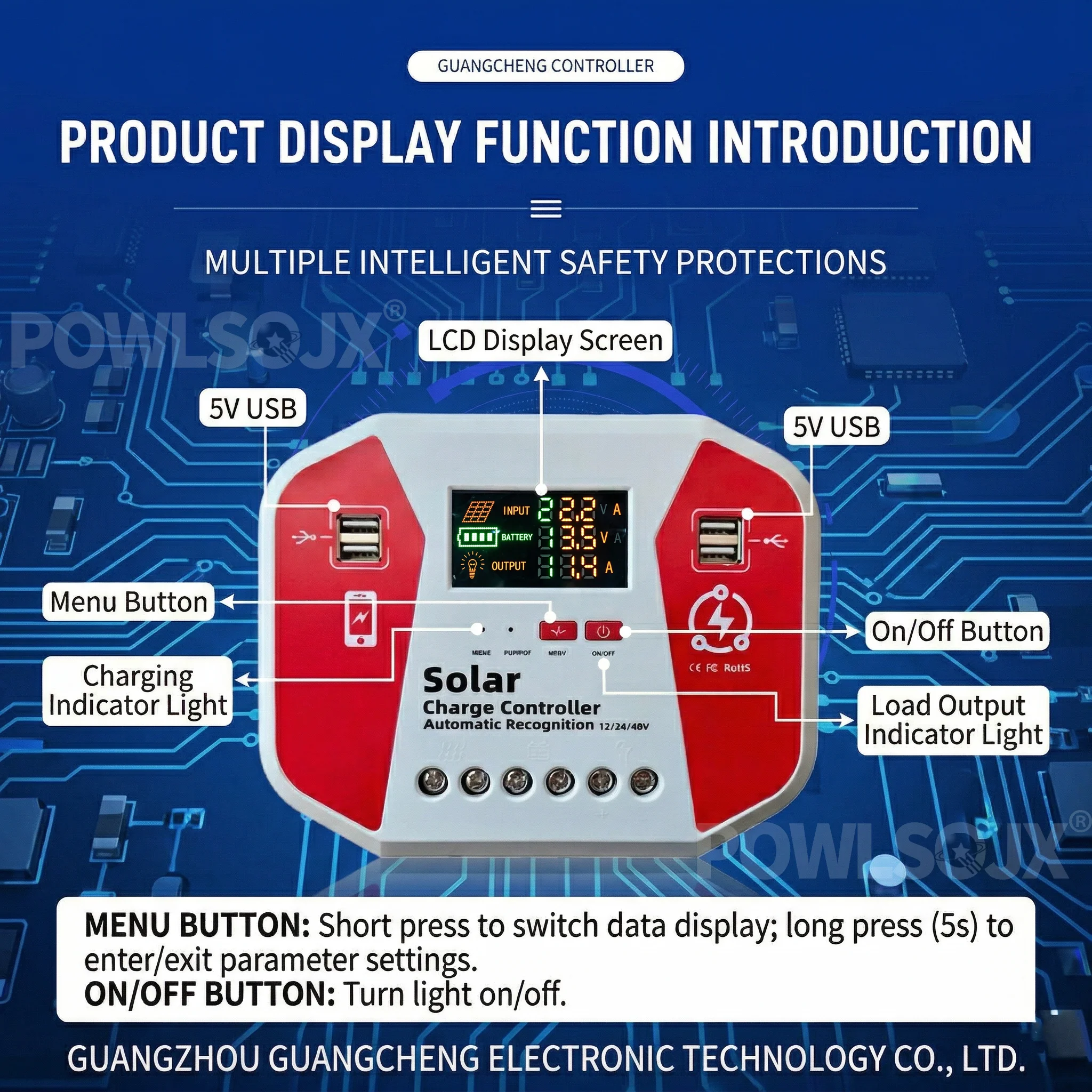

• 📱 HD LCD Display & Easy Setup: The large, high-definition LCD screen displays all crucial parameters (input/output voltage, current) at a glance. It also features power-off memory for hassle-free operation.

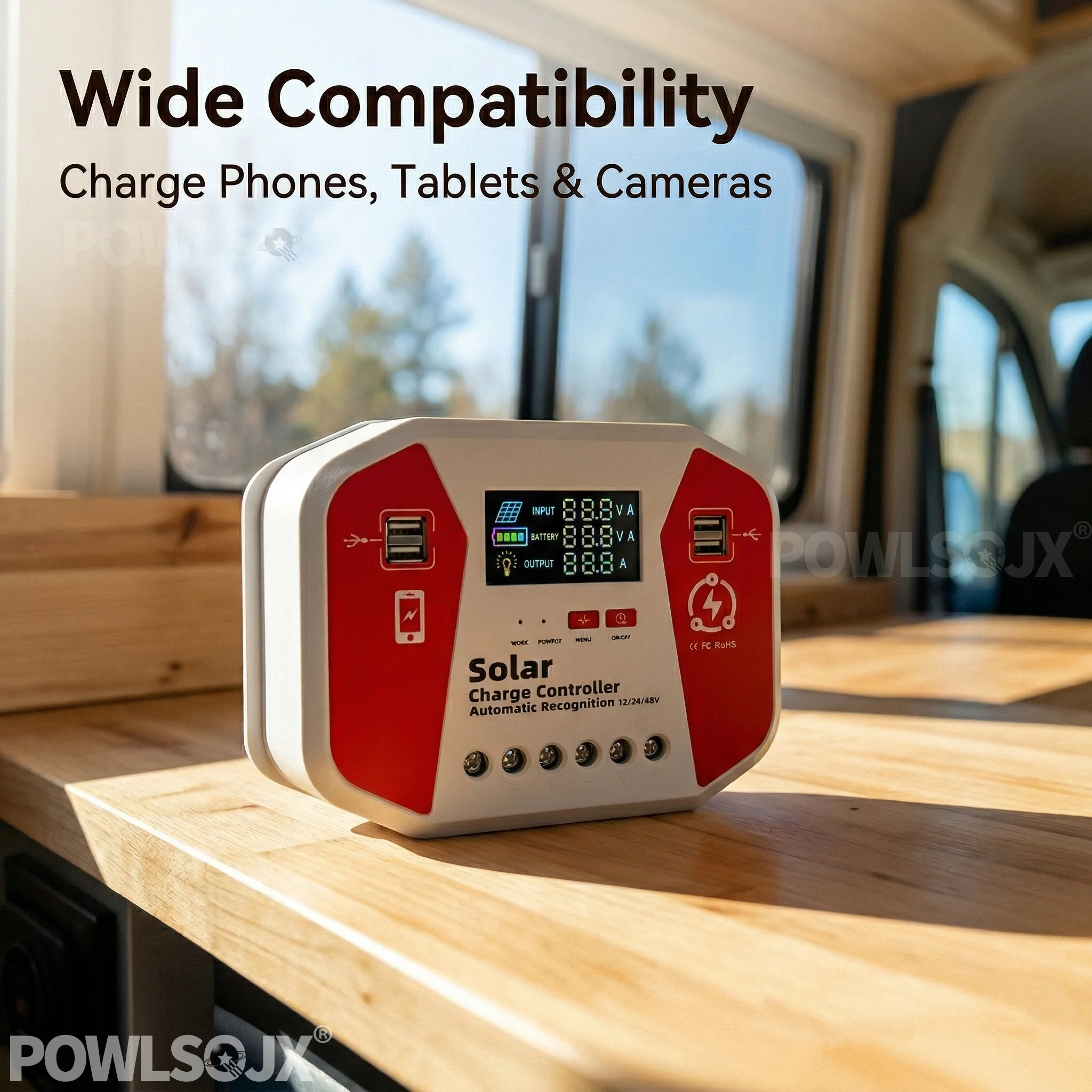

• 🔌 Rich USB Output: Built-in 4-way USB output with a maximum current of 5V/2A. Perfect for directly charging your mobile phones, tablets, handheld consoles, headsets, and cameras.

• 🌙 Smart Load Work Modes: Choose from [24H] continuous output, [1-13H] light control with delay, or [0H] dusk to dawn mode to automate your lighting systems.

📐 Technical Specifications 📐

• Brand: POWLSOJX

• Model Options (Charge Current): 60A, 80A, 100A (Choose the perfect size for your solar array!)

• System Voltage: 12V / 24V / 48V AUTO

• Max Solar Input:

  • 12V Battery matches 15-23V Panel

  • 24V Battery matches 30-46V Panel

  • 48V Battery matches 60-85V Panel

• Operating Temperature: -35°C to +60°C

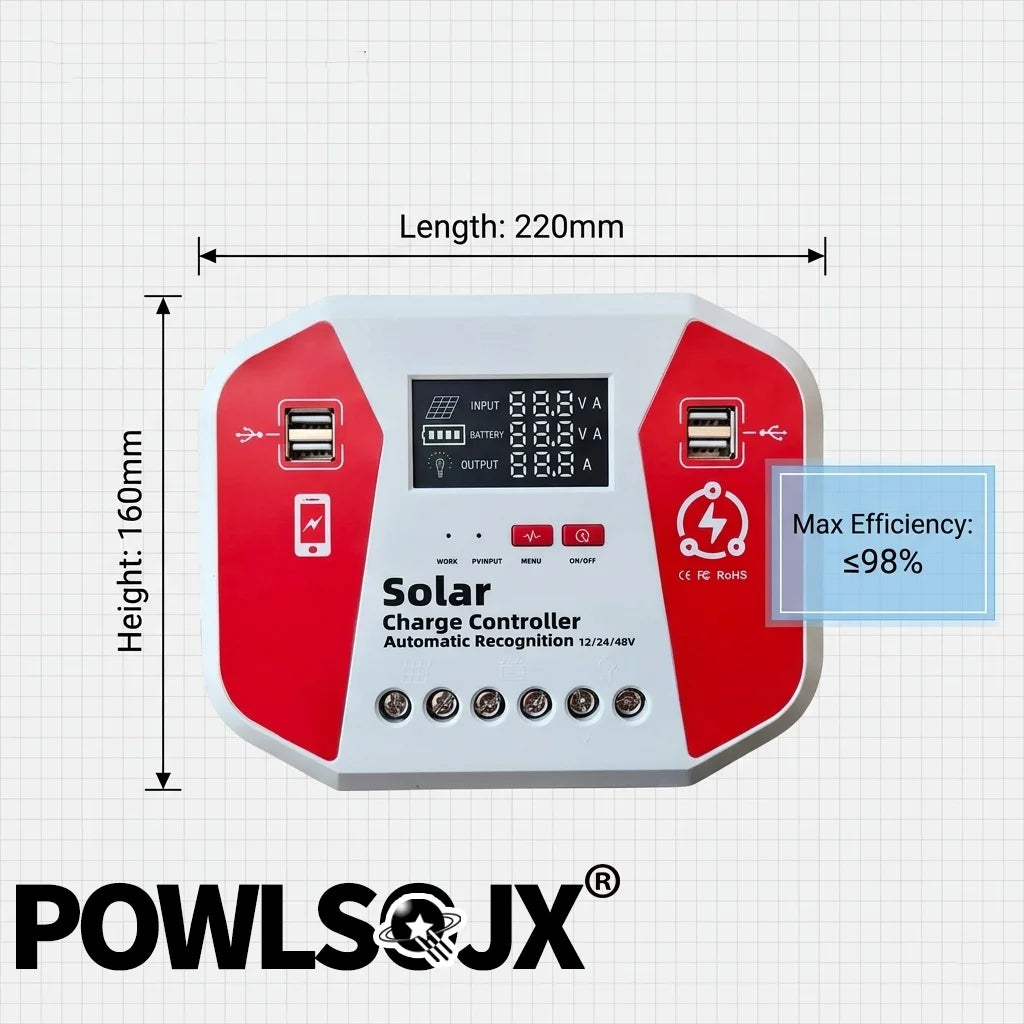

• Dimensions: 220 x 160 x 45mm

(Note: Please ensure the battery has sufficient voltage before first installation so the controller can operate normally.)
