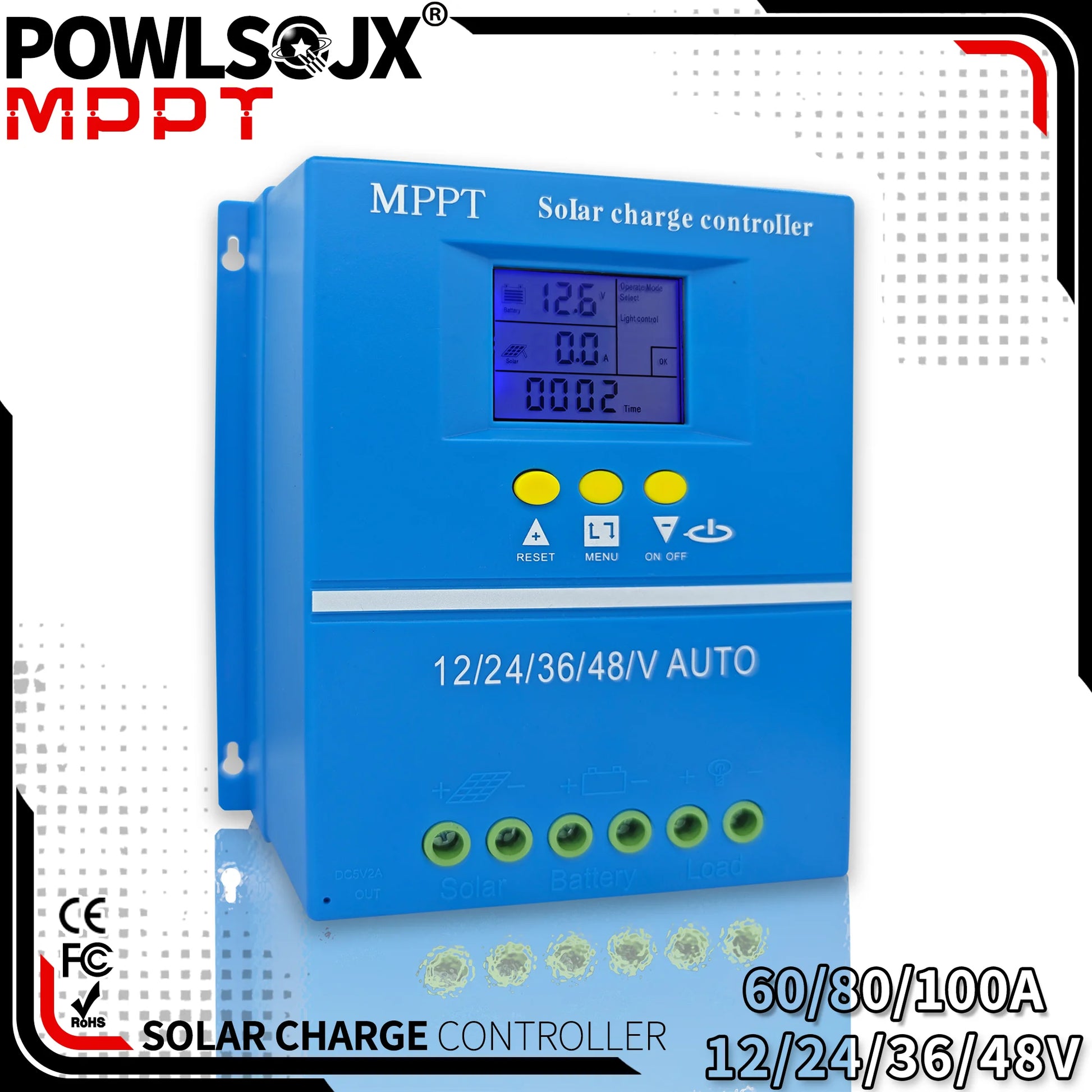

Introducing our multi-functional solar controller with a large LCD display and clock function. It comes with 7 different operation modes, including charging mode, light control mode, light control + time delay control mode, general control mode, manual control mode, timing control mode, and test mode (for factory use only).

Features:

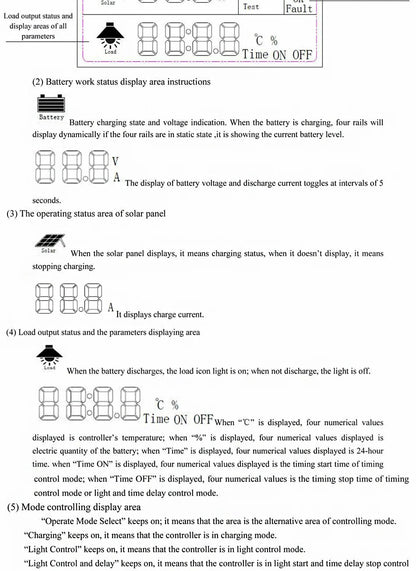

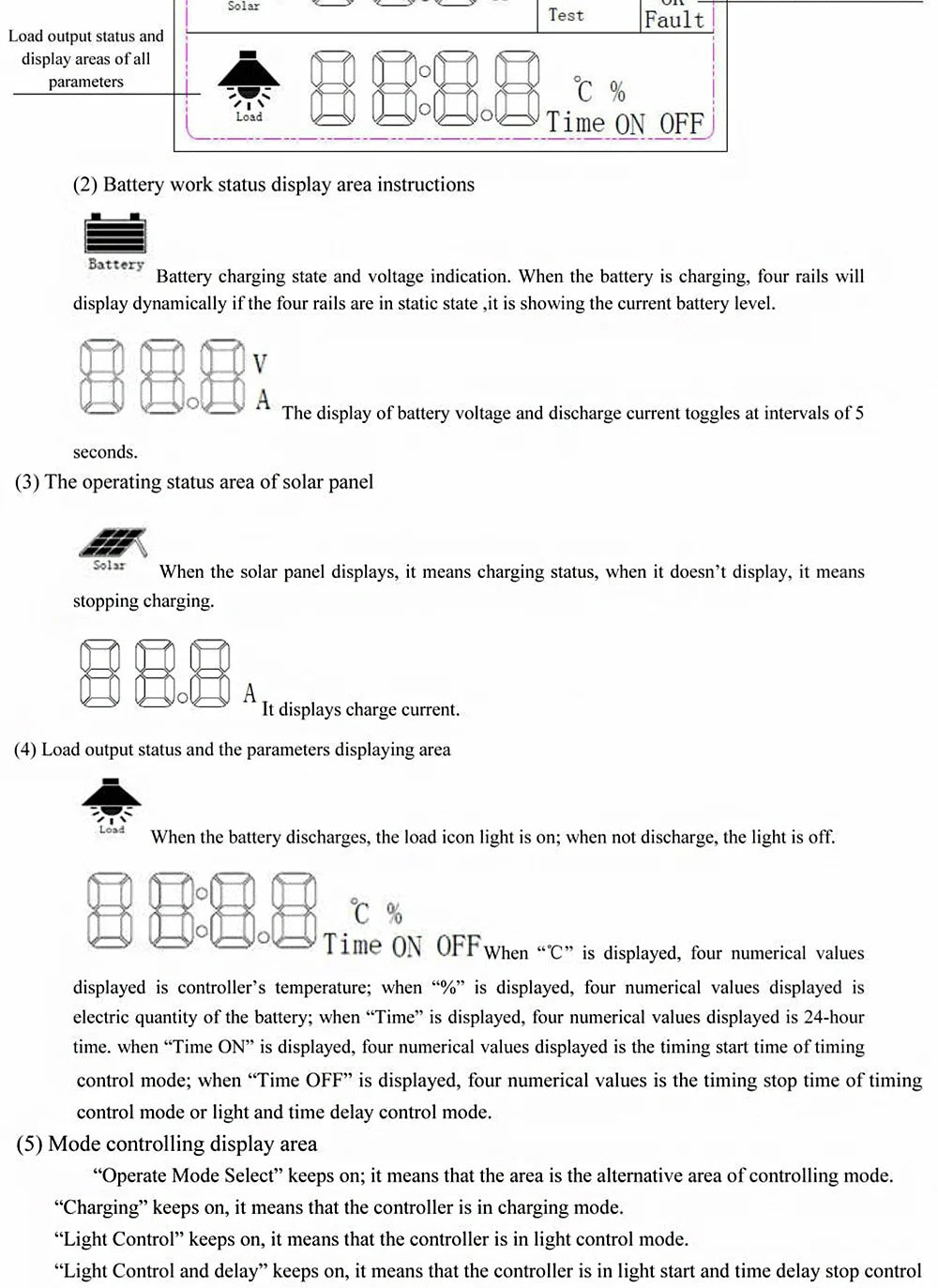

Large LCD display with battery and solar panel working status, mode control, load output status, and parameter display
7 operation modes: charging mode, light control mode, light control + time delay control mode, general control mode, manual control mode, timing control mode, and test mode (factory use only)
Automatic identification of 4 kinds of voltages: DC12V/24V, DC36V, DC48V
Automatic focusing MPPT tracking charging for high efficiency
Time and parameter setting function
Non-restrictive charging control function
Discharge control function varies with different control modes (refer to below)
Low-voltage protection with a manual discharge stop function

Specifications:

Current: 60A, 80A, 100A (optional)
Input voltage: DC12V/24V, DC36V, DC48V
Output voltage: DC12V/24V, DC36V, DC48V, DC5V/1.5A*2USB
Working temperature: -25℃ to 55℃

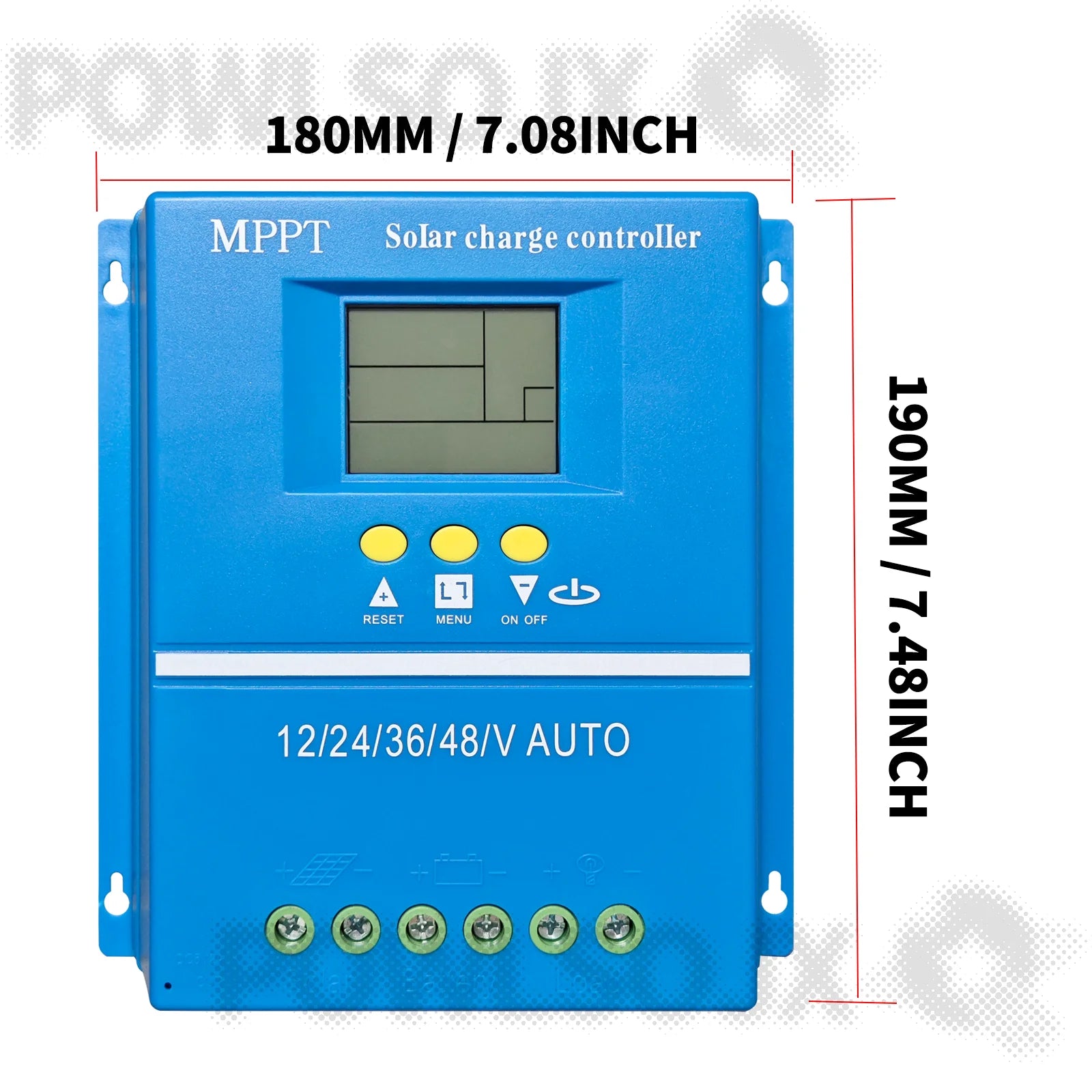

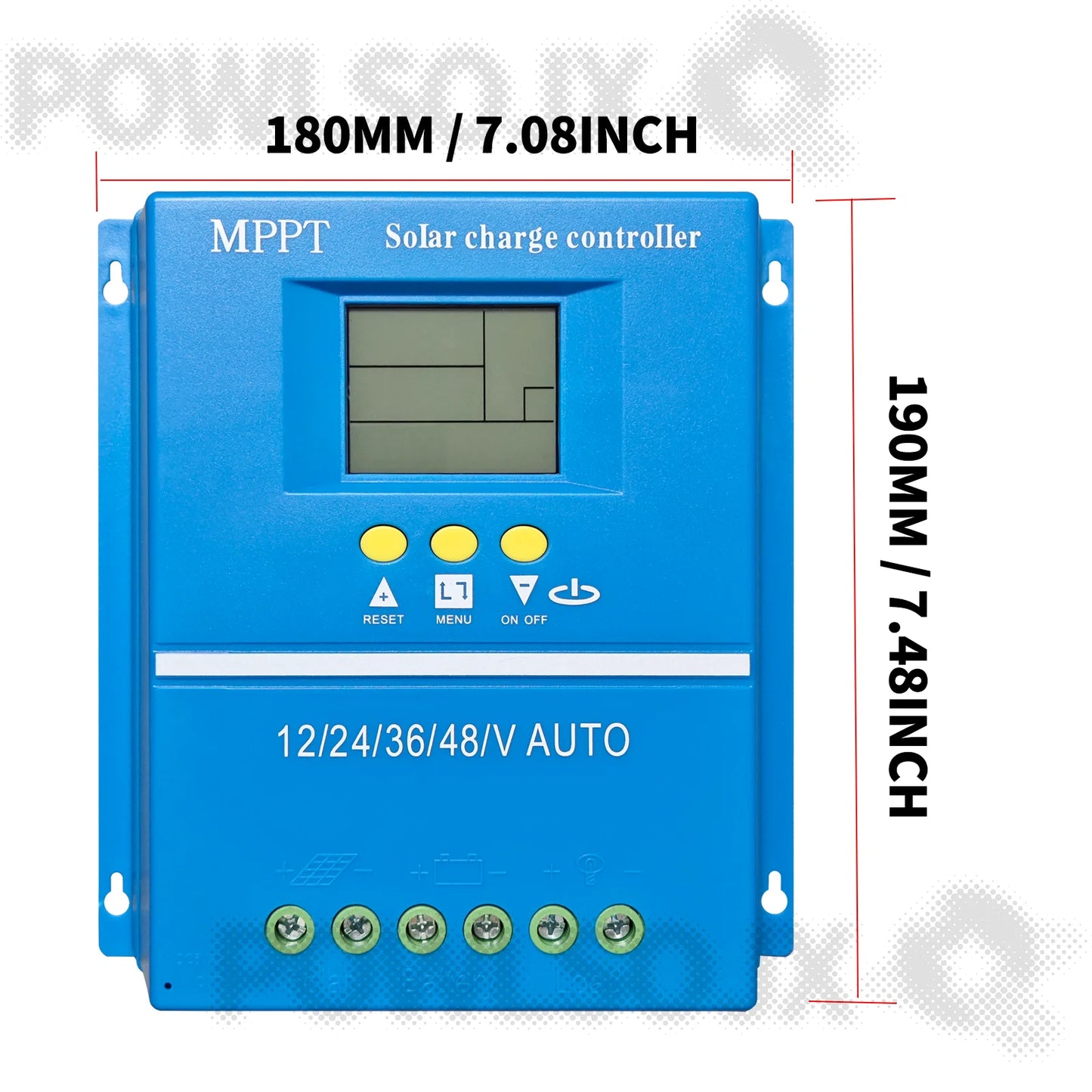

Item size: 198 * 180mm / 7.80 * 7.09in
Package size: 195 * 184 * 66mm / 7.68 * 7.24 * 2.60in

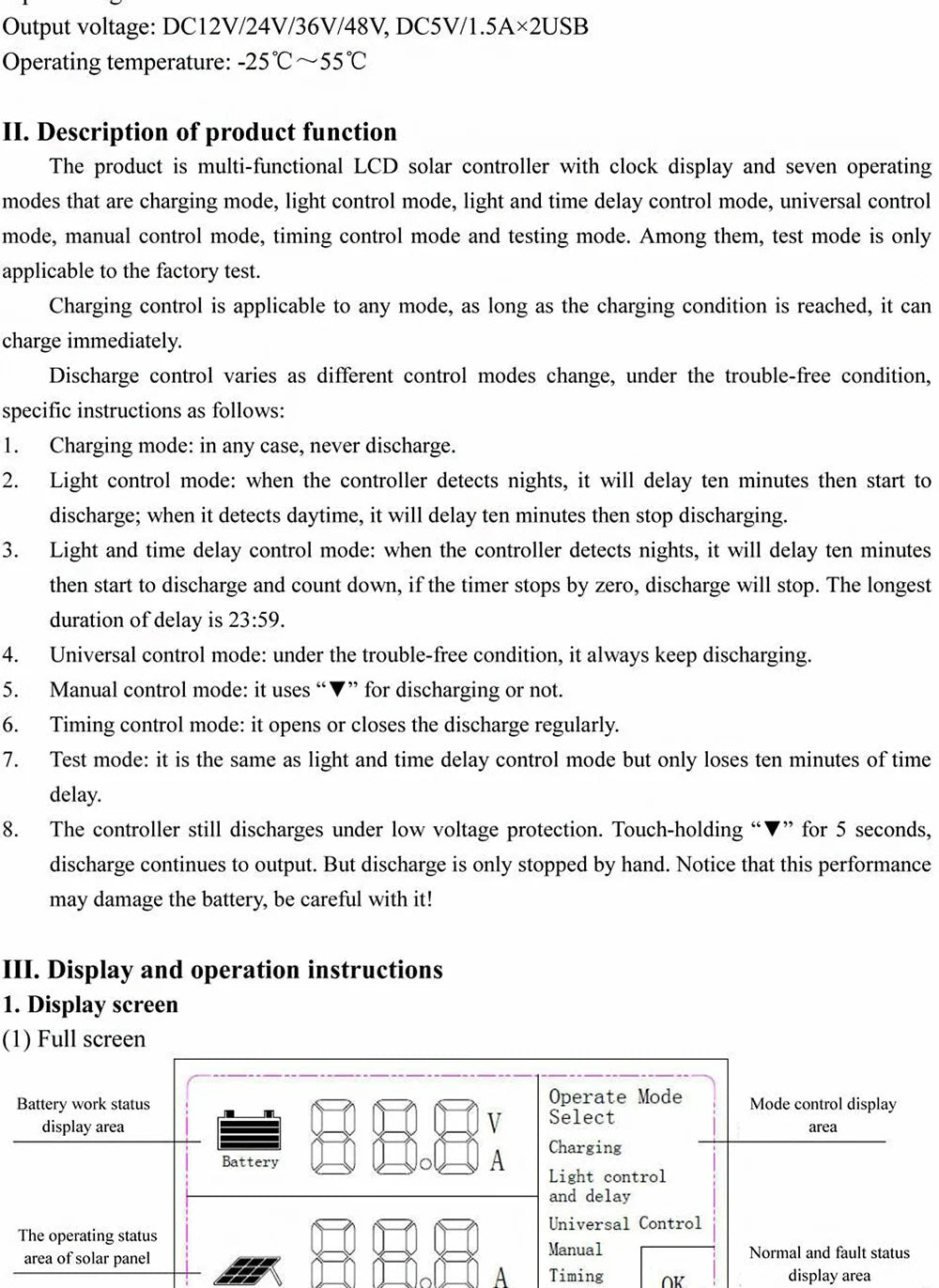

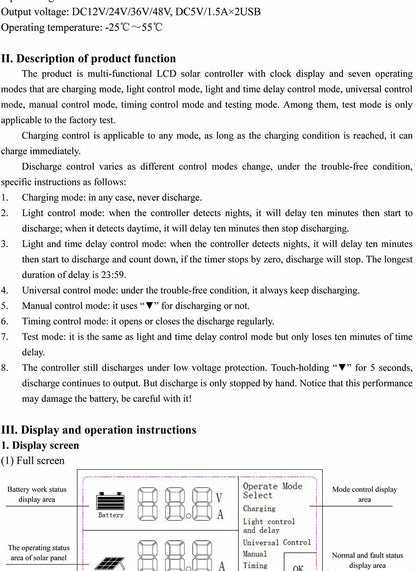

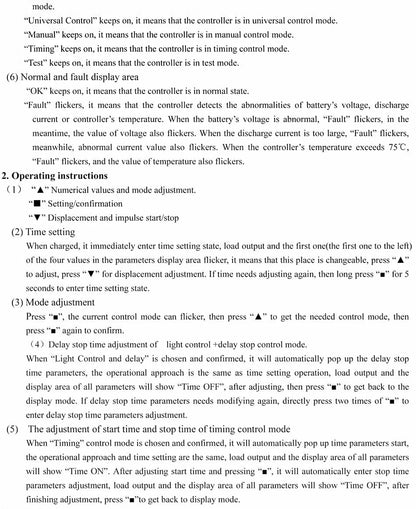

Modes of Discharge Control:

Charging mode: no discharge under any condition
Light control mode: opens discharge with a 10-minute delay when night is detected; stops discharge with a 10-minute delay when daytime is detected
Light control + time delay control mode: starts discharge after a 10-minute delay and begins counting down the timer; stops discharge when the timer reaches 0. Maximum delay time is 23:59
General control mode: keeps the discharge state if no faults are detected

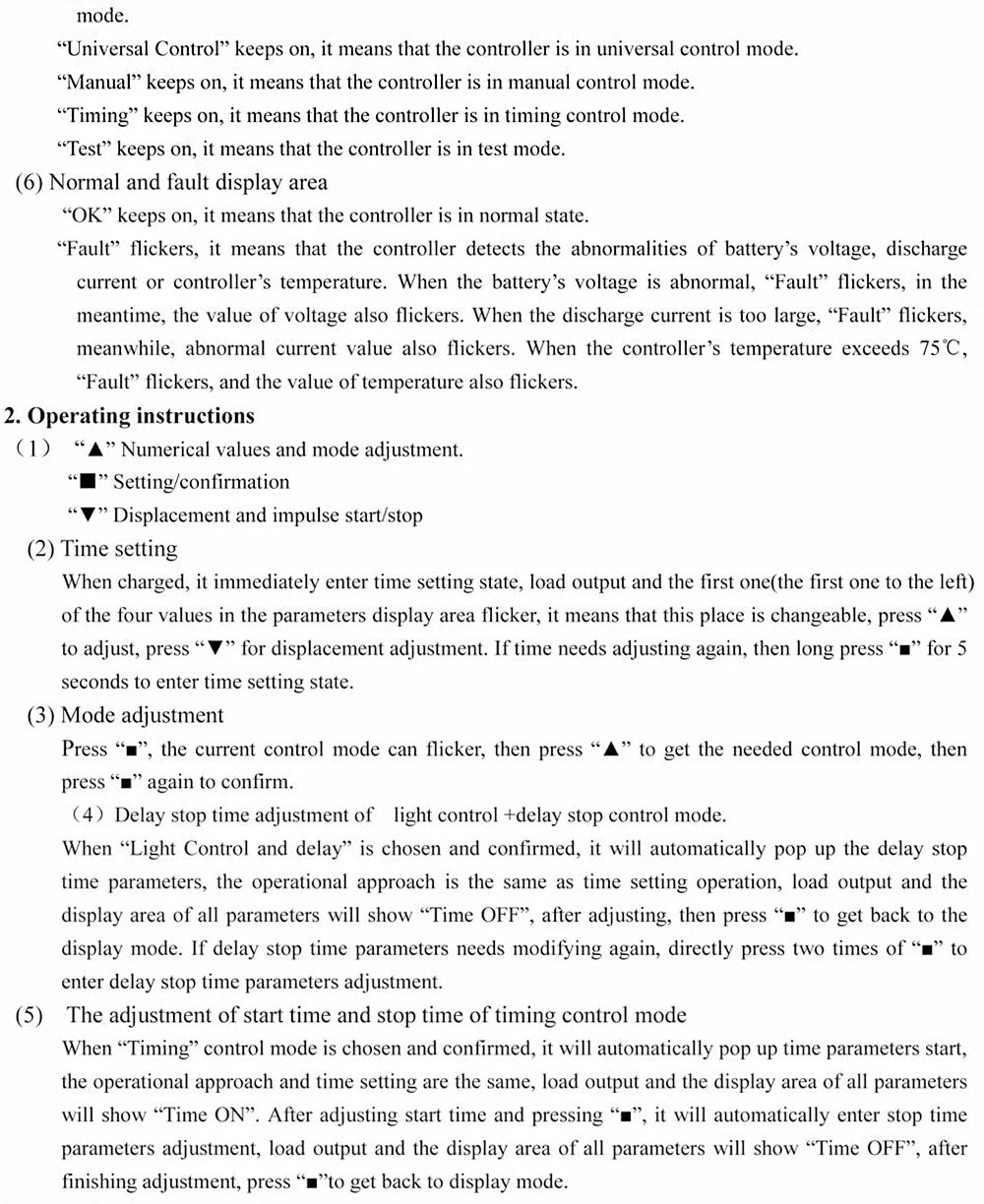

Manual control mode: use "▼" button to turn on or stop discharge
Timing control mode: turn on or off discharge at regular intervals
Test mode: similar to light control + time delay control mode but with less delay time (for factory use only)

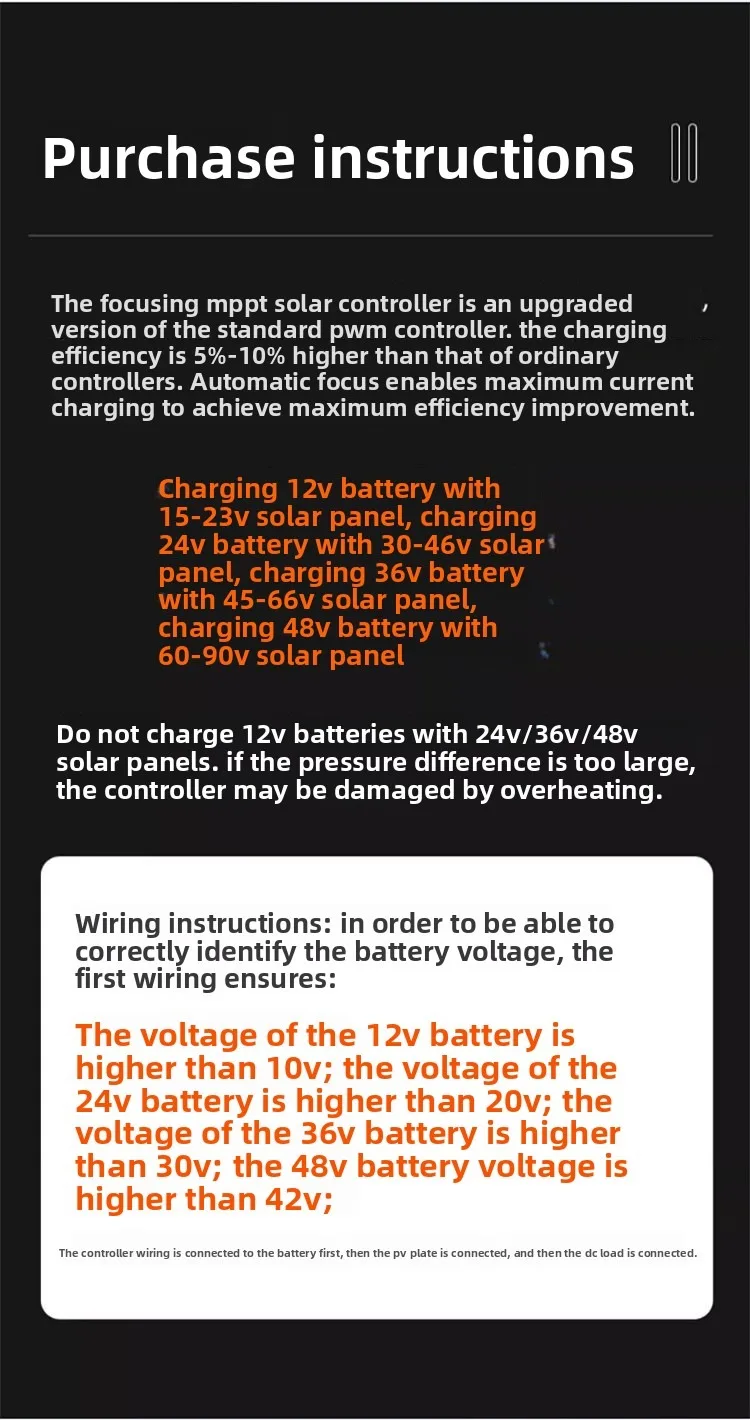

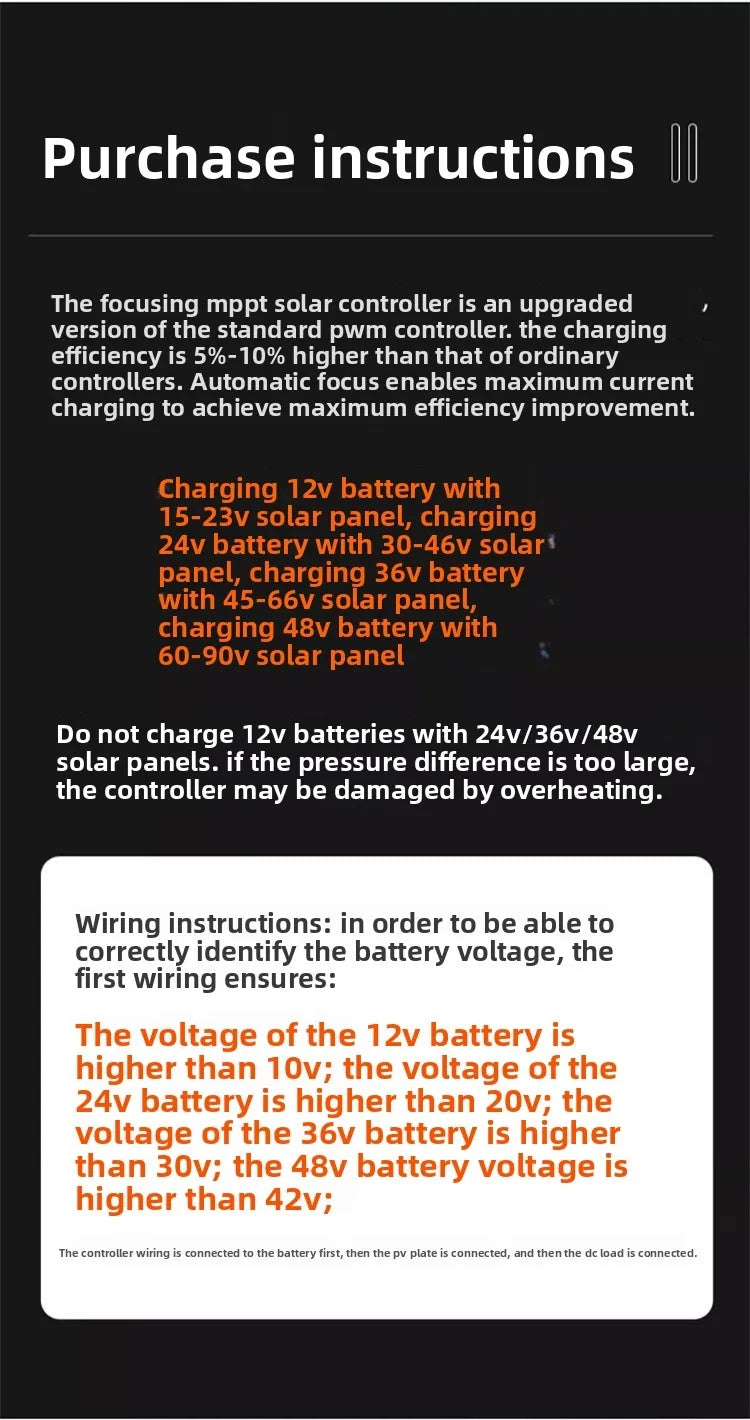

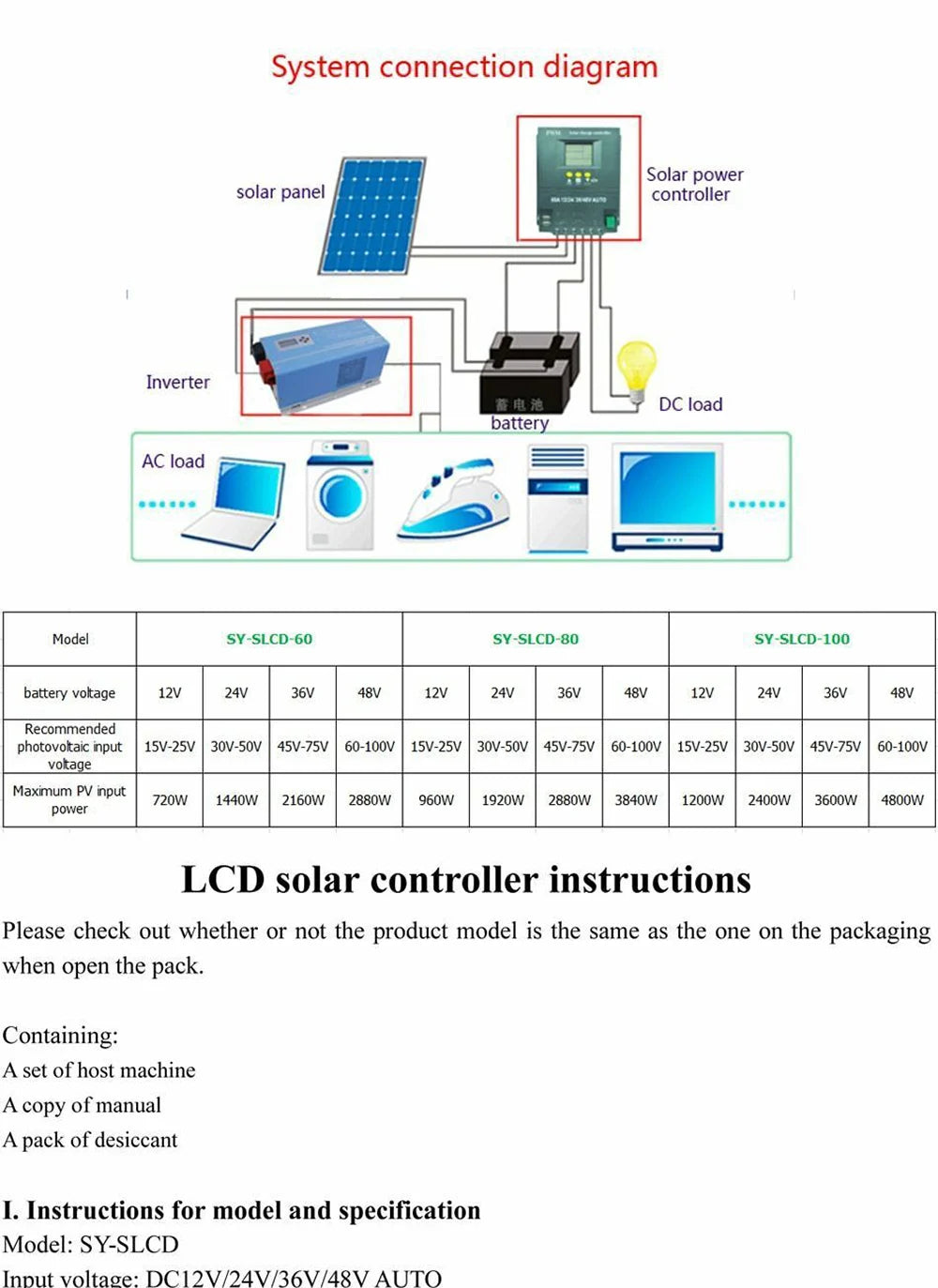

Compatible with：

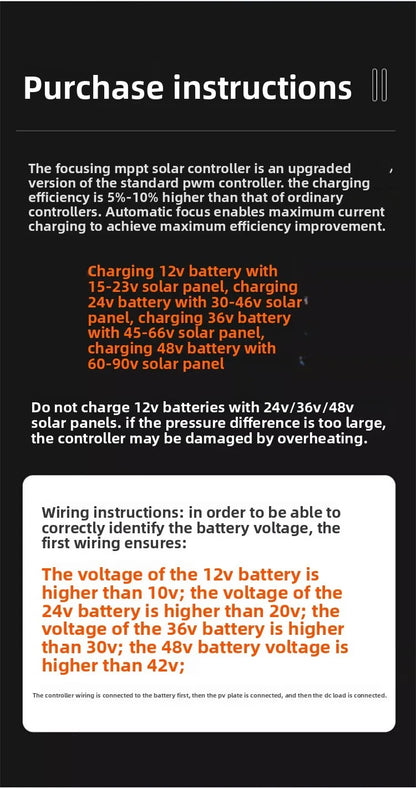

12V battery and 15-28V solar panel,

24V battery and 30-55V solar panel,

36V battery and 45-68V solar panel,

48V battery and 60-98V solar panel.

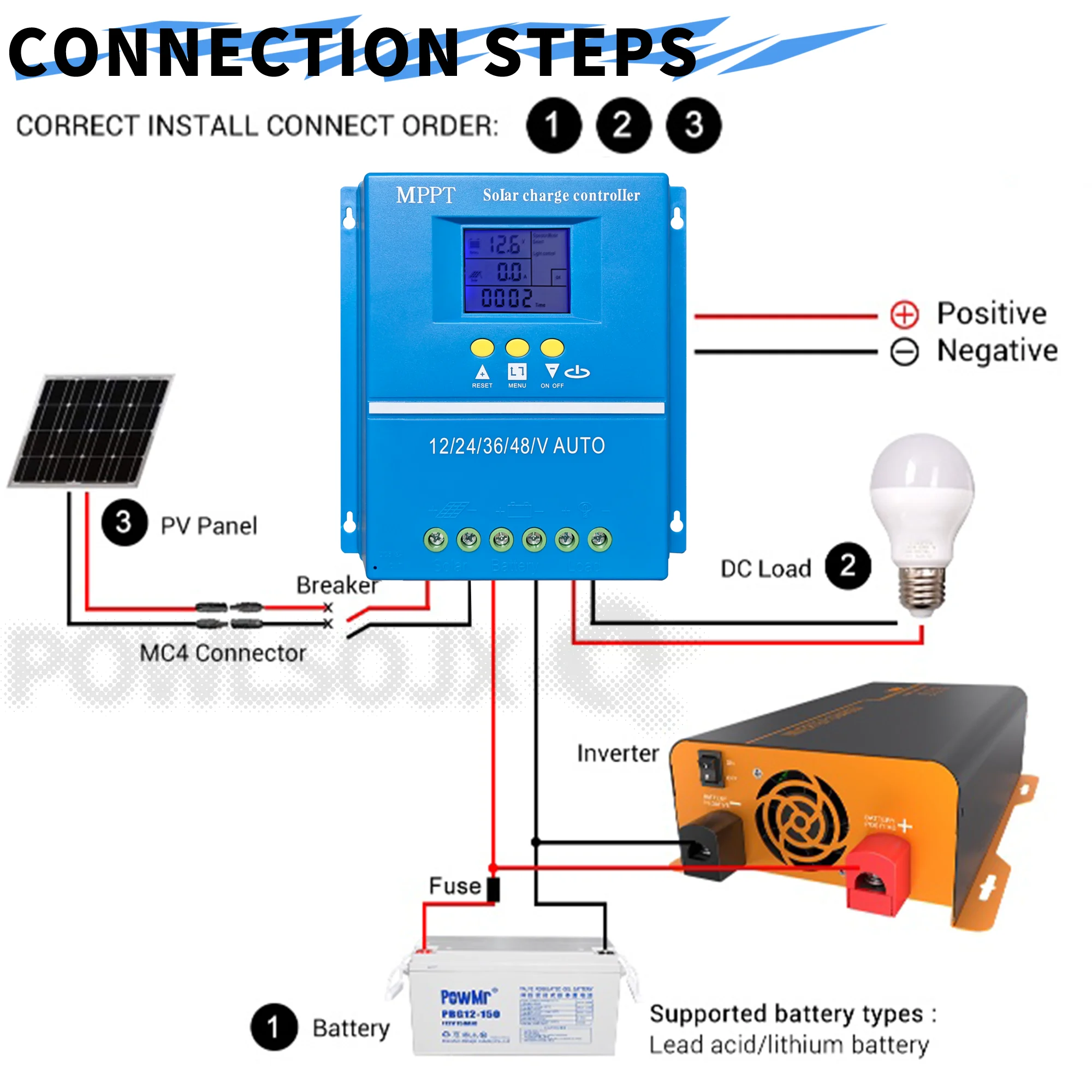

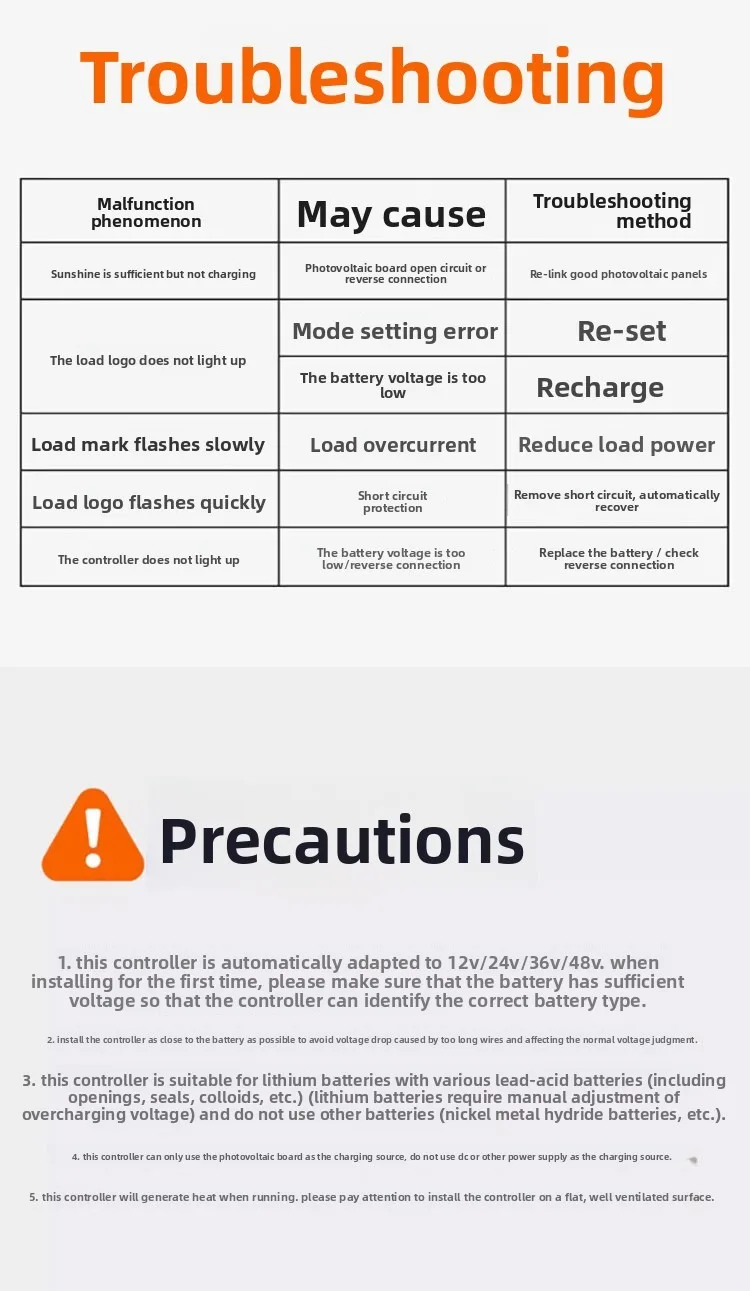

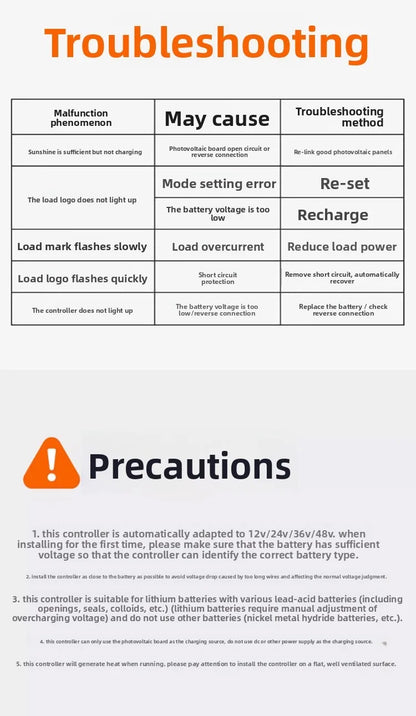

How to connect our conroller?

1.Connect the battery to the controller. It is recommended to add an air switch between the controller and the battery to protect the controller and the battery. When the controller is connected to the battery, the LCD screen will display the parameters, and then set the battery type.


2. If you need DC output to control the load, set the output control mode first, and then turn on the DC output disconnect switch.


3. Connect the solar panel PV to the controller, if the PV input voltage is at the controller’s
Within the charging working range, the controller will enter the charging state.


4. It is recommended that the controller add an air switch to the battery, solar panel and load to play a protective role.


Correct installation sequence A: (1)Battery --->(2)Solar panels ---> (3)DC load. )
