SPECIFICATIONS

Brand Name: YSIDO

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

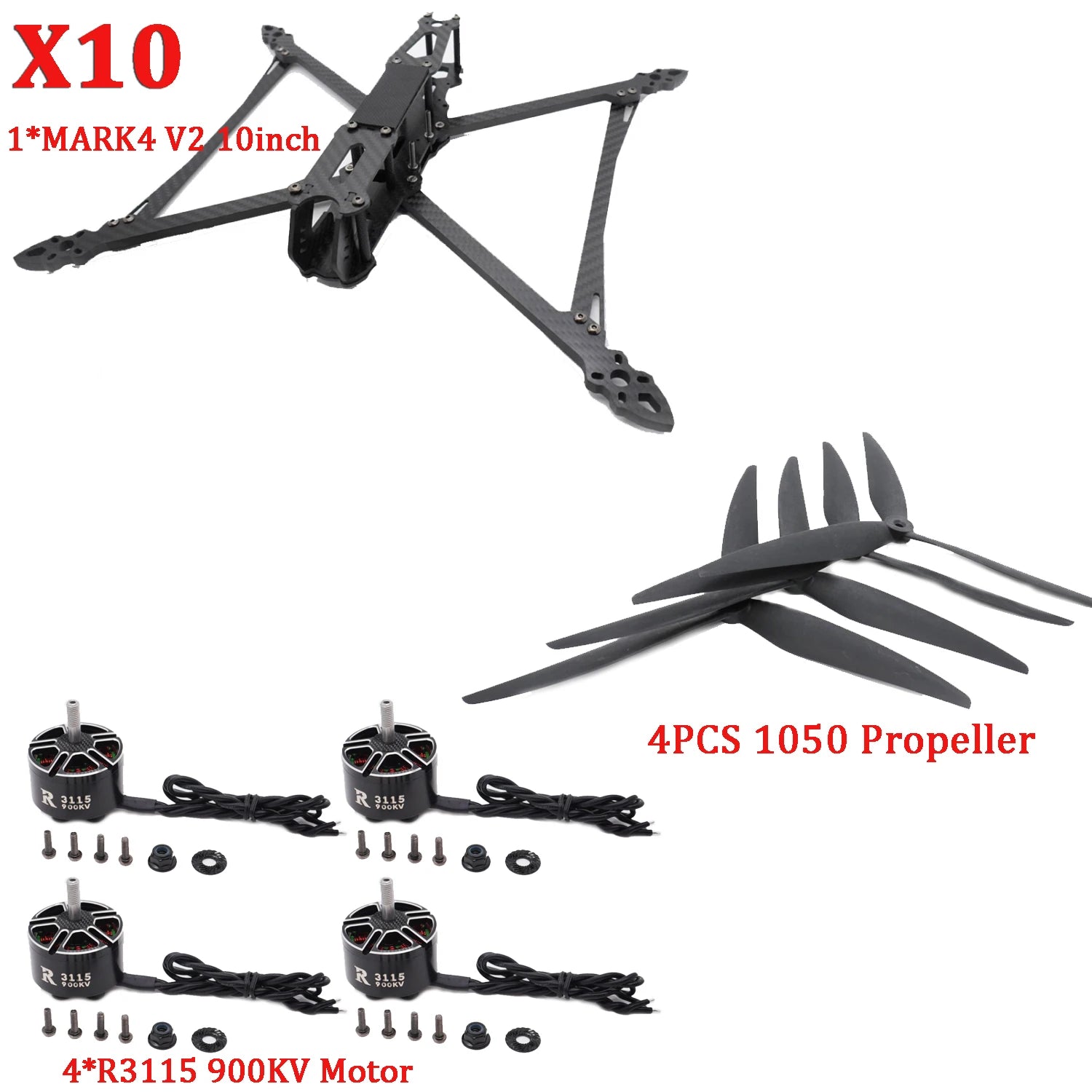

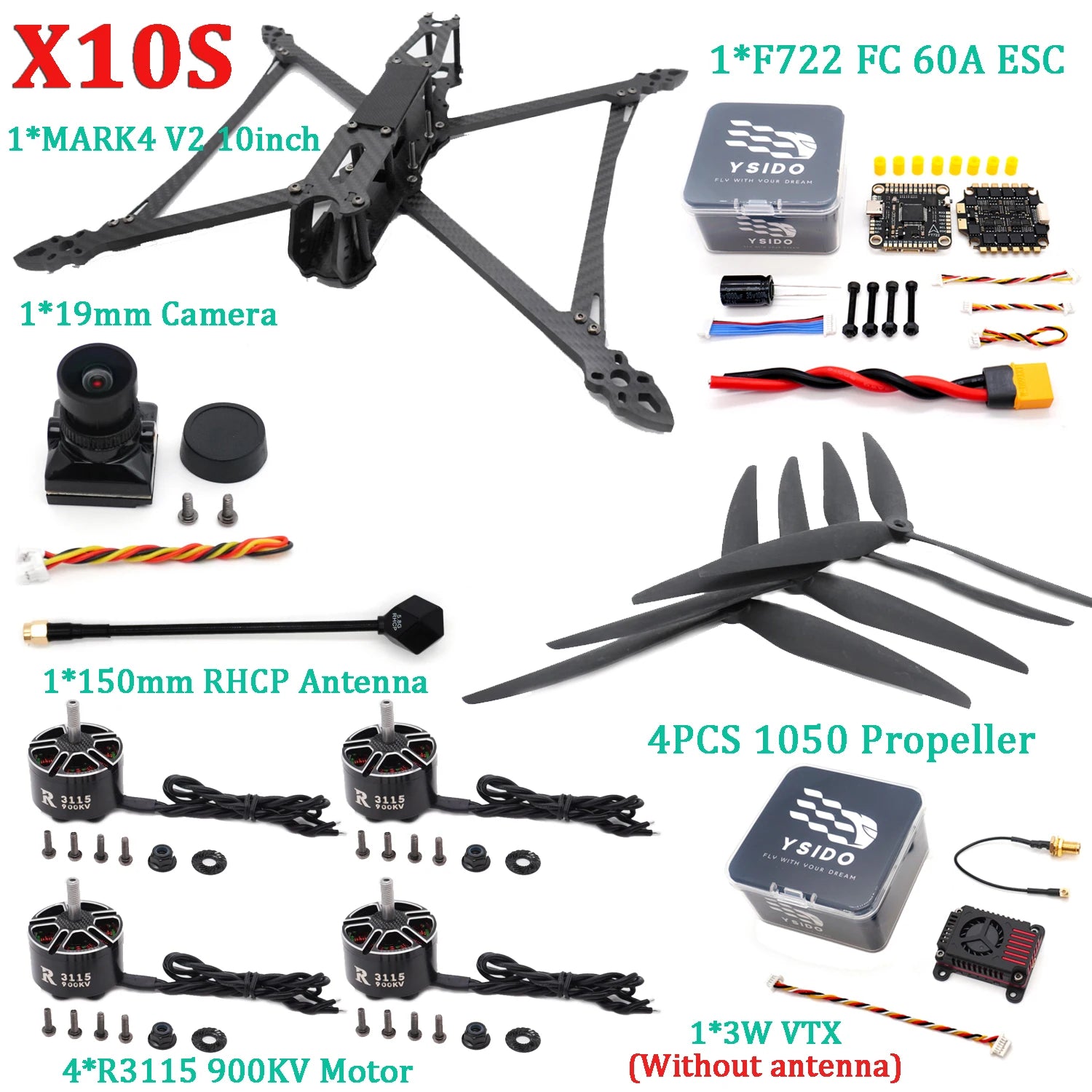

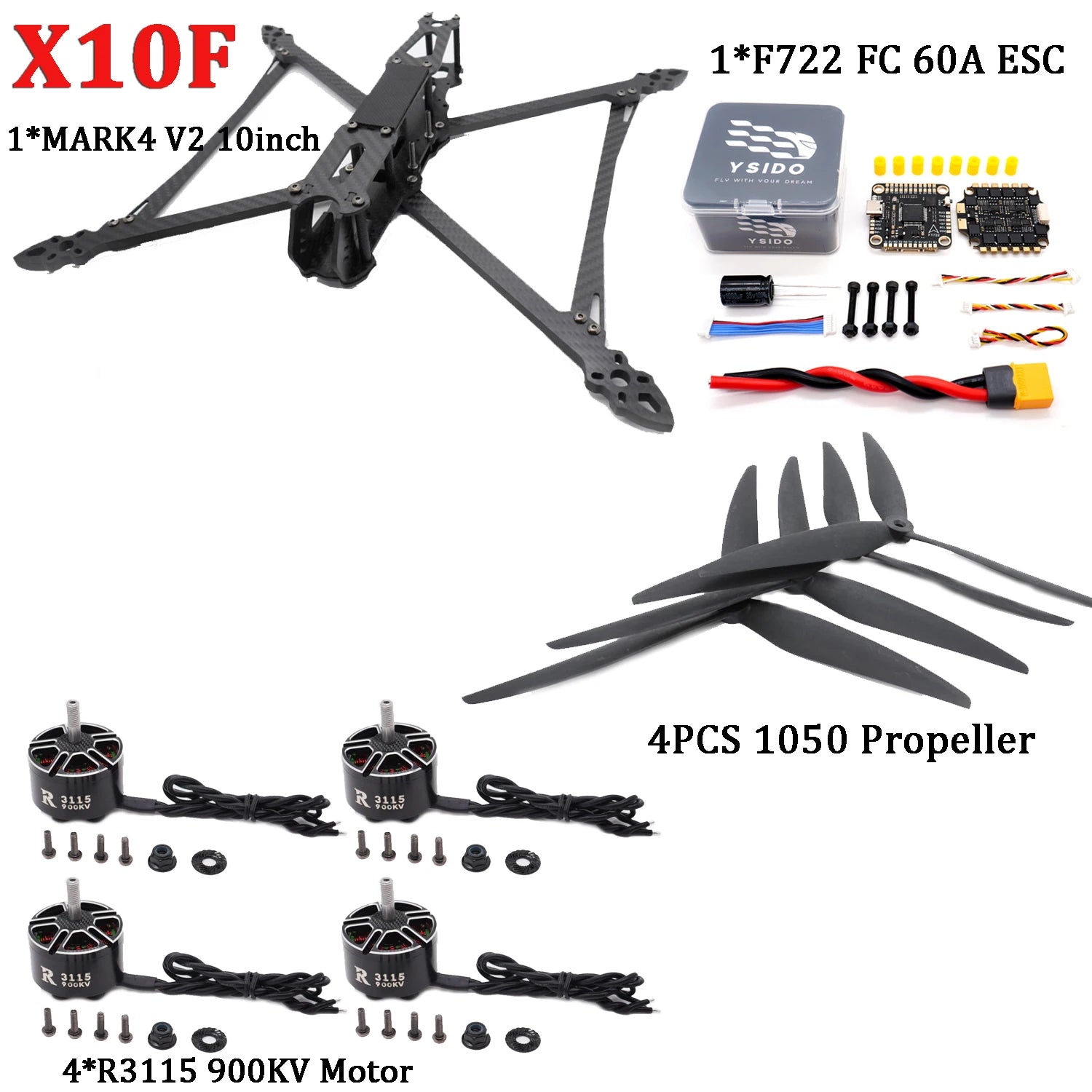

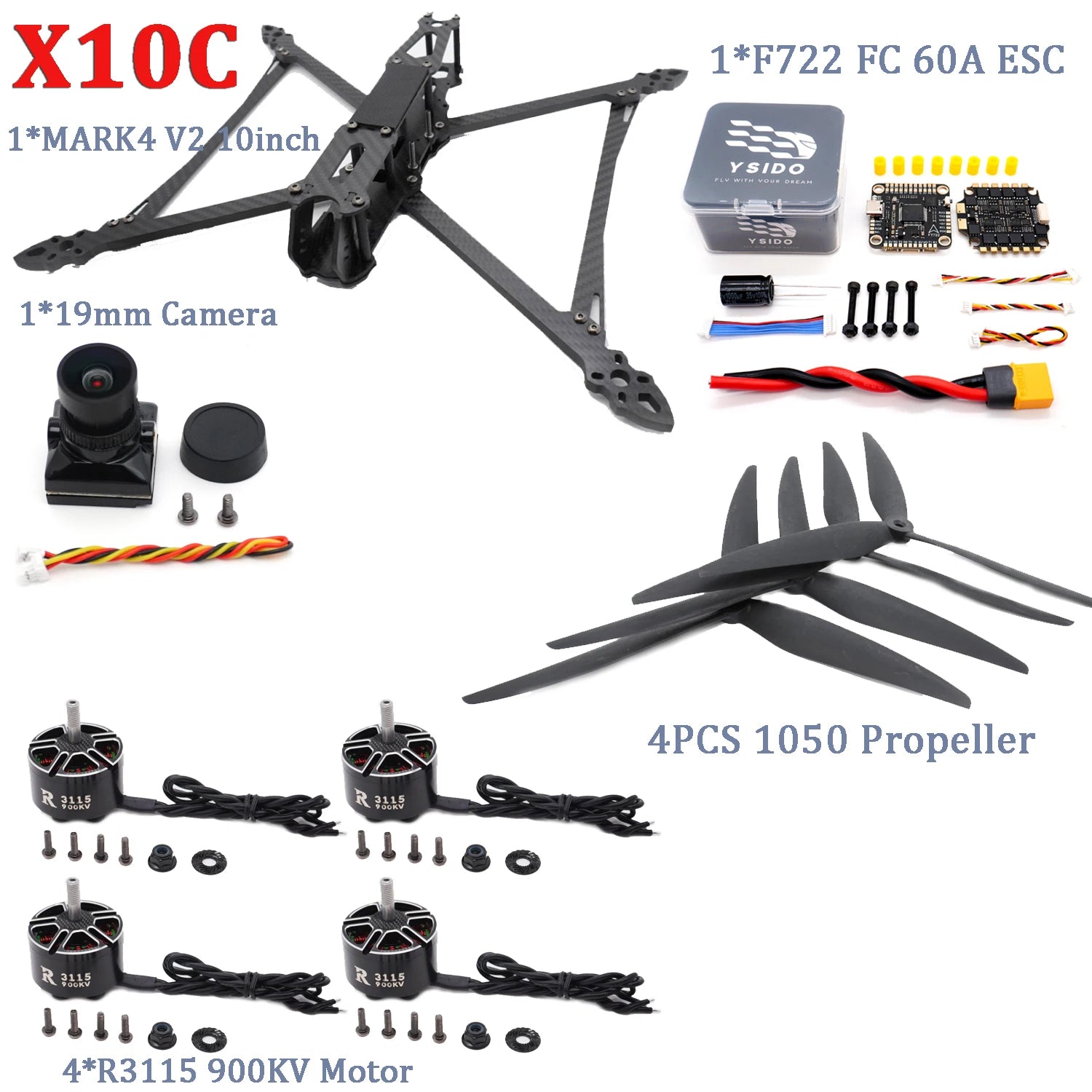

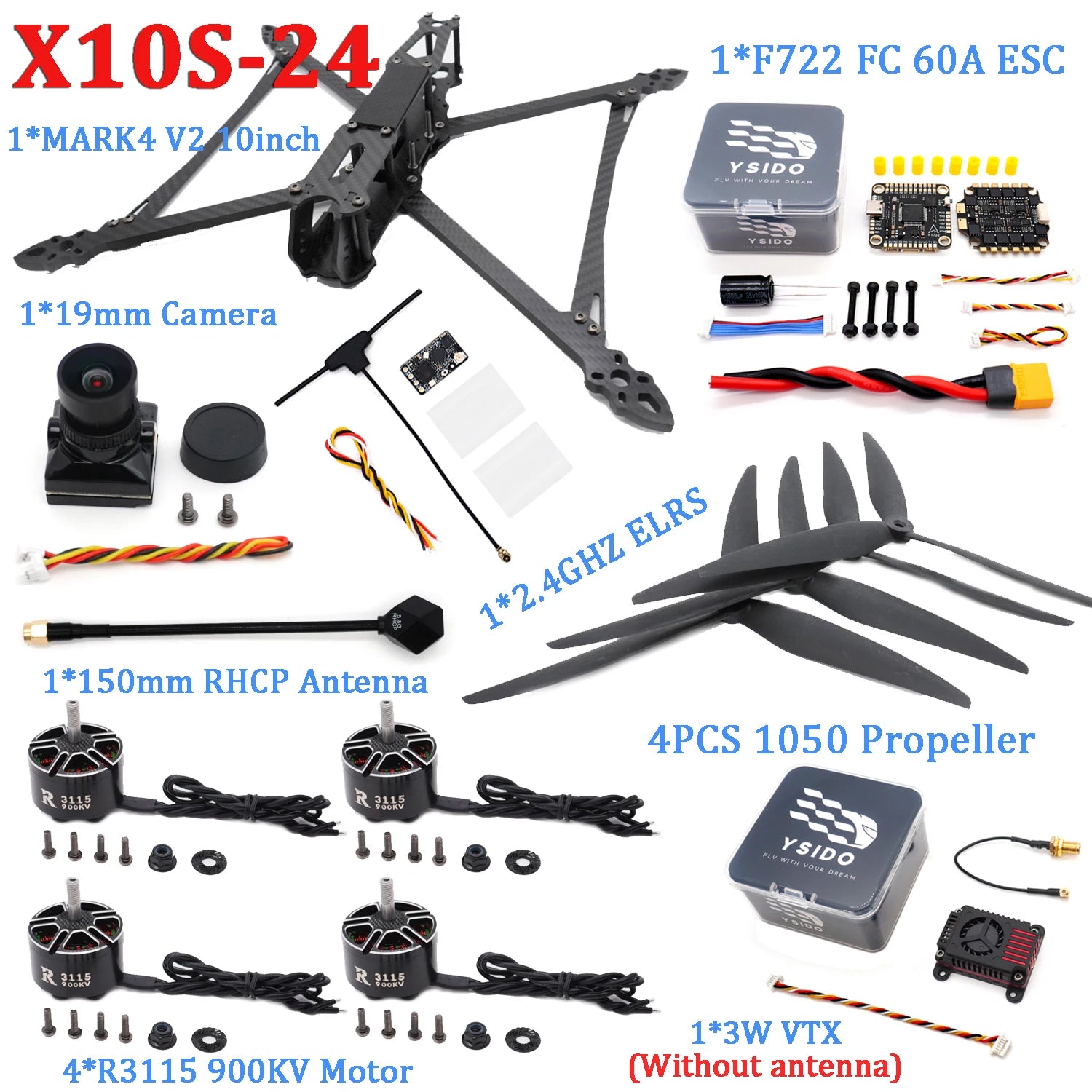

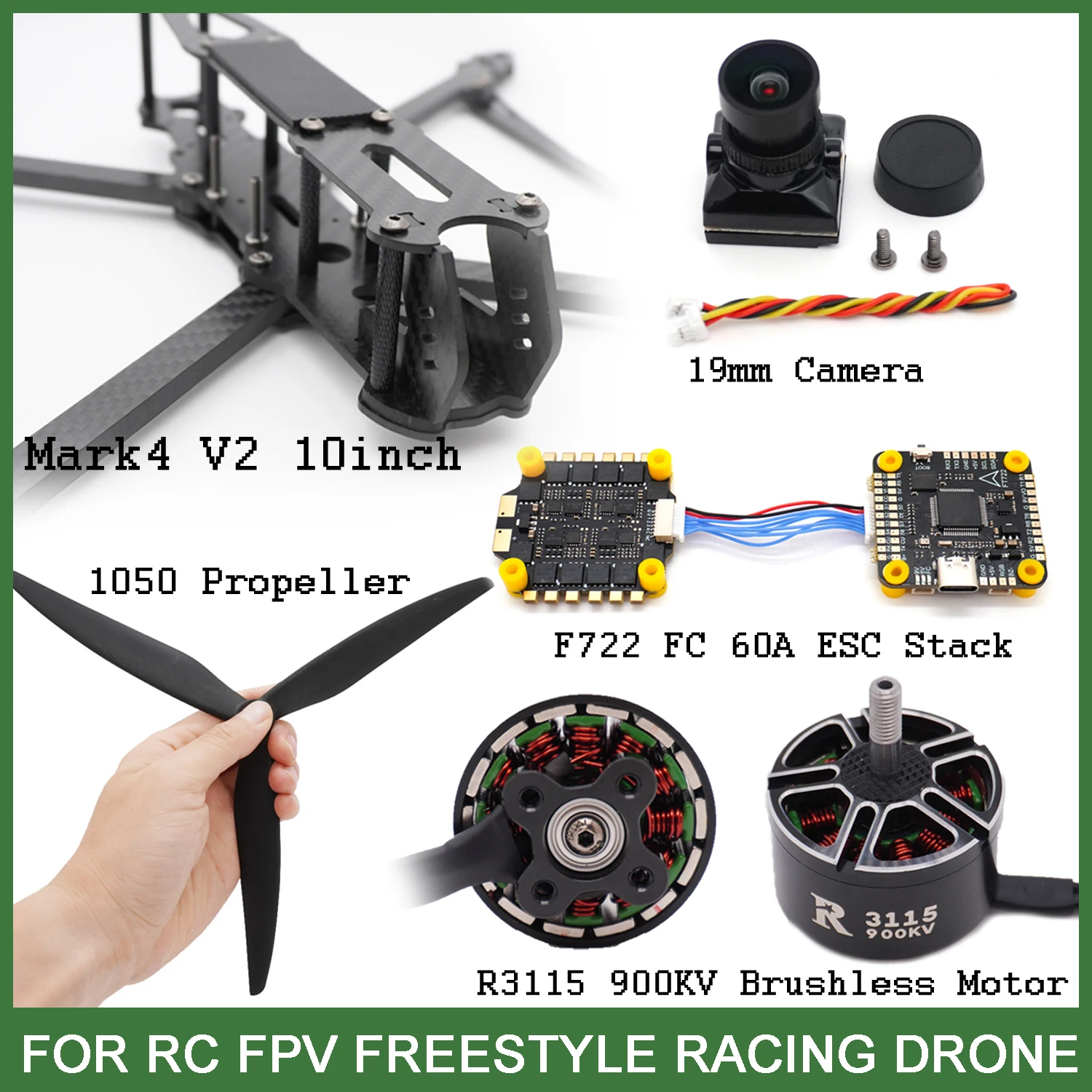

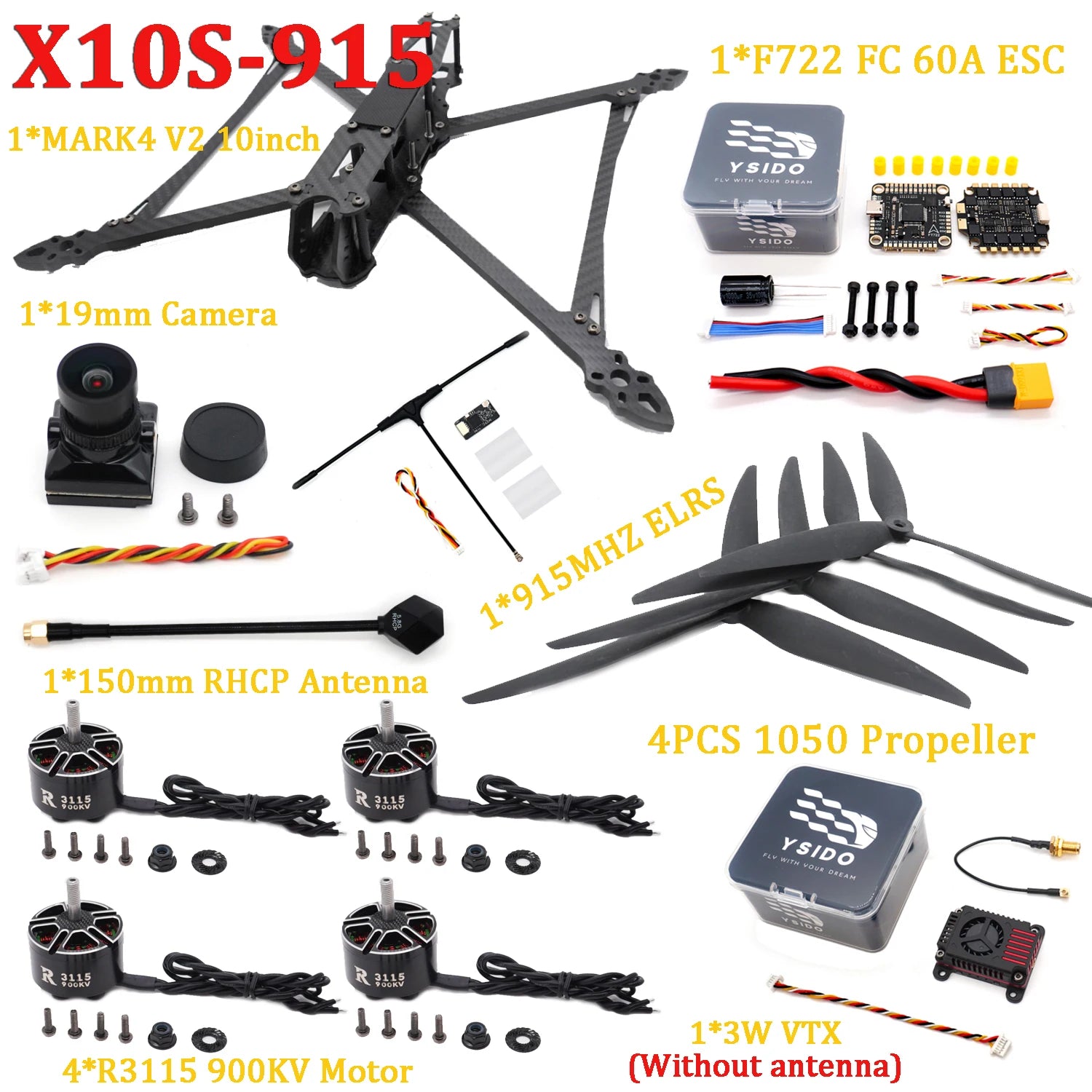

Mark4 V2 10inch Frame Kit F7 Flight Control 60A ESC Stack R3115 900KV Brushless Motor 1050 Propeller ELRS for FPV Camera Drone

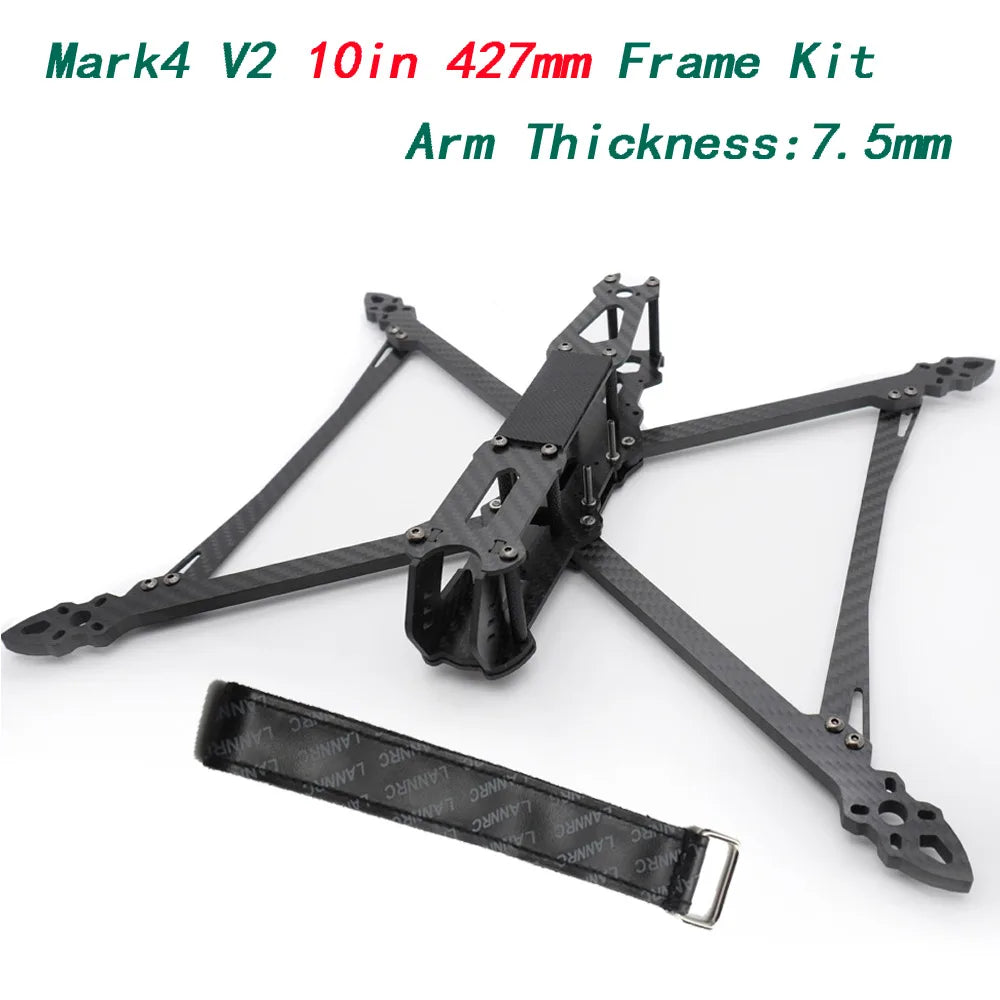

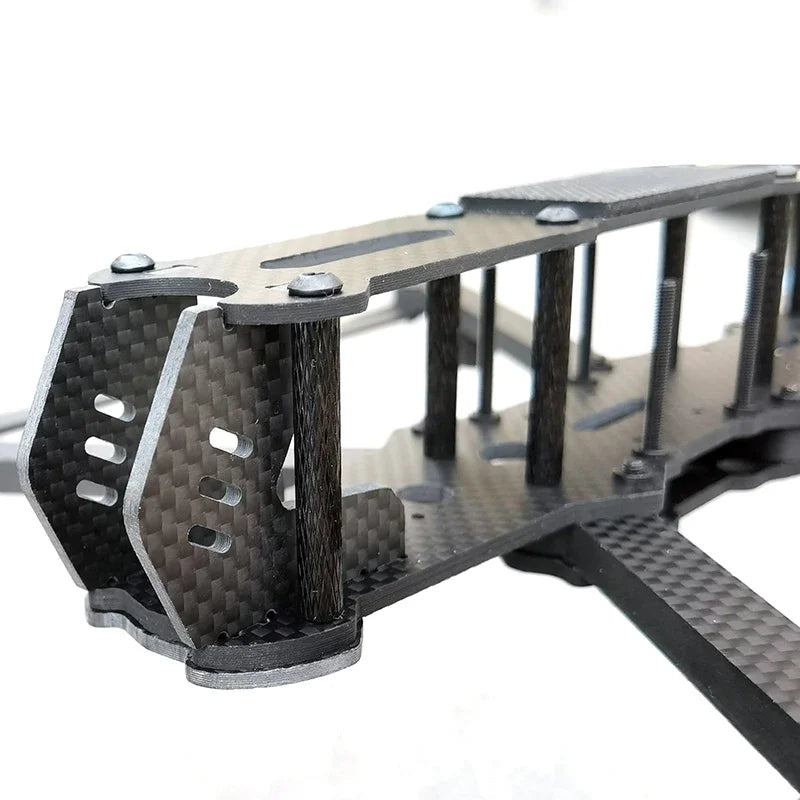

Mark4 V2 10Inch 427mm Carbon Fiber Frame Parameters:

Frame structure: X-Type

Wheelbase: 427mm

Size: 268.18mm*332.07mm

Bottom plate thickness: 3.0mm

Medium plate thickness: 3.0mm

Upper plate thickness: 2.0mm

Arm thickness: 7.5mm

Connecting plate: 2.0mm

Camera side plate thickness: 2.5mm

Camera installation hole spacing: 19mm

Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm

Flight control installation hole spacing: 20*20mm & 30.5*30.5mm

Inner space height: 35mm

Motor installation hole position: 16*16mm & 19*19mm

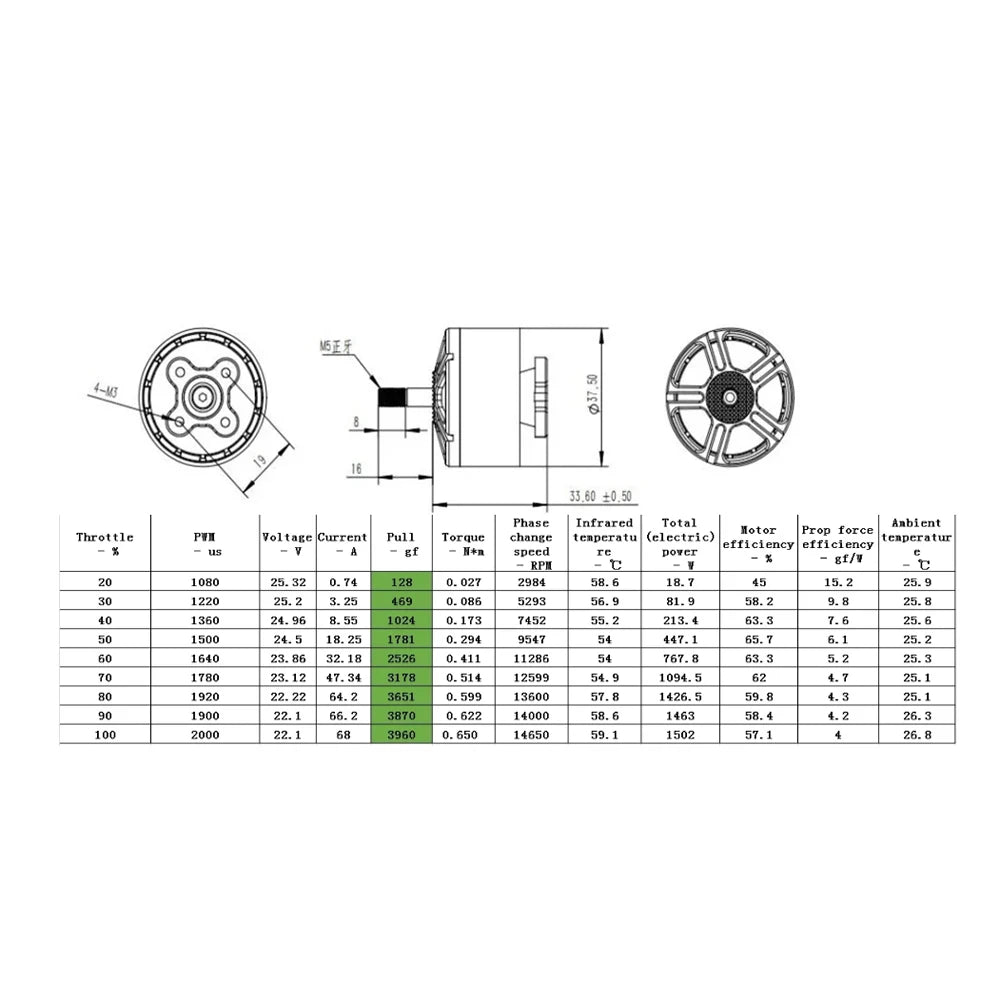

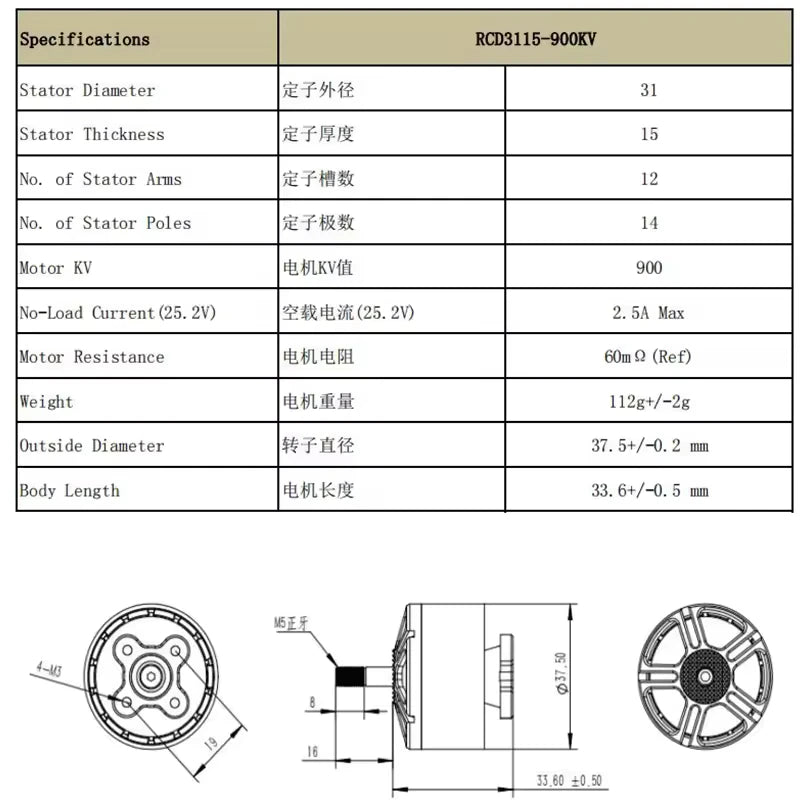

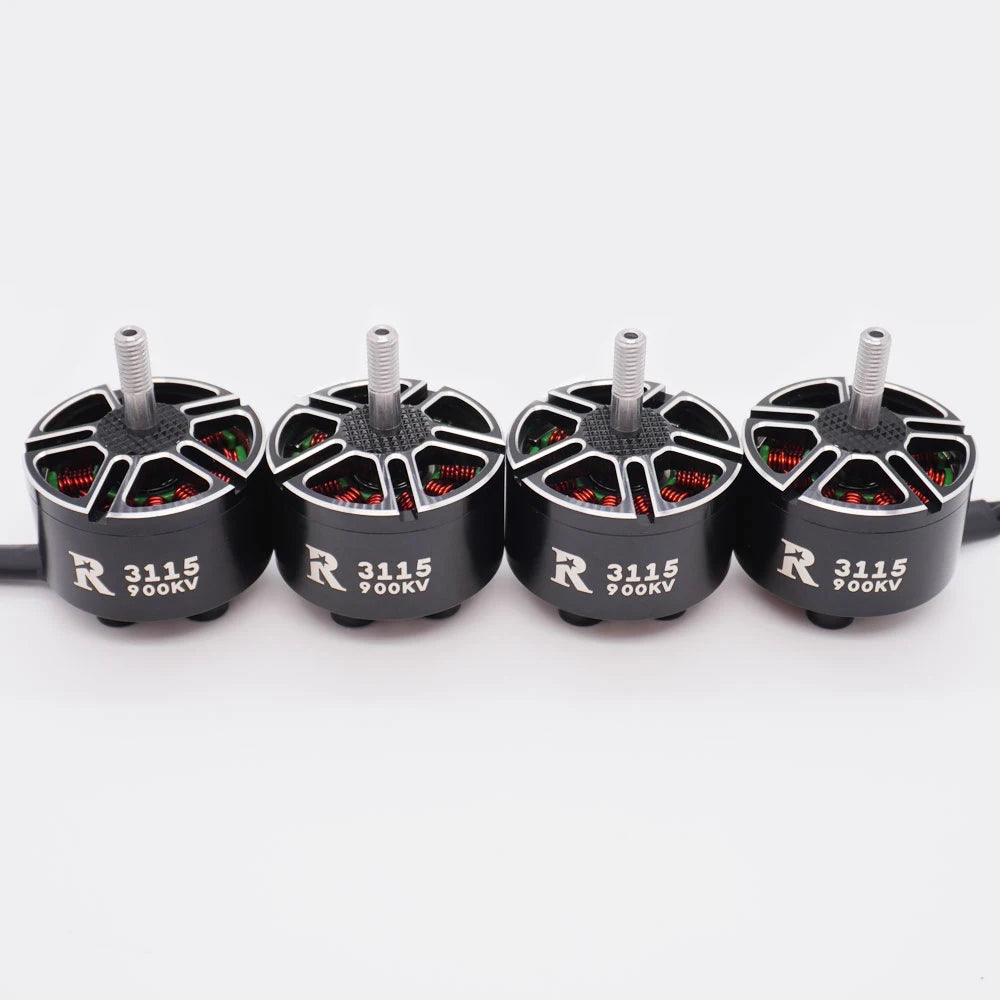

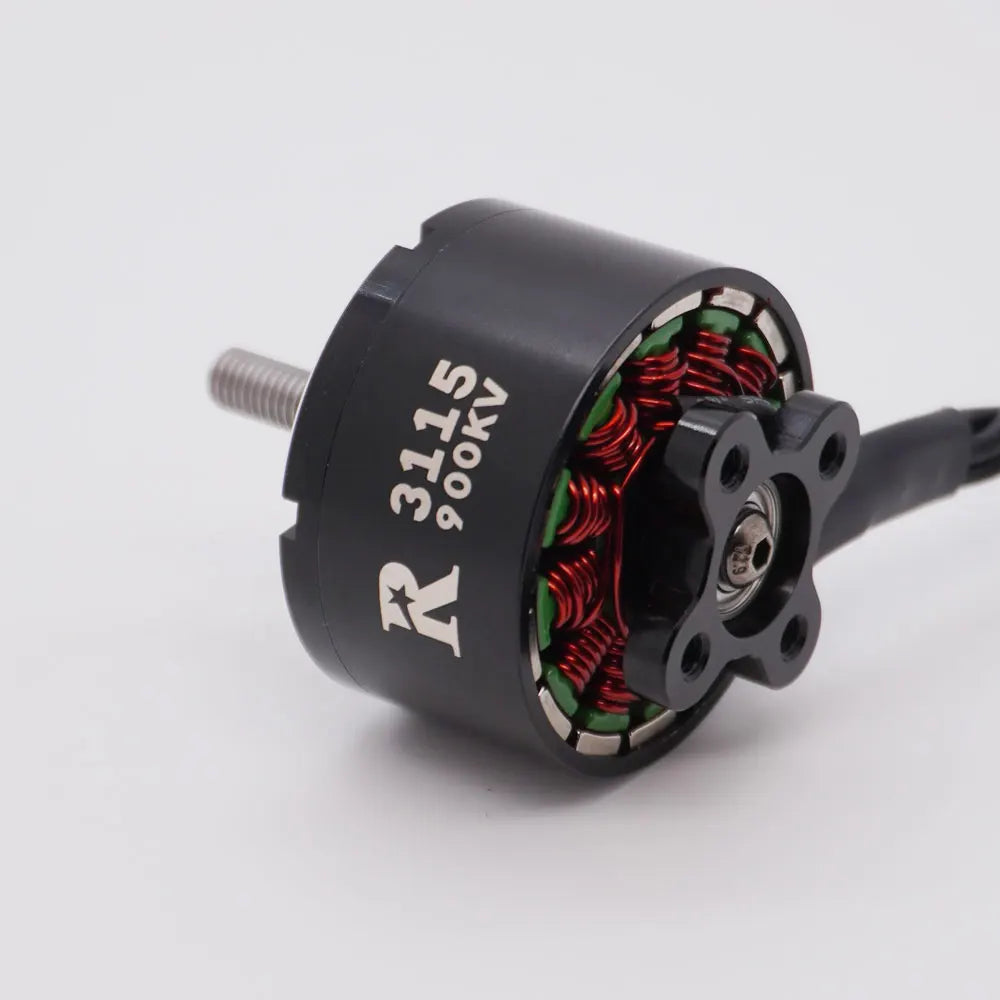

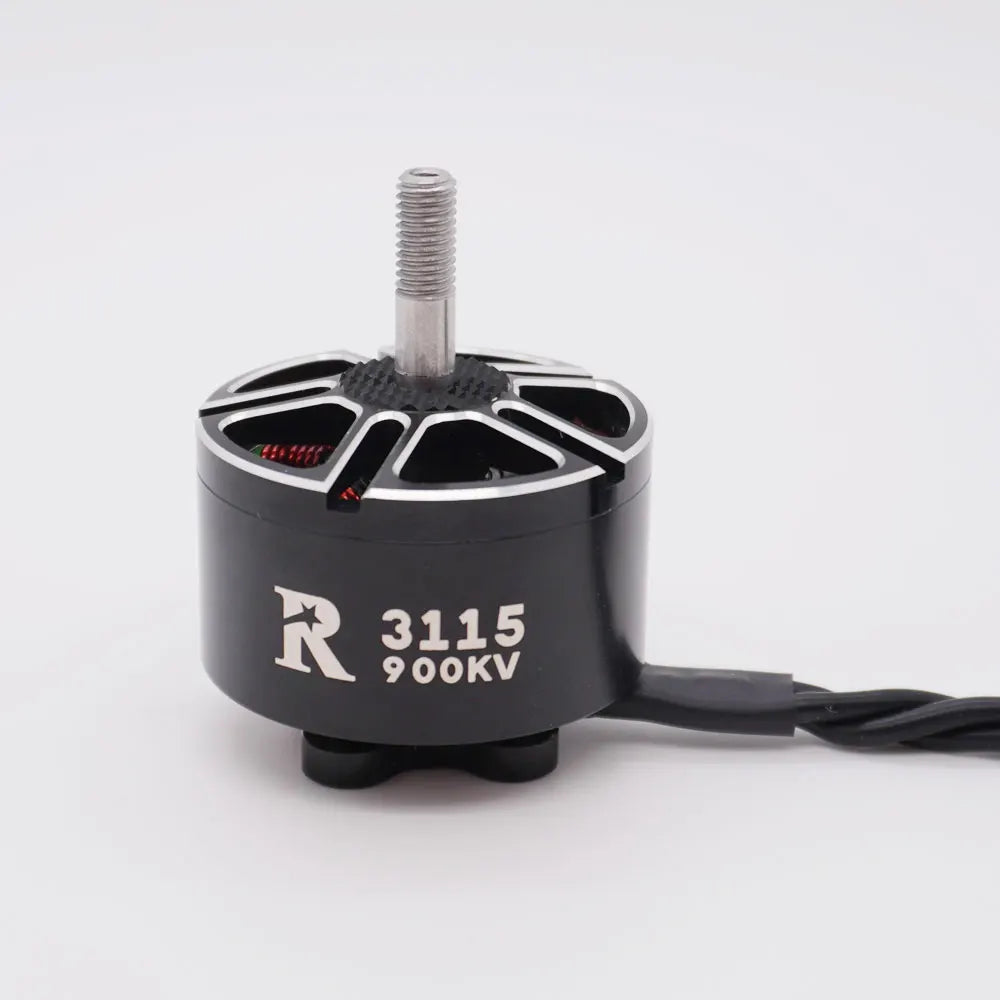

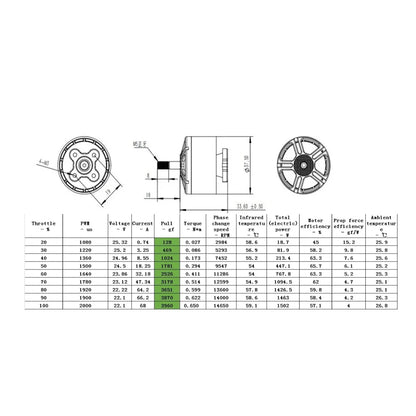

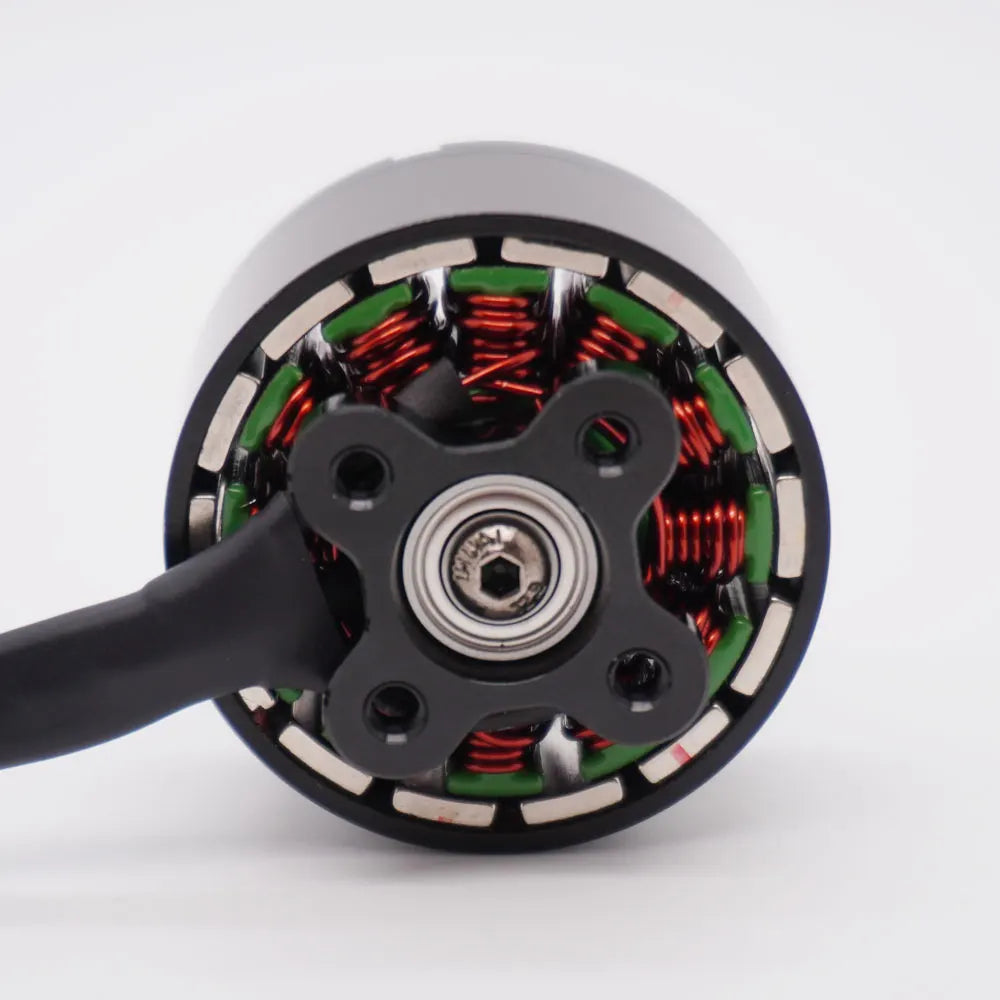

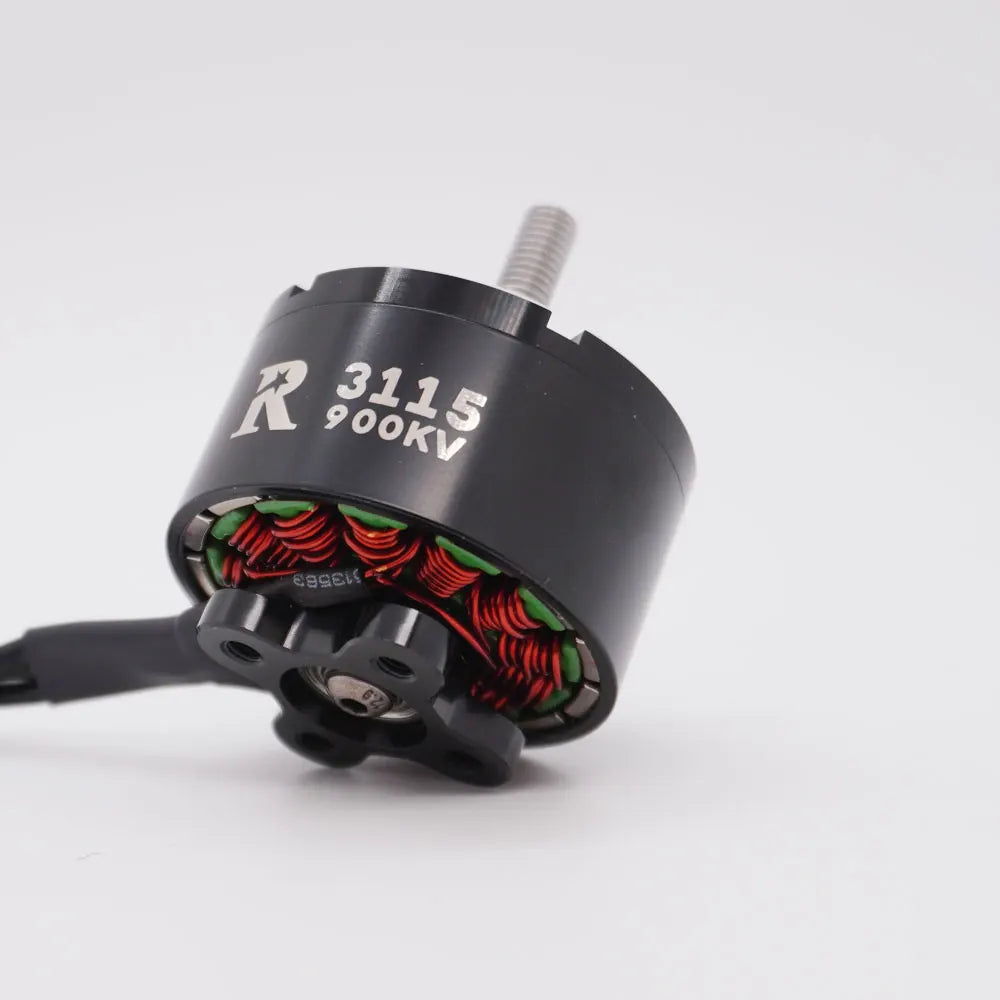

R3115 900KV Motor:

Stator Diameter: 31

Stator Thickness: 15

No. of Stator Arms: 12

No. of Stator Poles: 14

Motor KV: 900KV

No-Load Current(25.2V): 2.5A Max

Motor Resistance: 60m Ω (Ref)

Weight: 112g+/-2g

Outside Diameter: 37.5+/-0.2 mm

Body Length: 33.6+/-0.5 m

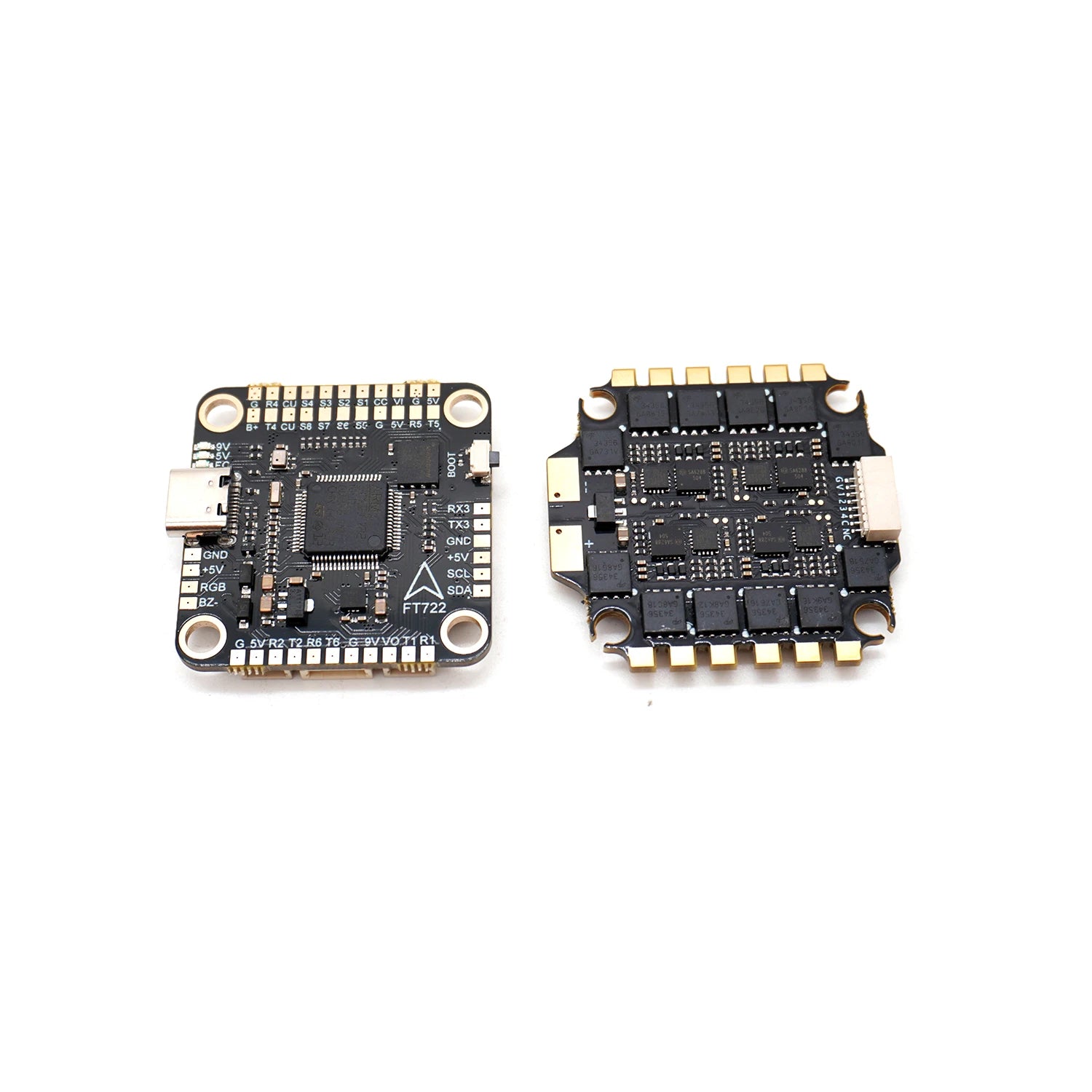

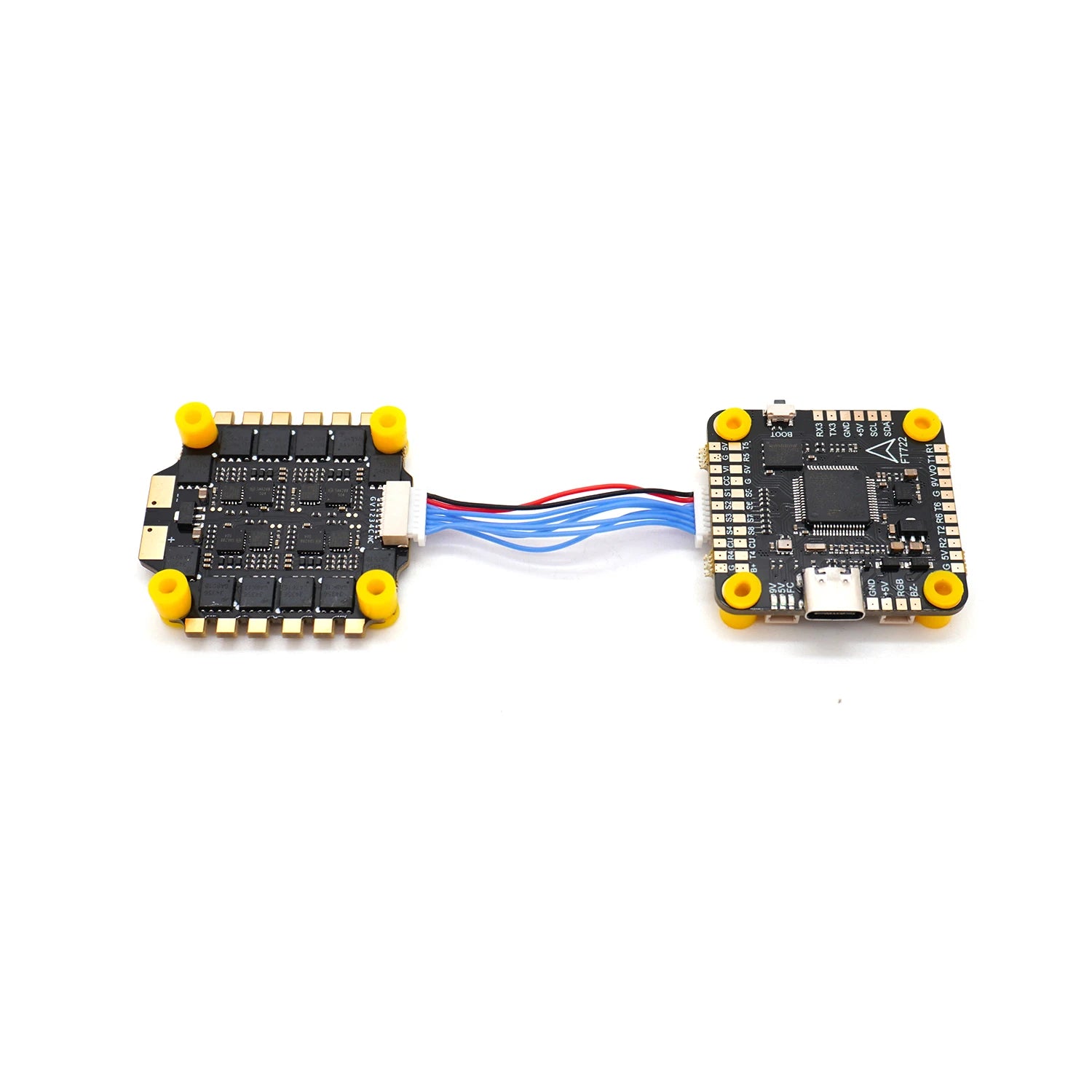

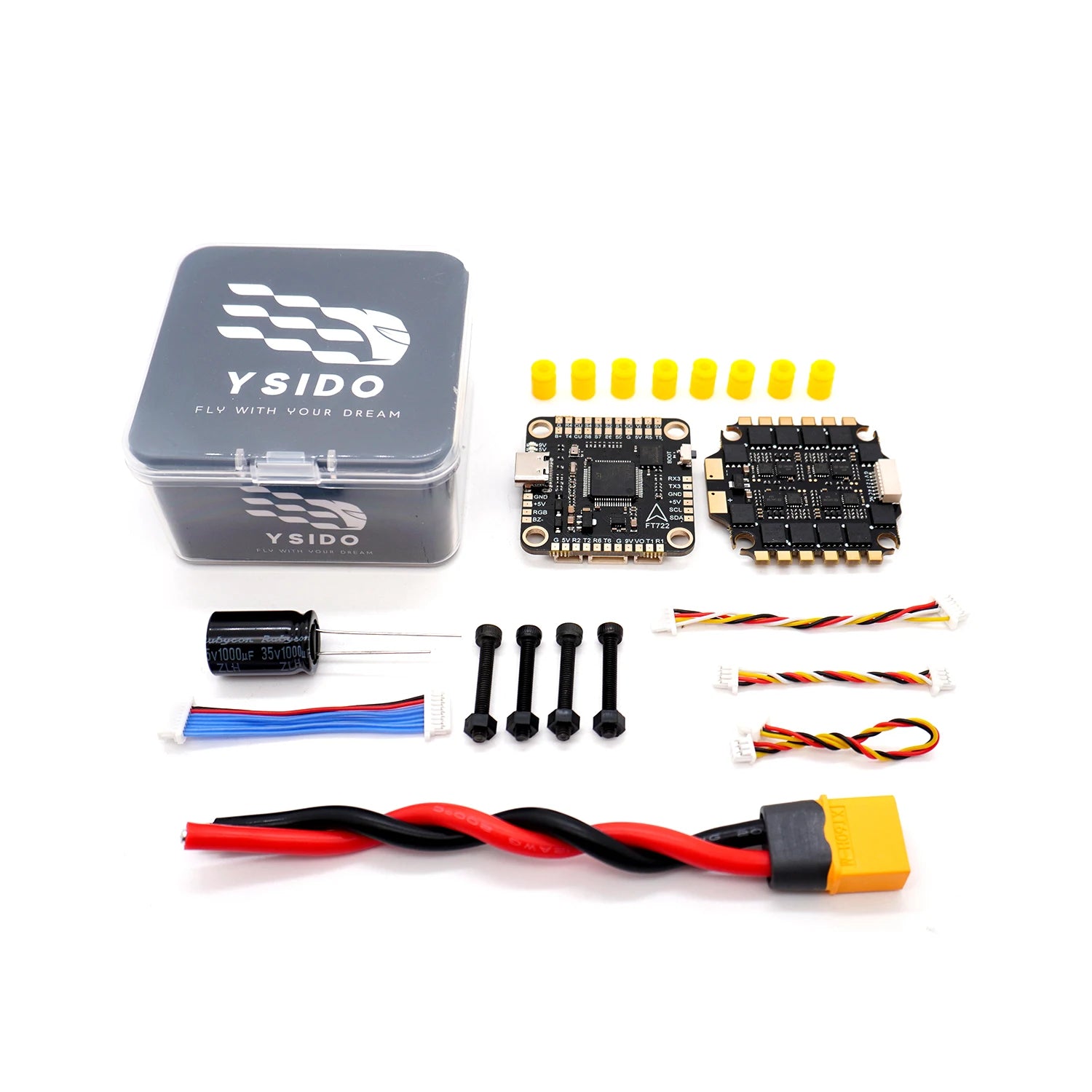

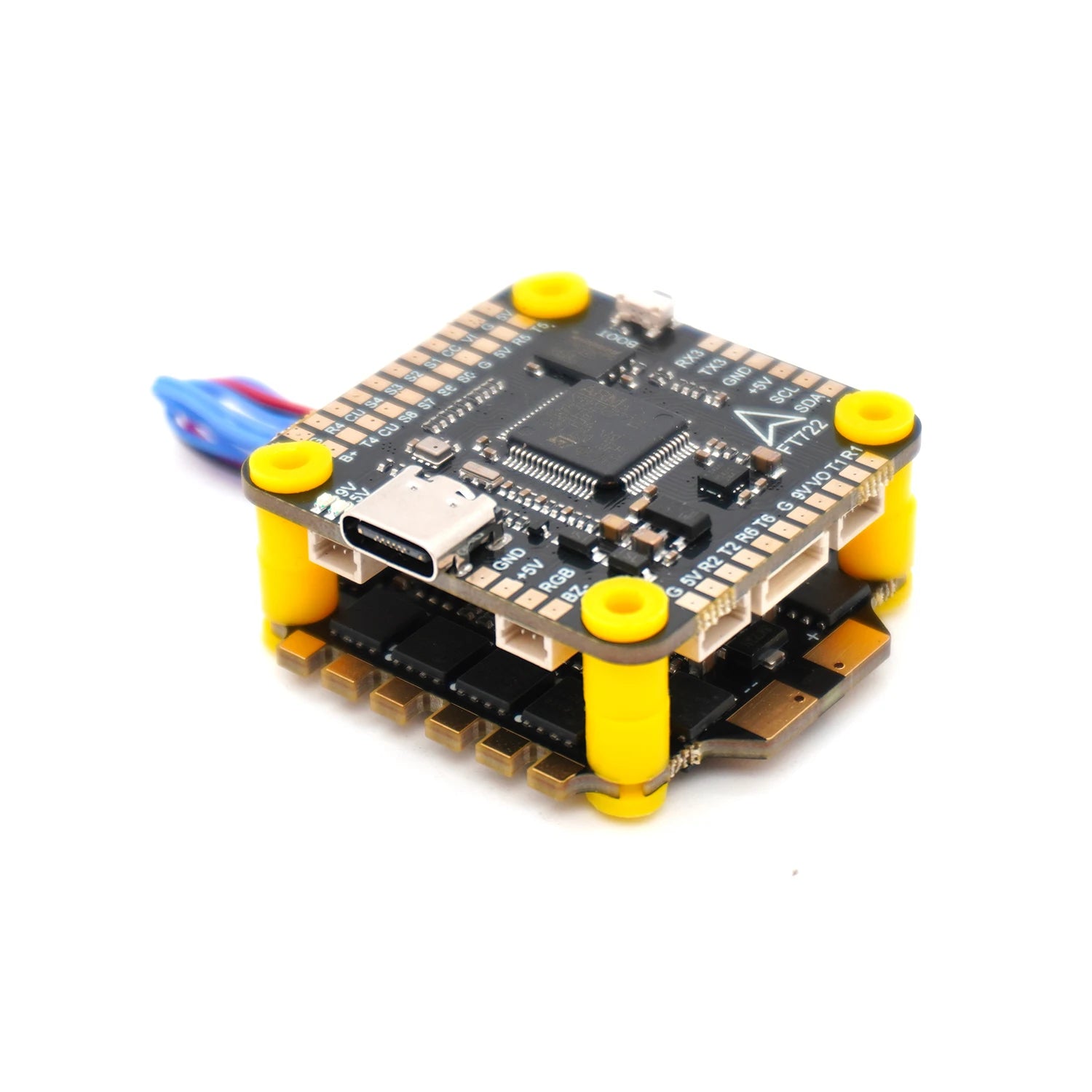

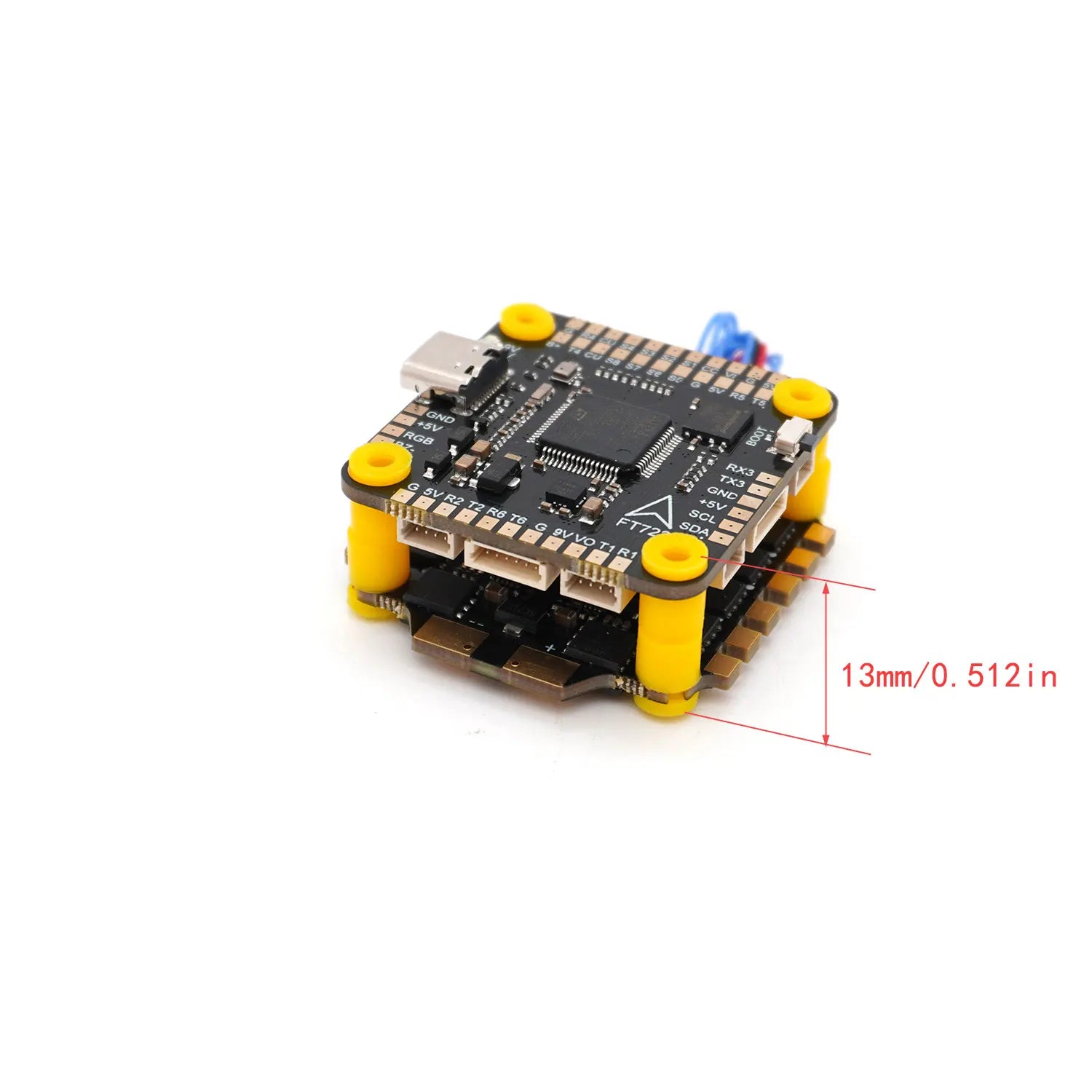

F722 FC:

Model: F722 Flight Controller

MCU: STM32F722RET6

IMU: ICM-42688

OSD: AT7456E

Baro: SPL06-001

Blackbox: 16MB

Input voltage: 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

IO2: USER2

Receiver: ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX

UART: UART1/2/3/4/5/6

IIC: 12C1

Led Strip:YES

Buzzer: 5V

ESCsignal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600

USB: TYPE-C

Current port: YES

Voltage sensor: YES

DFU button: YES

Firmware: Betaflight 4.3.1 JHEF7DUAL.HEX

Size: 40*40MM

Mounting Hole: 30.5*30.5*4MM

Weight: 8.8g

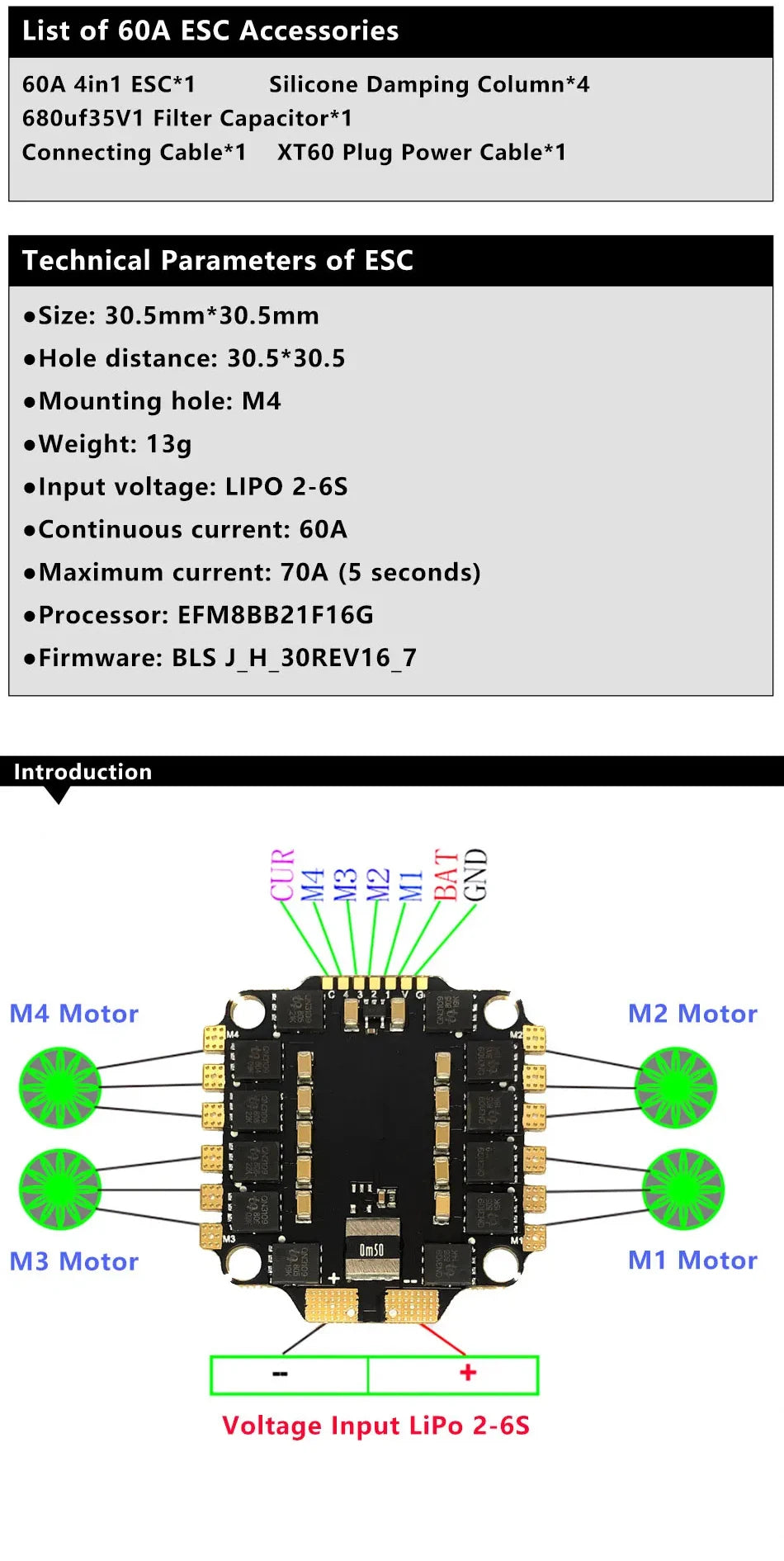

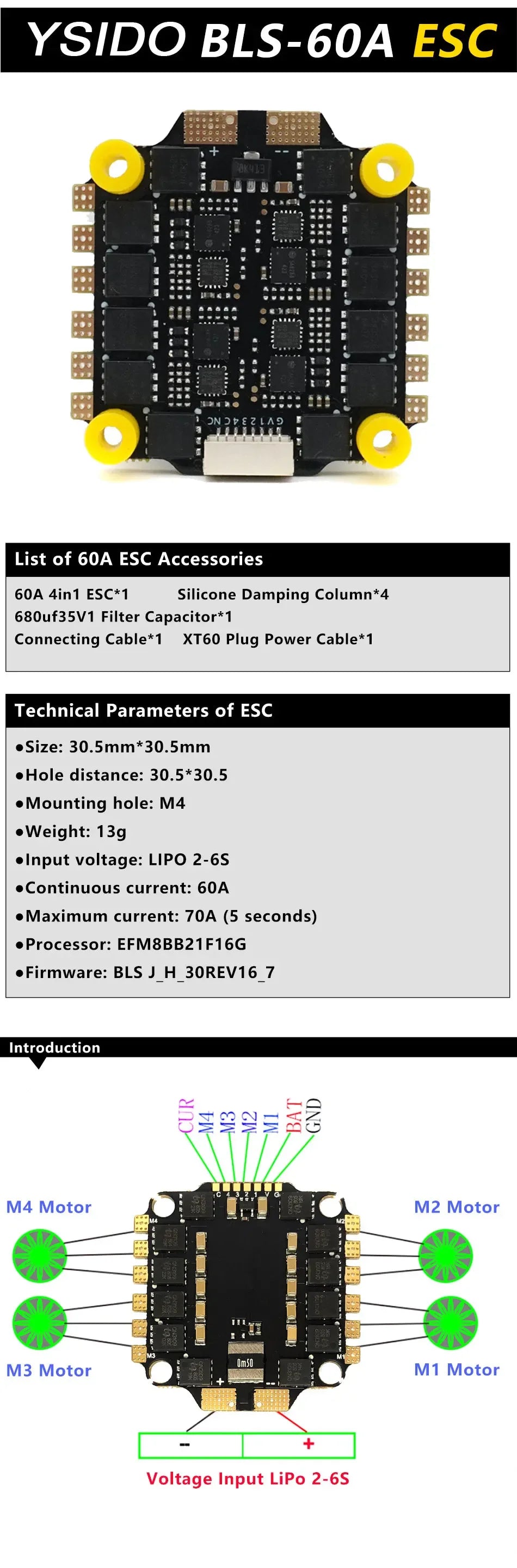

60A ESC:

60A 4-in-1 ESC

The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation

ESC onboard current sensor.

Continuous current: 60A

Instantaneous current [5 seconds]: 70A

Firmware: BLS J_H_30_REV16_7

The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize

the battery voltage, and protect the precision components of the flight control ESC

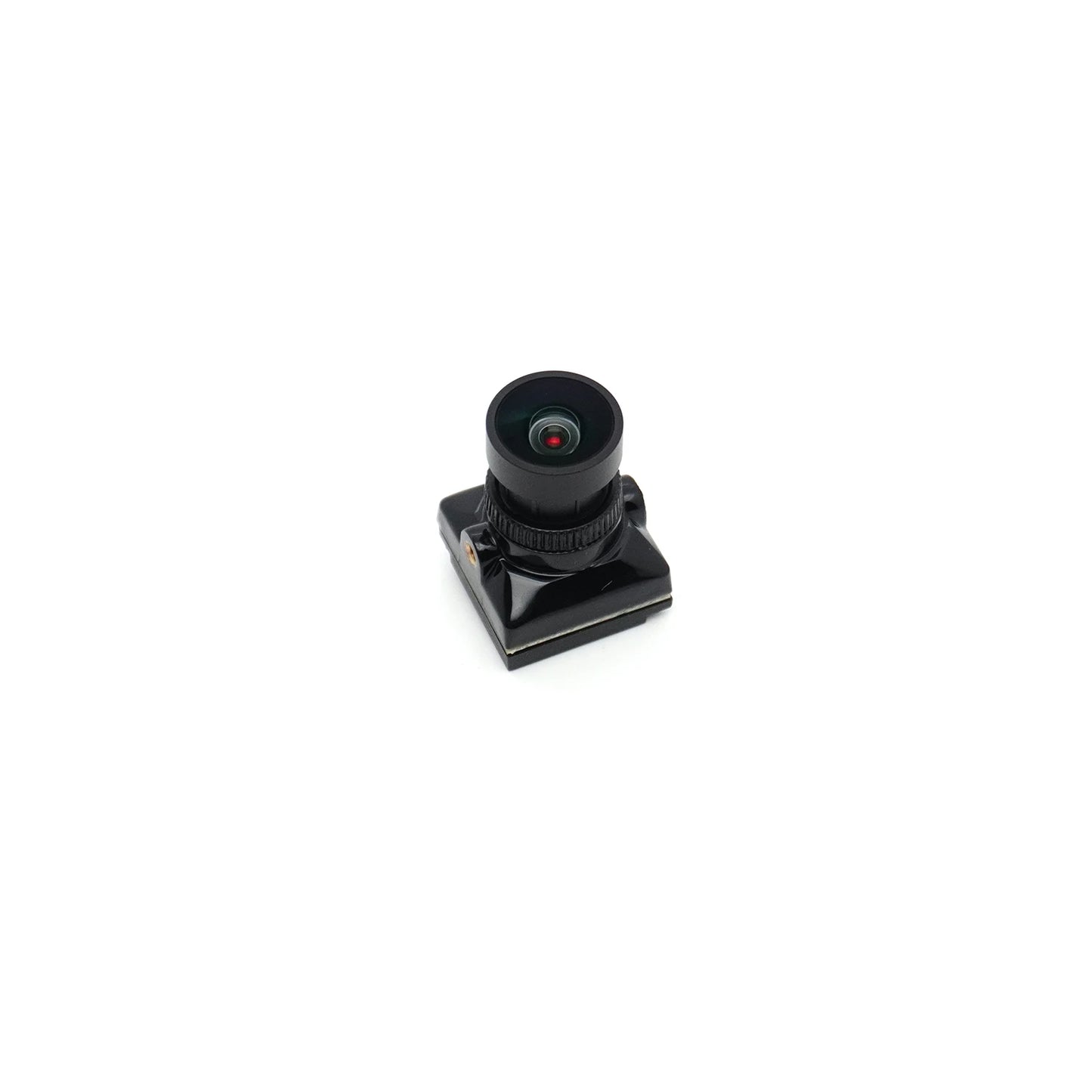

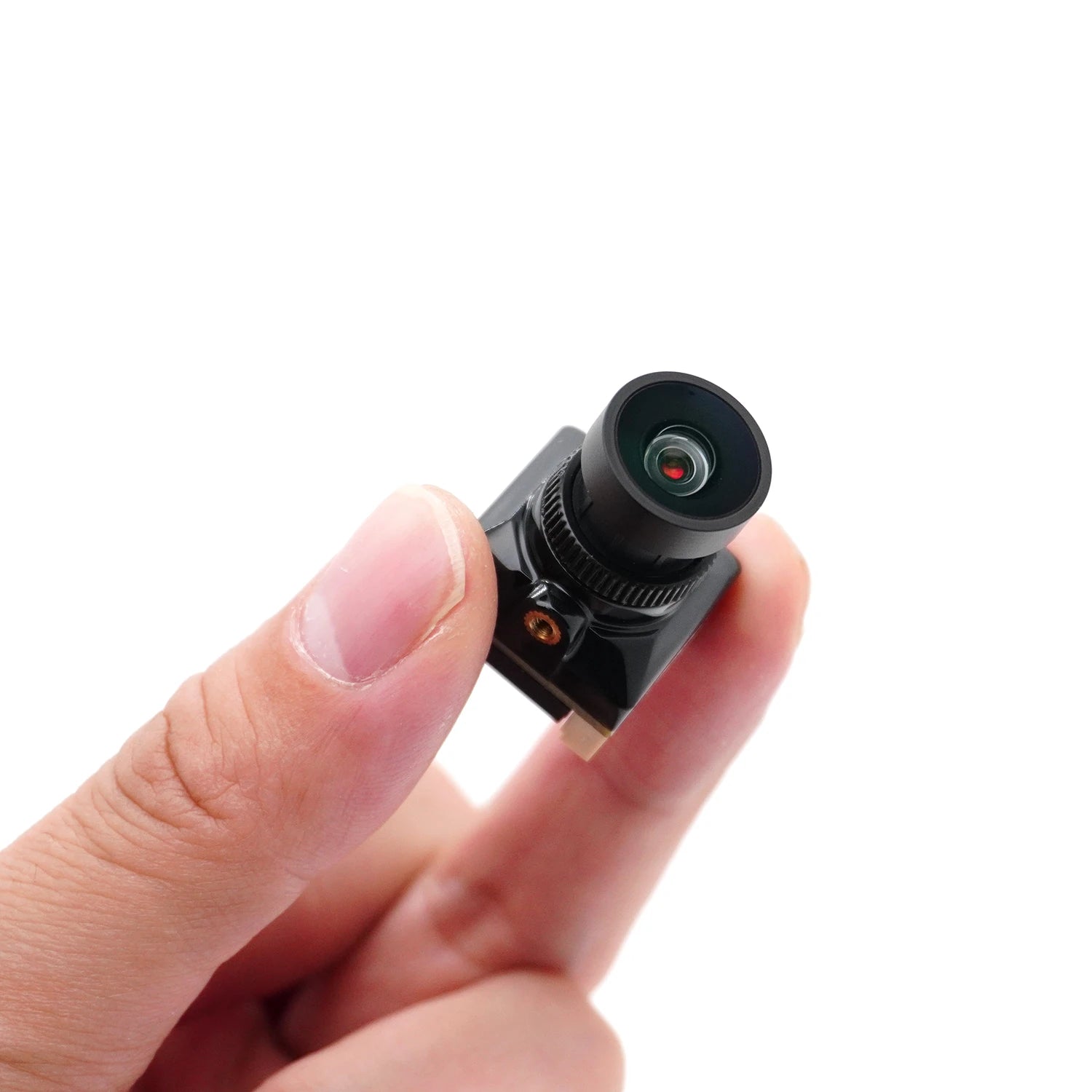

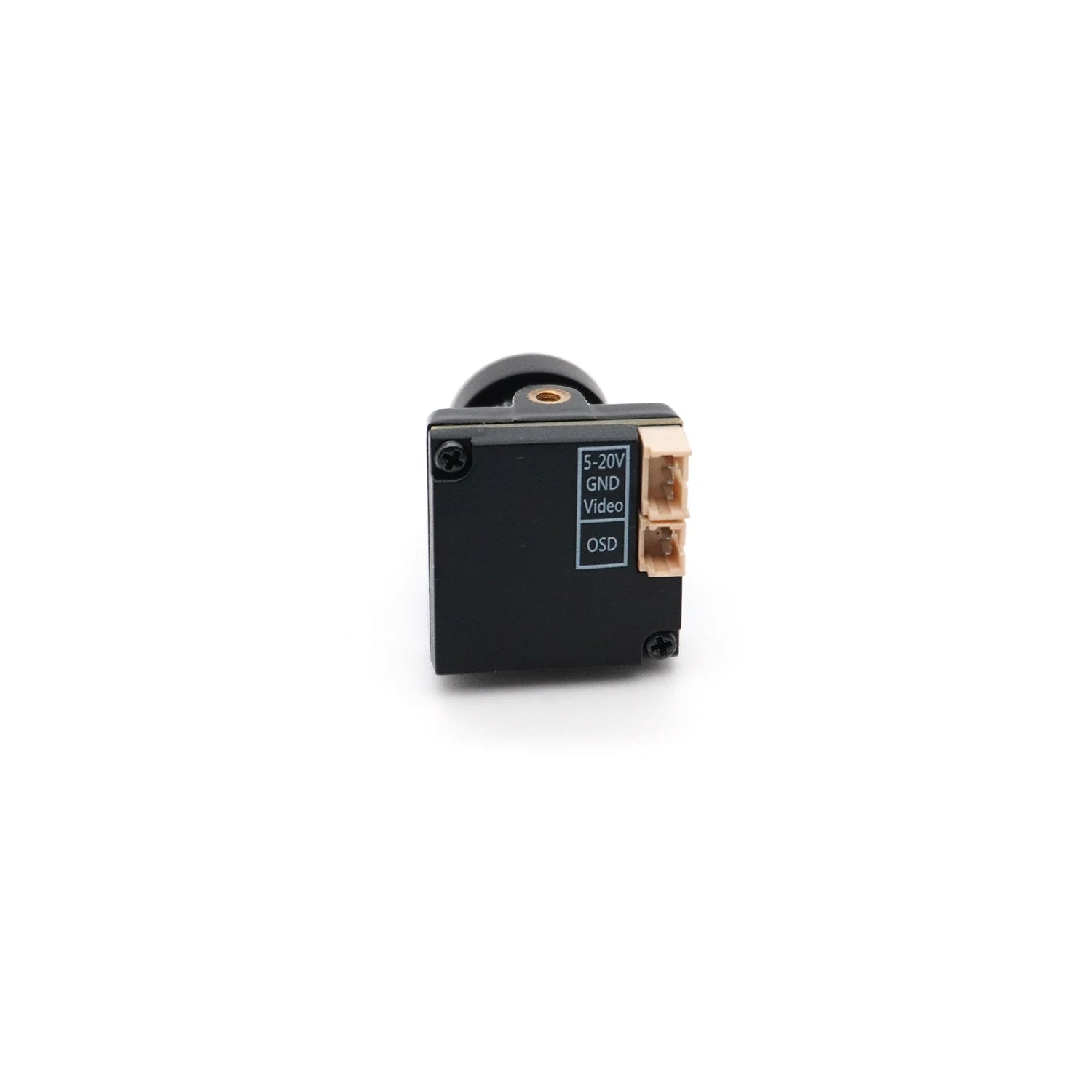

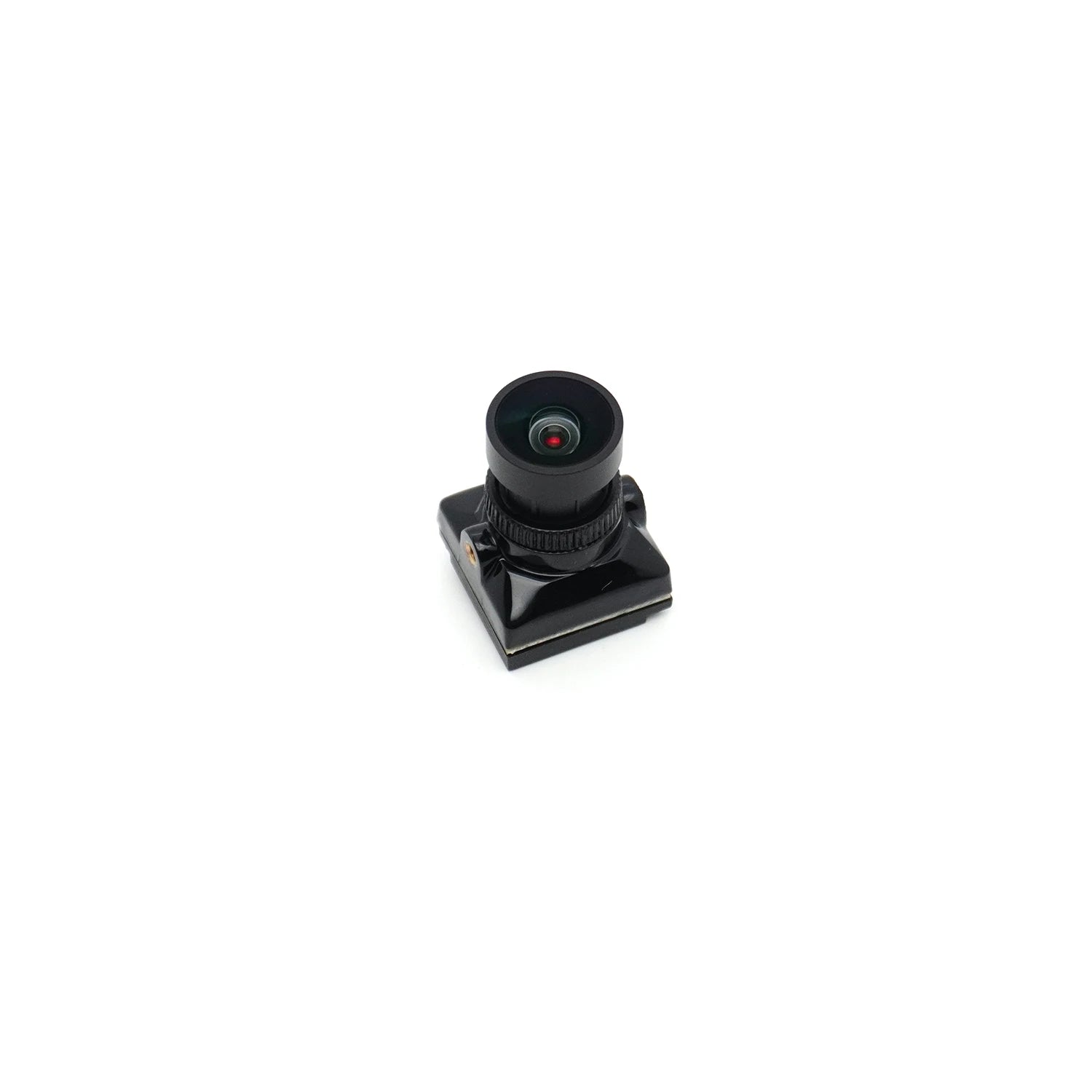

19mm Camera：

Sensor：1/2.7’Black light sensor

Articulation：1500TVL

Lens：2.1mm

Video mode：PAL/NTSC (Manual switchable)

Signal-to-noise ratio：>38Db

Electronic shutter：PAL:1/50-100.000SEC.NTSC:1/60-100,000

Video output：CVBS

FOV：135°

illuminance：0.00001Lux

Digital noise reduction：3D-DNR

WDR：D-WDR

Day and night switch：Color /AR Black Light/Auto

voltage：DC 5V-20V

weight：6.0g

Operating temperature：-20”~+70

dimension：19mm*19mm

OSD

Graphics：16:9

Exposure：Electronic shutter/automatic

gain control/Brightness

White balance：Automatically track white balance

Day-night mode：Internal Auto/color mode/black and white mode

Video setup：Contrast/sharpness/saturation/digitalnoise reduction

Language：Chinese/English/German/ltalian/Russian/Japanese

factory data reset：OK

Save exit：OK

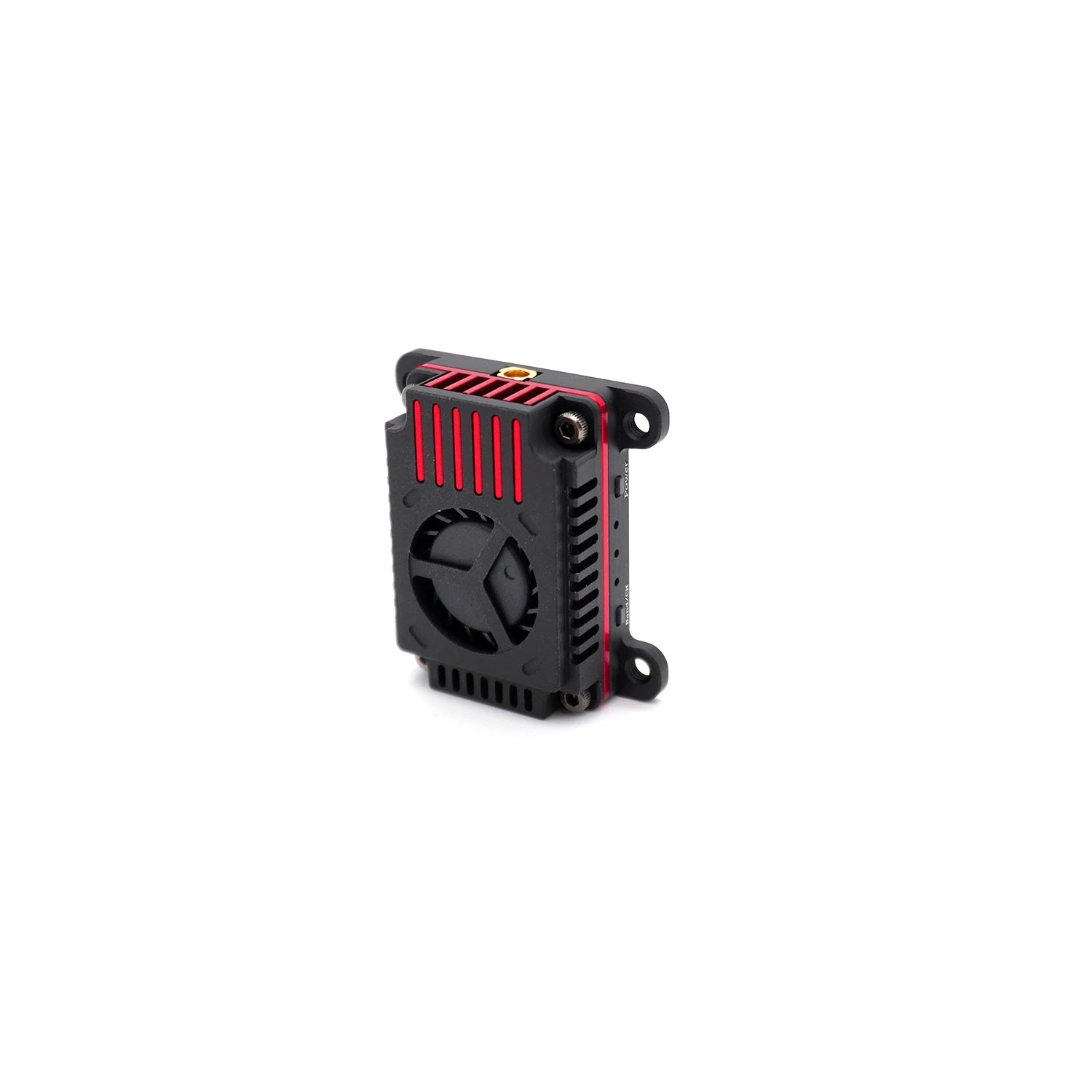

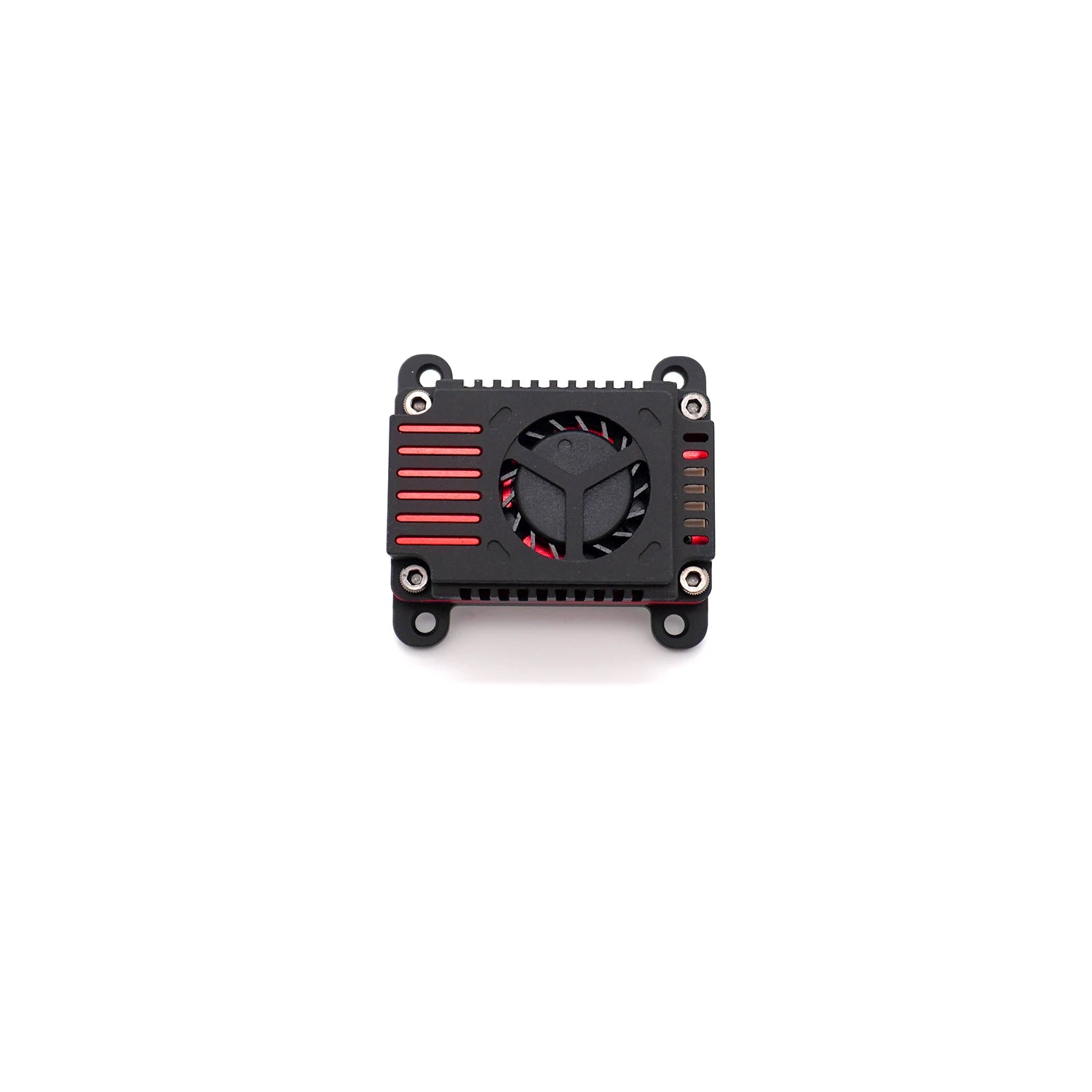

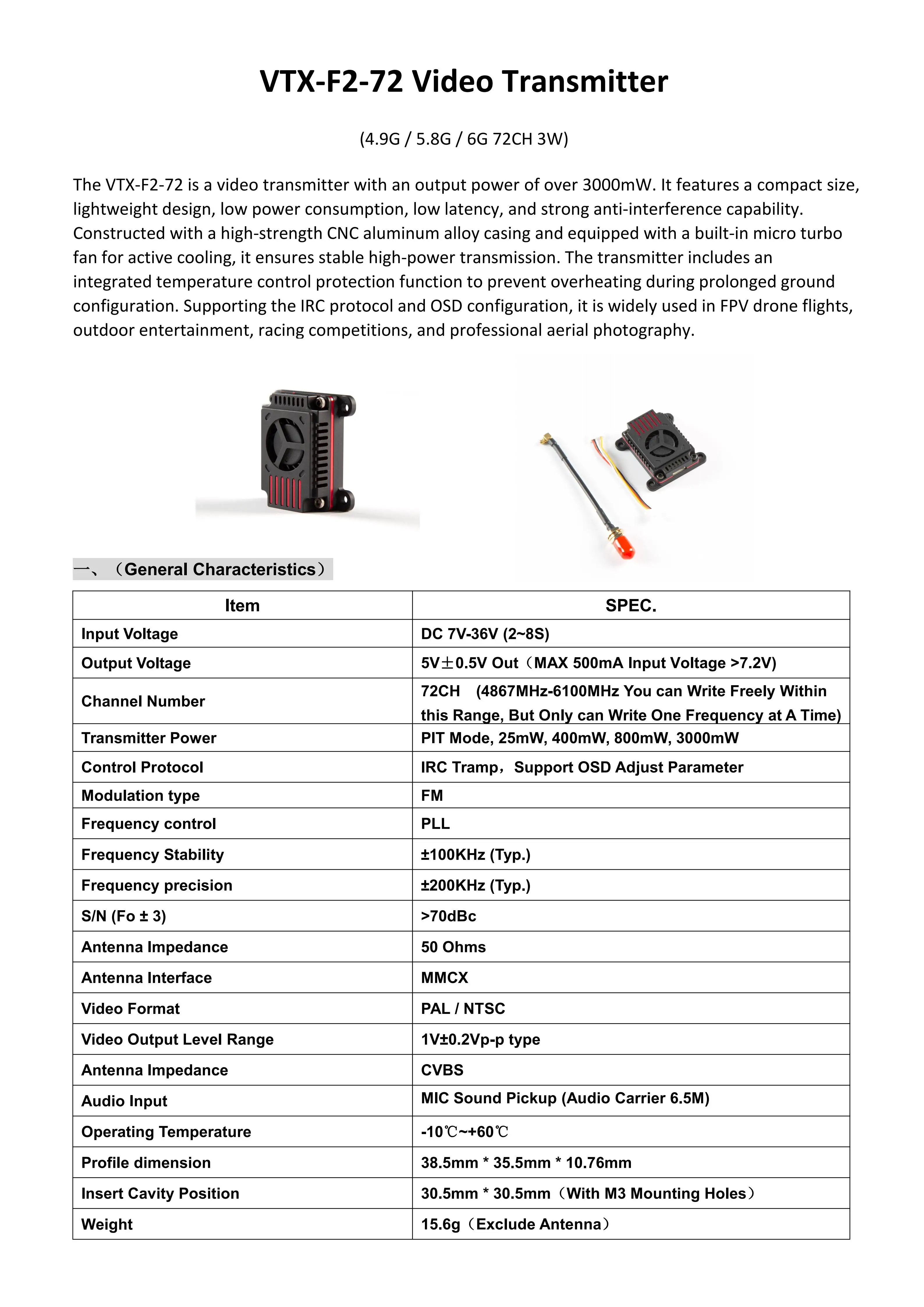

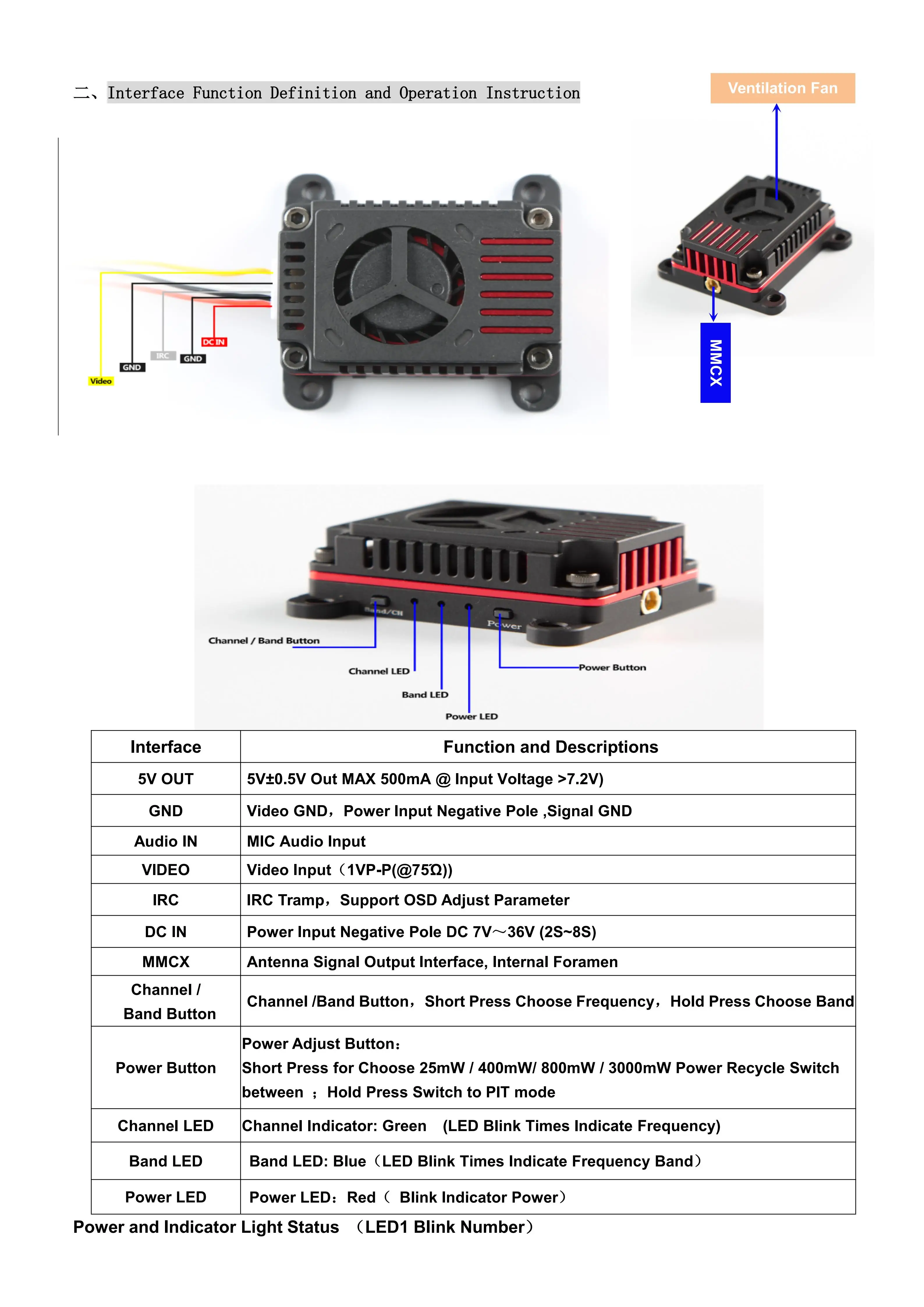

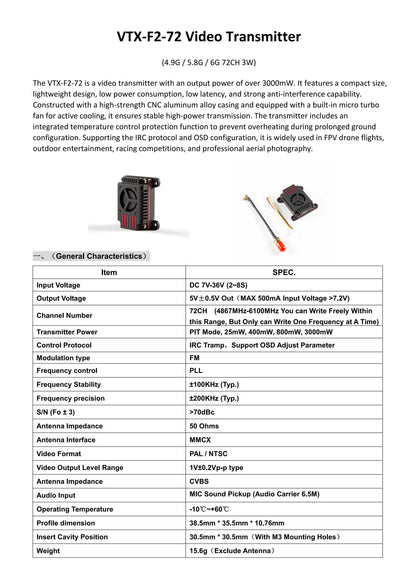

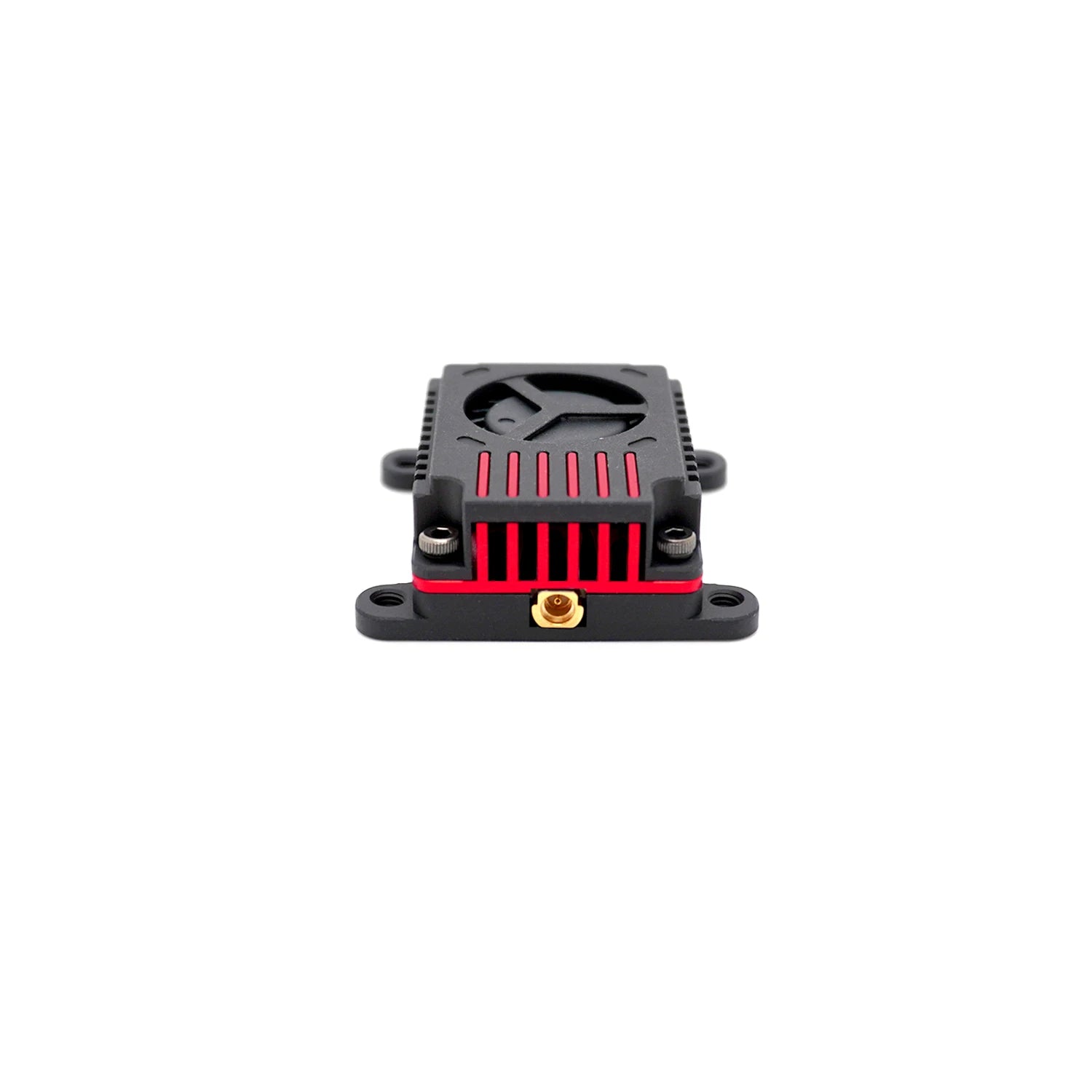

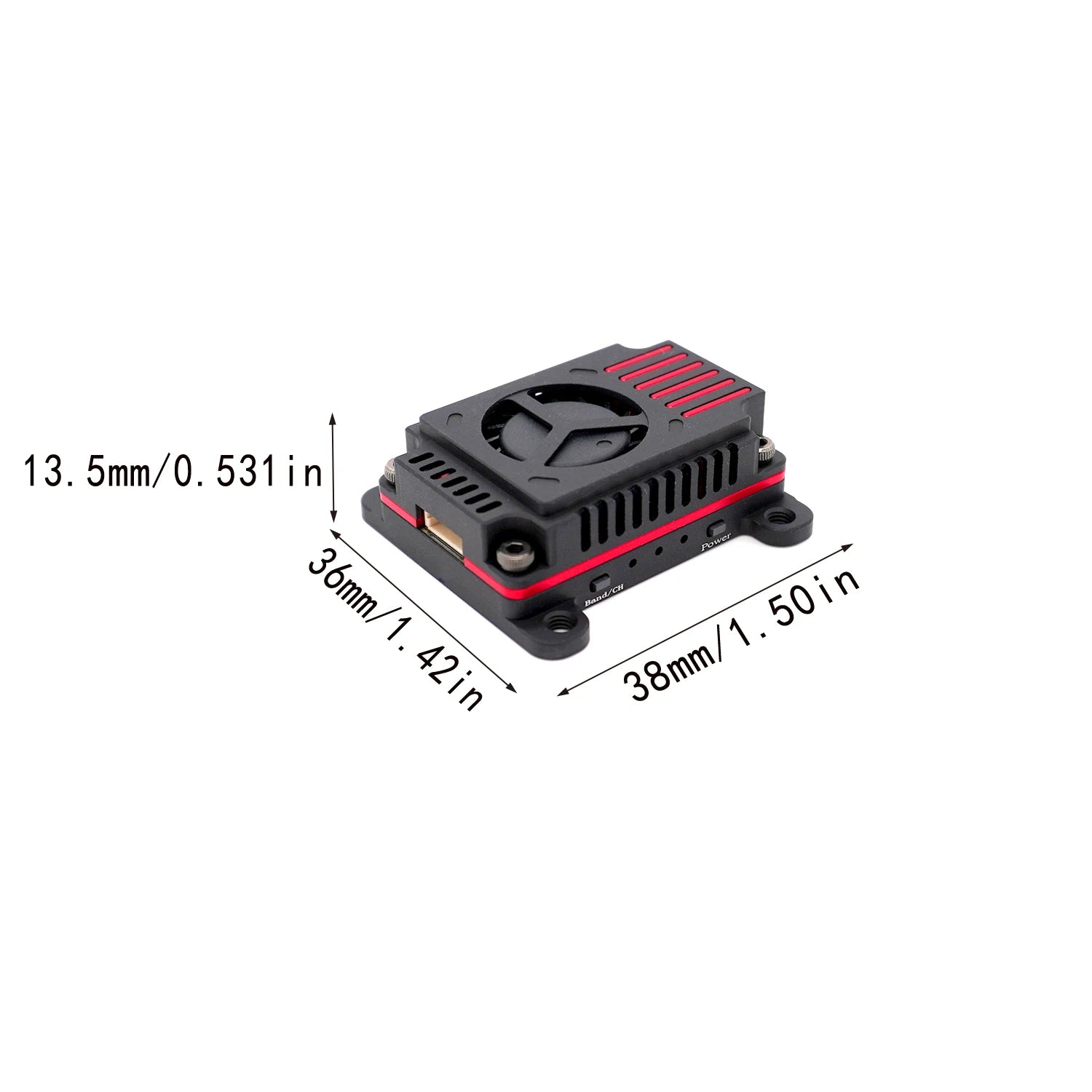

3W VTX Product:

Input Voltage DC 7V-36V (2~8S)

Output Voltage 5V±0.5V Output (MAX 500mA when input voltage exceeds 7.2V)

Number of Channels (Channel Count) 72CH (any configuration within the 4867-6100 range)

Transmit Power PIT Mode, 25mW, 400mW, 800mW, 3000mW

Control Protocol IRC Tramp, supports OSD parameter adjustment

Modulation Type FM

Frequency Control PLL

Frequency Stability ±100KHz (Typ.)

Frequency Precision ±200KHz (Typ.)

Signal-to-Noise Ratio S/N (Fo ± 3) >70dBc

Antenna Port Impedance 50 Ohms

Antenna Interface MMCX

Video Format PAL / NTSC

Video Input Level Range 1V±0.2Vp-p type

Video Signal Format CVBS

Audio Input MIC (Audio Carrier 6.5M)

Operating Temperature -10°C to +60°C

Profile Dimension 38.5mm × 35.5mm × 10.76mm

Mounting Hole Pattern 30.5mm × 30.5mm spacing, with built-in M3 threaded holes

Remote Control Operation OSD Parameter Tuning Instruction (Serial Port Control Parameter

Tuning) ( IRC Protocol) Flight Control OSD Video Transmitter Power : 14, 17, 23，26,They Respectively

Correspond to the Transmission Power of this Machine：25mW, 50mW,200mW, 400mW

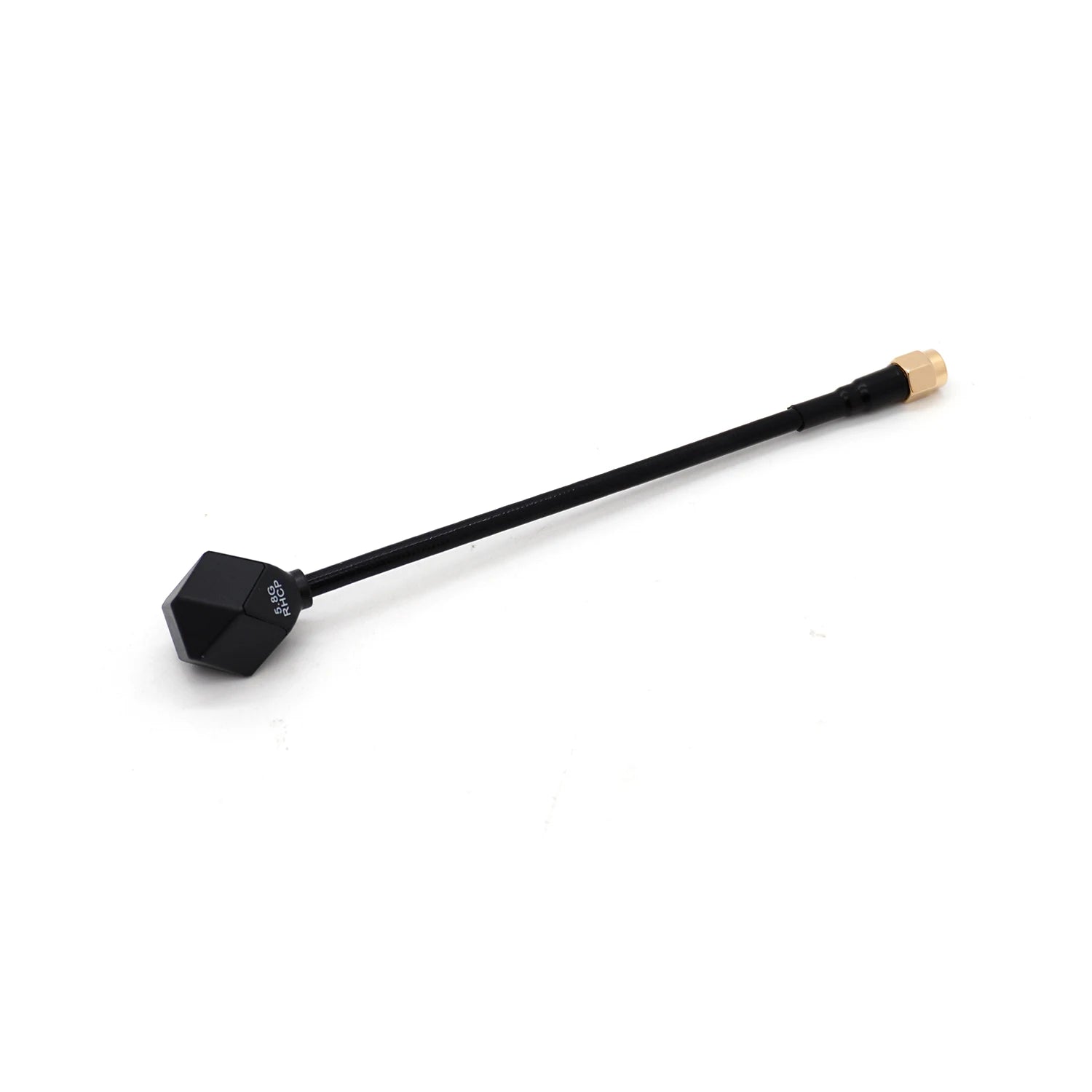

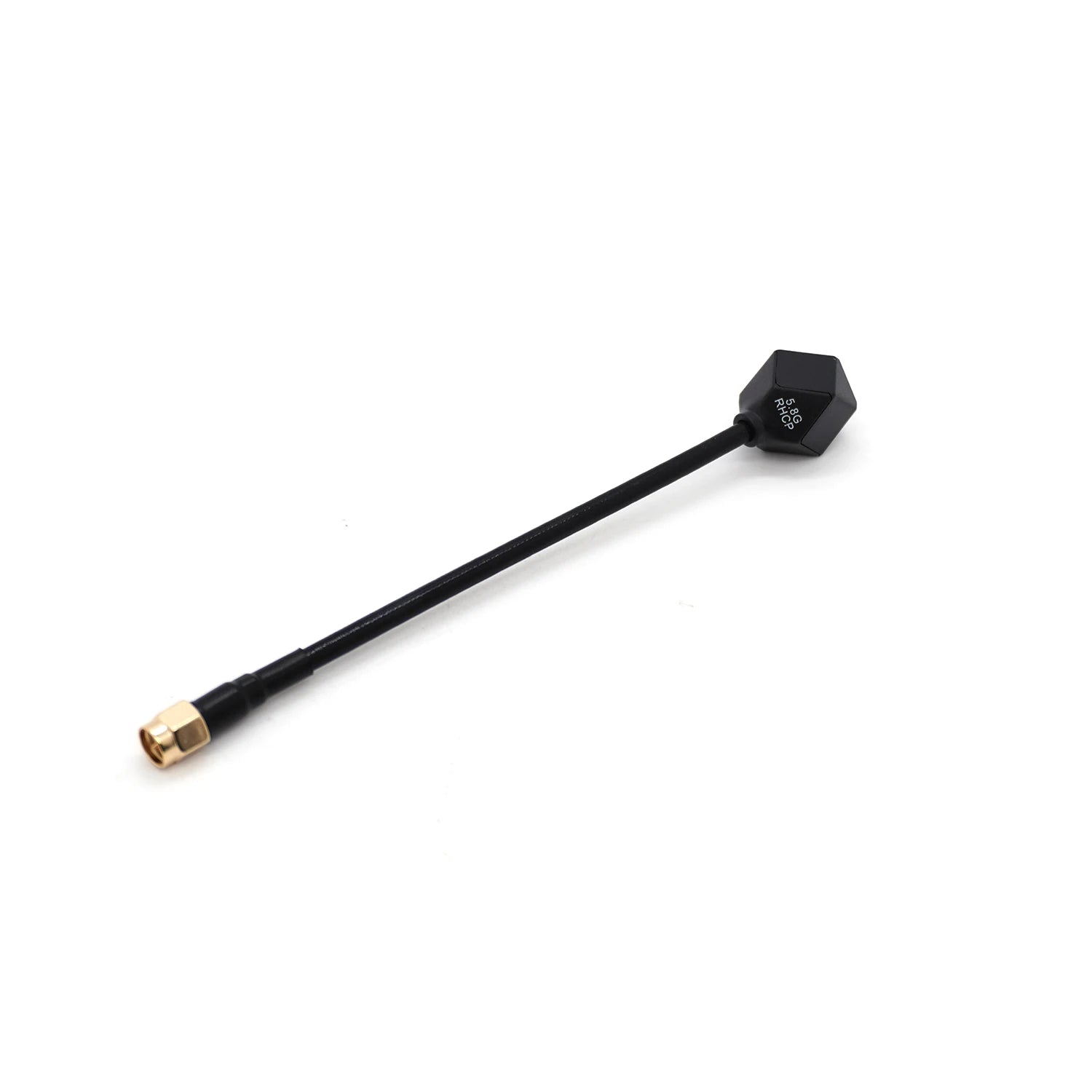

150mm RHCP Antenna:

Model: 5.8GHz RHCP SMA FPV Antenna

Frequency range: 5.3GHz-6GHz

Maximum gain:2.65dBi (5695MHz)

Minimum gain:2.06dBi (5362MHz)

Average gain:2.4dBi

Maximum standing wave ratio: 1.76 (5917MHz)

Minimum standing wave: 1.46 (5621MHz)

Average standing wave ratio: 1.75

Maximum radiation efficiency: 86% (5436MHz)

Minimum radiation efficiency: 76% (5917MHz)

Average radiation efficiency: 83%

Polarization method: right-handed polarization RHCP

Cross polarization suppression: -25dB Axis ratio: ≤ 3

Weight: 7g (60mm)/9.5g (100mm)/11.5g (150mm)

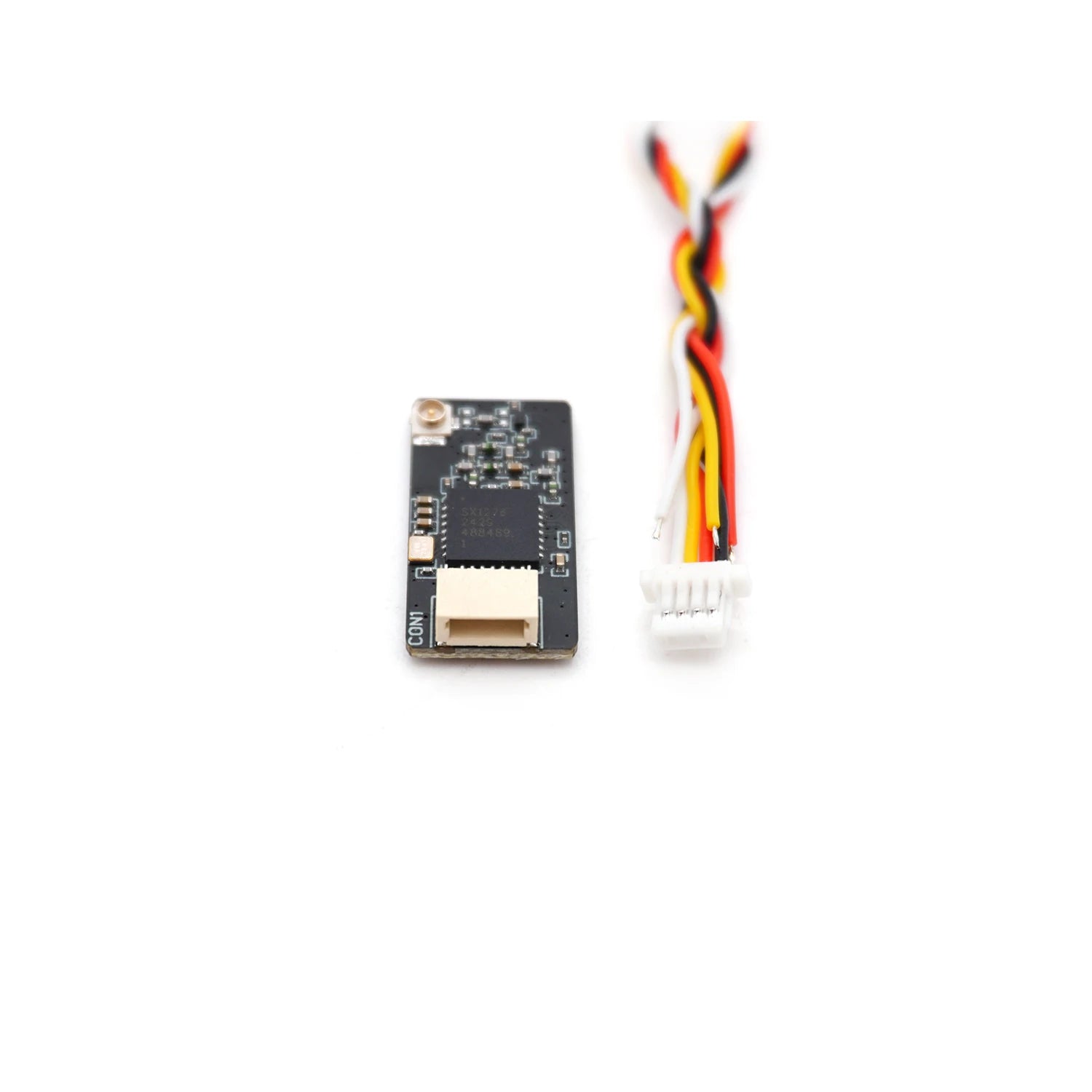

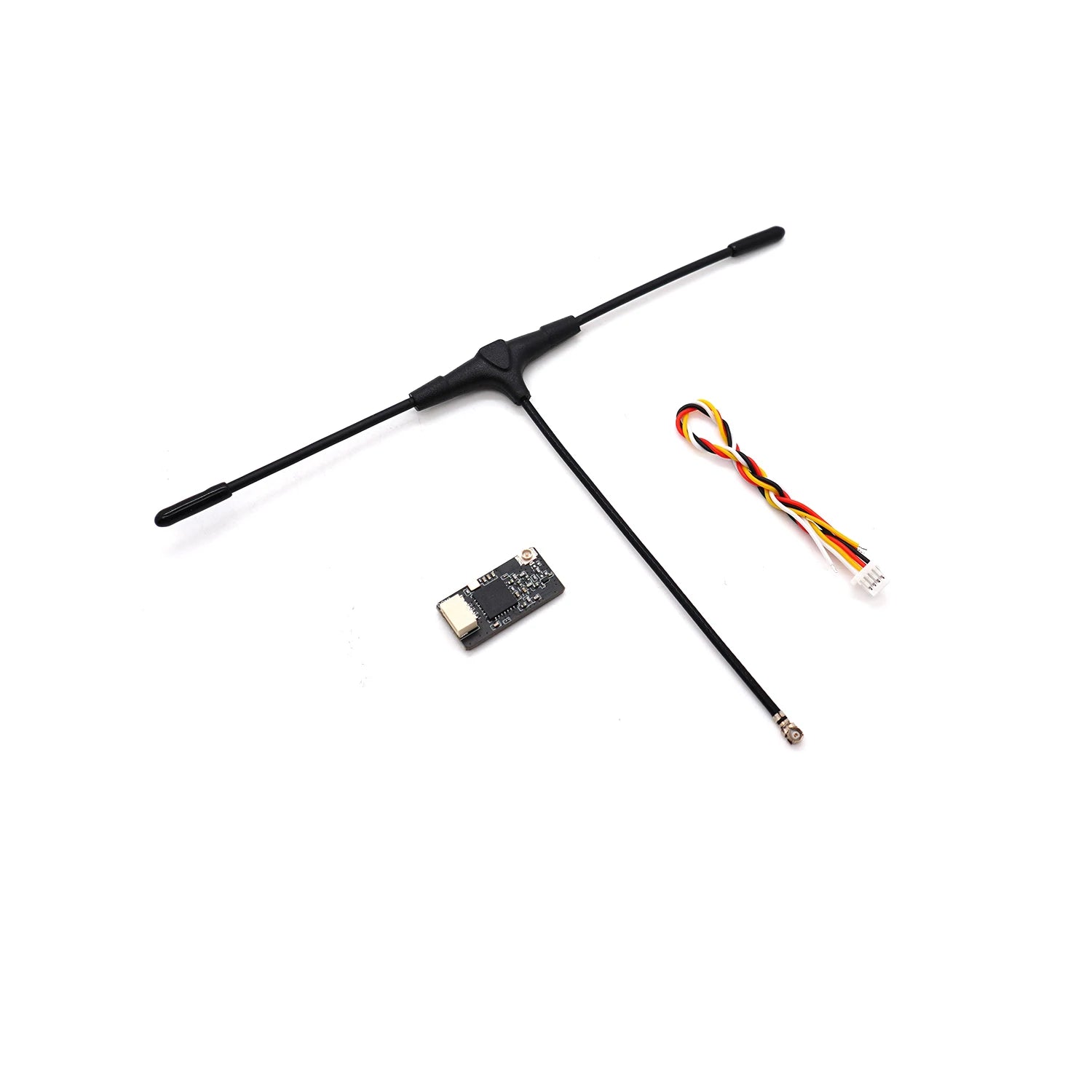

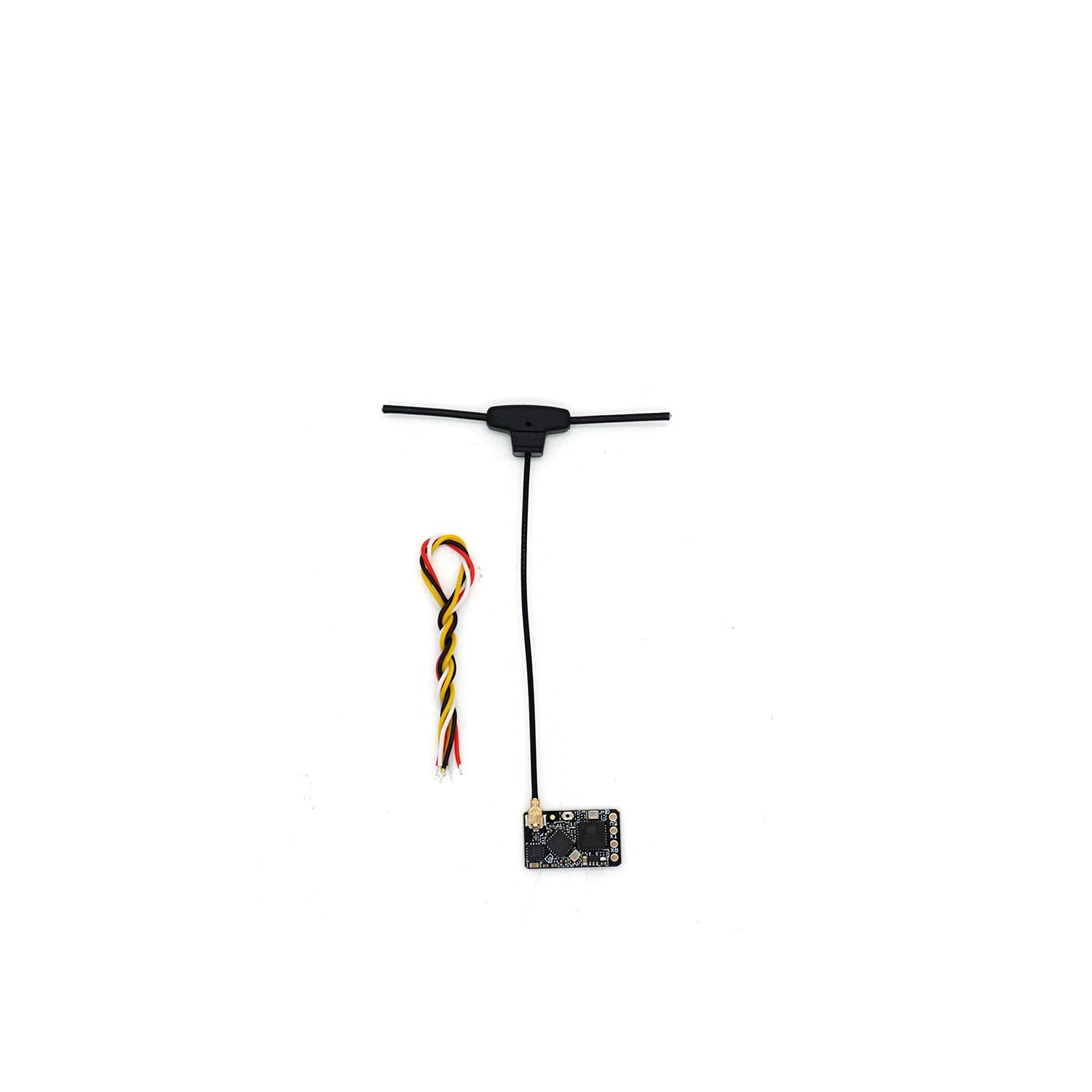

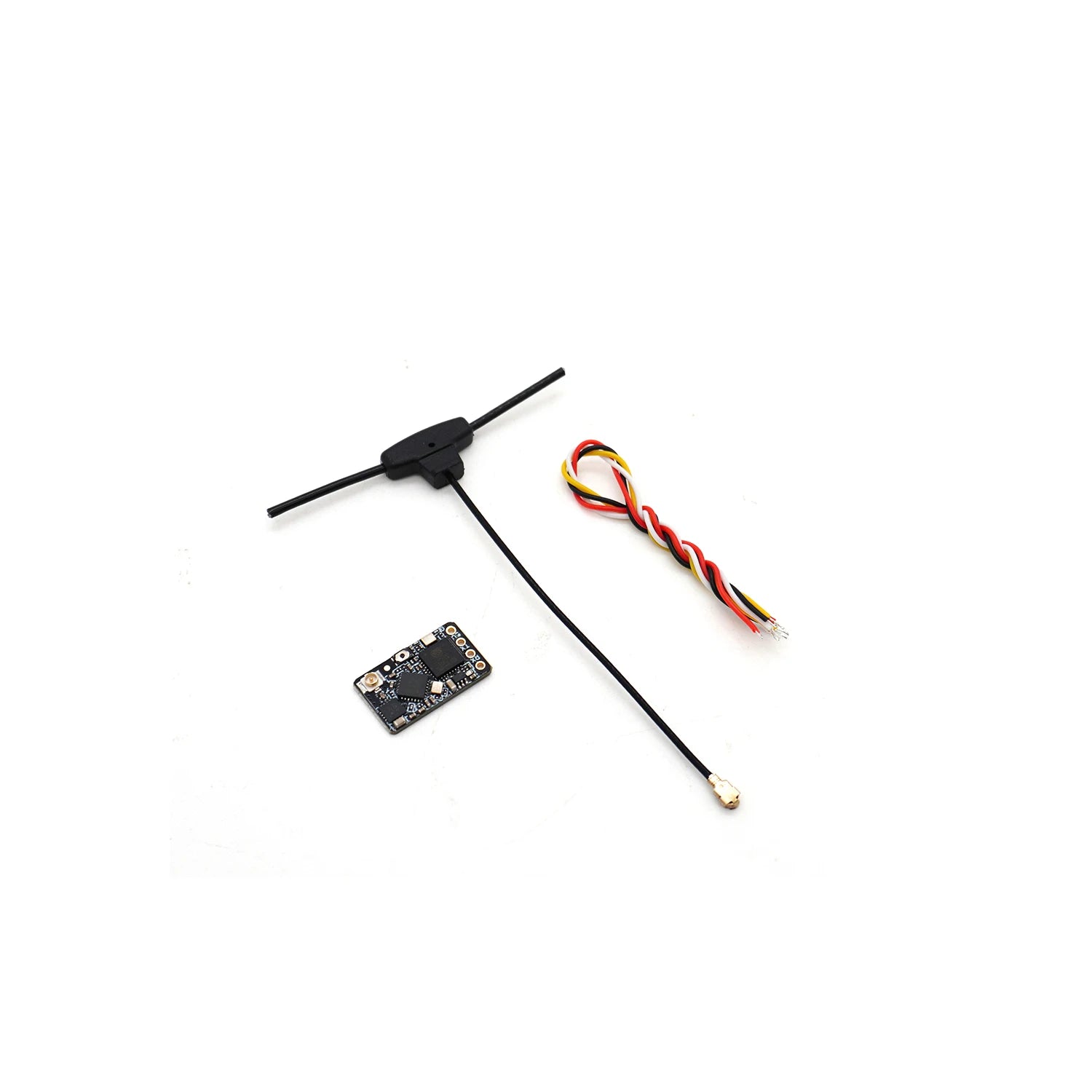

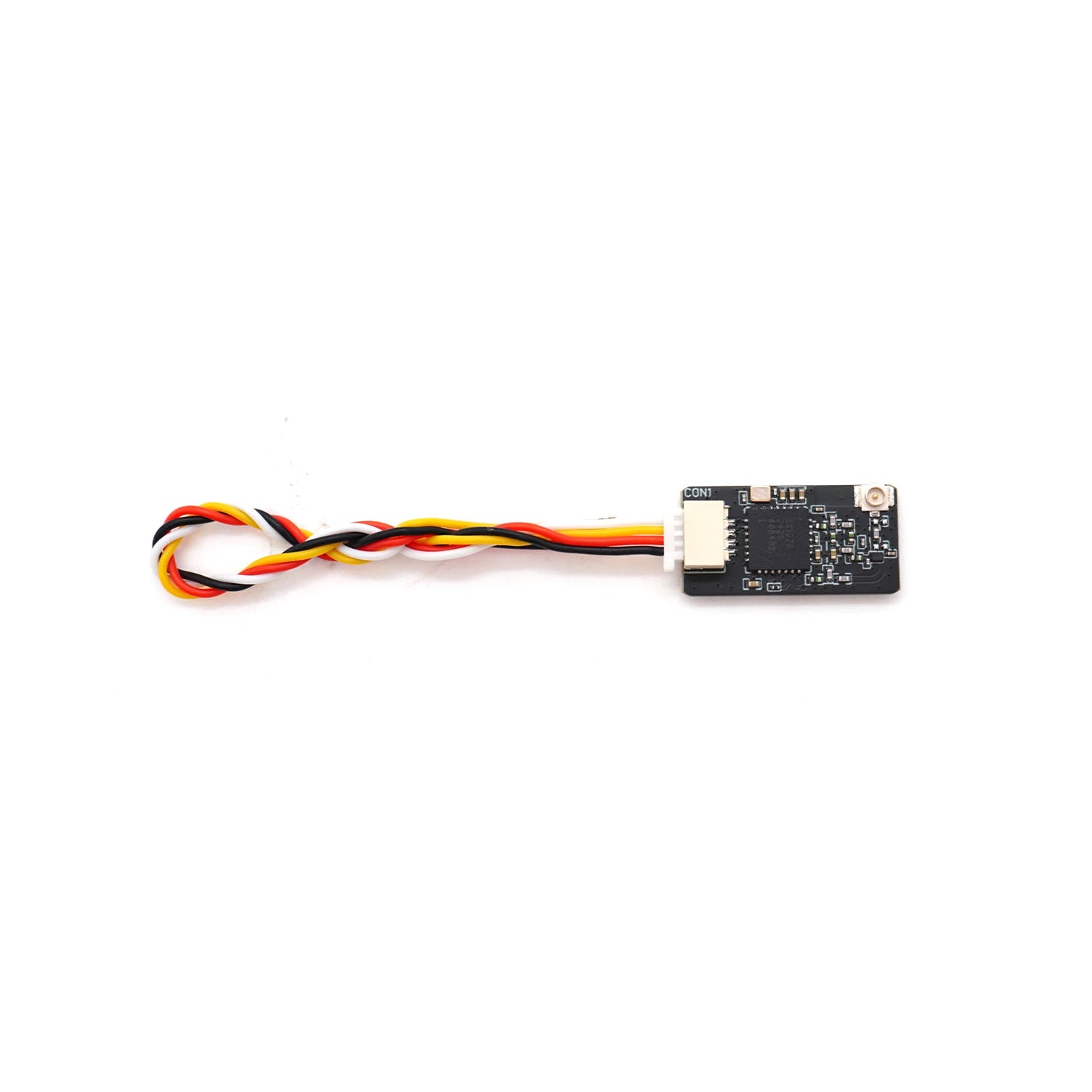

ELRS Receiver:

ELRS-2.4G-NANO with Black T-shaped antenna

Name：ExpressLRS Receiver

RF Freq:2.4Ghz

IC:SX1281+ESP8285

TX Power:100mW

Connector:IPEX1

Input Power:3.6-5.5V

ELRS-915M-NANO-RX with 4pin socket T-shaped antenna

Name：ExpressLRS Receiver

RF Freq:915Mhz

IC:SX1276+ESP8285

TX Power:100mW

Connector:IPEX1

Input Power:3.6-5.5V

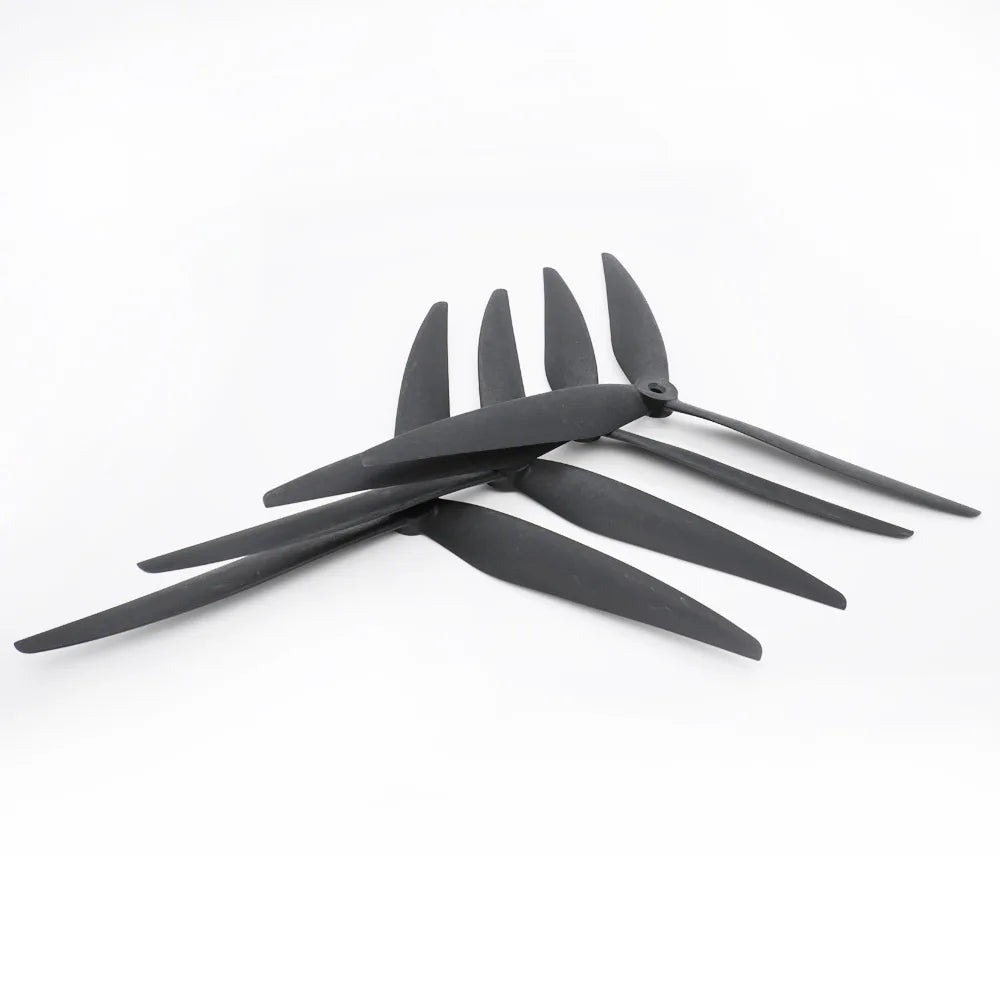

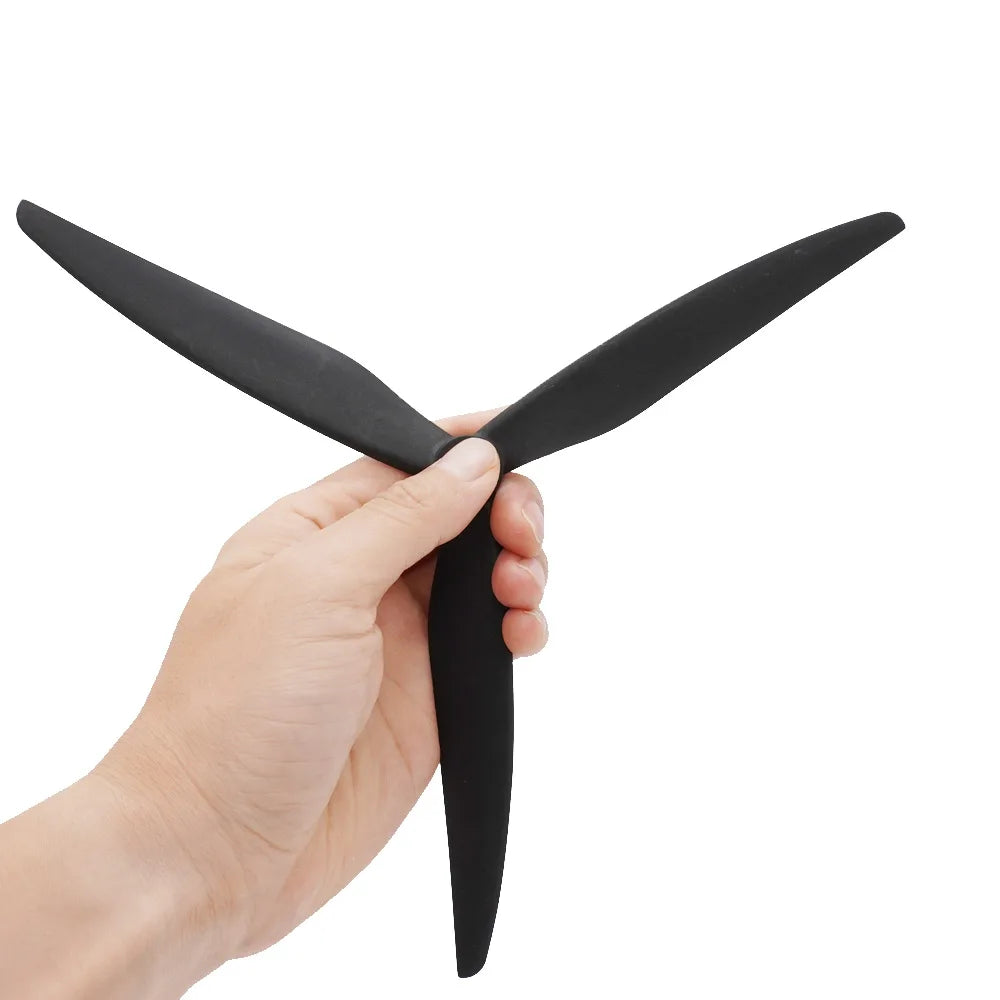

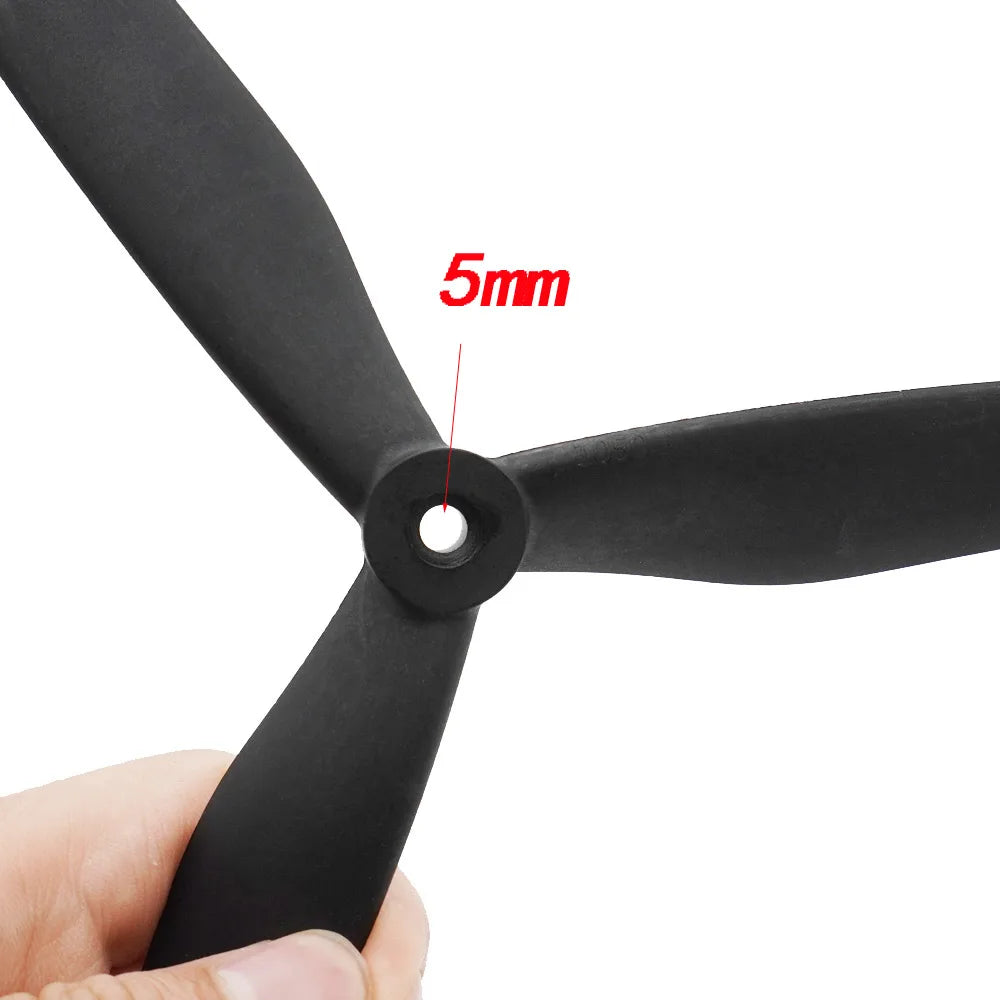

1050 Propeller:

Propeller Diameter: 10 inch

Pitch: 5

Blades : 3

Material: Black-Fiberglass Reinforced Nylon

Weight: 26g

Hub Diameter: 222mm

Shaft: 5mm

Adaptor Rings: yes
