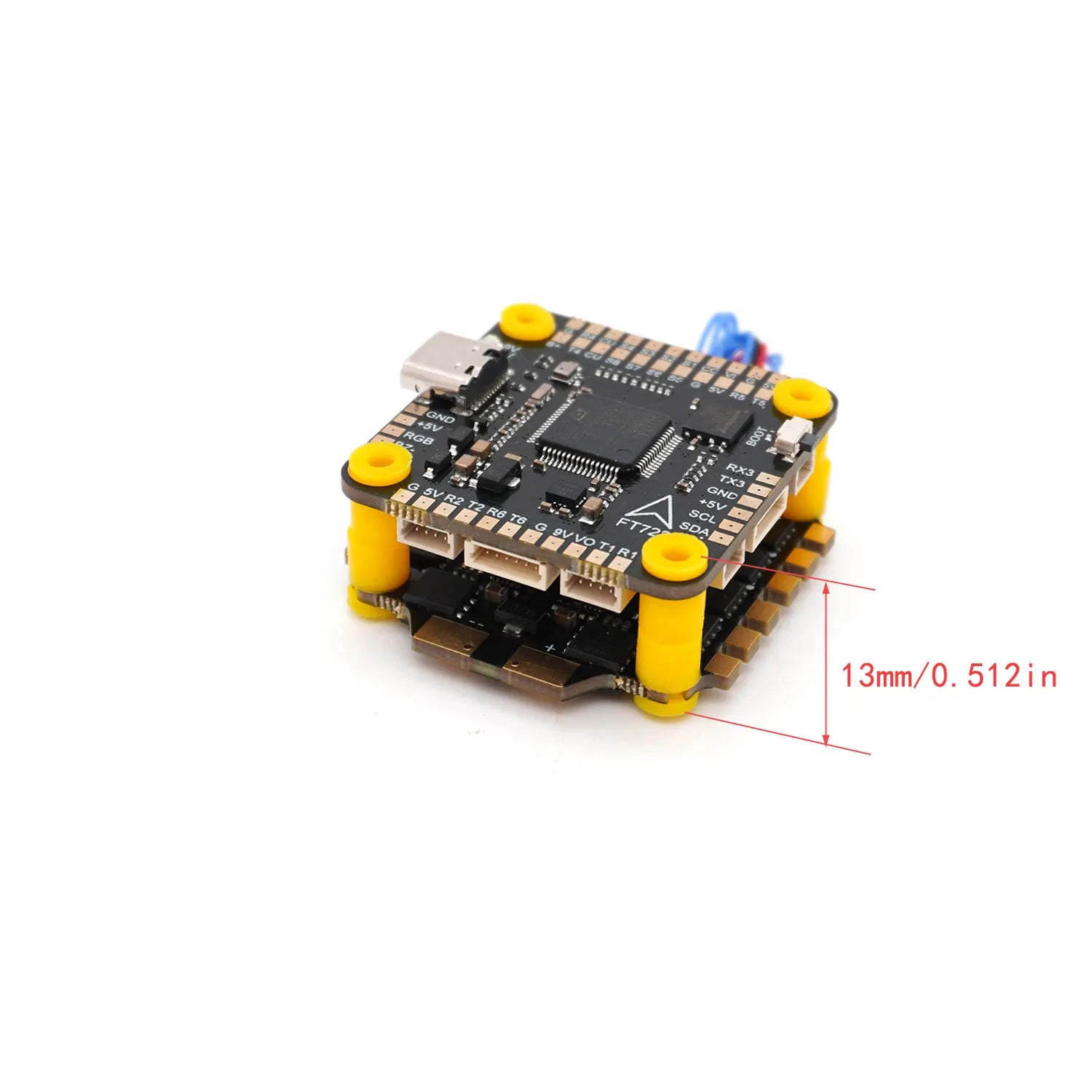

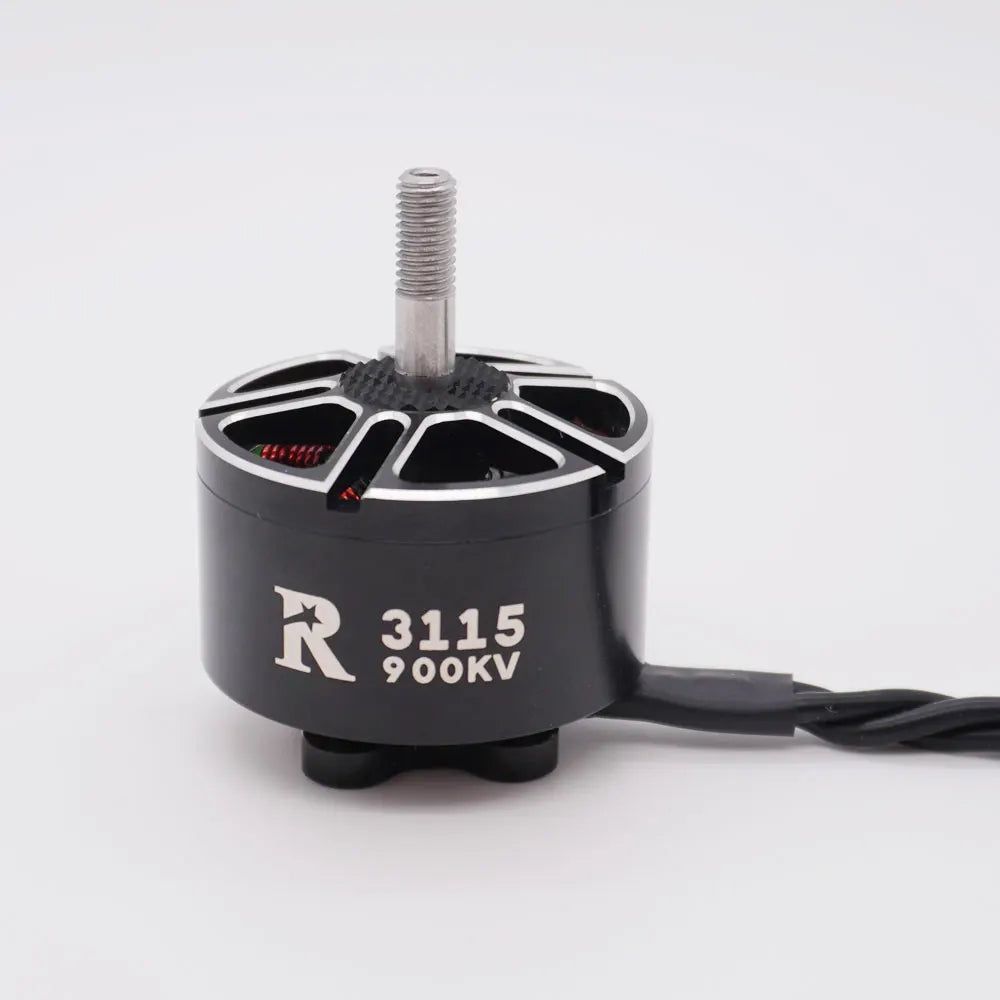

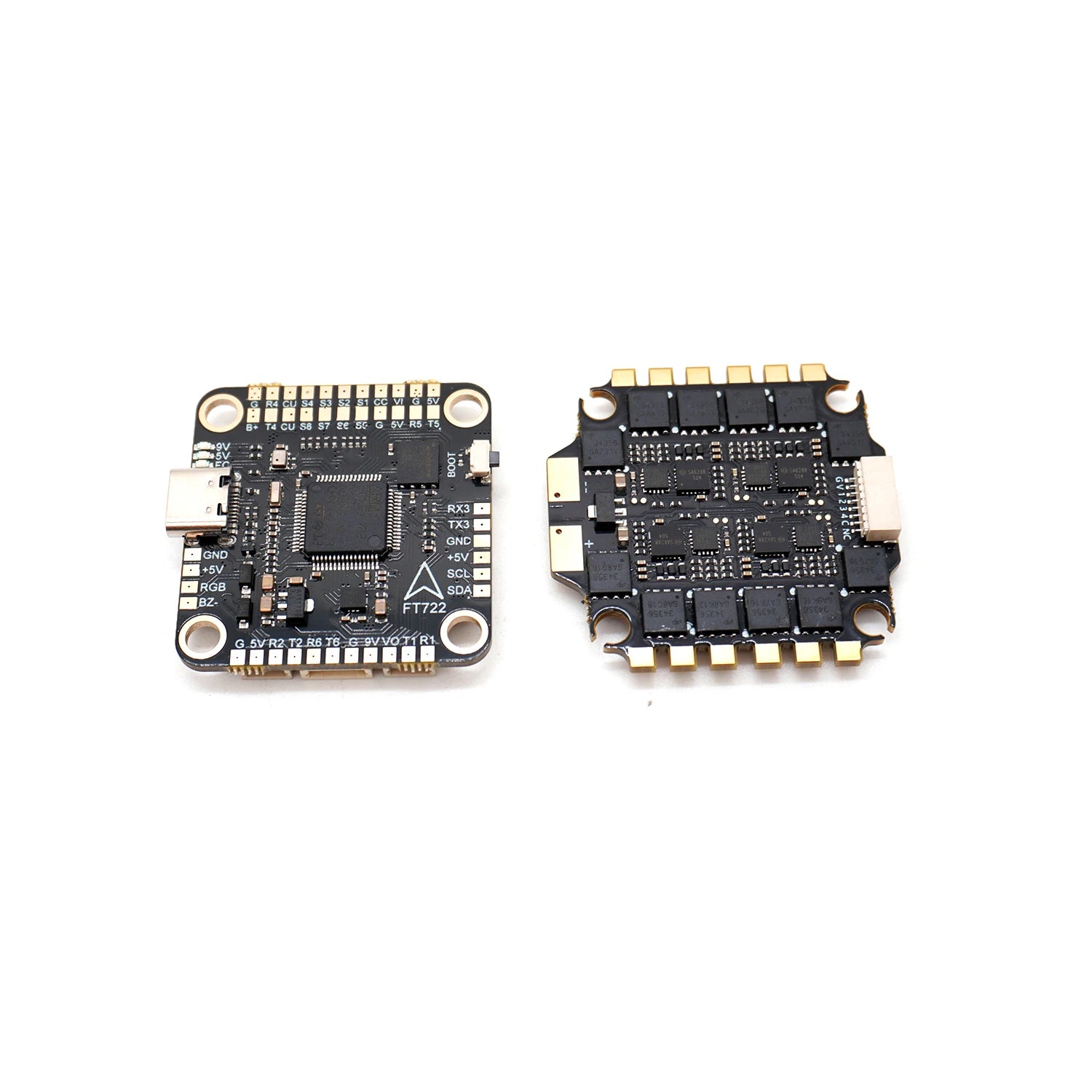

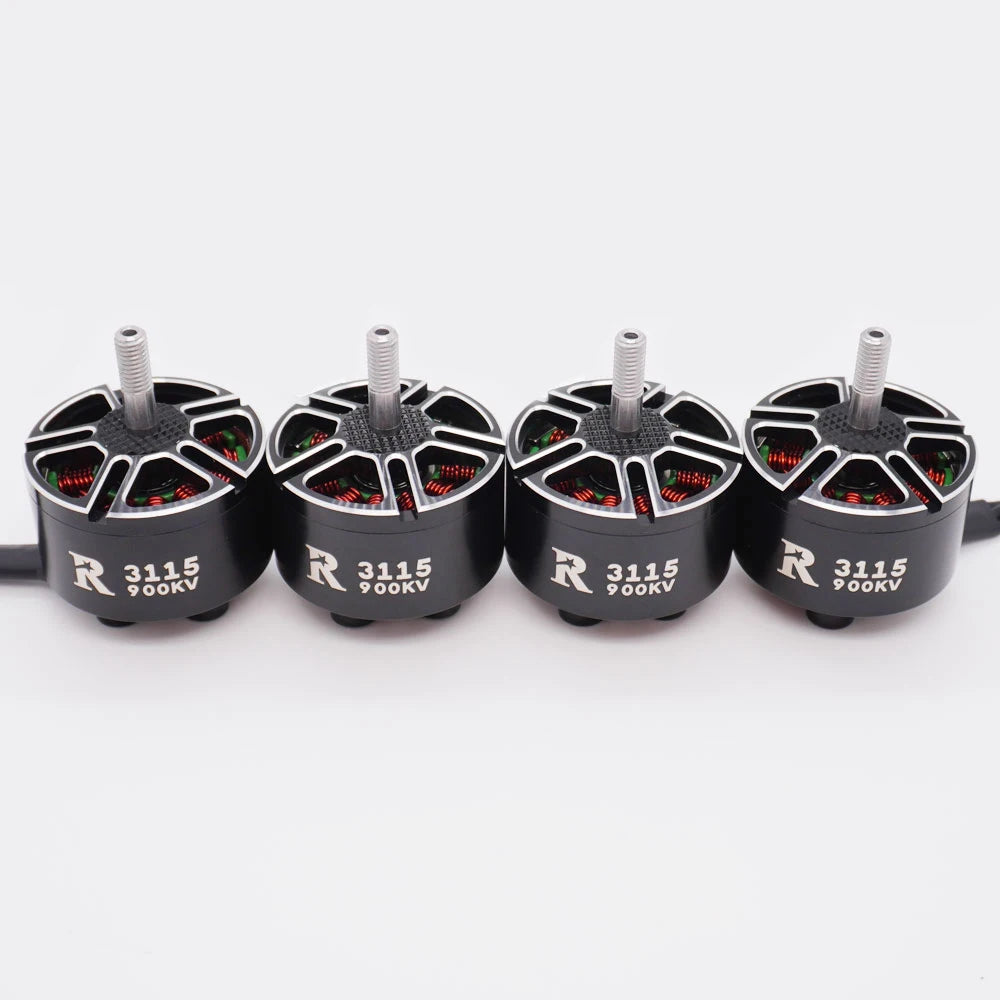

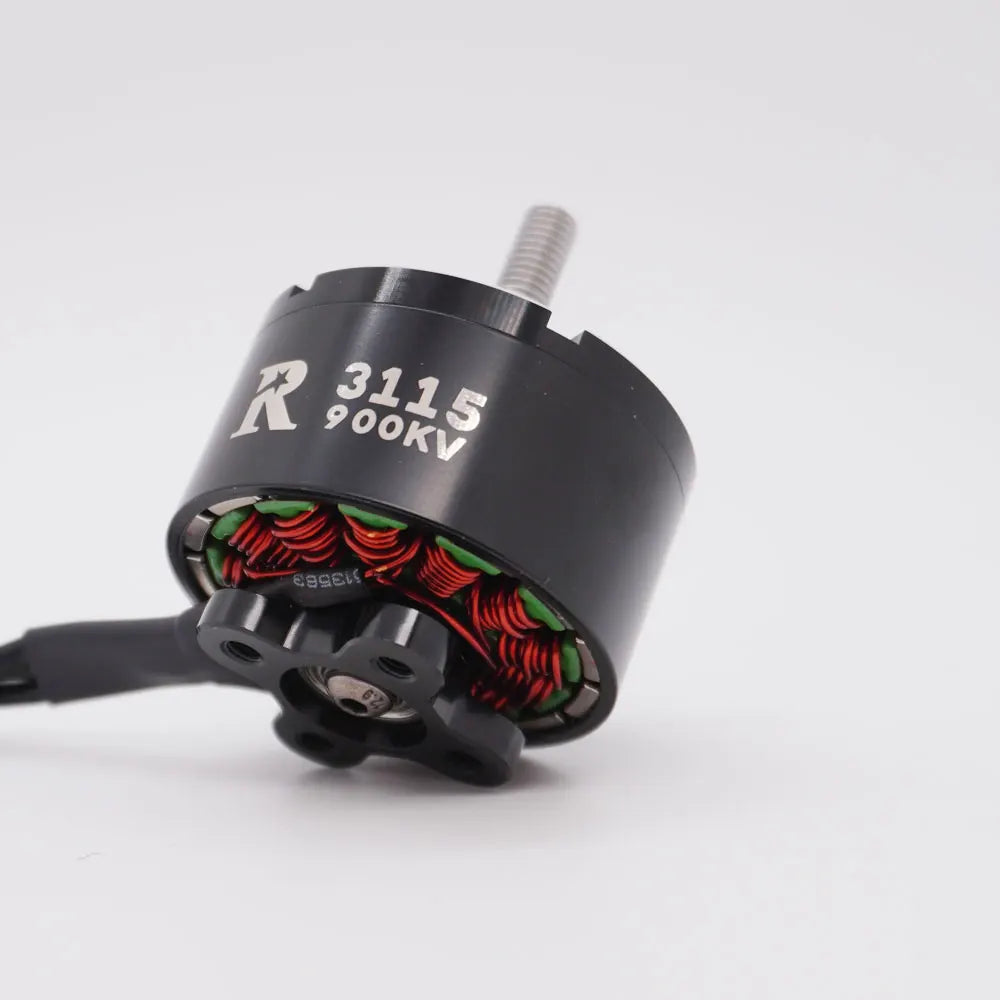

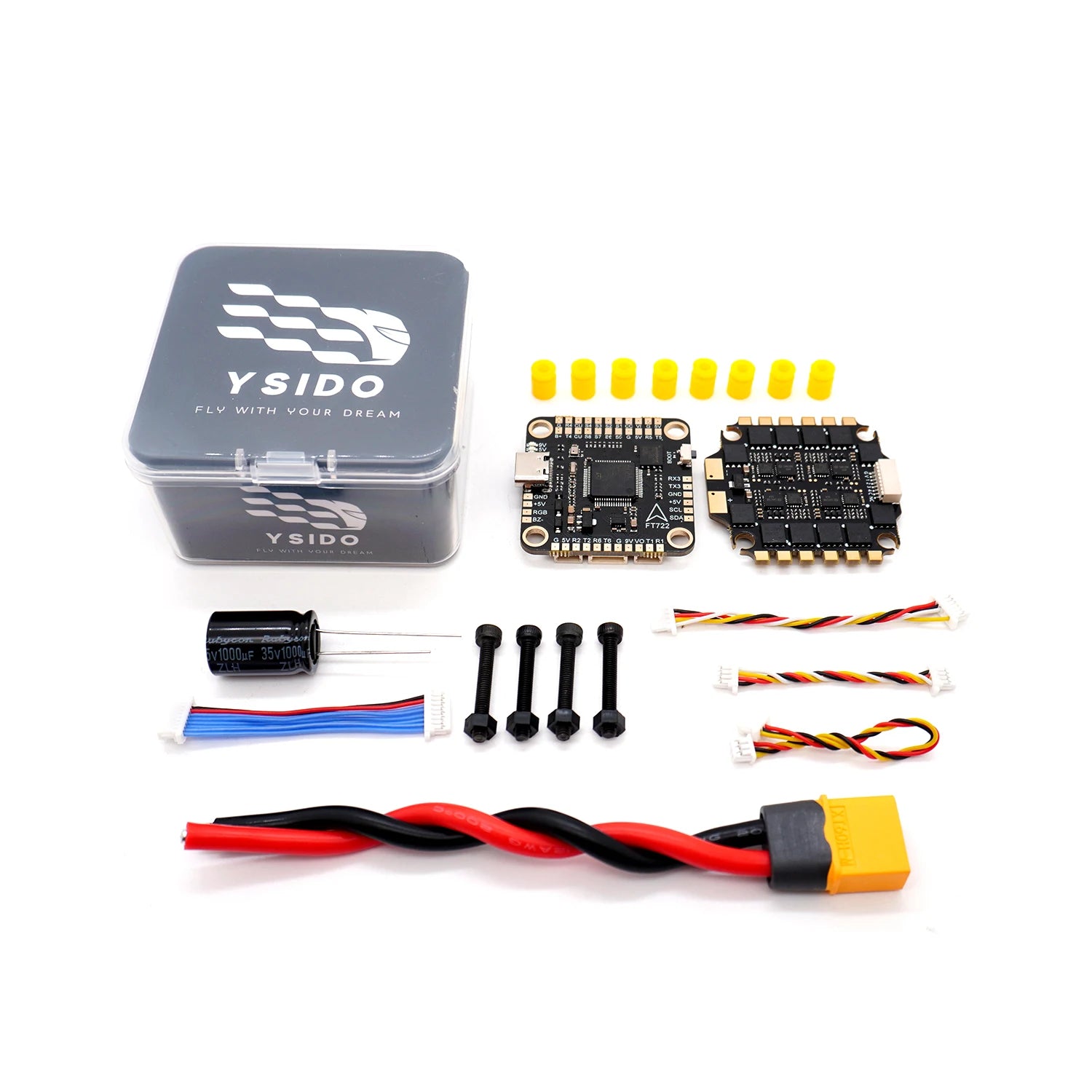

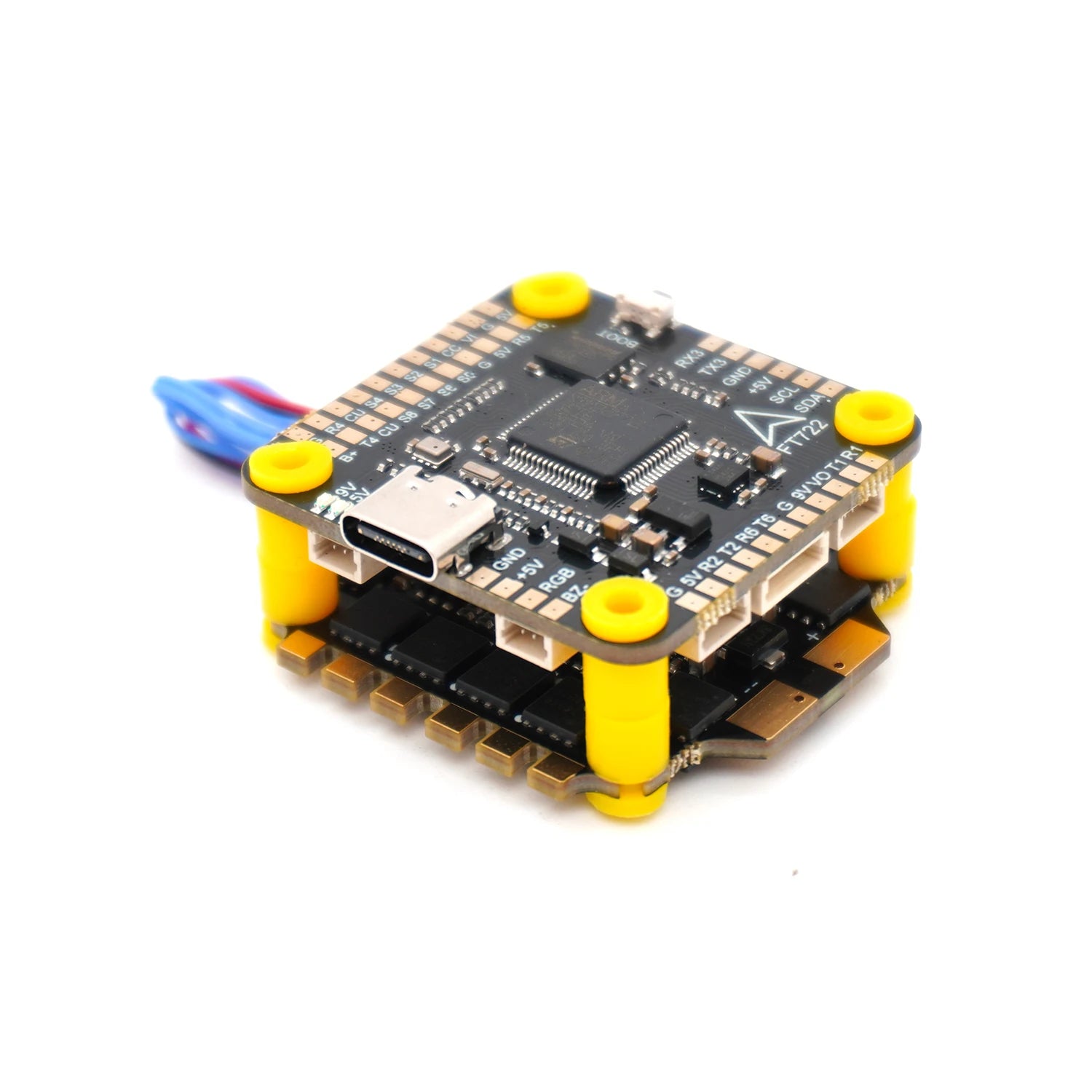

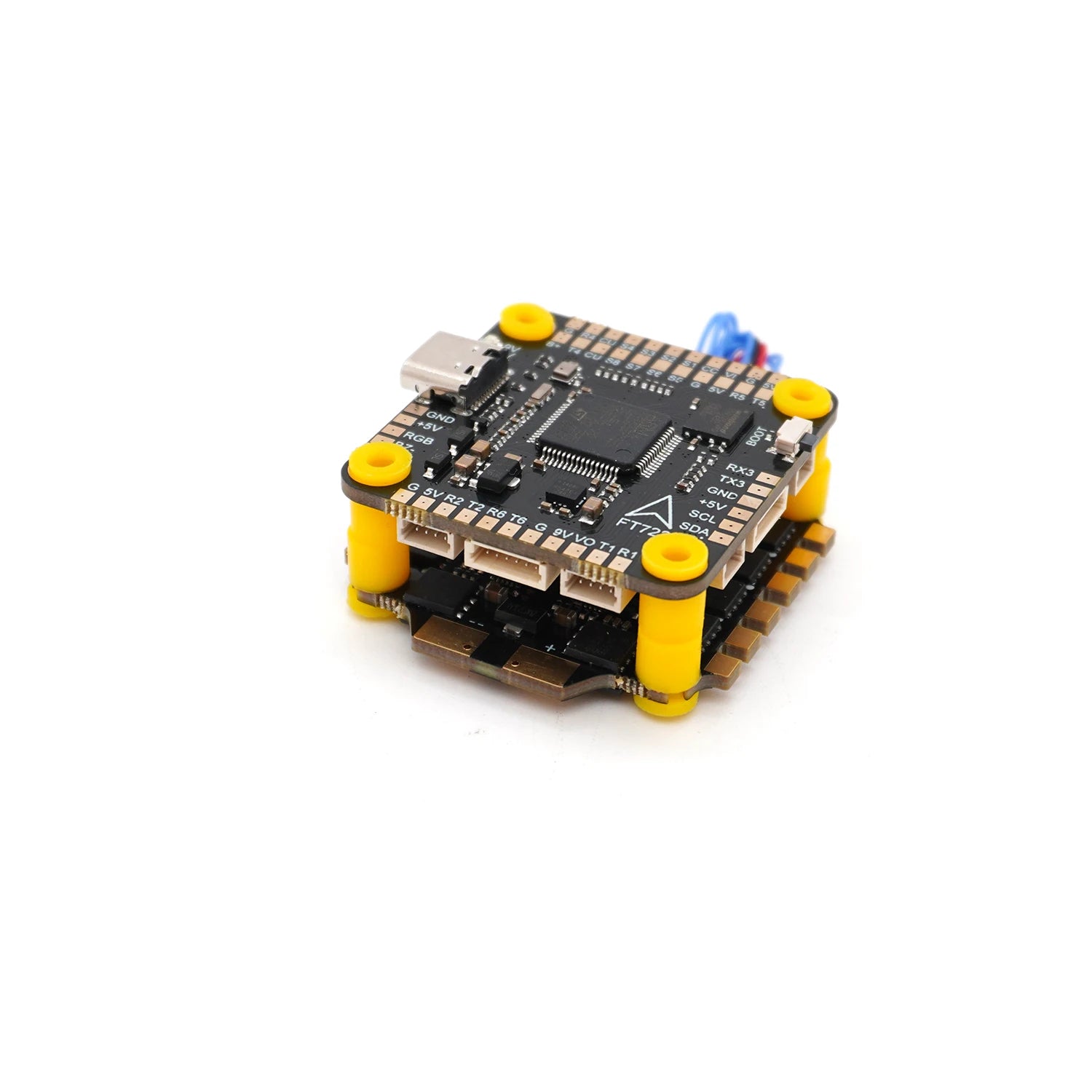

MARK4 V2 10inch F722 Flight Control 60A 4INI ESC 3115 Motor Camera VTX Receiver Antenna for FPV RC Racing Drone Quadcopter Parts
MARK4 V2 10inch F722 Flight Control 60A 4INI ESC 3115 Motor Camera VTX Receiver Antenna for FPV RC Racing Drone Quadcopter Parts
⭐ Top Rated Product – Loved by Customers
🔥 Limited Stock – Selling Fast
🎁 Perfect Gift – Ready to Impress
Up to 40% OFF 🔥
Regular price
$206.14
Regular price
$206.14
Sale price
$0.00
Unit price
per
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivery
MARK4 V2 10inch F722 Flight Control 60A 4INI ESC 3115 Motor Camera VTX Receiver Antenna for FPV RC Racing Drone Quadcopter Parts
Regular price
$206.14
Regular price
$206.14
Sale price
$0.00
Unit price
per
Shipping Policy
Shipping Policy
Thank you for shopping with us! Below you will find important information about our shipping process.
Order Processing Time
All orders are processed within 1–2 ex 3 business days (excluding weekends and holidays). Once your order has been processed and shipped, you will receive a confirmation email with tracking information.
Refund Policy
Refund Policy
Thank you for shopping with us! Below you will find important information about our Refund process.
You may request a return within 30 days of receiving your order.
Free Shipping
Delivery in 1–2 Days
24/7 Support
Free Global Support
SPECIFICATIONS
Brand Name: YSIDO
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Origin: Mainland China
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: Frame
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

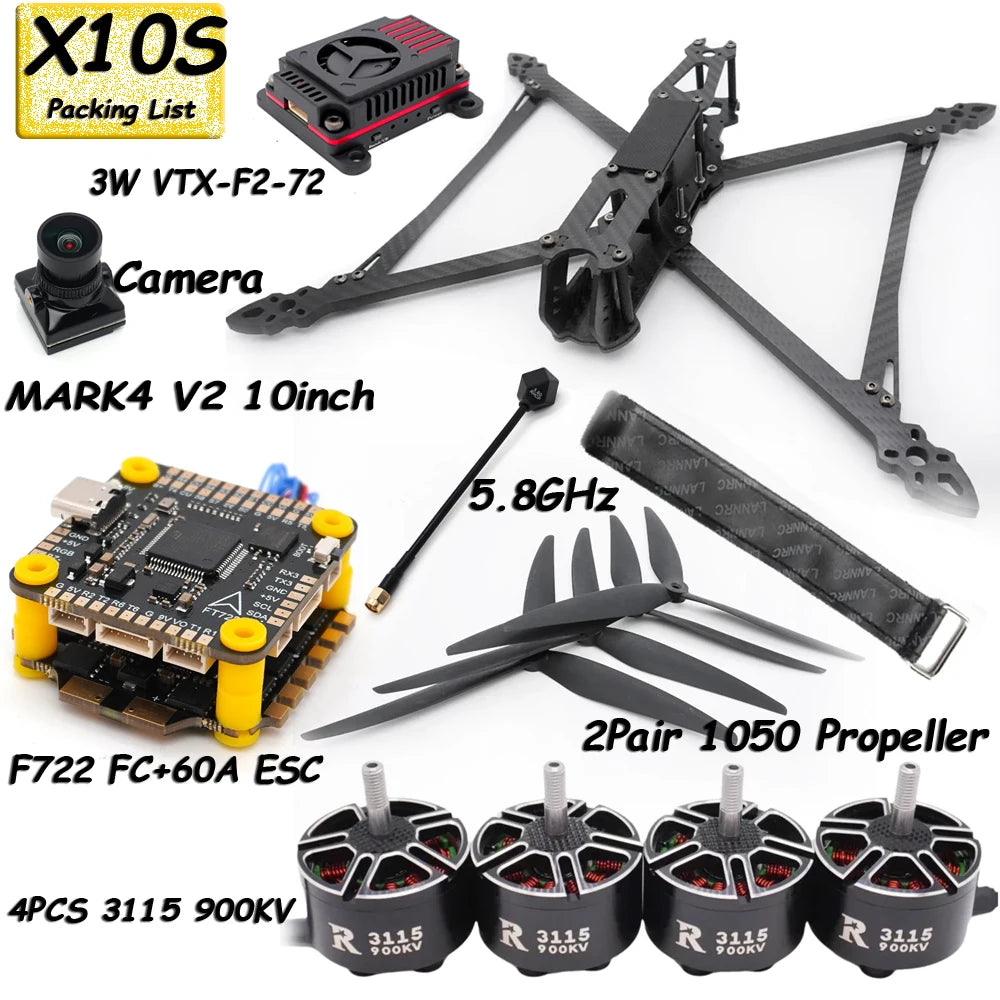

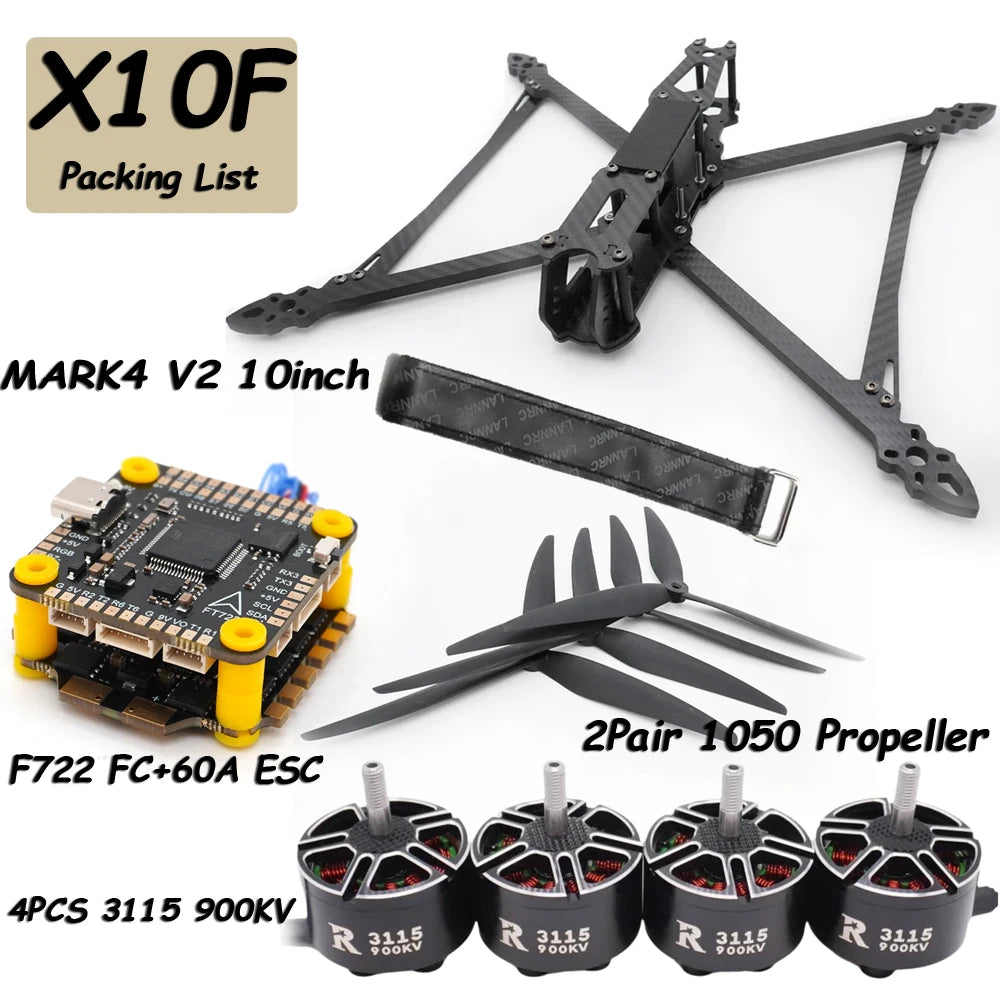

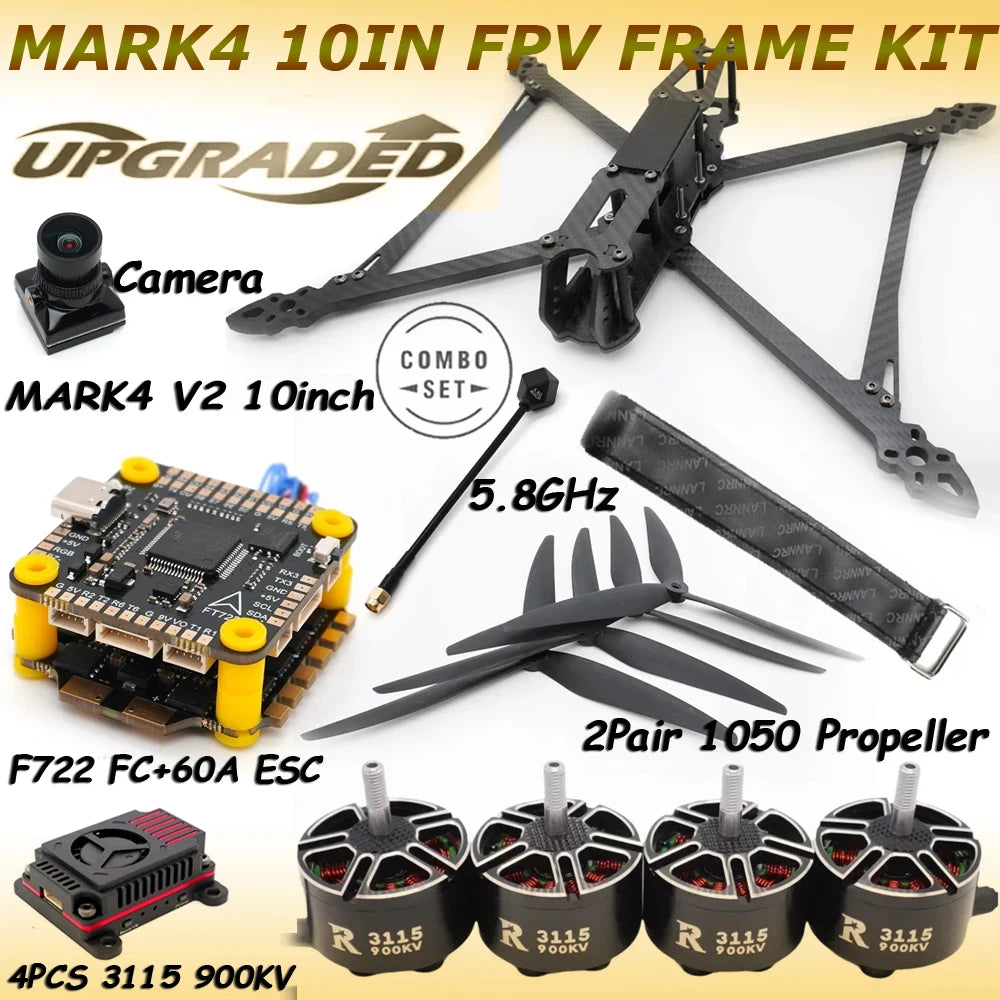

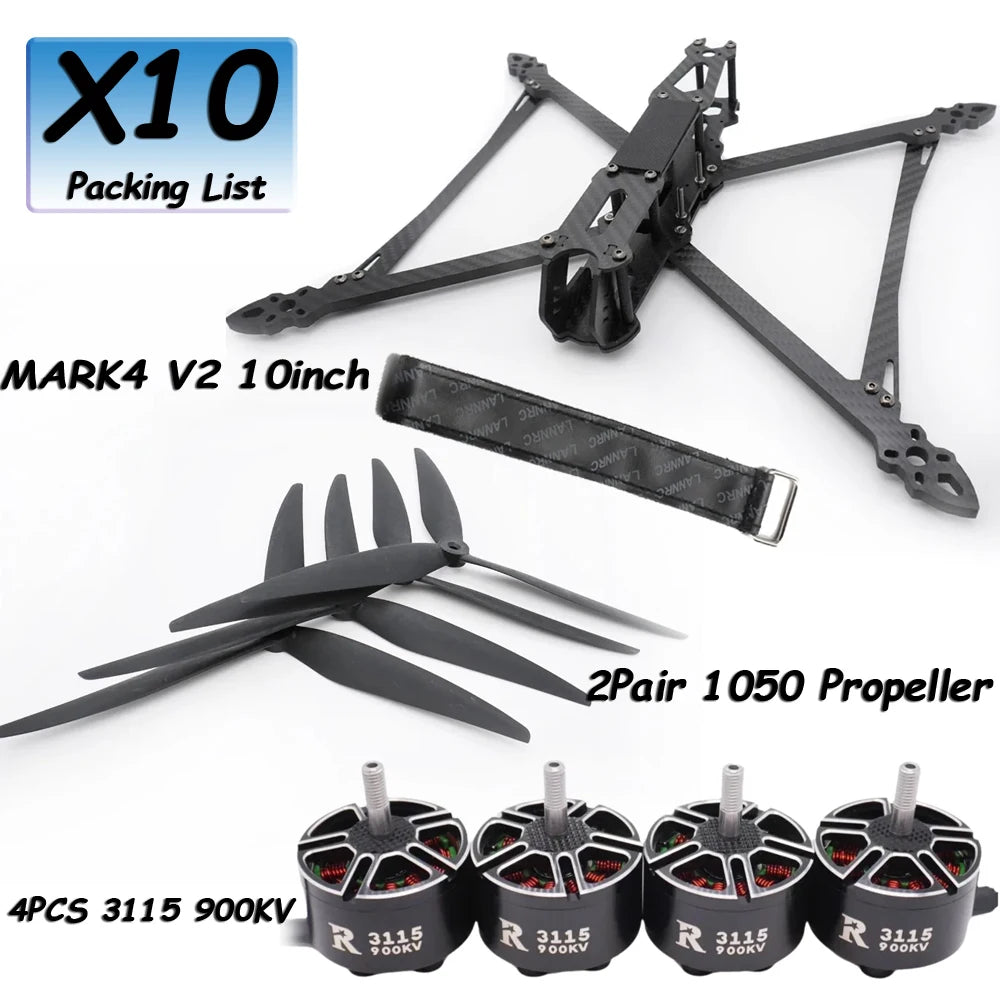

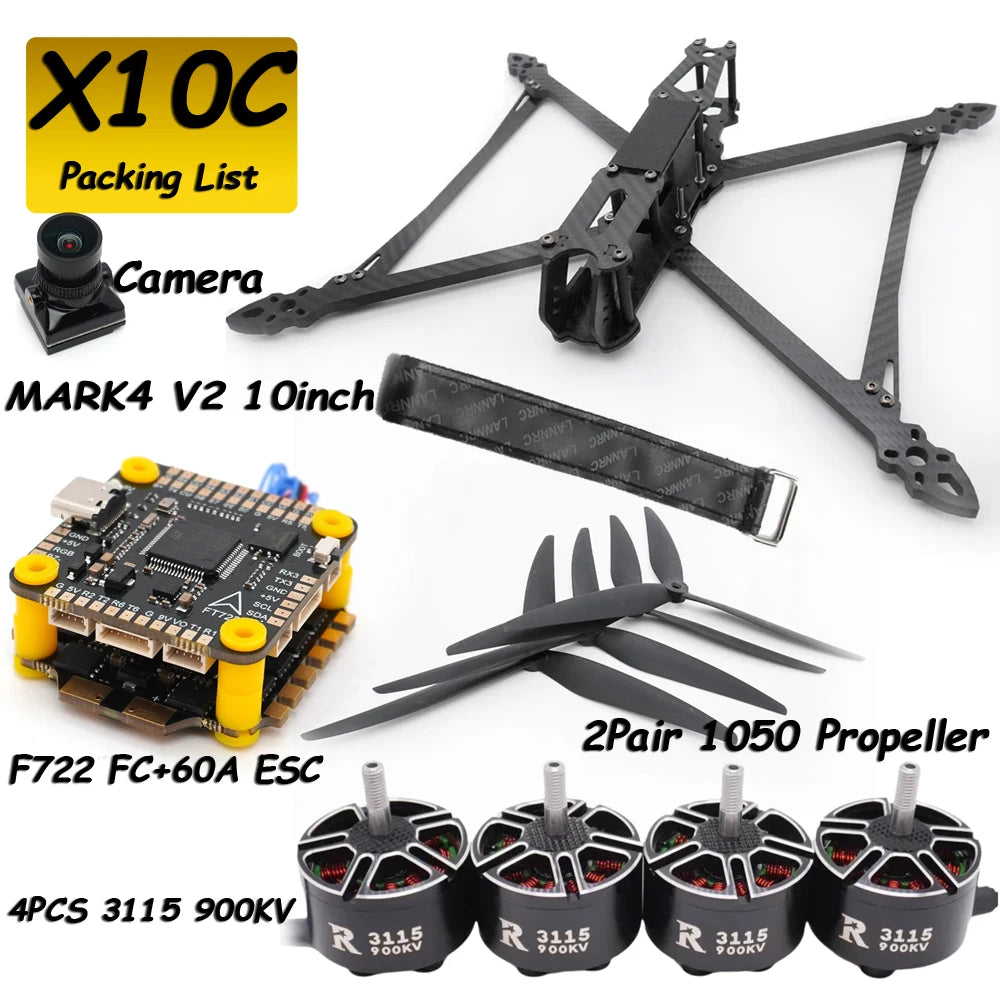

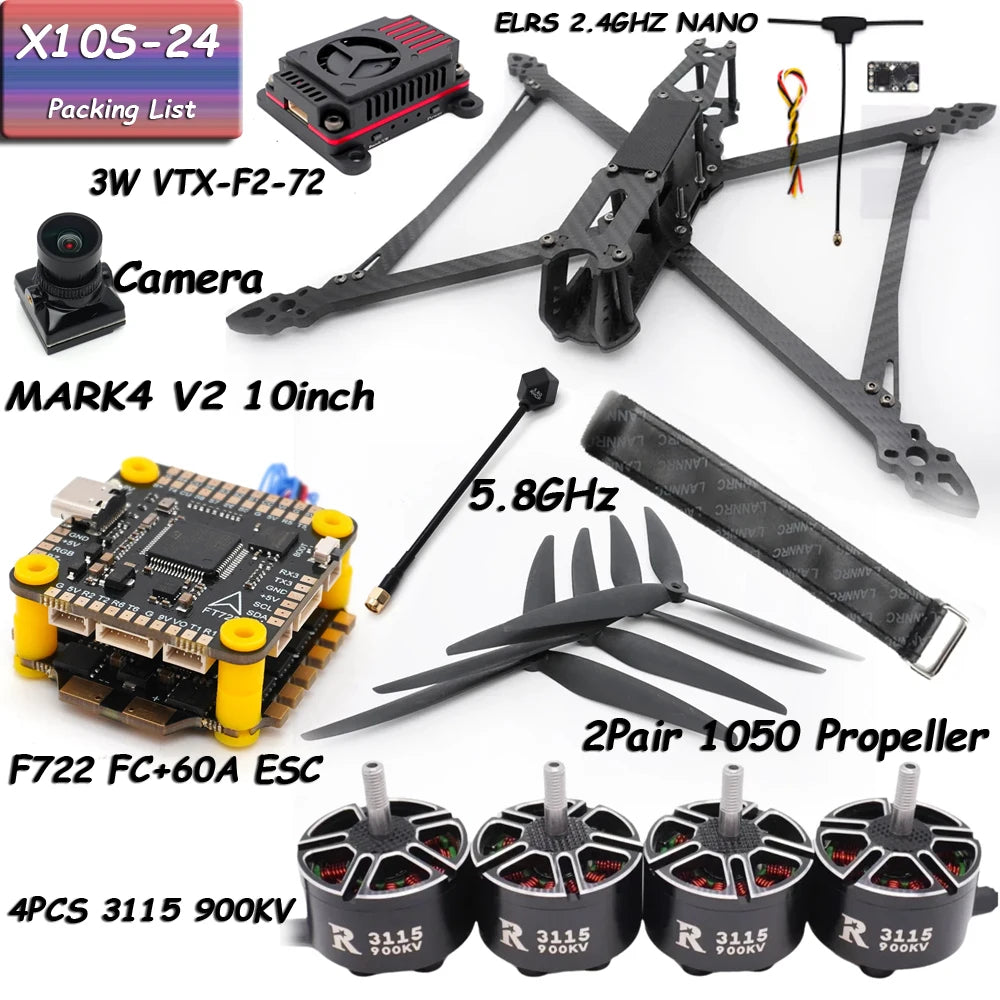

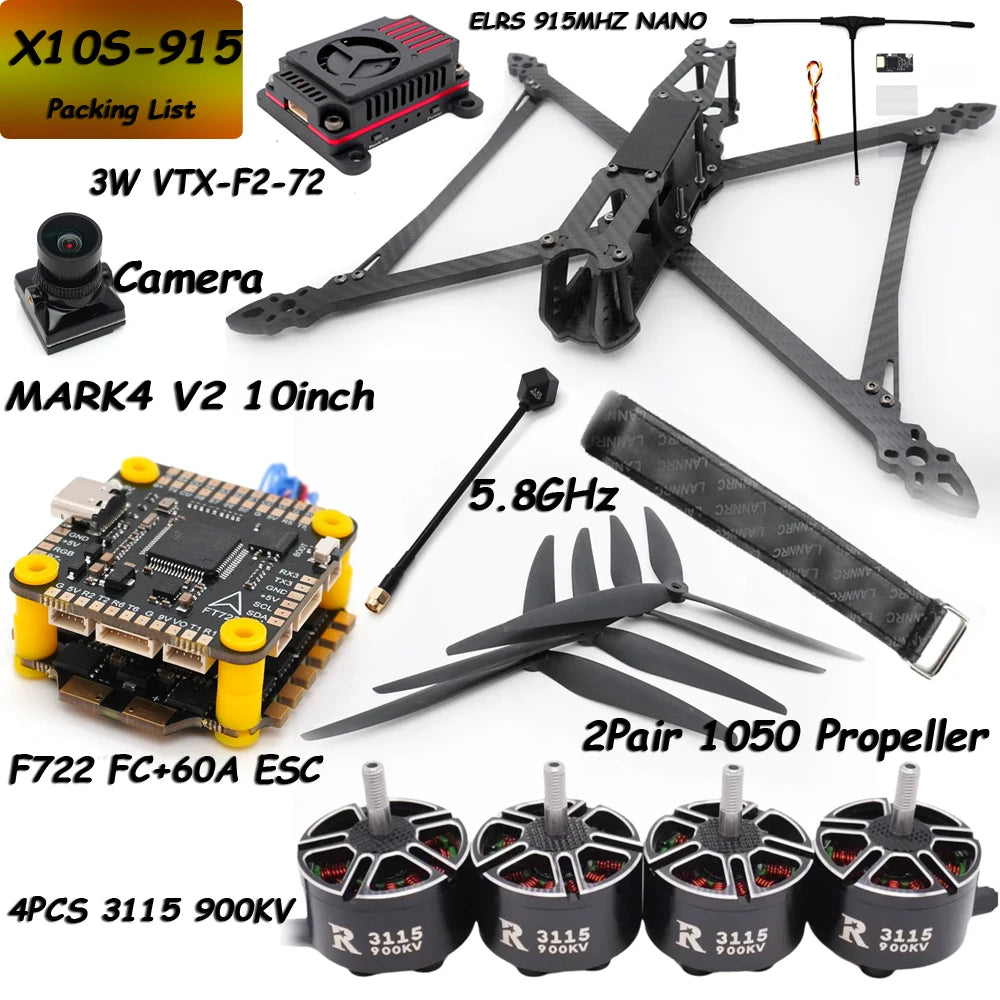

MARK4 V2 10inch F722 Flight Control 60A 4INI ESC 3115 Motor PropellerCamera VTX Receiver Antenna for FPV RC Racing Drone Quadcopter Parts

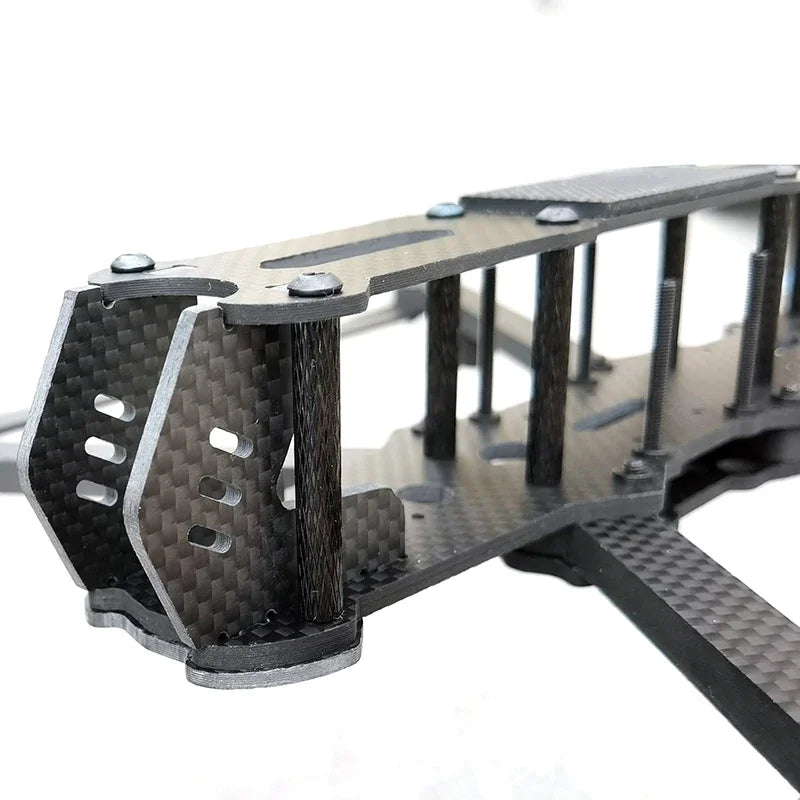

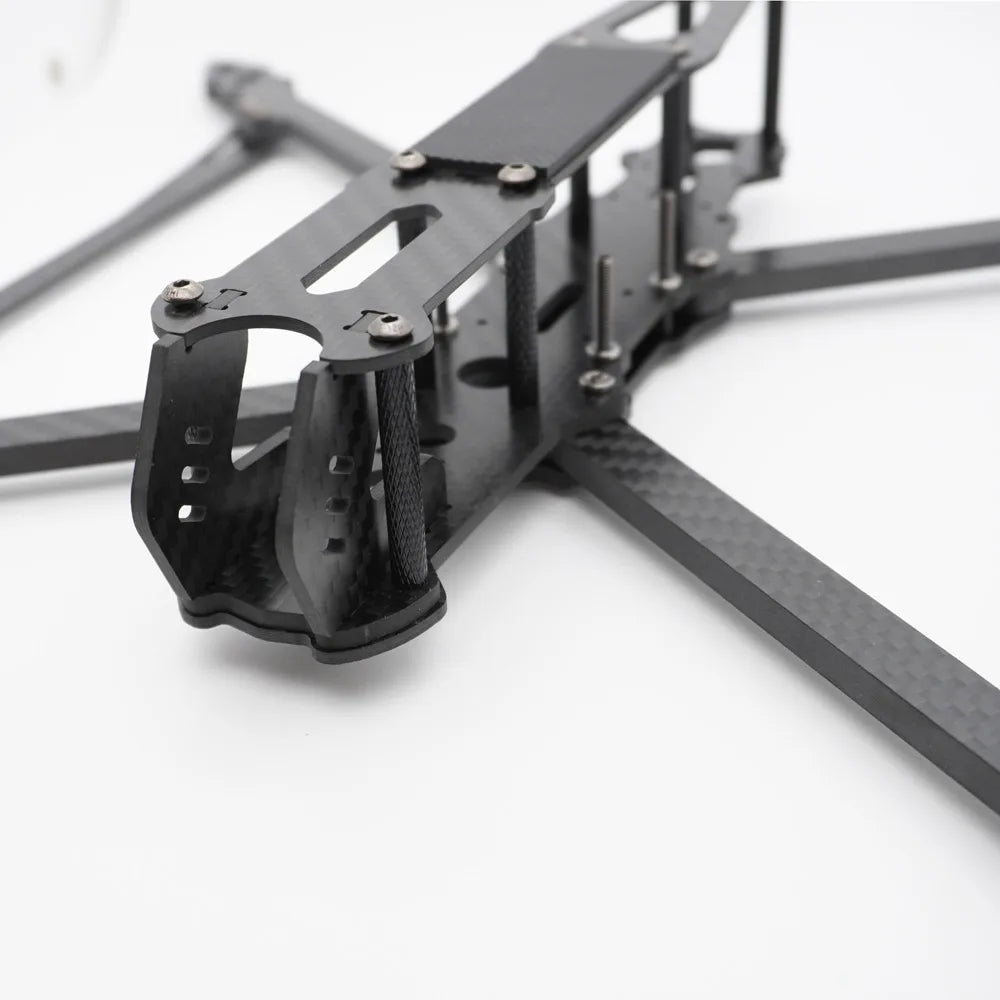

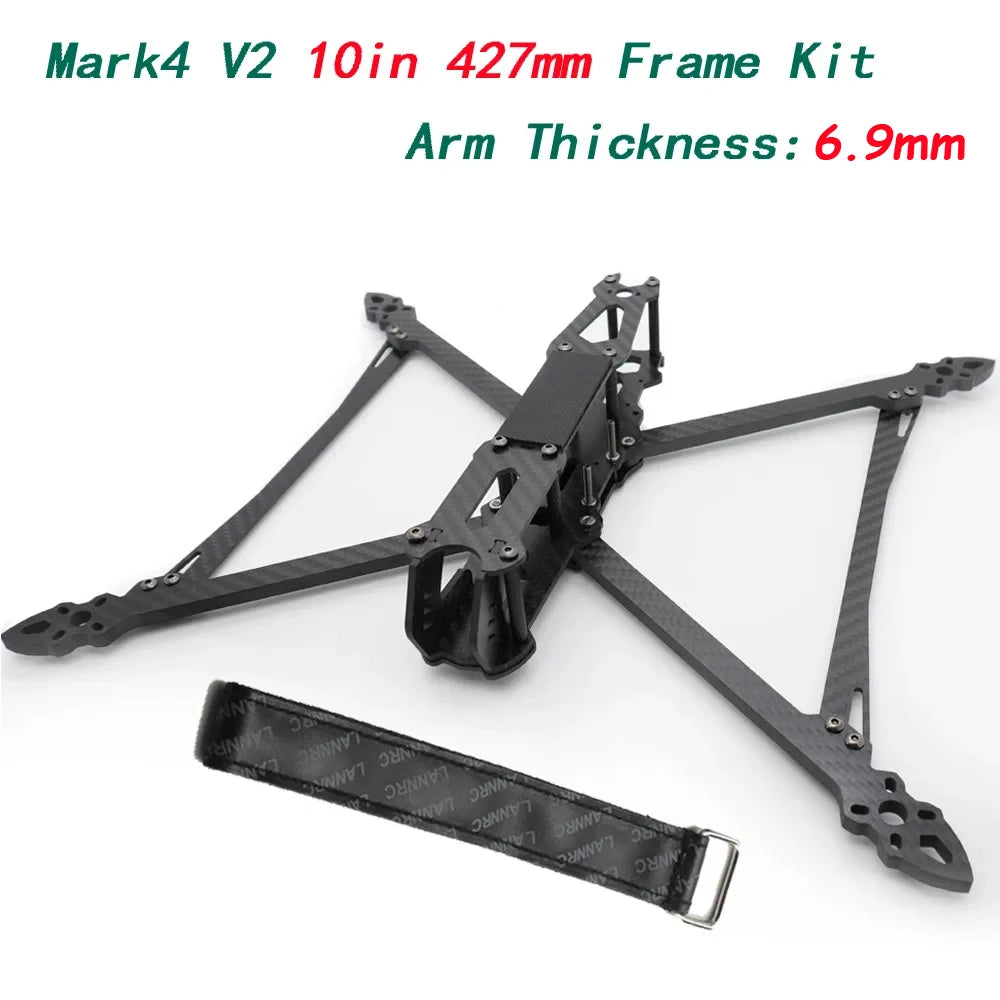

Mark4 V2 10Inch 427mm Carbon Fiber Frame Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.9mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm

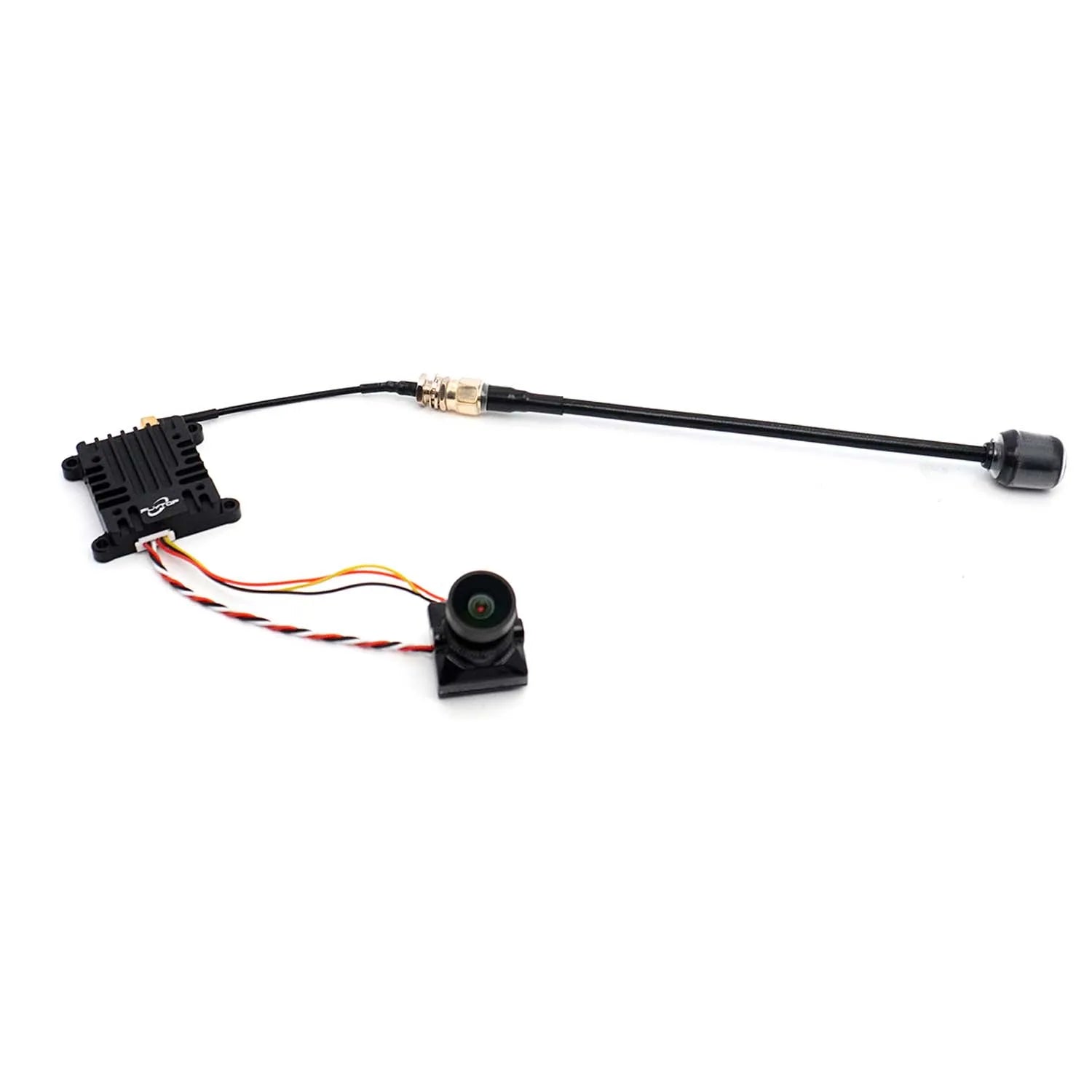

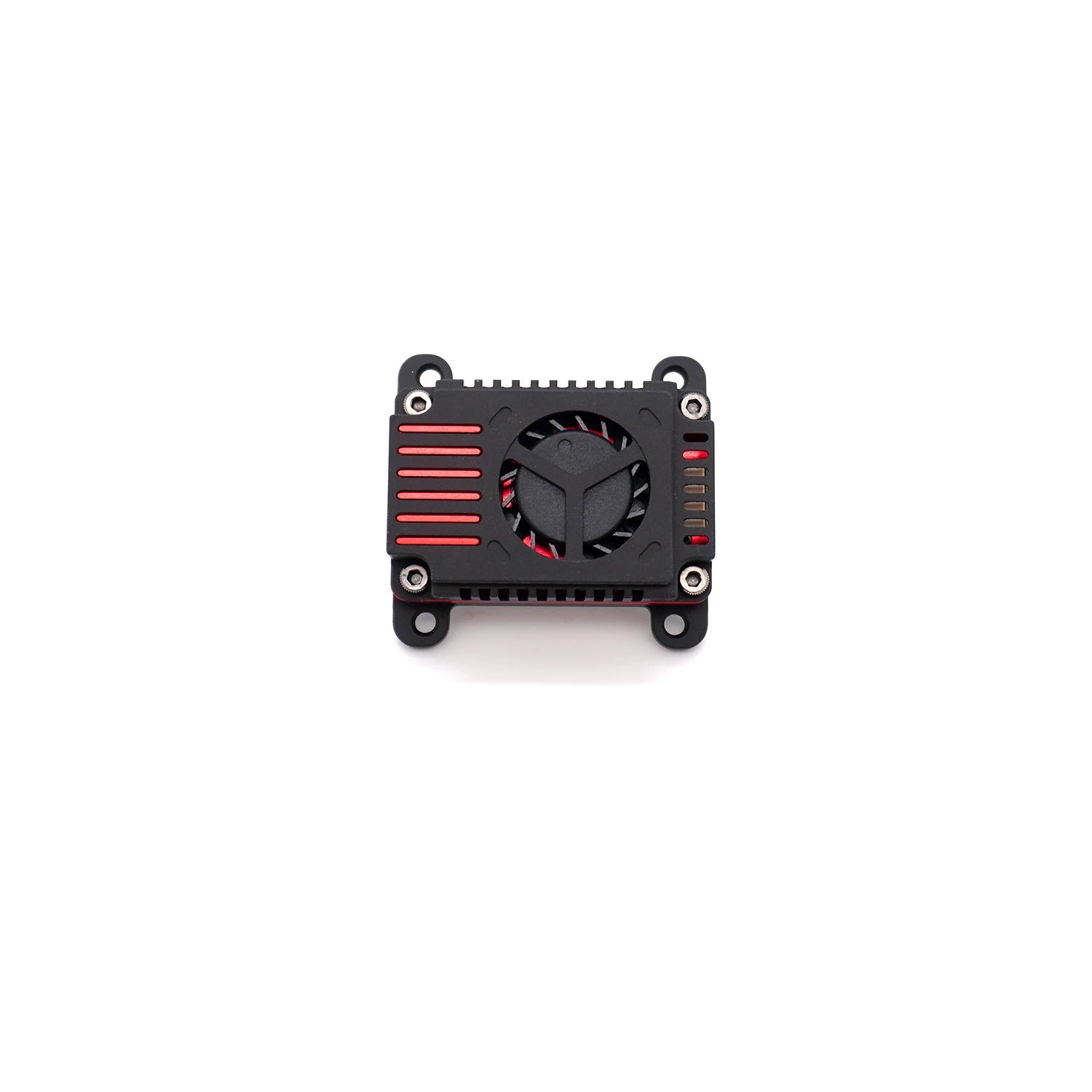

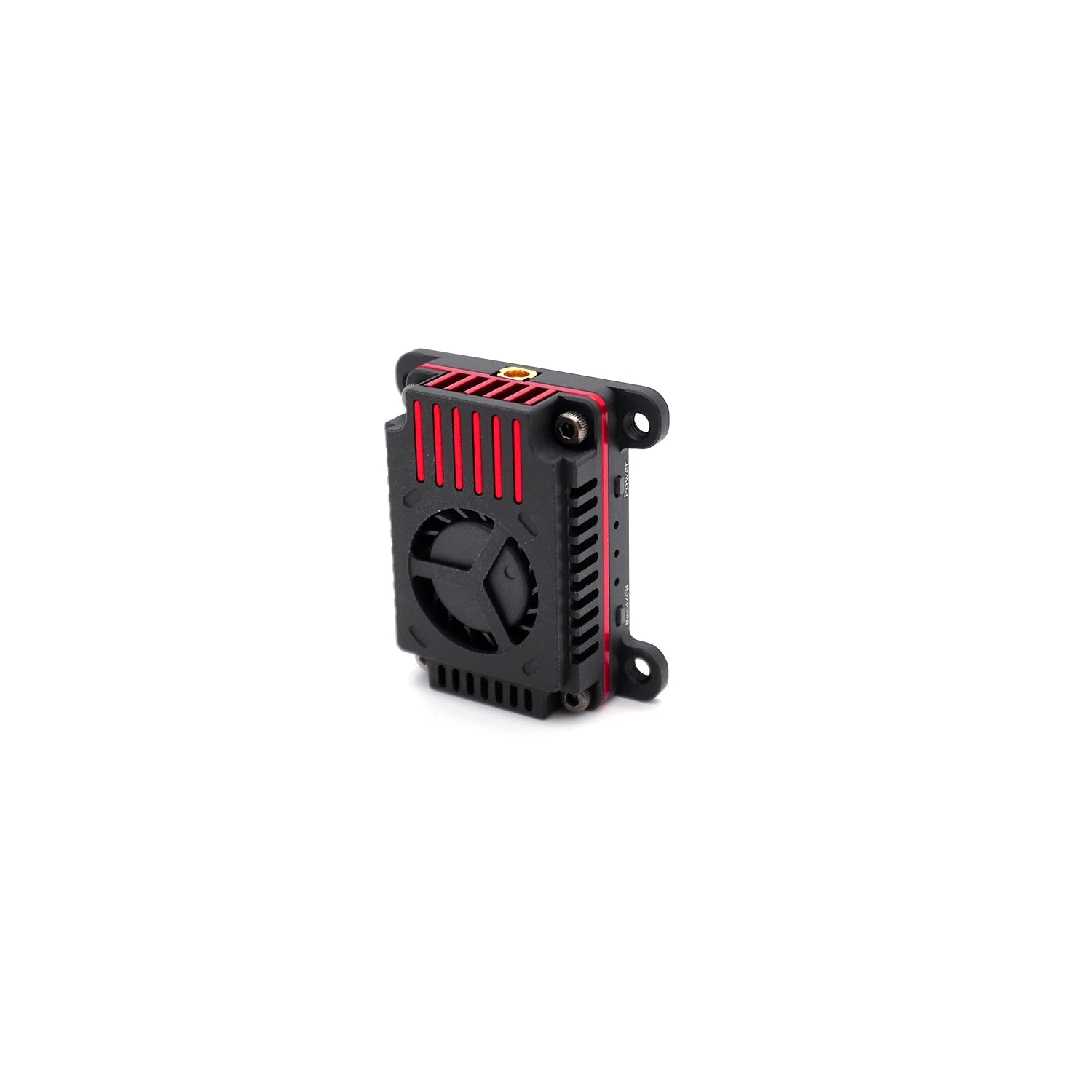

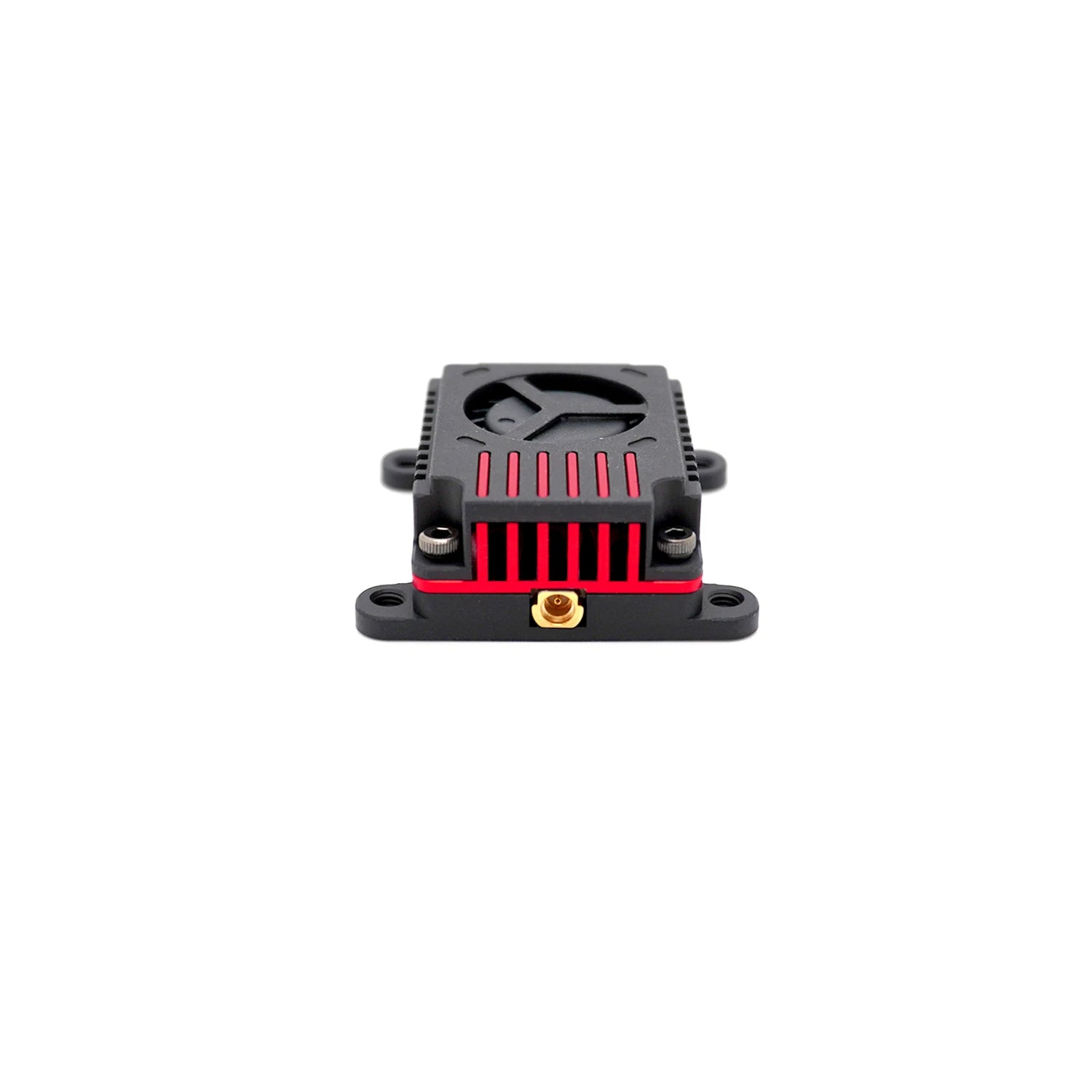

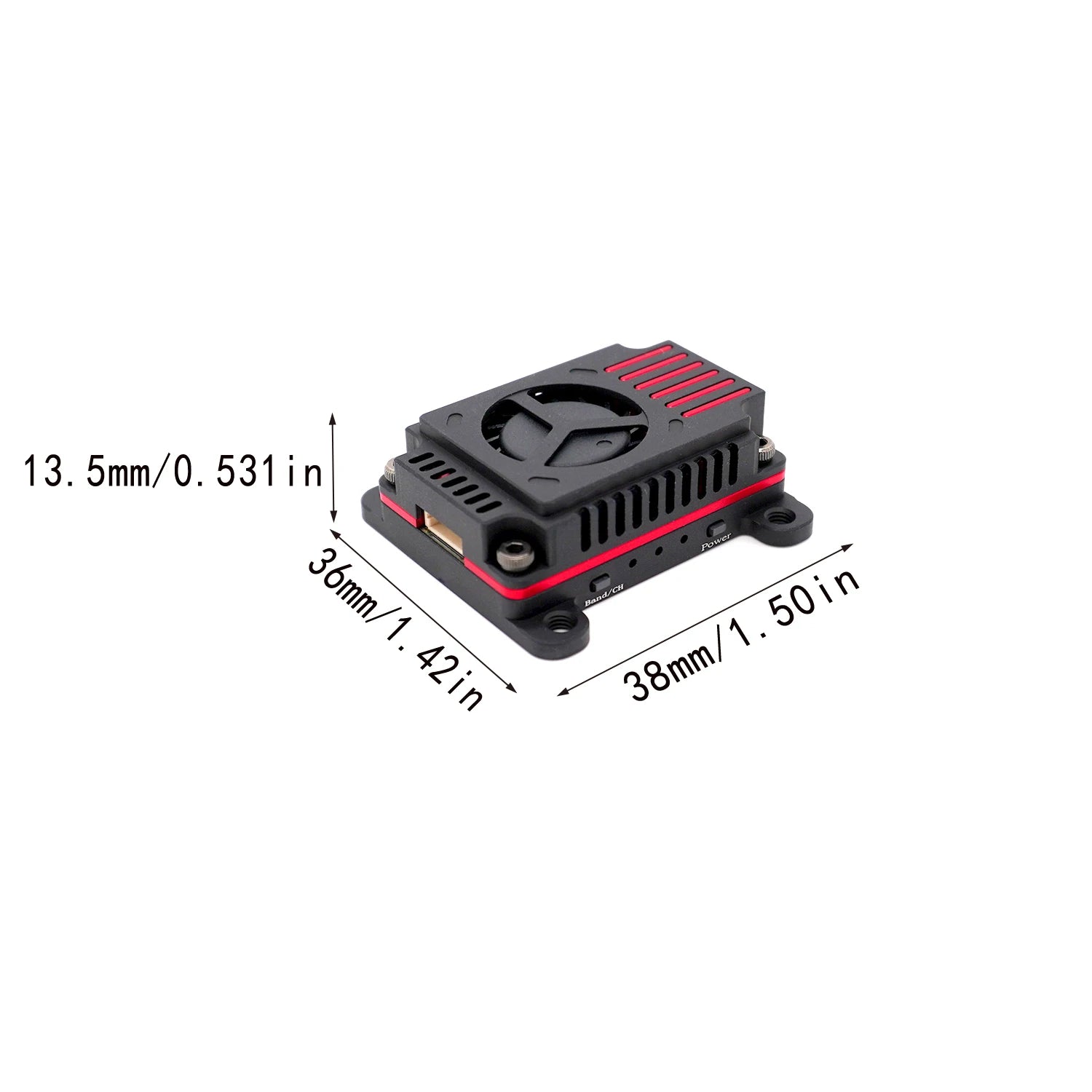

VTX-F2-72 Parameters:
Input Voltage DC 7V-36V (2~8S)
Output Voltage 5V±0.5V Output (MAX 500mA when input voltage exceeds 7.2V)
Number of Channels (Channel Count) 72CH (any configuration within the 4867-6100 range)
Transmit Power PIT Mode, 25mW, 400mW, 800mW, 3000mW
Control Protocol IRC Tramp, supports OSD parameter adjustment
Modulation Type FM
Frequency Control PLL
Frequency Stability ±100KHz (Typ.)
Frequency Precision ±200KHz (Typ.)
Signal-to-Noise Ratio S/N (Fo ± 3) >70dBc
Antenna Port Impedance 50 Ohms
Antenna Interface MMCX
Video Format PAL / NTSC
Video Input Level Range 1V±0.2Vp-p type
Video Signal Format CVBS
Audio Input MIC (Audio Carrier 6.5M)
Operating Temperature -10°C to +60°C
Profile Dimension 38.5mm × 35.5mm × 10.76mm
Mounting Hole Pattern 30.5mm × 30.5mm spacing, with built-in M3 threaded holes

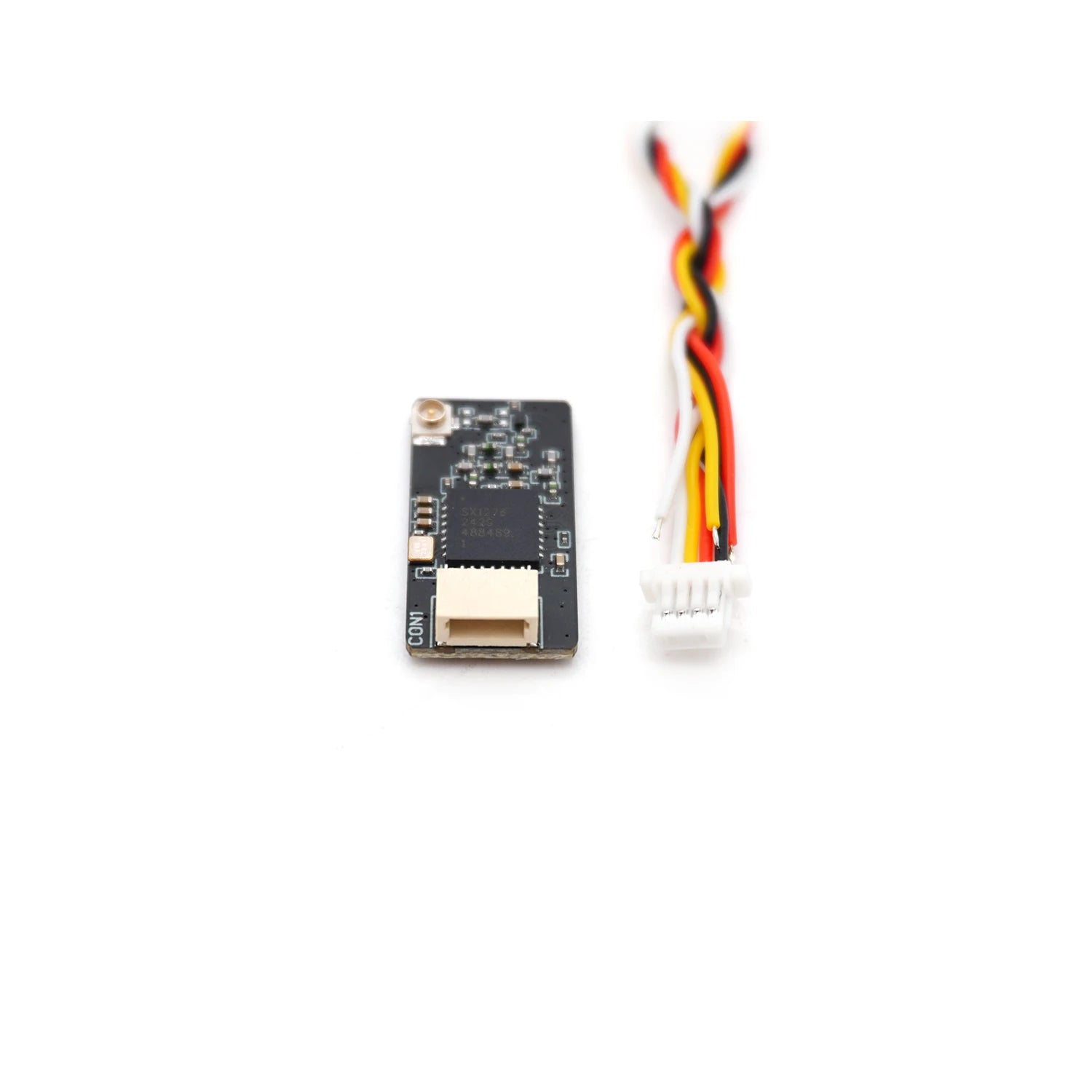

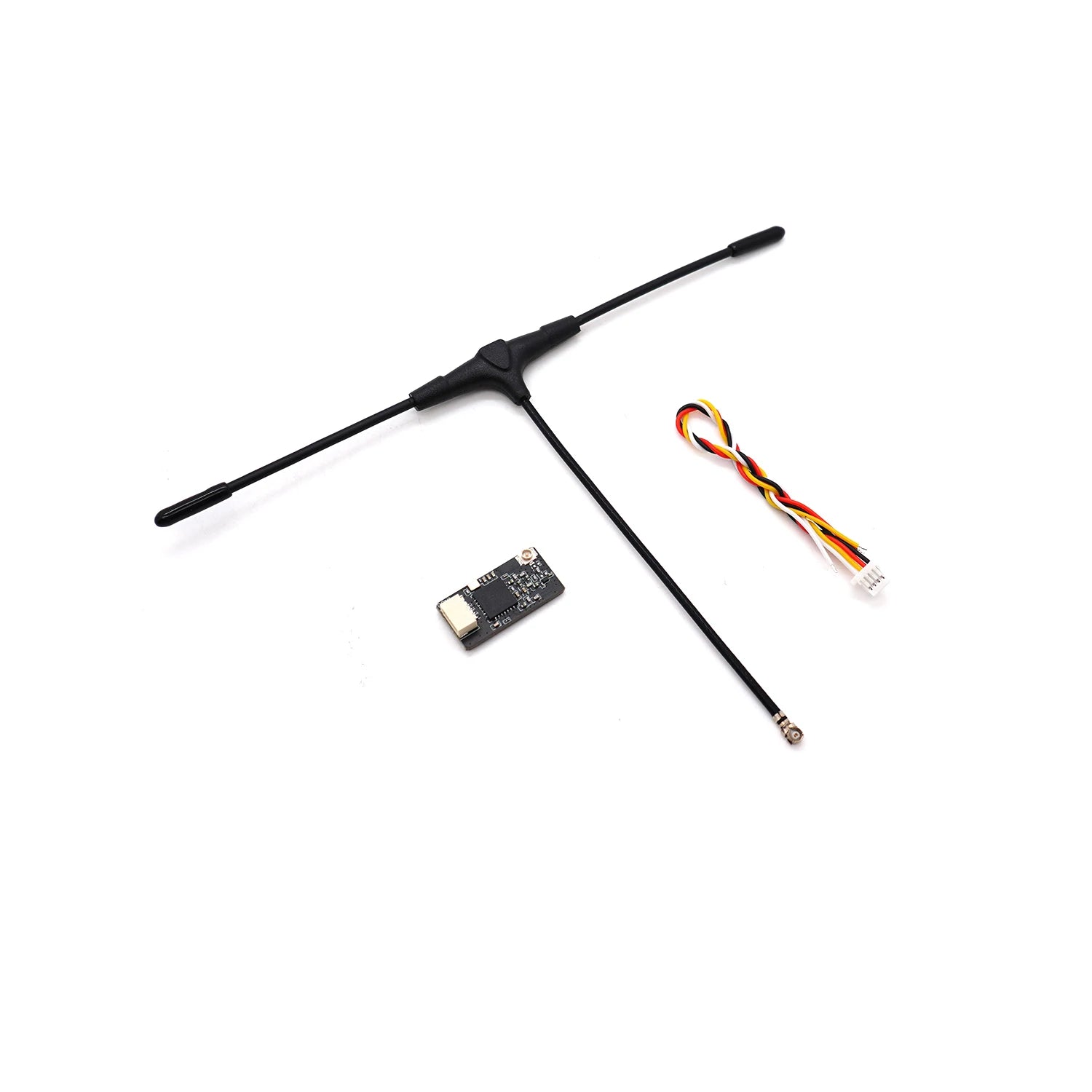

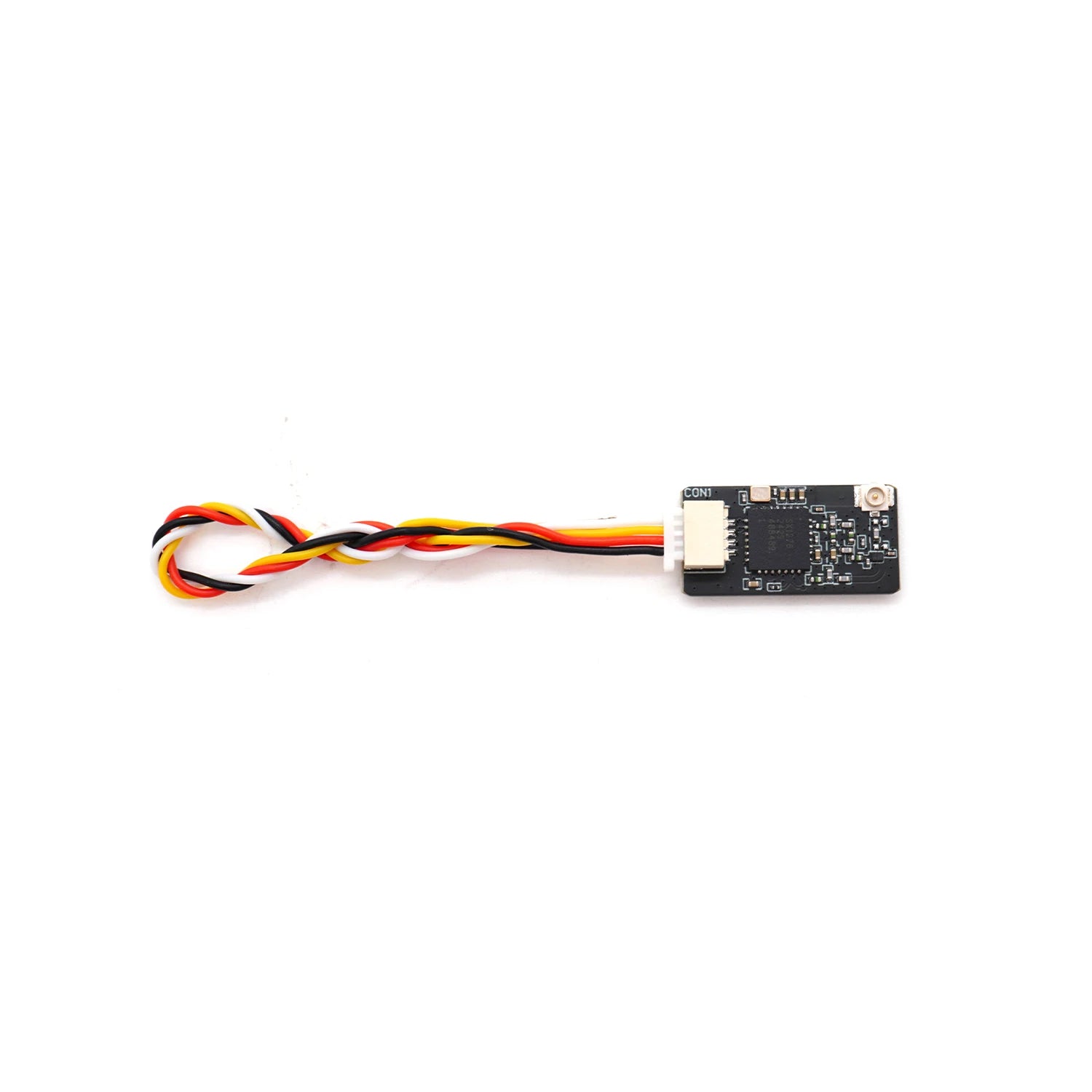

Model：ELRS-915M-NANO-RX with 4pin socket
Name：ExpressLRS Receiver
RF Freq:915Mhz
IC:SX1276+ESP8285
TX Power:100mW
Connector:IPEX1
Input Power:3.6-5.5V

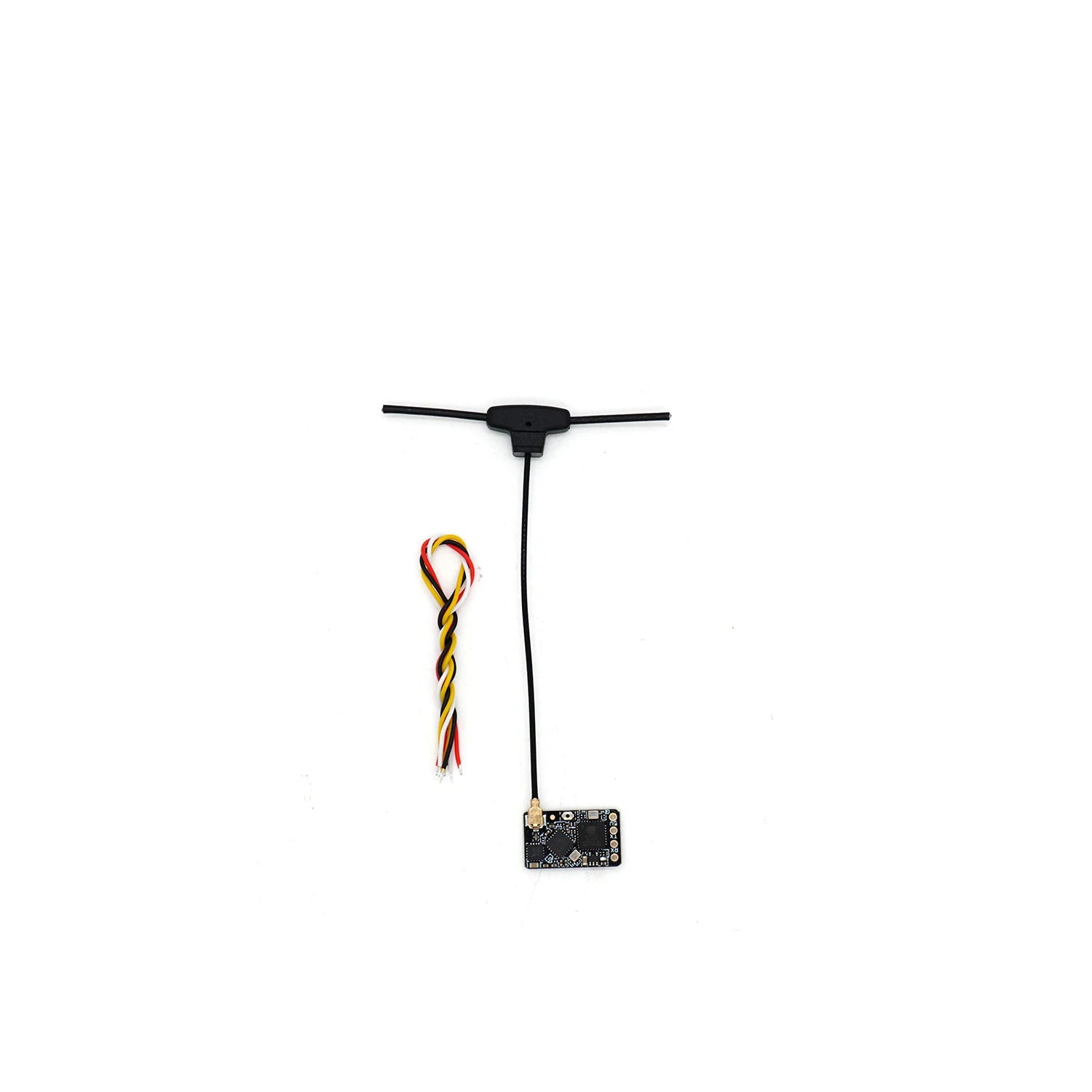

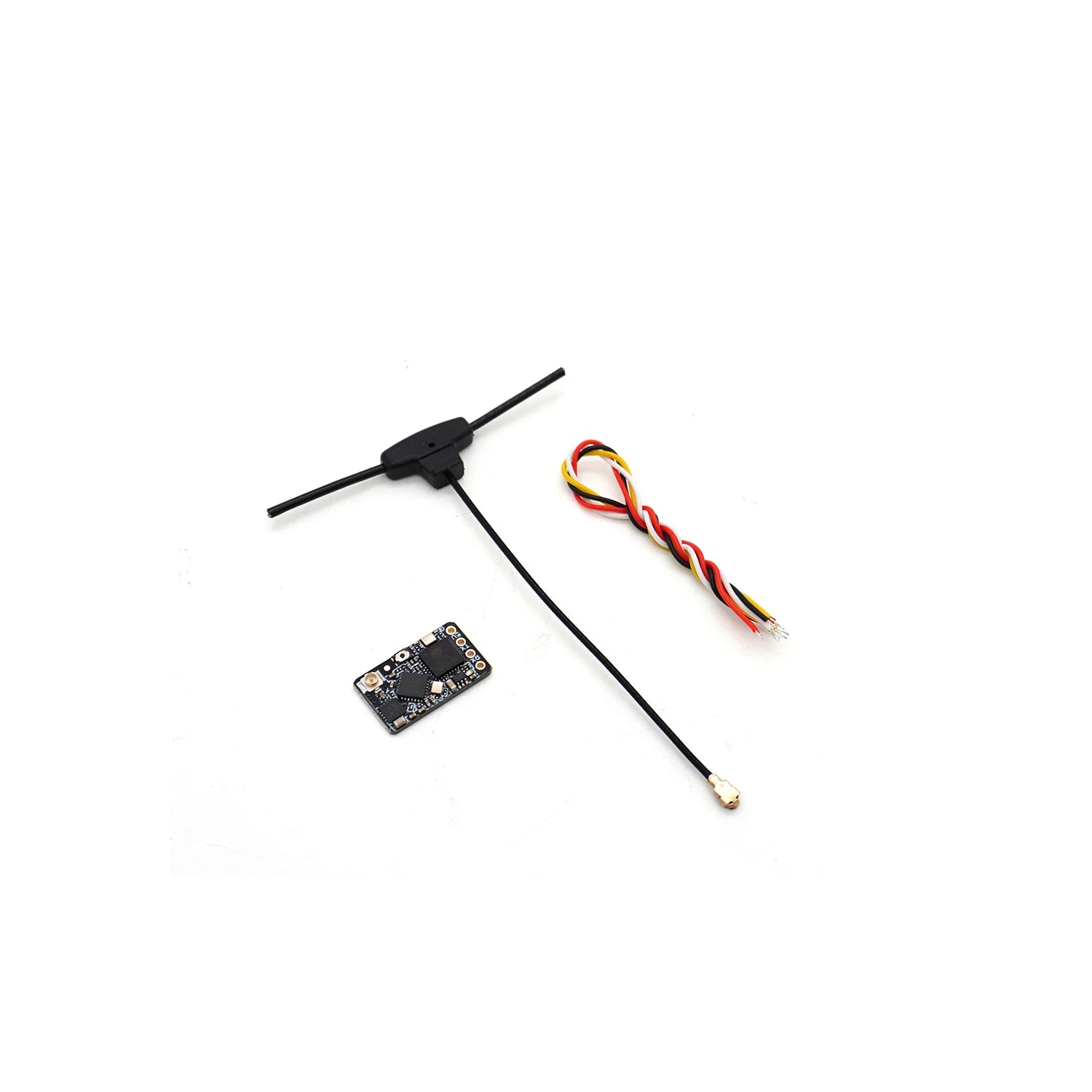

Model：ELRS-2.4G-NANO
Name：ExpressLRS Receiver
RF Freq:2.4Ghz
IC:SX1281+ESP8285
TX Power:100mW
Connector:IPEX1
Input Power:3.6-5.5V

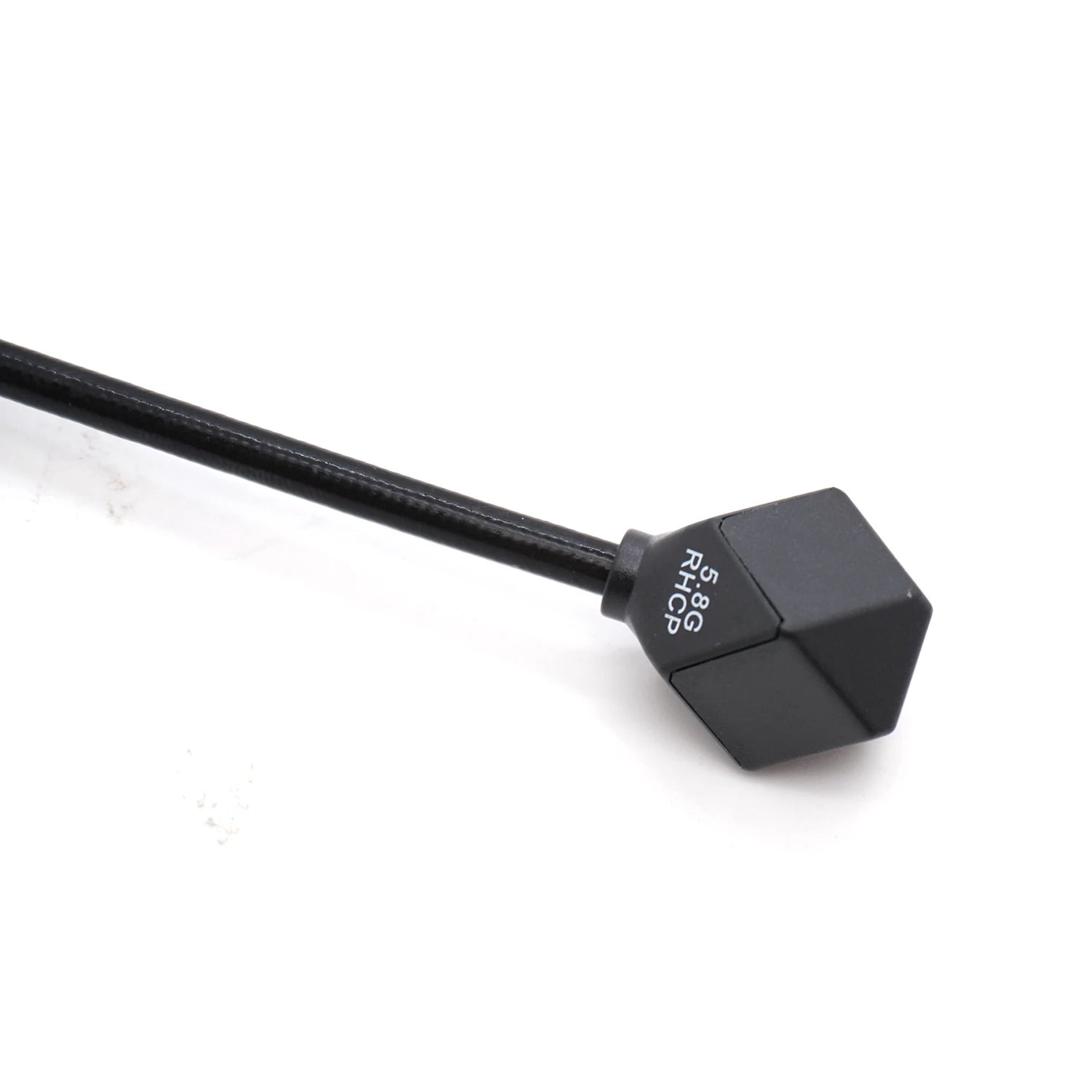

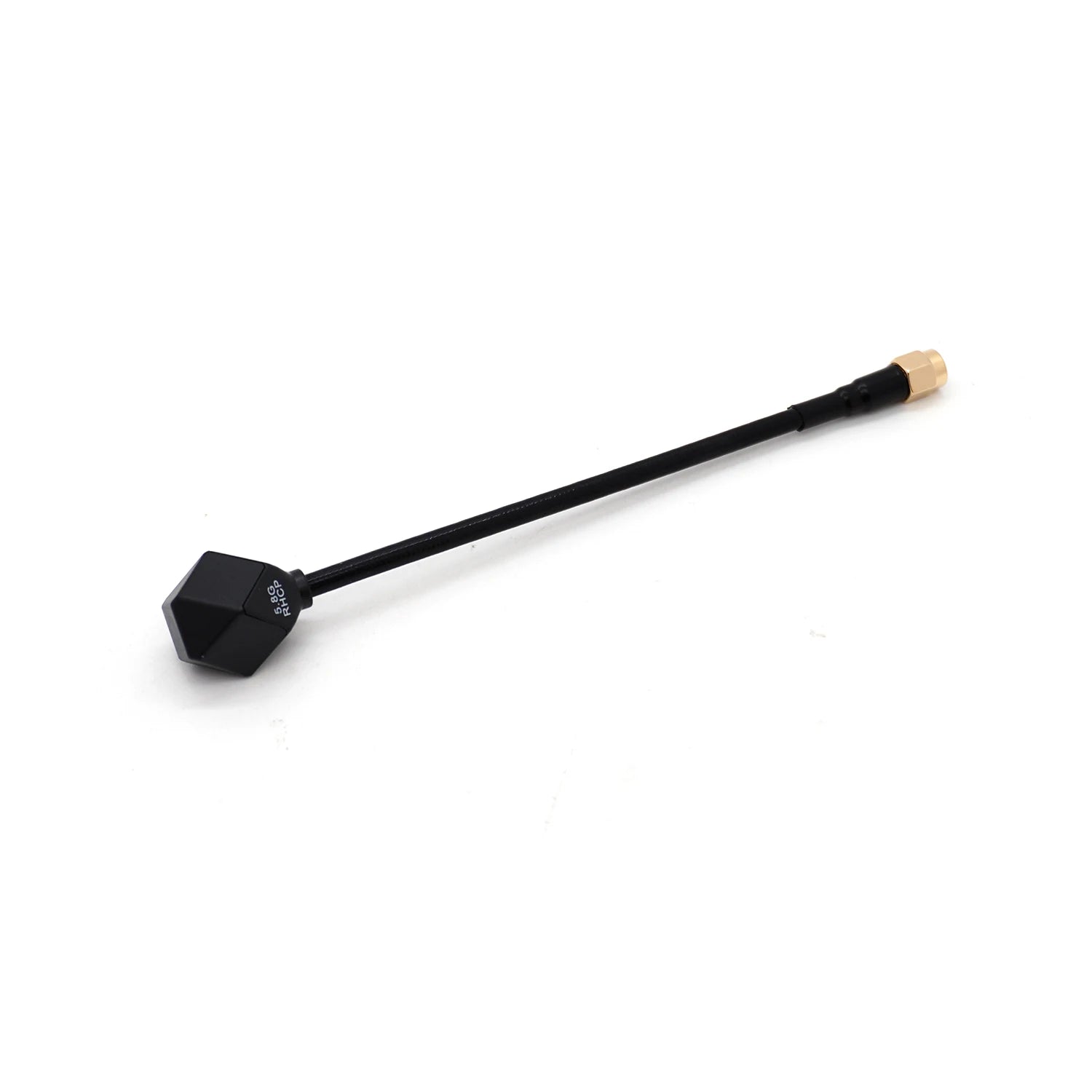

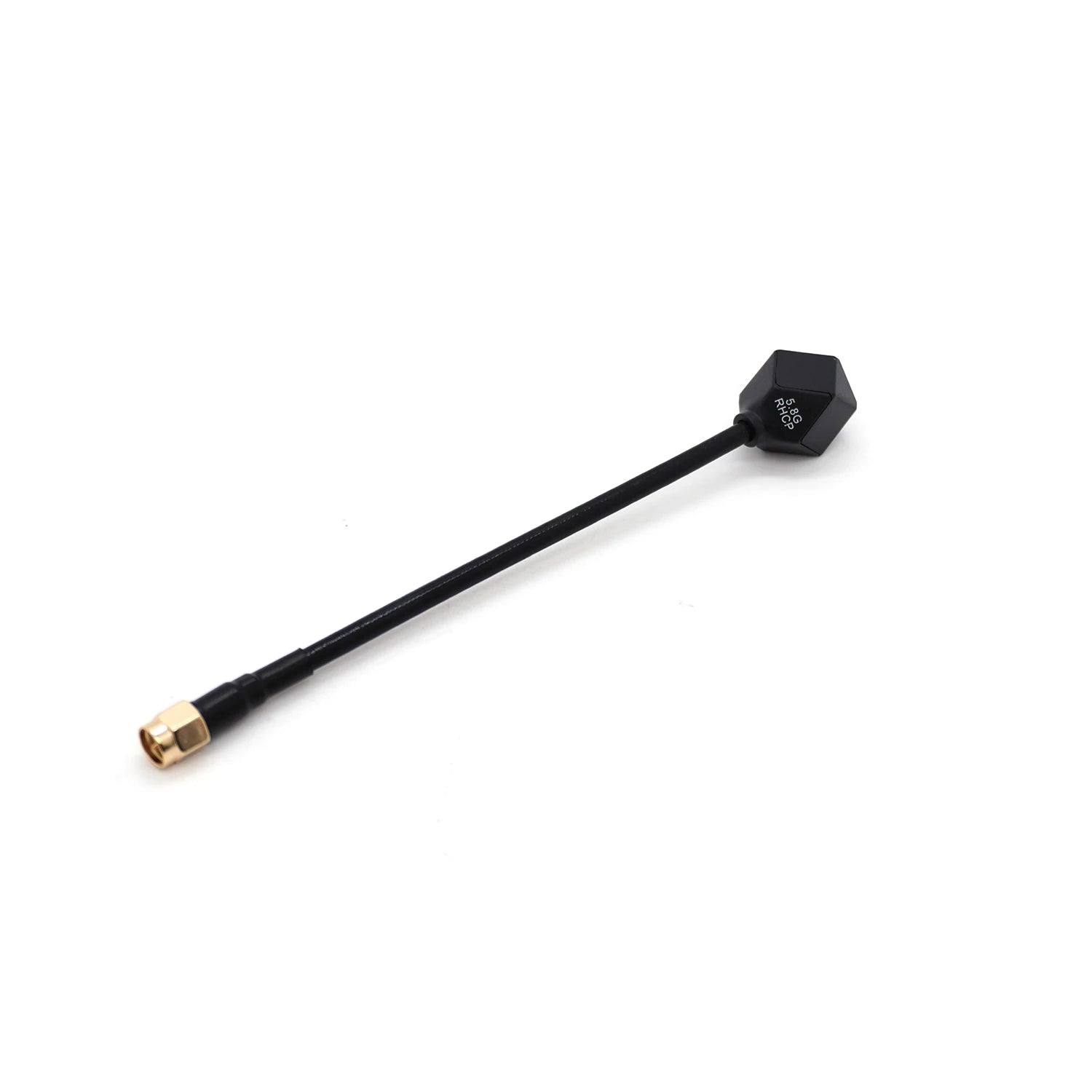

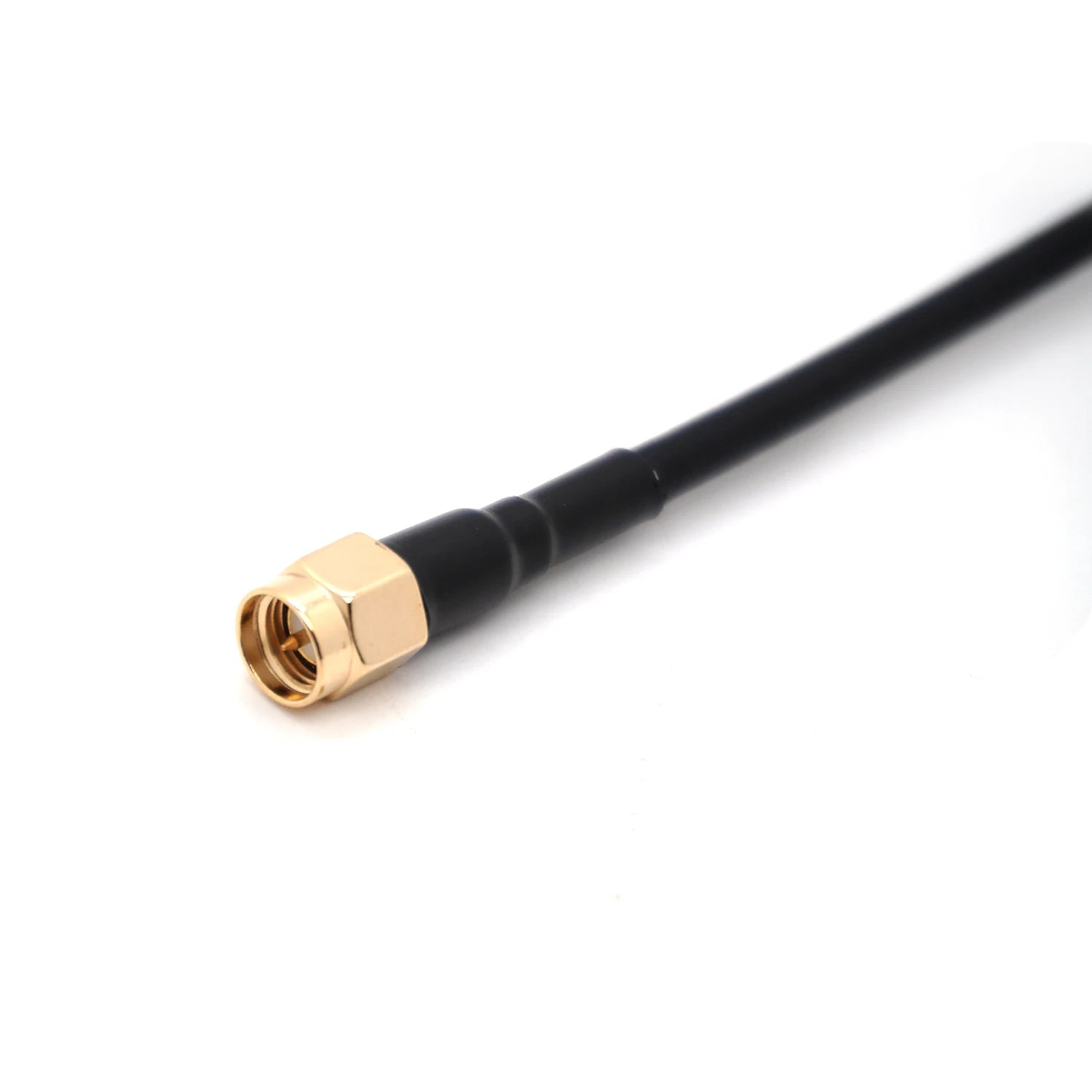

Model: RHCP SMA FPV Antenna
Frequency range: 5.3GHz-6GHz
Maximum gain:2.65dBi (5695MHz)
Minimum gain:2.06dBi (5362MHz)
Average gain:2.4dBi
Maximum standing wave ratio: 1.76 (5917MHz)
Minimum standing wave: 1.46 (5621MHz)
Average standing wave ratio: 1.75
Maximum radiation efficiency: 86% (5436MHz)
Minimum radiation efficiency: 76% (5917MHz)
Average radiation efficiency: 83%
Polarization method: right-handed polarization RHCP
Cross polarization suppression: -25dB Axis ratio: ≤ 3
Weight: 7g (60mm)/9.5g (100mm)/11.5g (150mm)

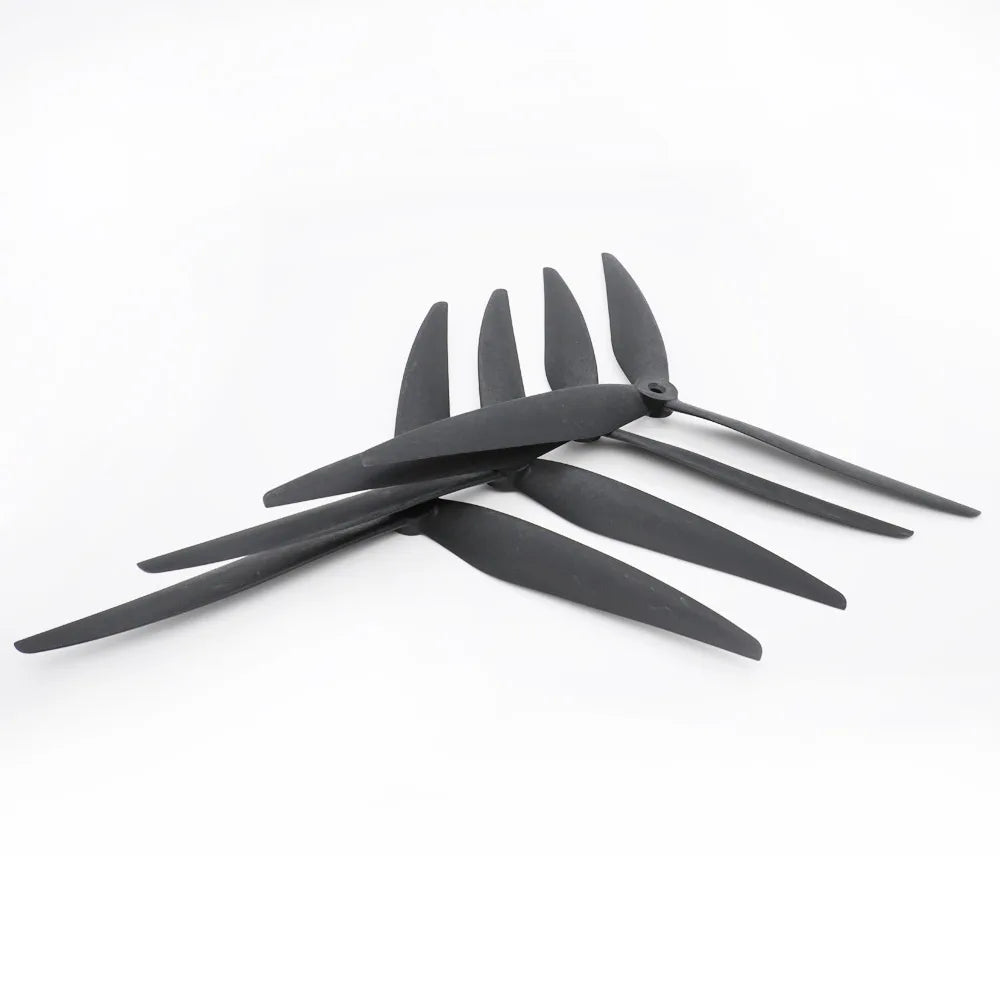

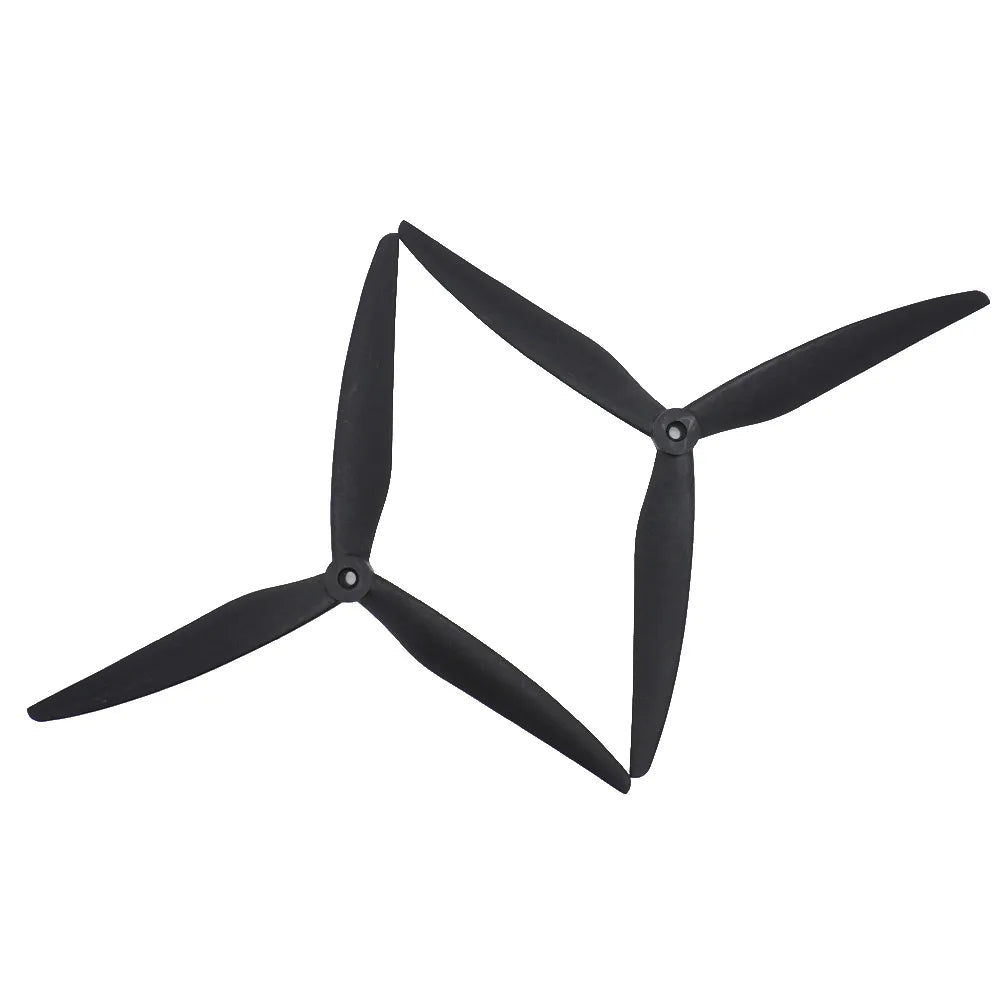

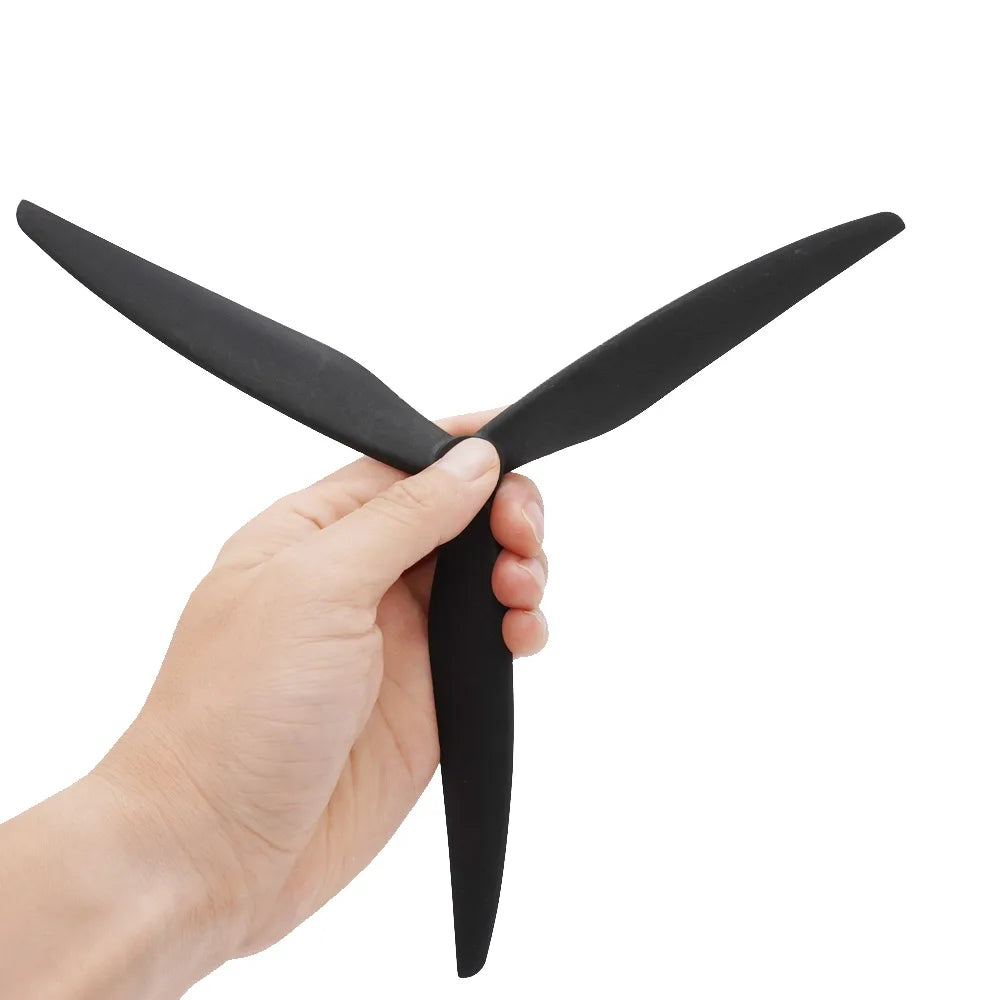

Type :1050
Blades: 3
Material :Glass Nylon
Pitch: 5in
Prop Disk Diameter :254.6m
Center Thickness :9mm

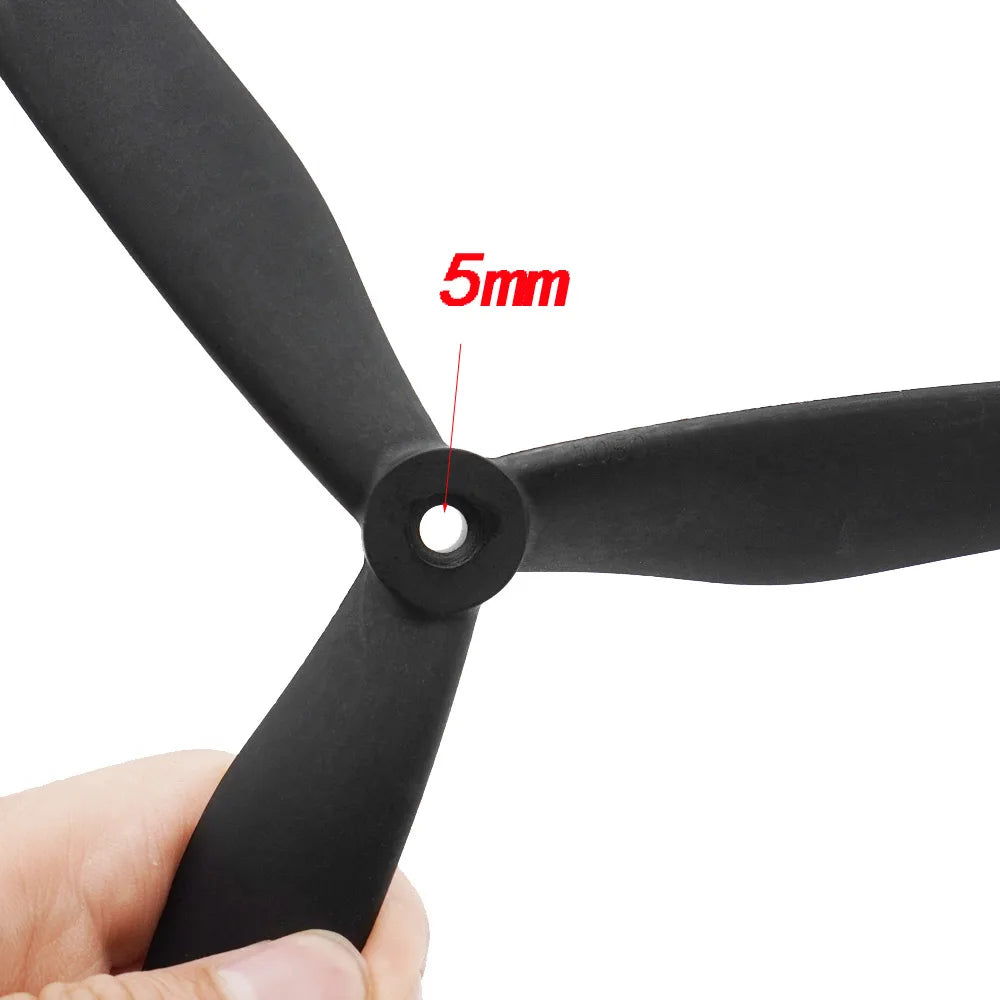

Center Hole Inner diameter :5mm
Max Prop Width: 22mm
Weight/g :17g
Recommended Motor :3214 and up
