SPECIFICATIONS

Brand Name: NeebRC

Certification: CE

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: 5inch

Origin: Mainland China

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Technical parameters: Value 6

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

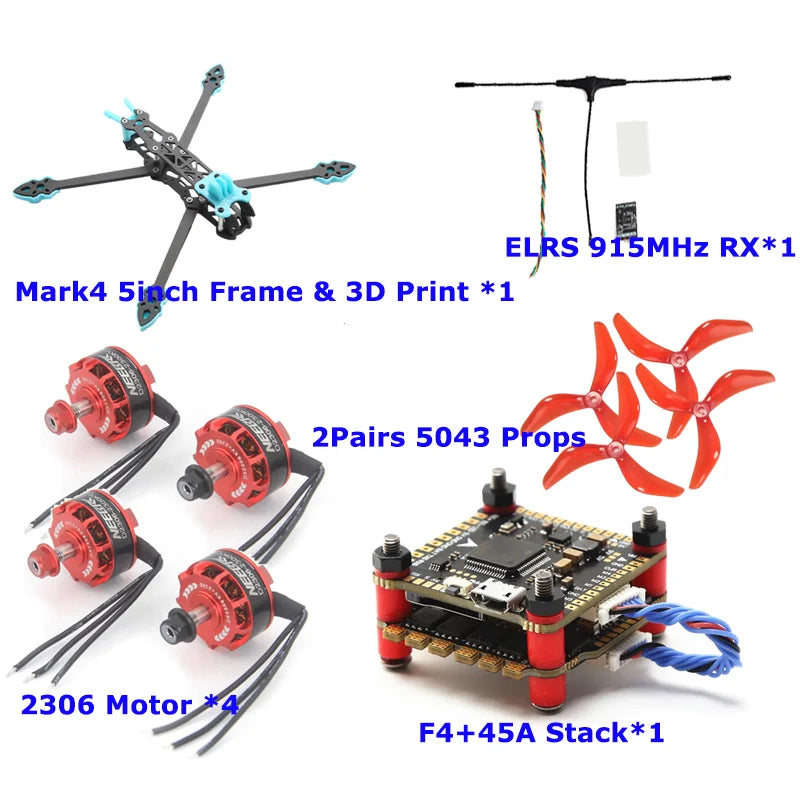

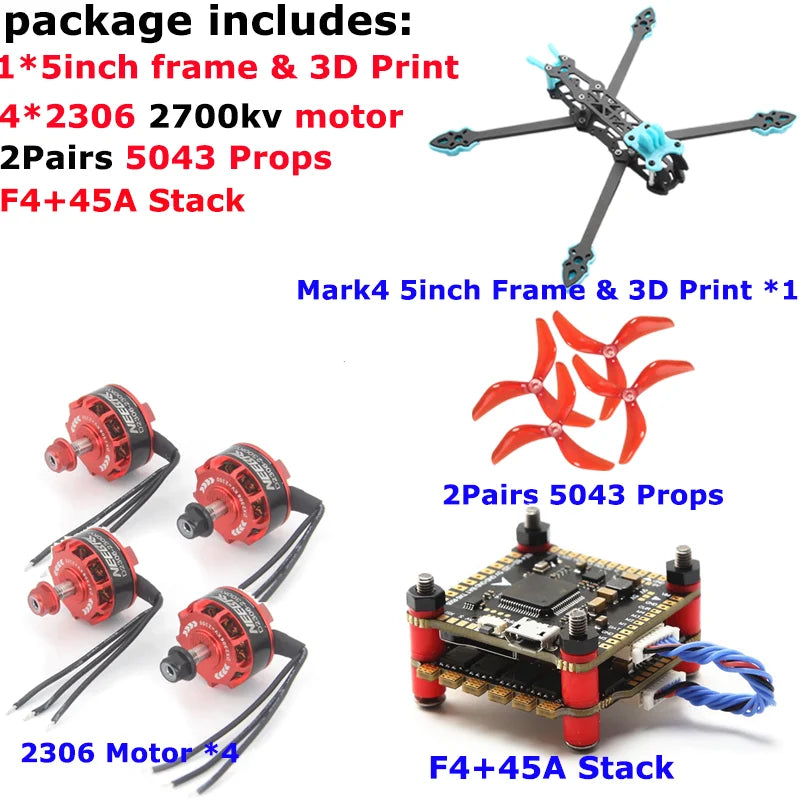

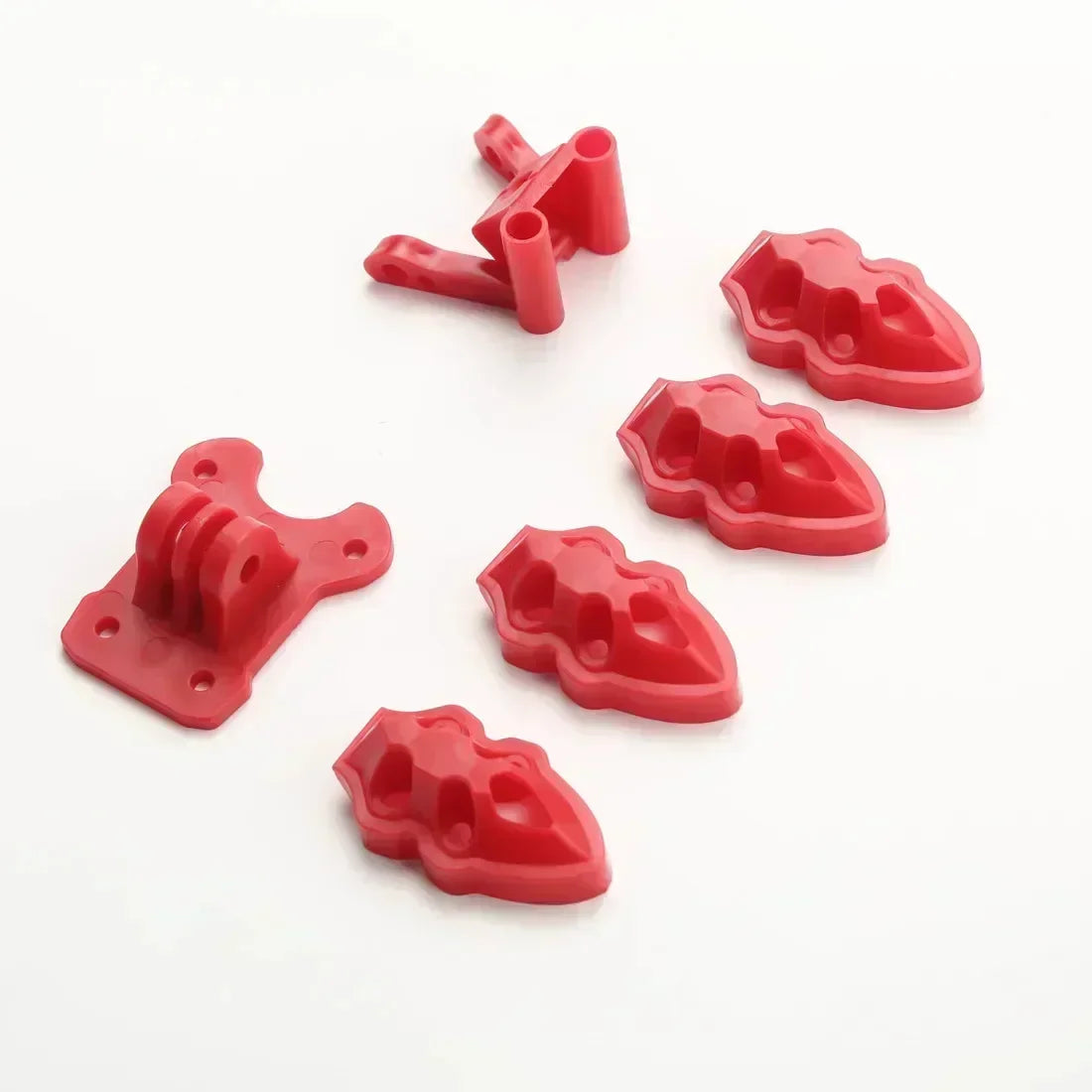

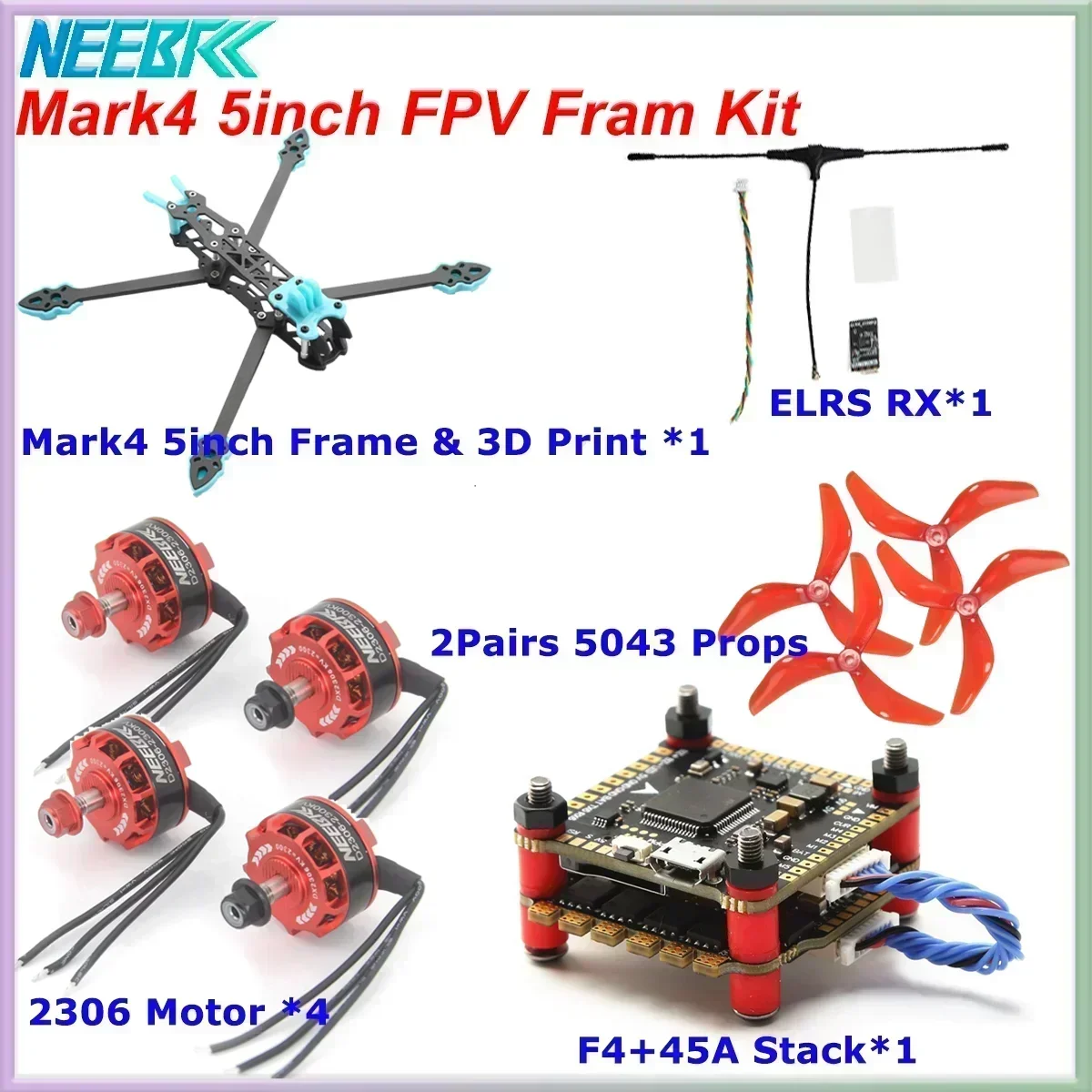

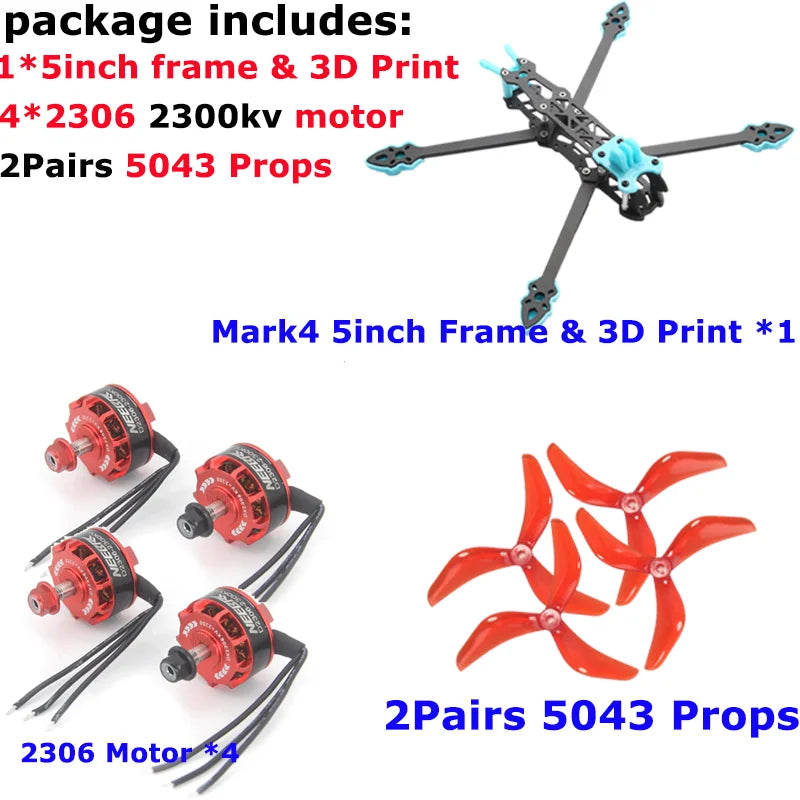

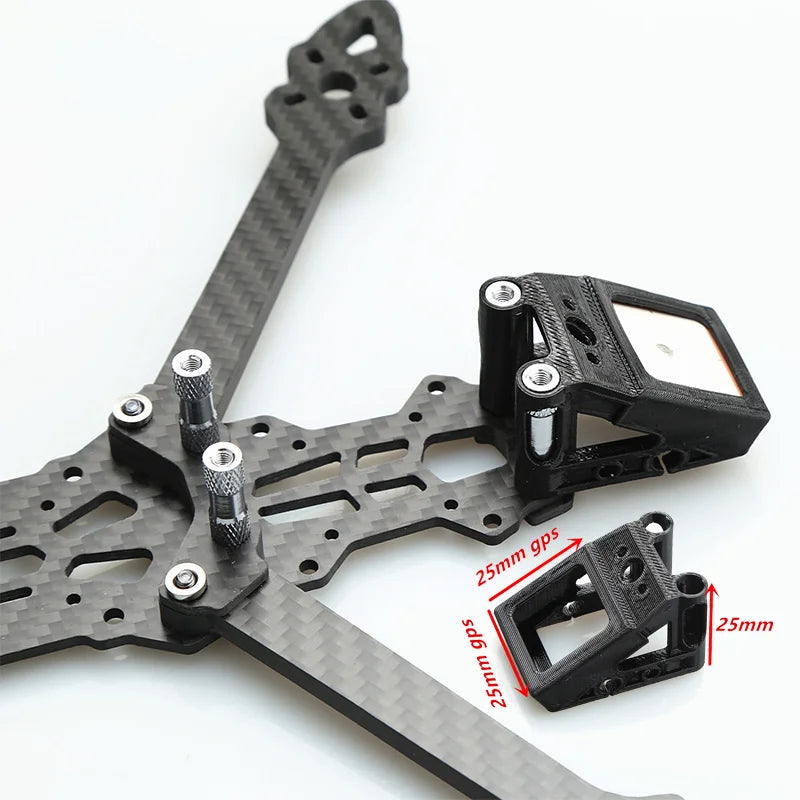

Mark4 5inch FPV Frame Kit 2306 Motor F4V3S PLUS FC 45A ESC Stack ELRS 915MHz RX 5043 Prop GPS Print Part for RC fpv Racing Drone

Specification:

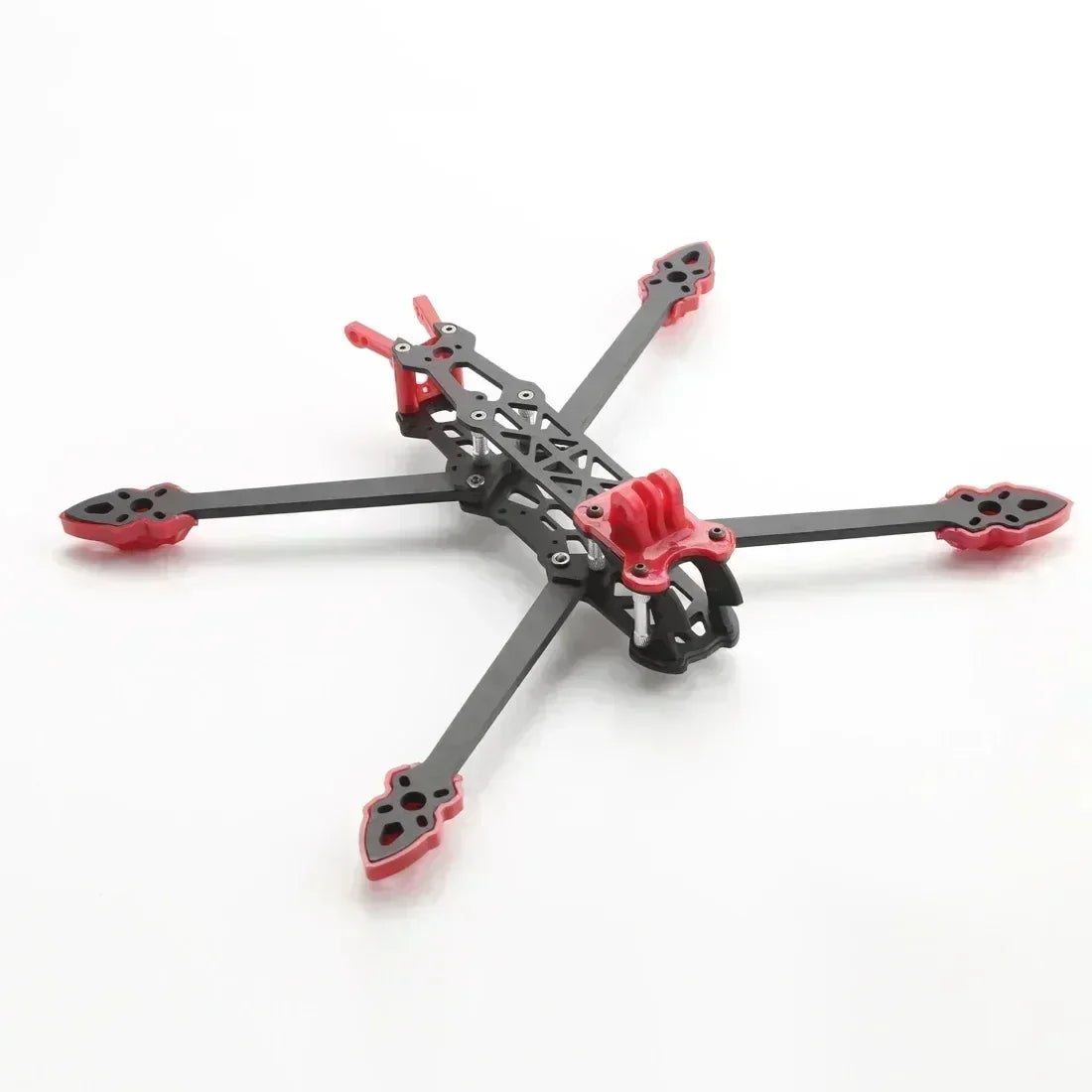

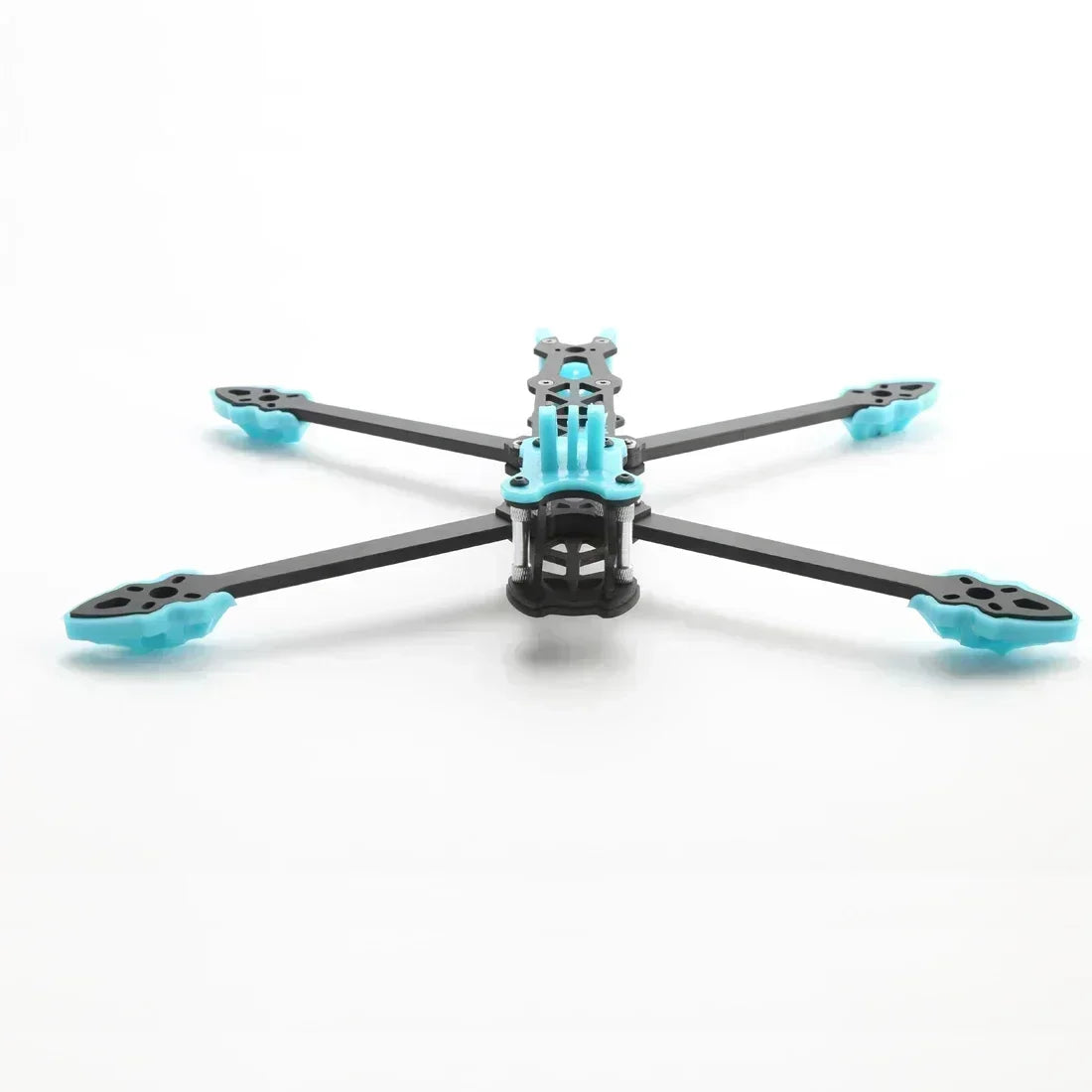

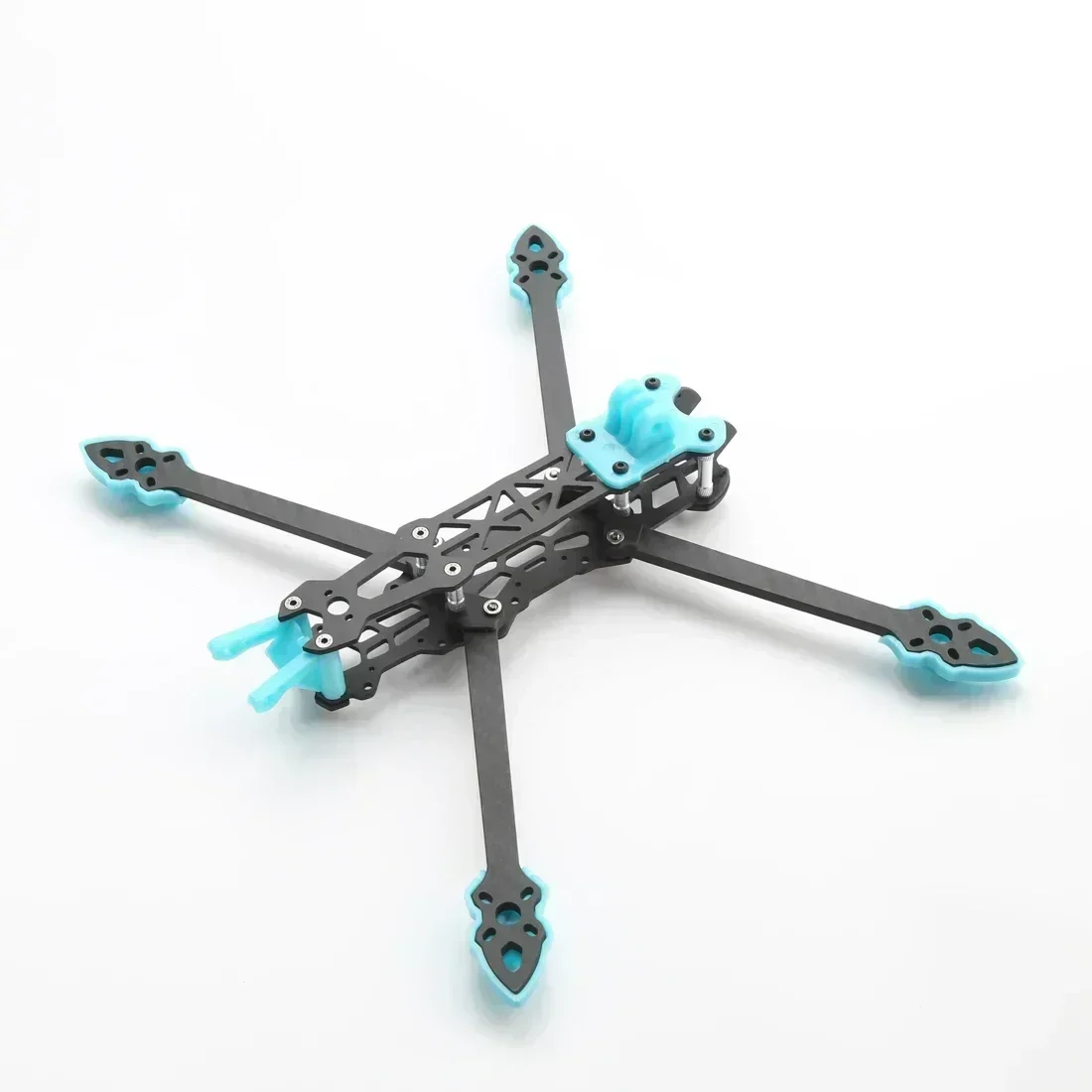

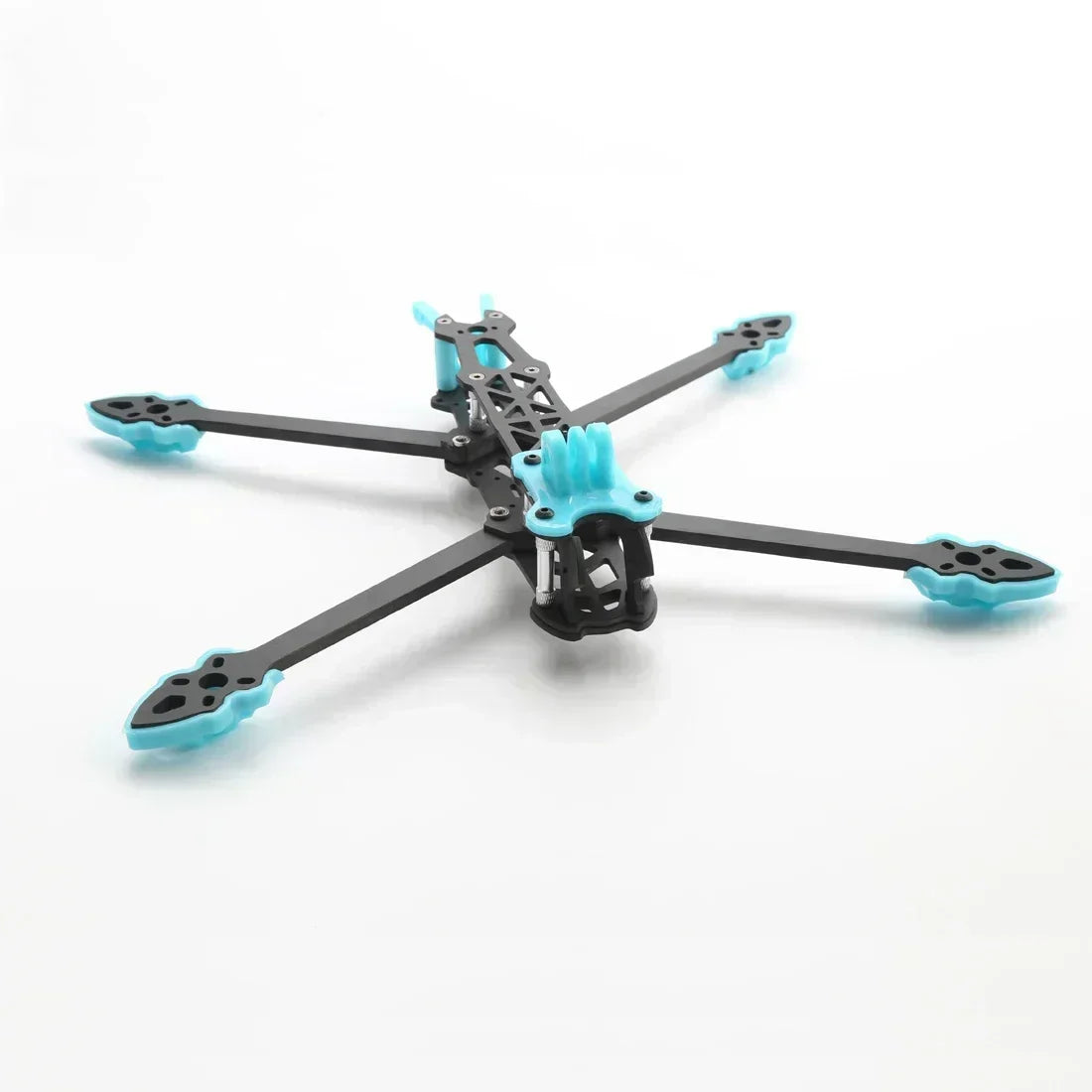

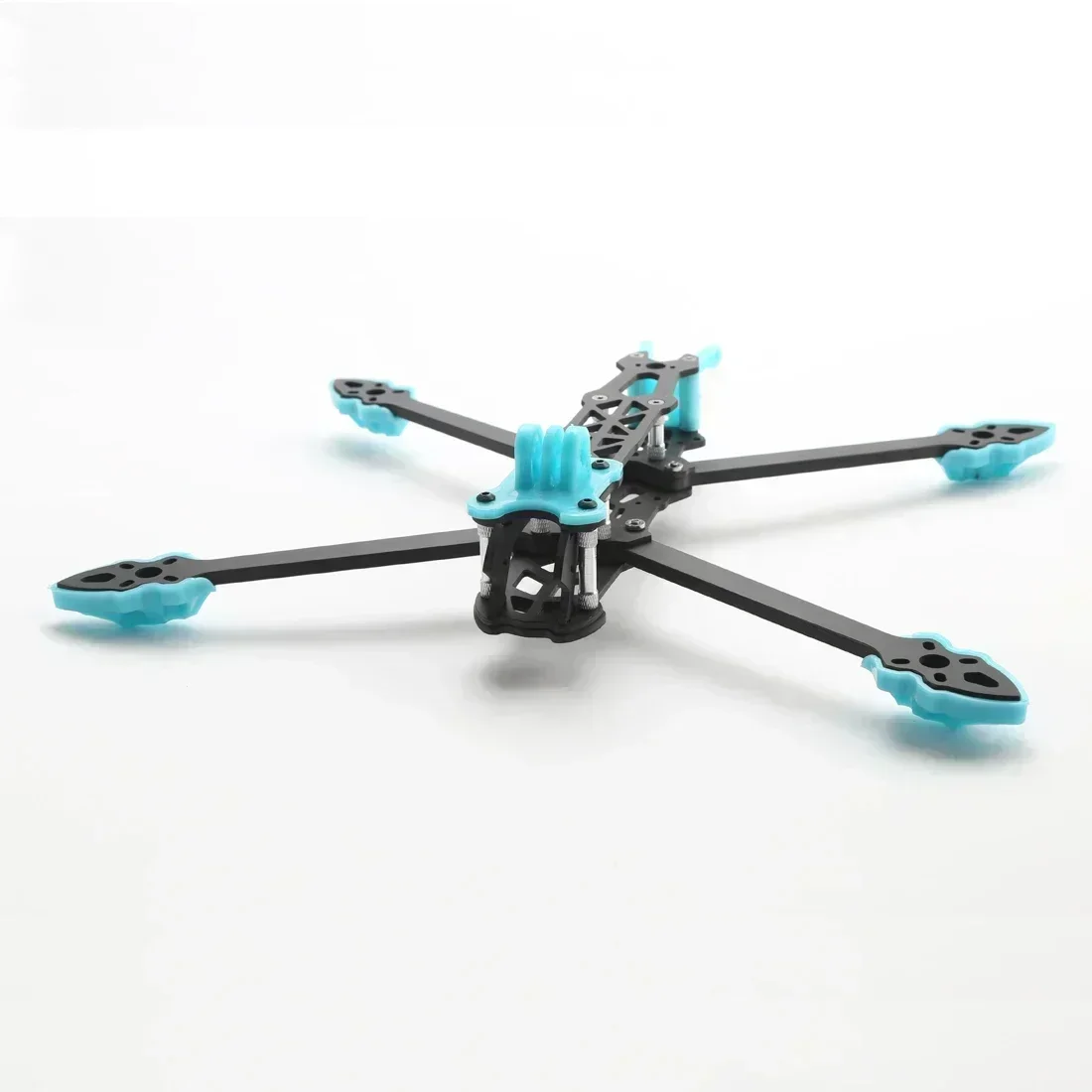

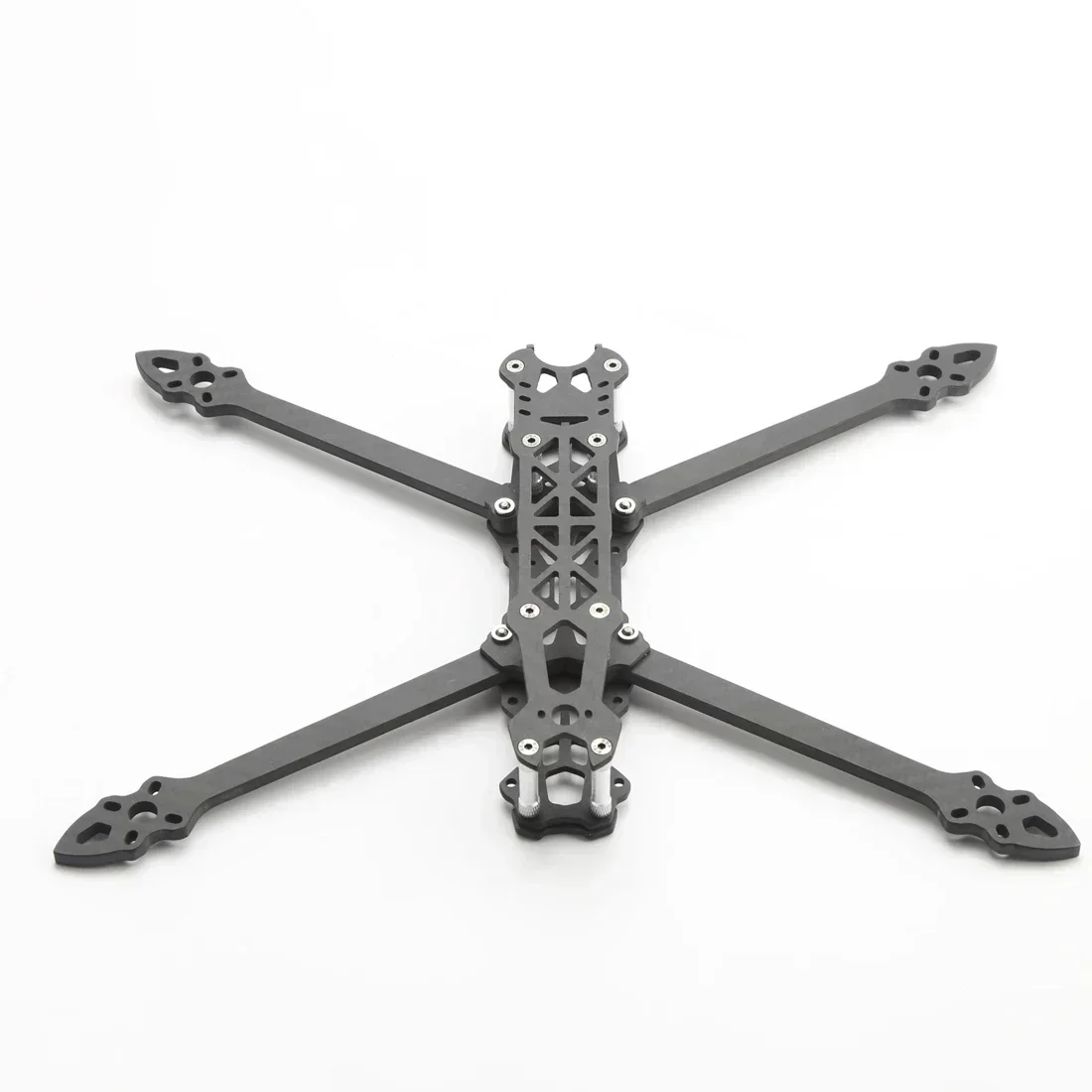

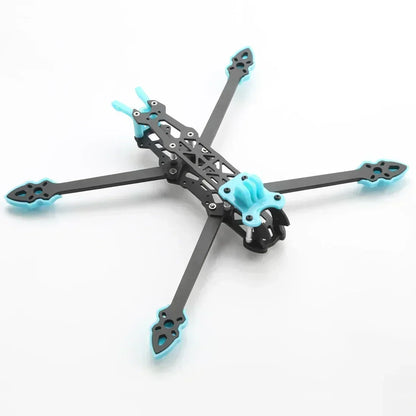

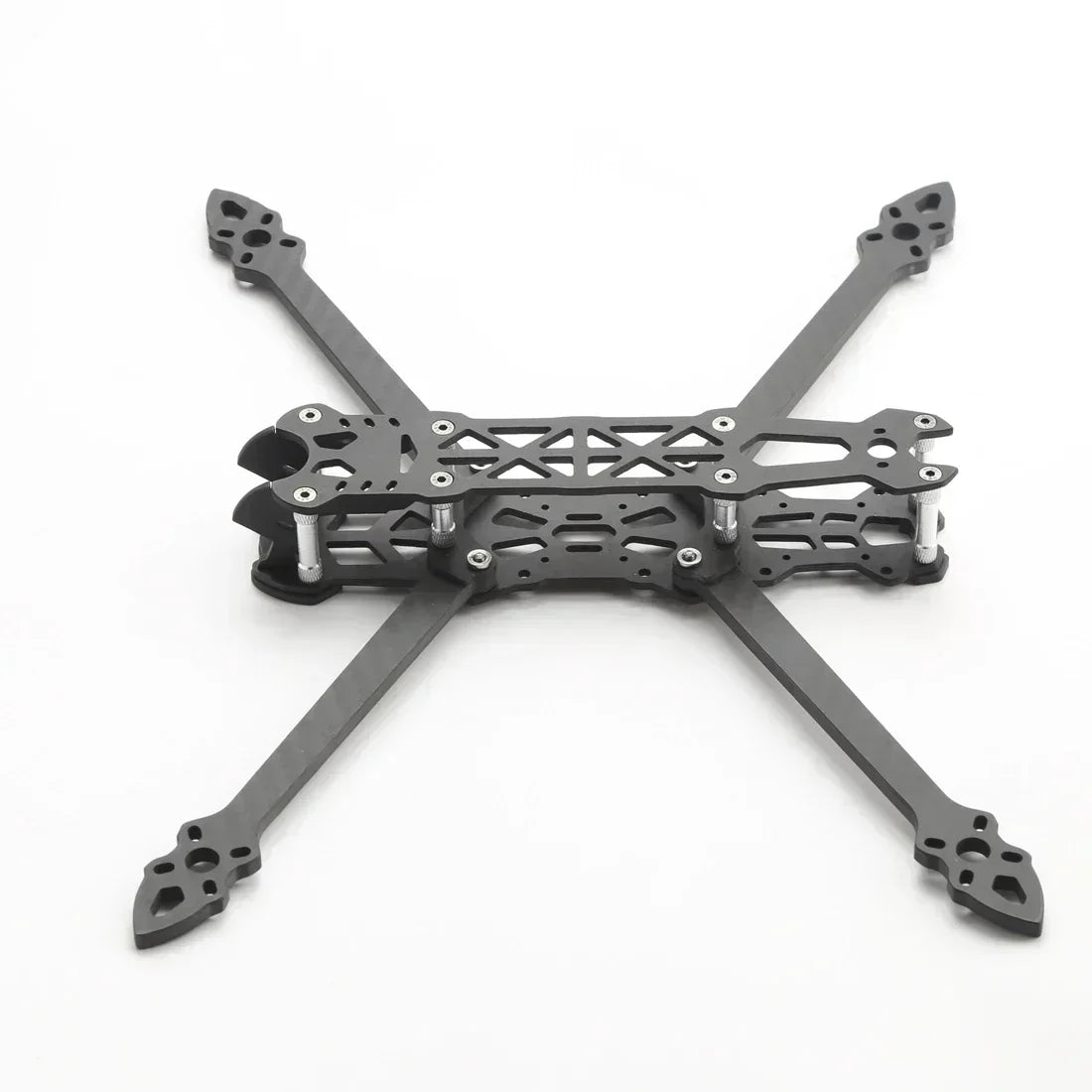

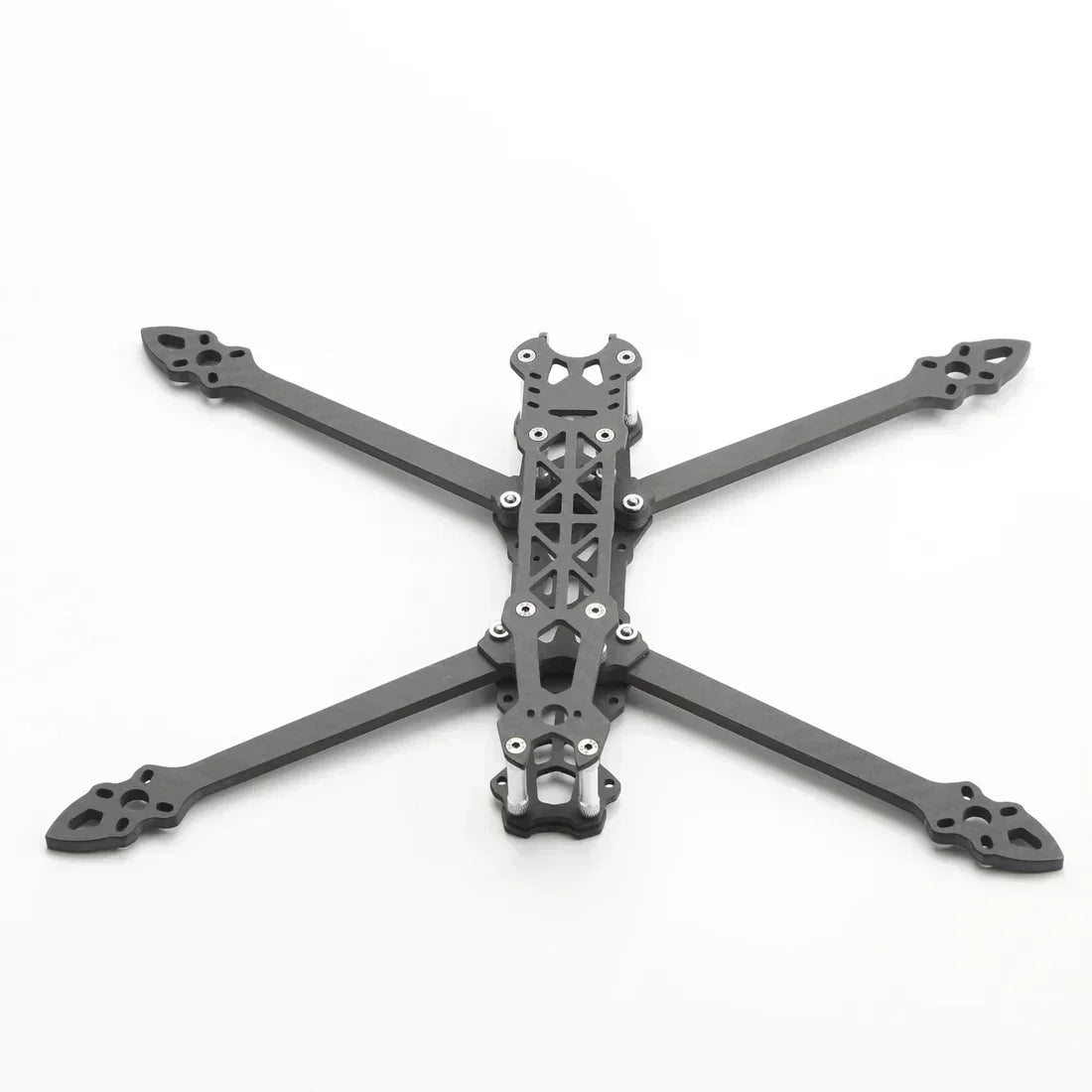

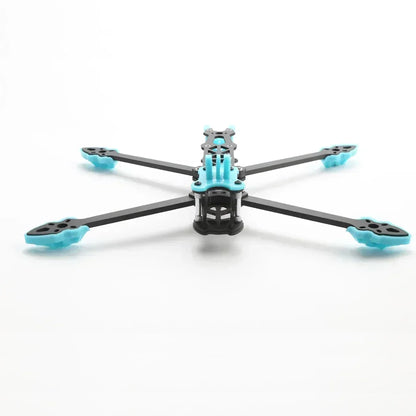

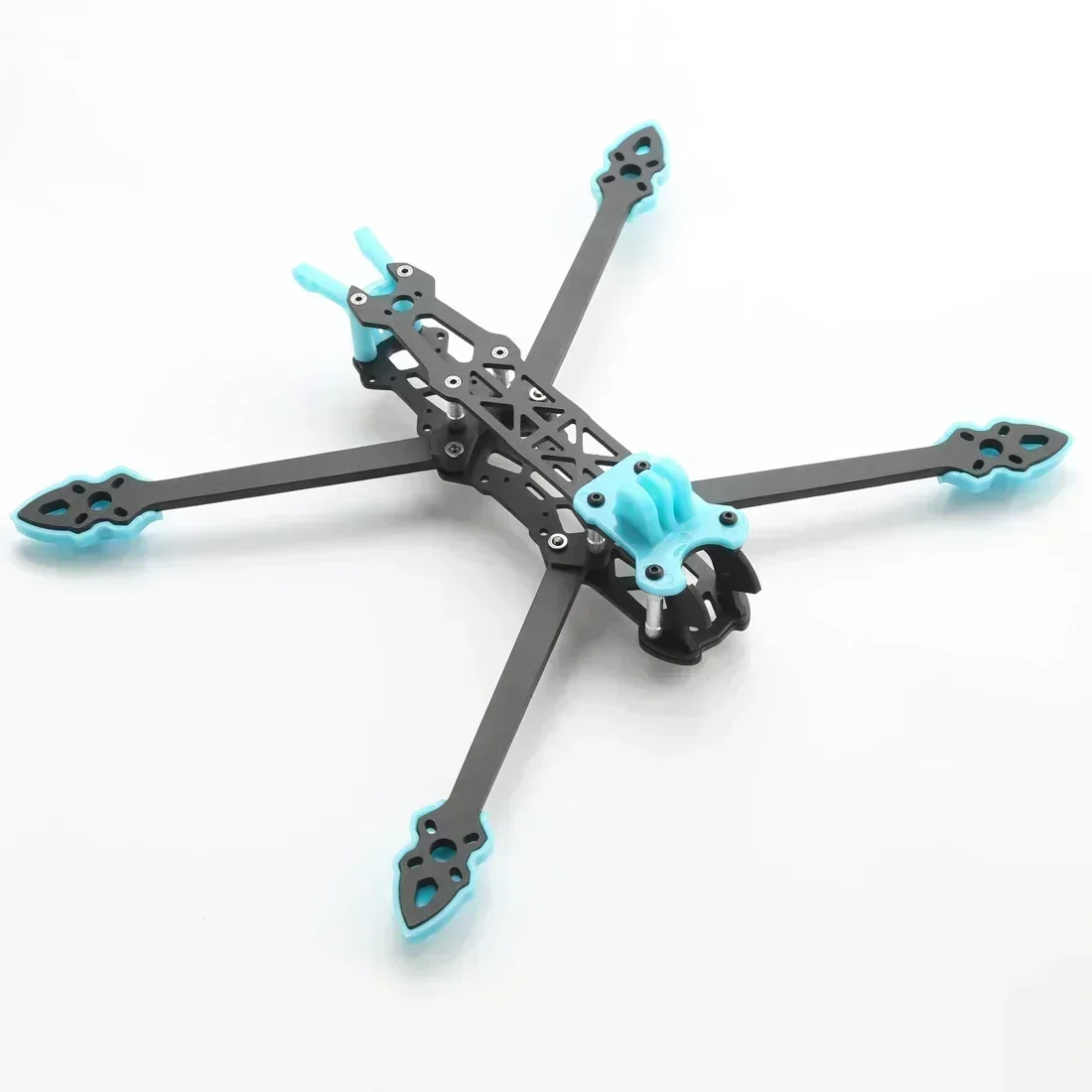

Item name: 5inch 225mm FPV Frame

Propeller: 5 inch

Wheelbase: 225mm

Size: 145*172mm

Weight: 102g

Arms plate thickness: 5mm

Top plate thickness: 2.5mm

Bottom plate thickness: 2.5mm
Side plate thickness: 2.5mm

Camera mount size: 19*19mm

Recommended configuration: ( not included )

Flight Controller: RF/Kiss/F3/F4/F7/F405/F722

Motors: 2205/2206/2207/2305/2306/2507/2306.5/2207.5

ESC: 30A-40A-45A-50A

Propeller: 5 inch

Battery: 3S-4S 1500mAh-2200MAH -6s 1150mAh-1500MAH

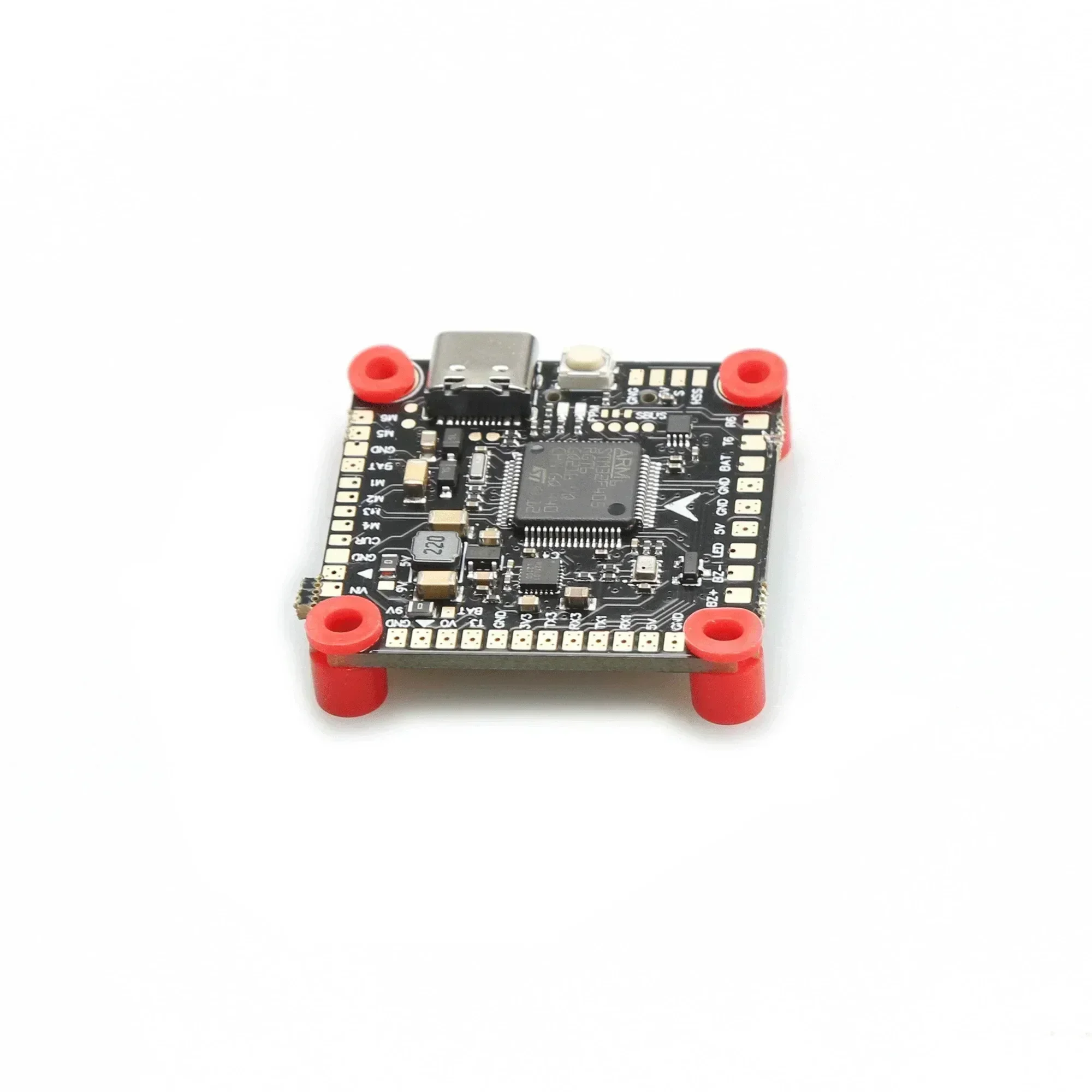

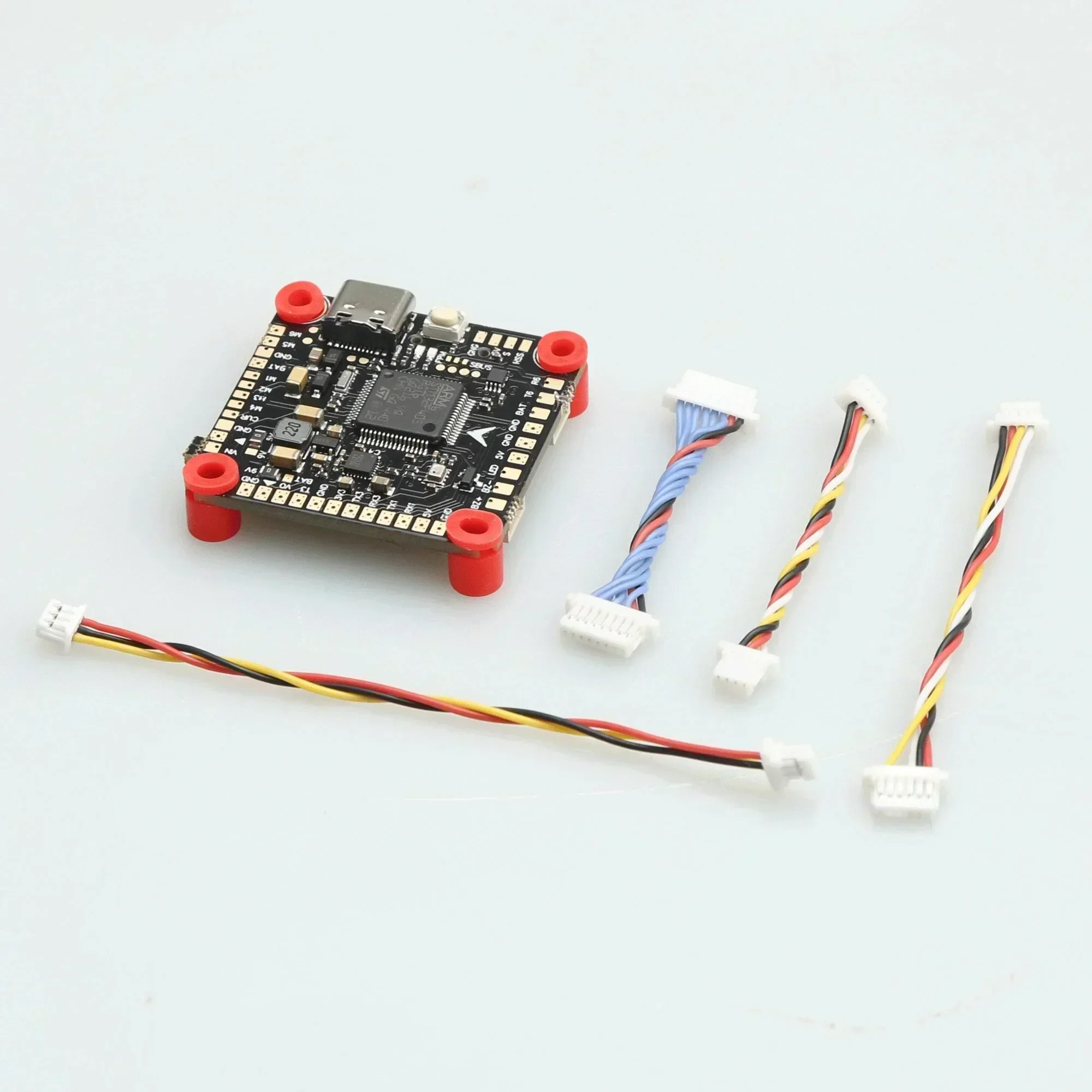

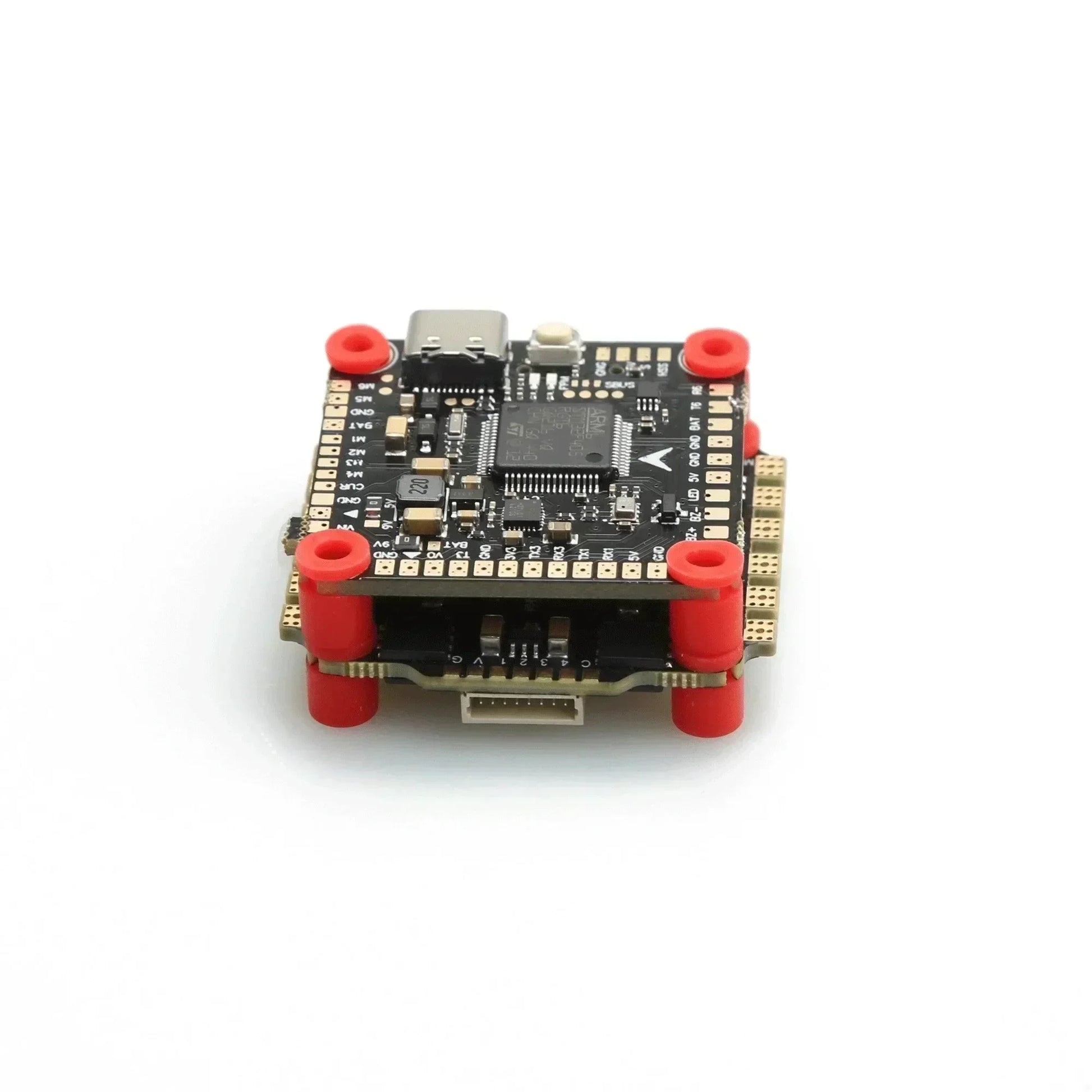

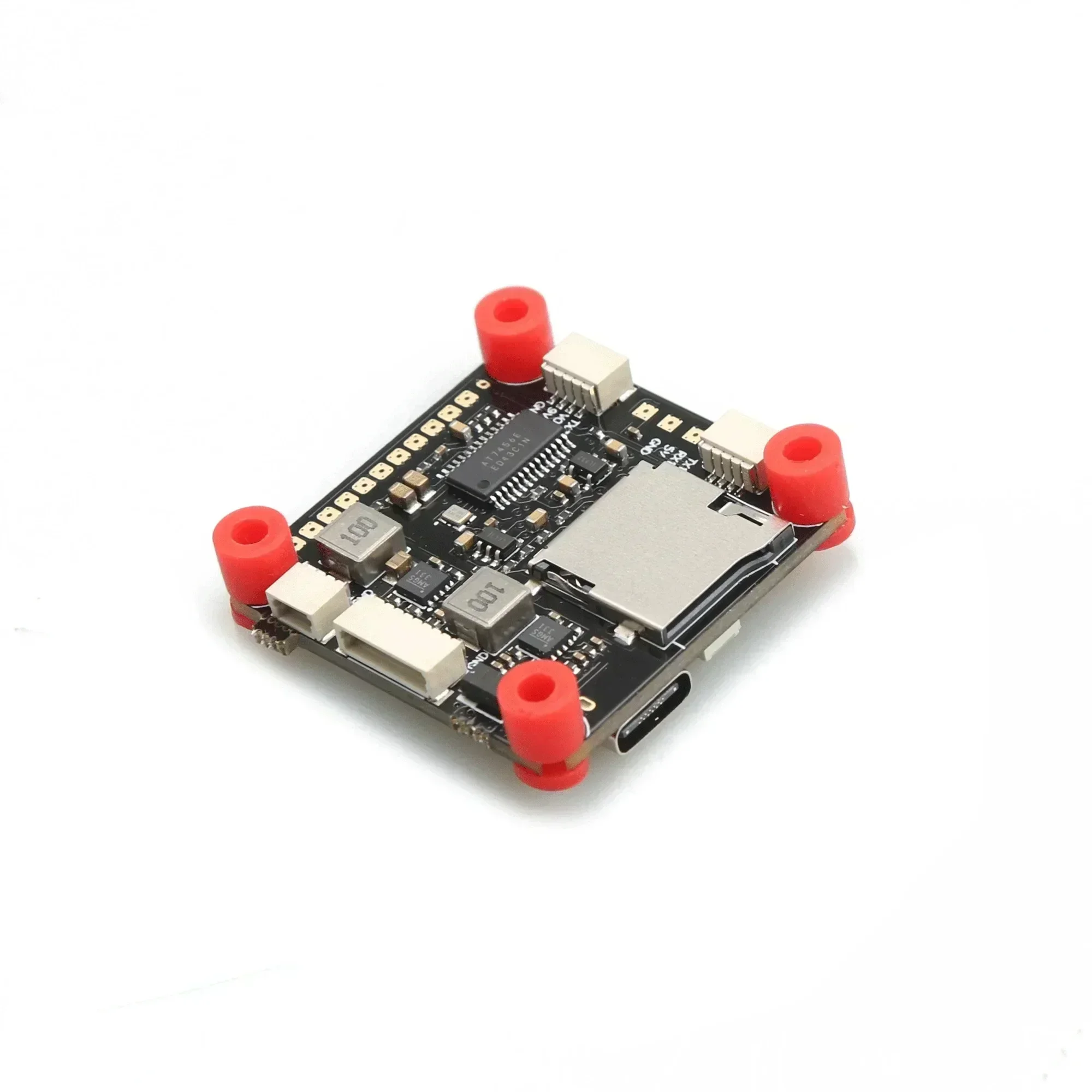

Item name:F4 V3S PLUS Flight Controller
Size: 36x36mm
Mounting holes:30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC: 5V3A/9V3A
On-board video filters (only 5V to VTX and camera)
Note:The F4 V3S Plus Flight Controller only support Betaflight software, INAV firmware is not supported!

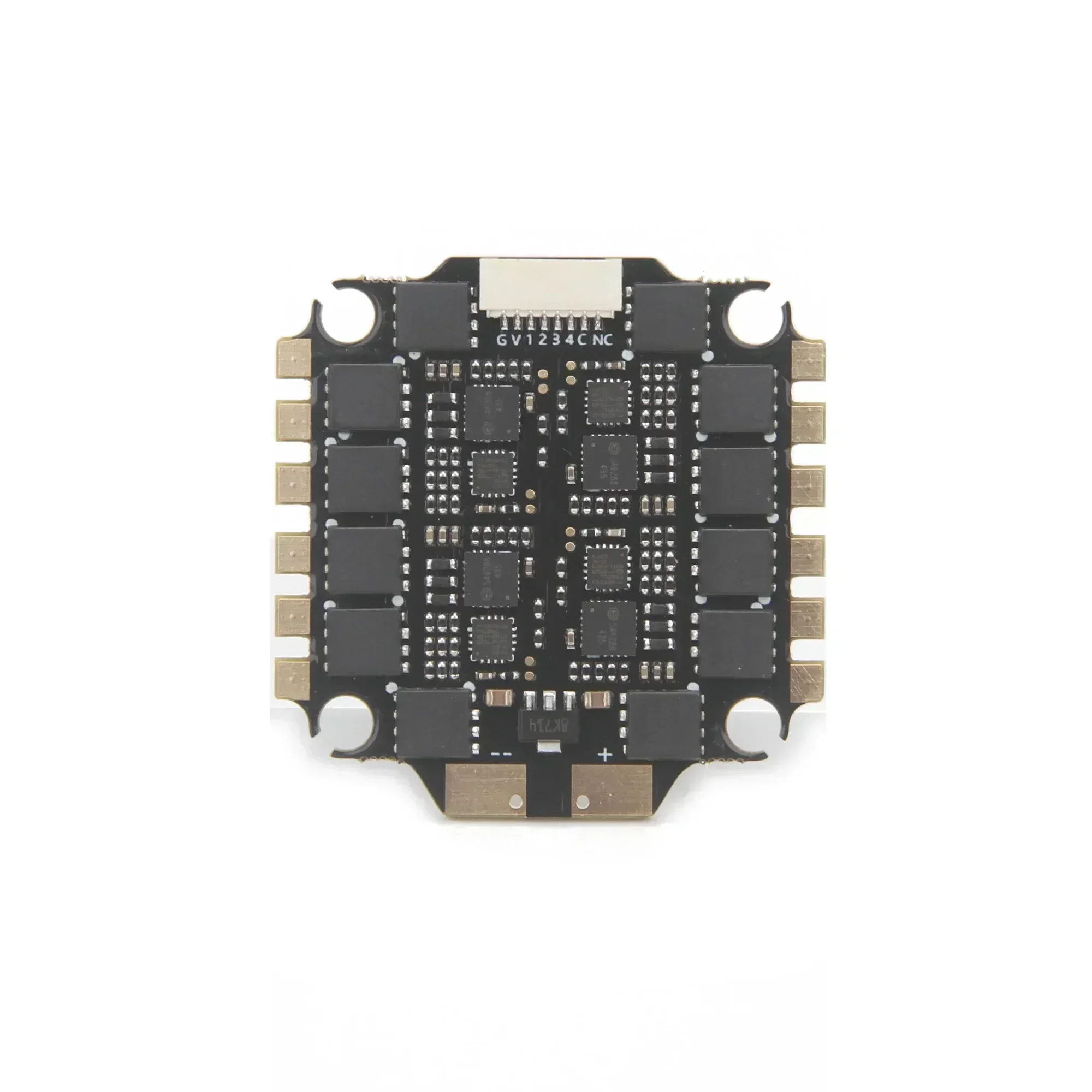

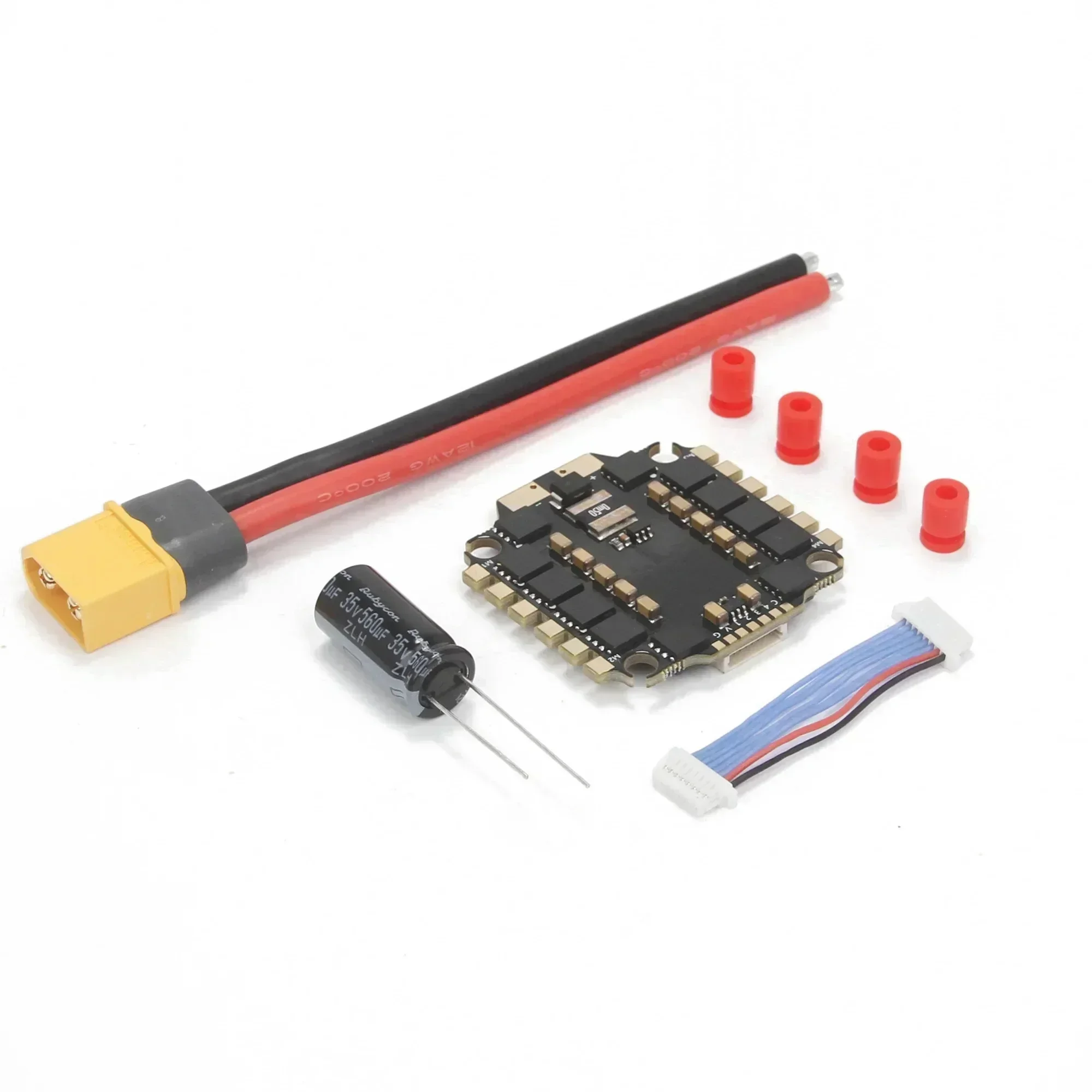

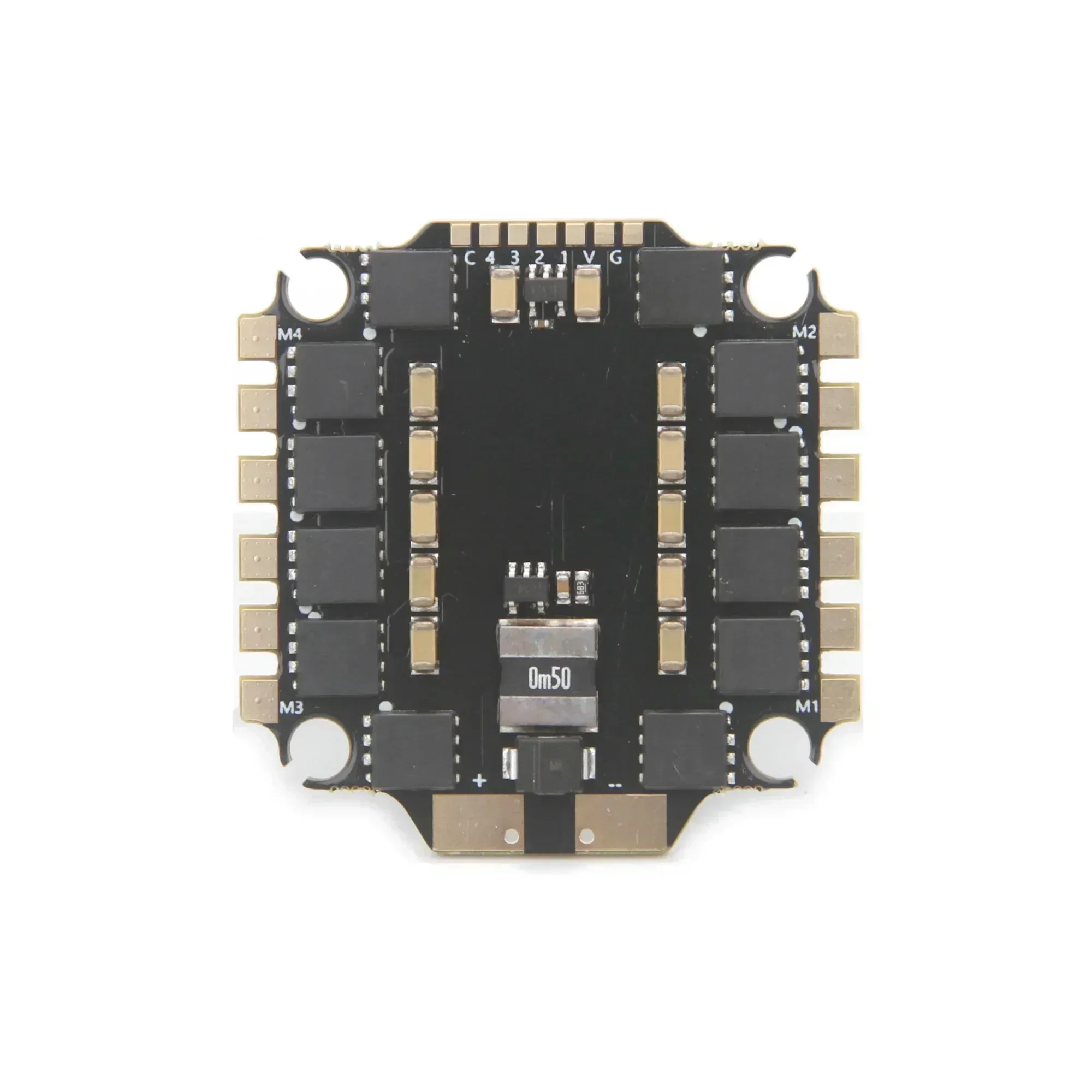

Item name: 4-in-1 45A ESC
Continuous current: 45A
Maximum current[10 seconds]: 50A
Input voltage: LIPO 2-6S
Firmware: BLS J_H_30_REV16_7
Processor: EFM8BB21F16G
Drive signal support: DShot300-600/Multishot/Oneshot/PMW
Current sensor: Support
Size: 41*39.5*5mm
Weight: 13g
Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)

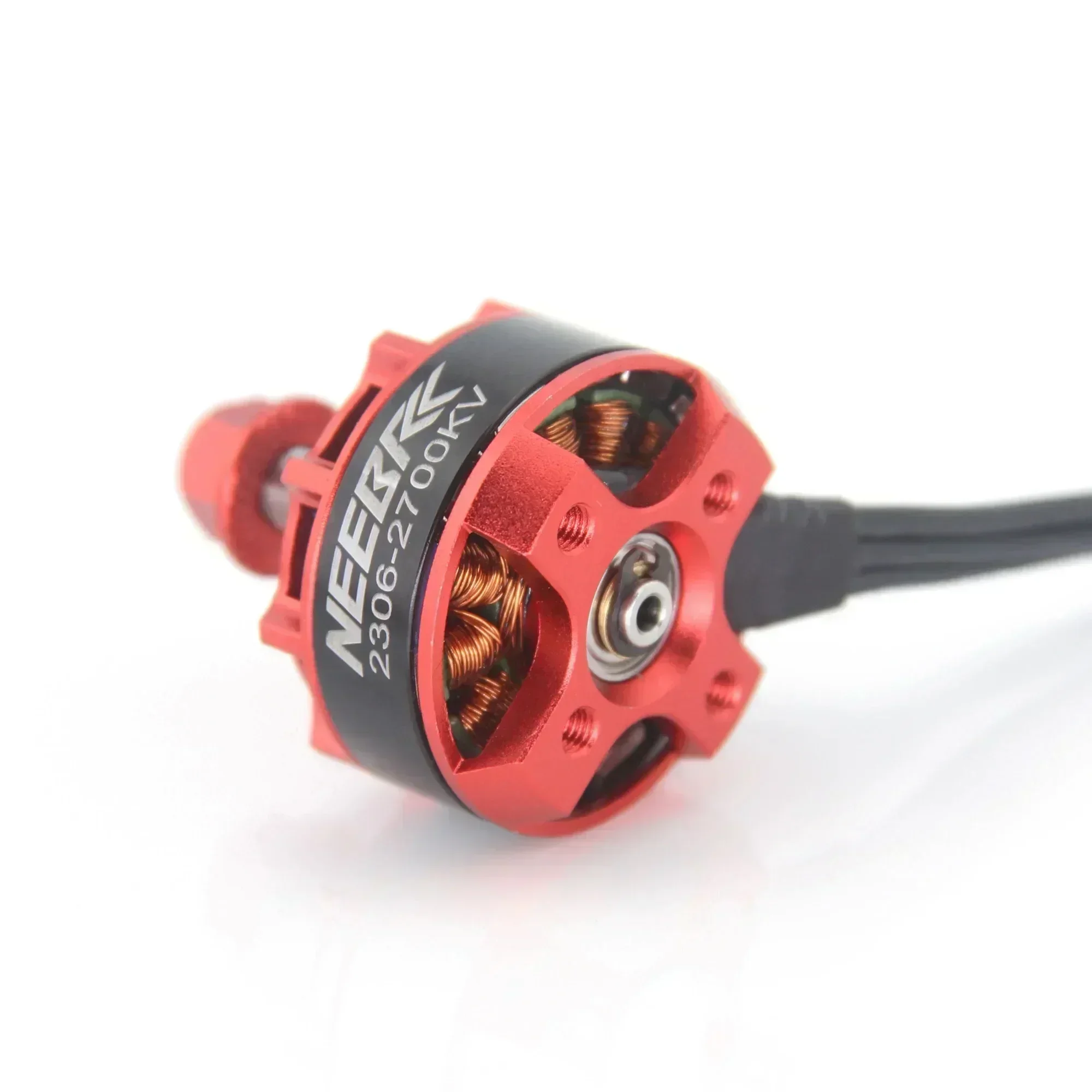

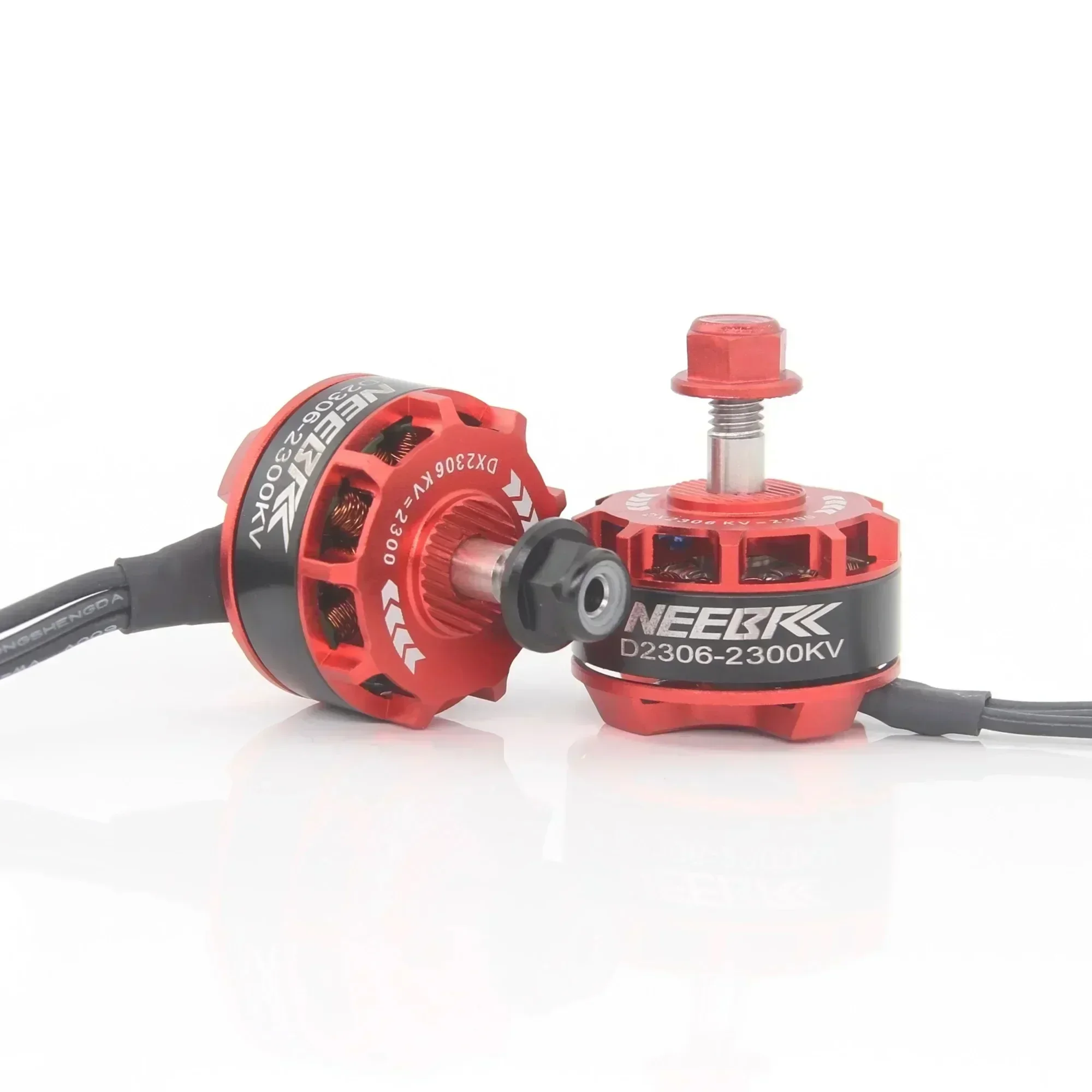

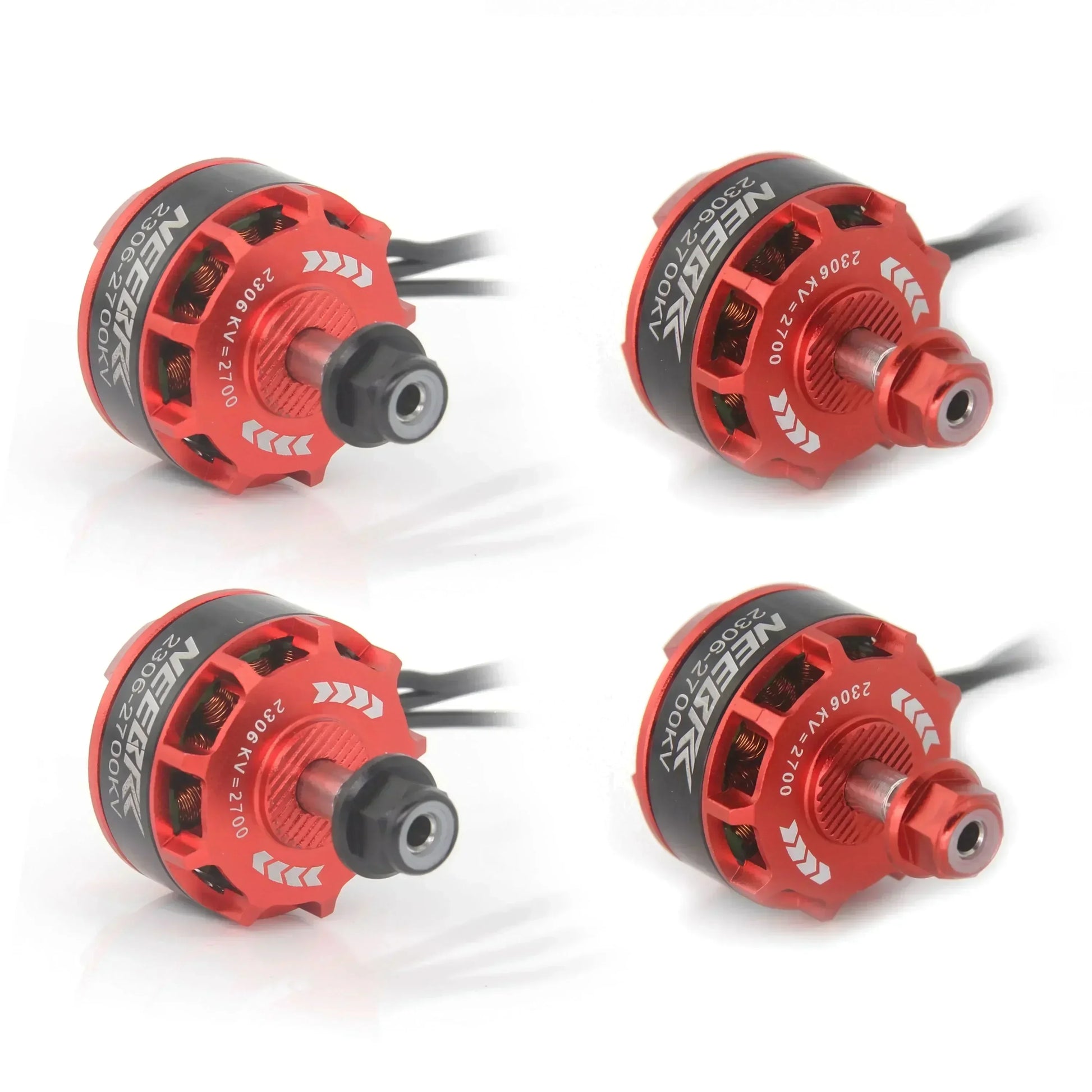

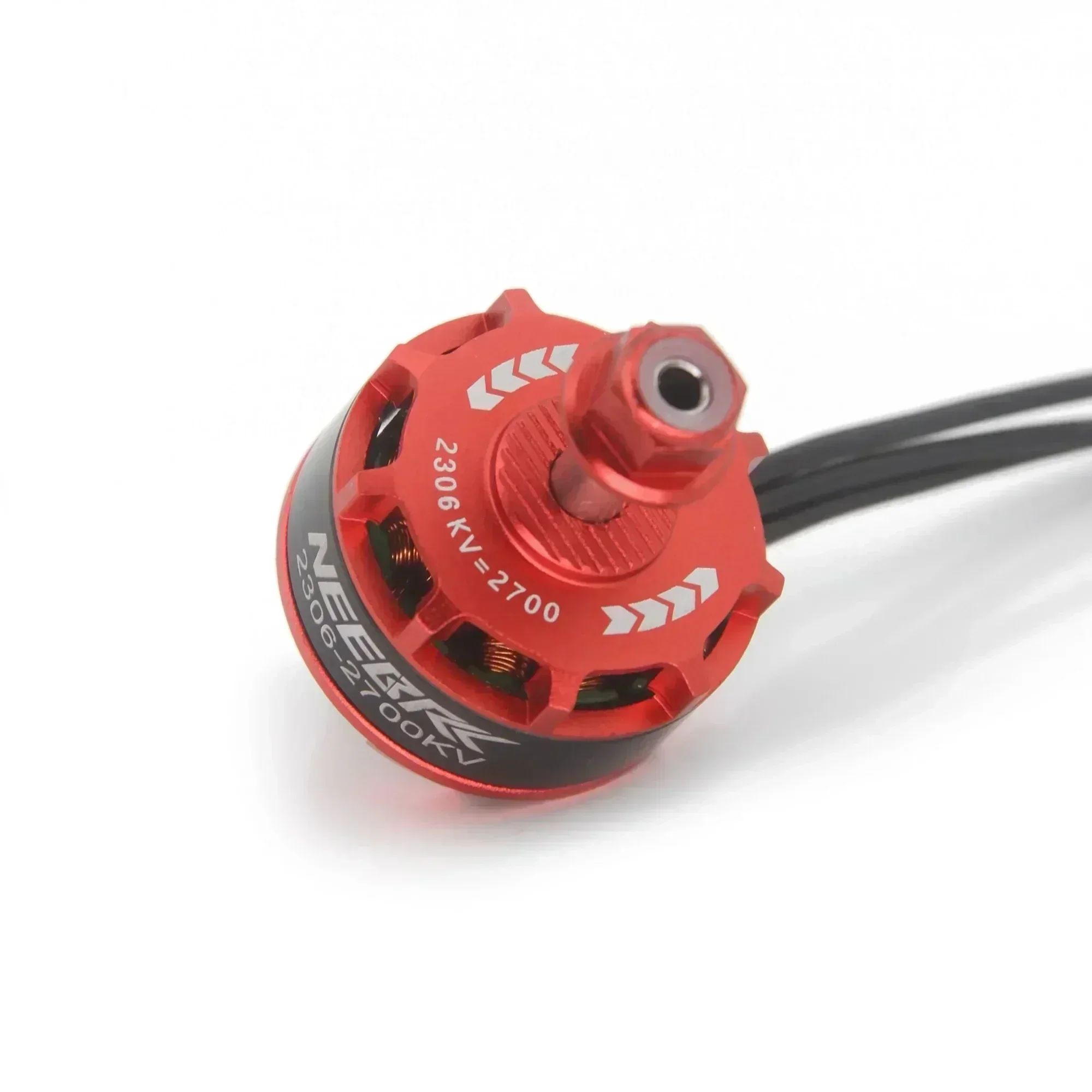

Item name: 2306 Brushless Motor
KV(RPM/Volt): 2300KV/2700KV
No. of stator arms: 12
No. of rotor poles: 14
Length: 33.5mm
Width: 28.5mm
Shaft Diameter: 5mm
Battery (Cell Lipo): 2-4S
Suggested Prop: 5045,4045
Item Weight: 33.5g/pcs

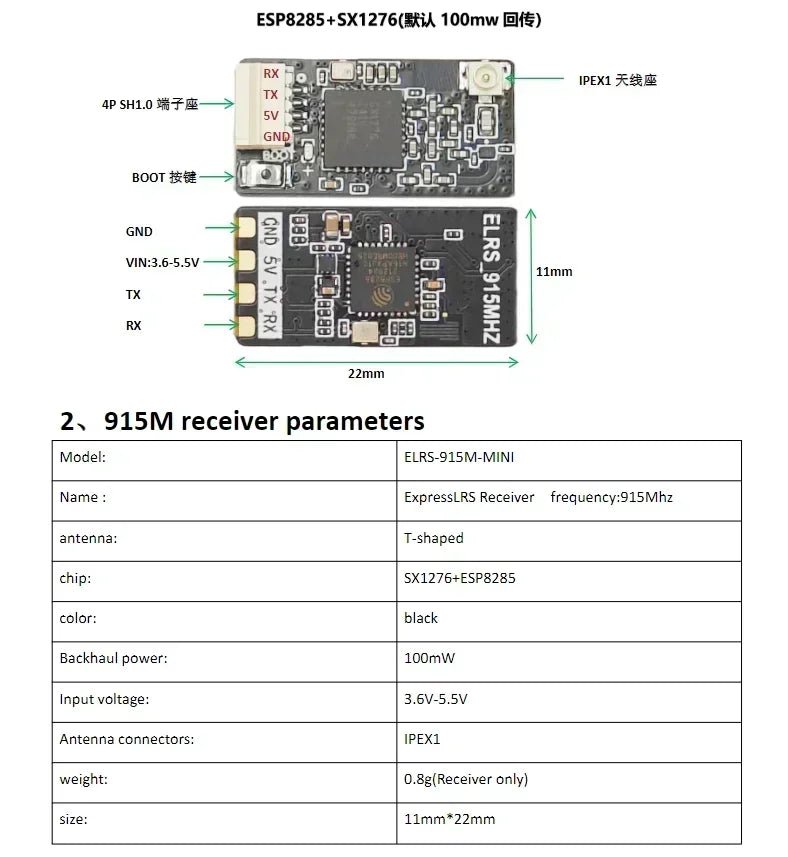

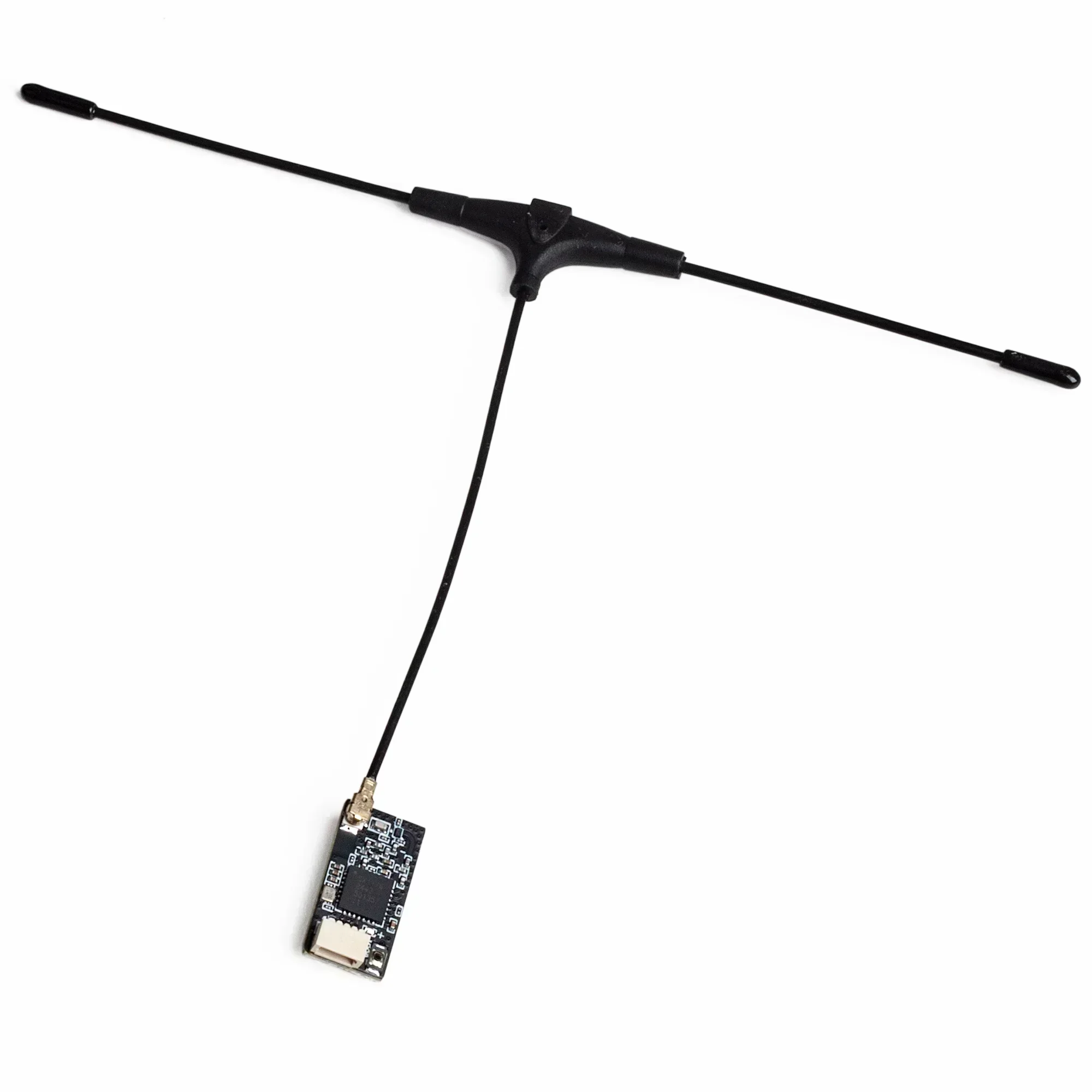

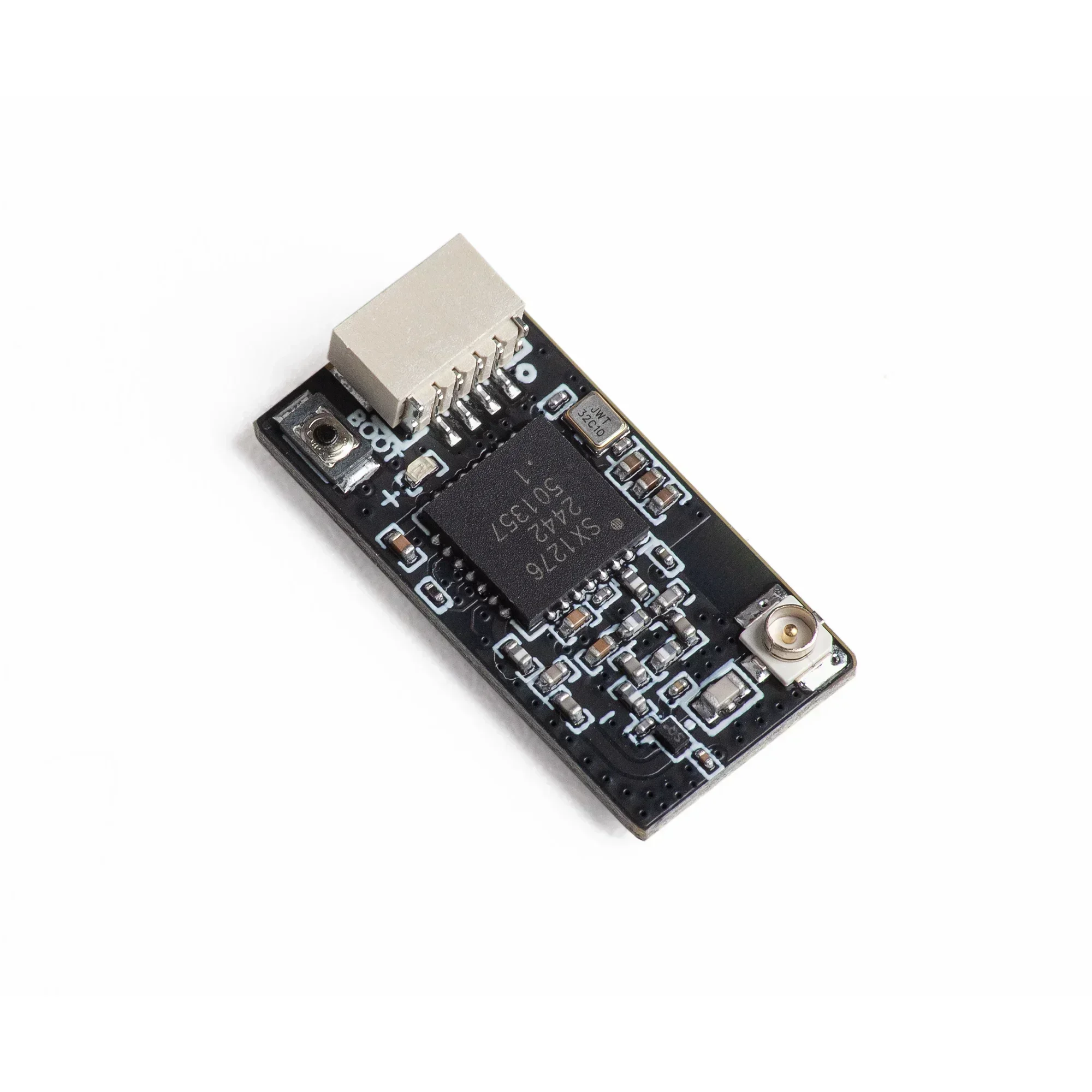

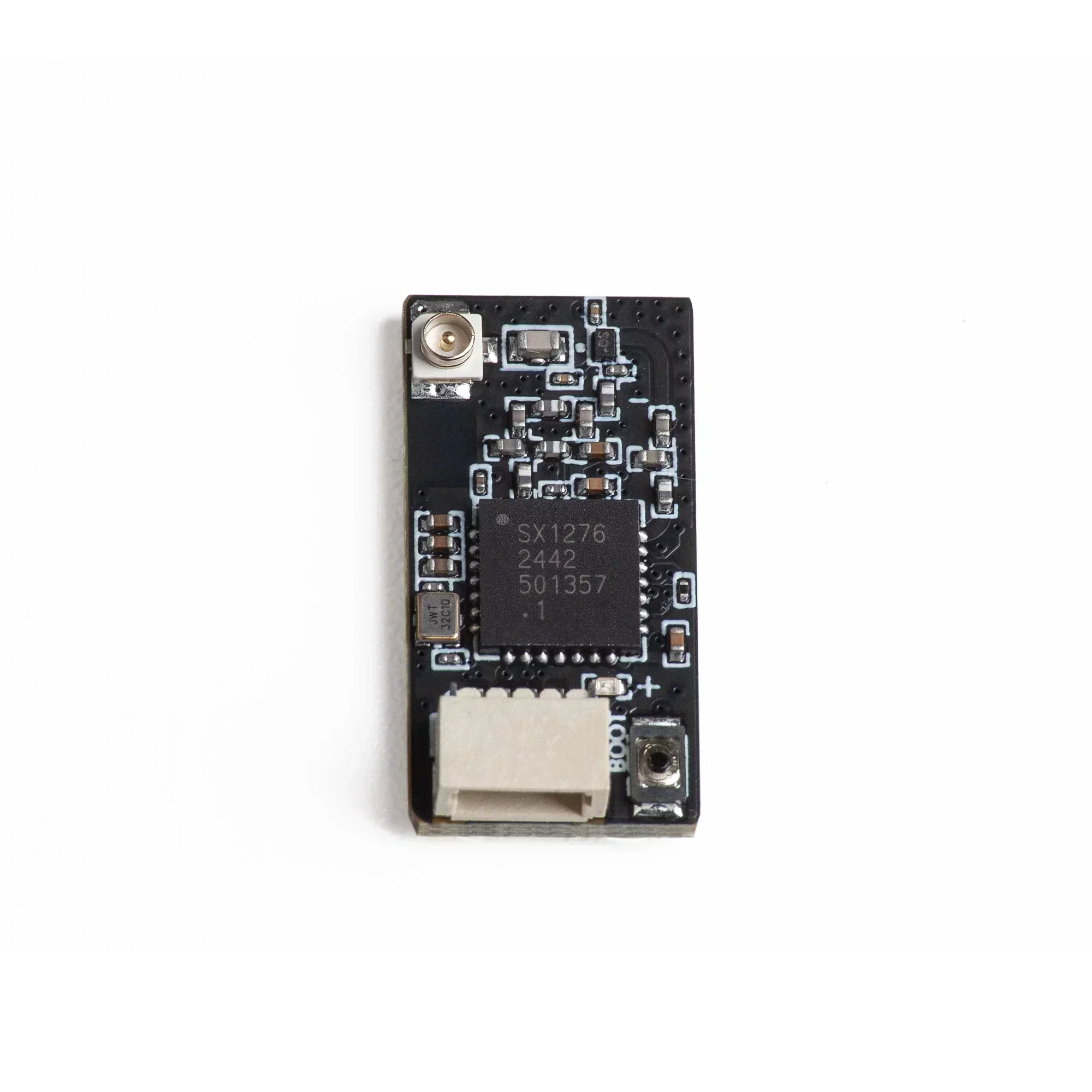

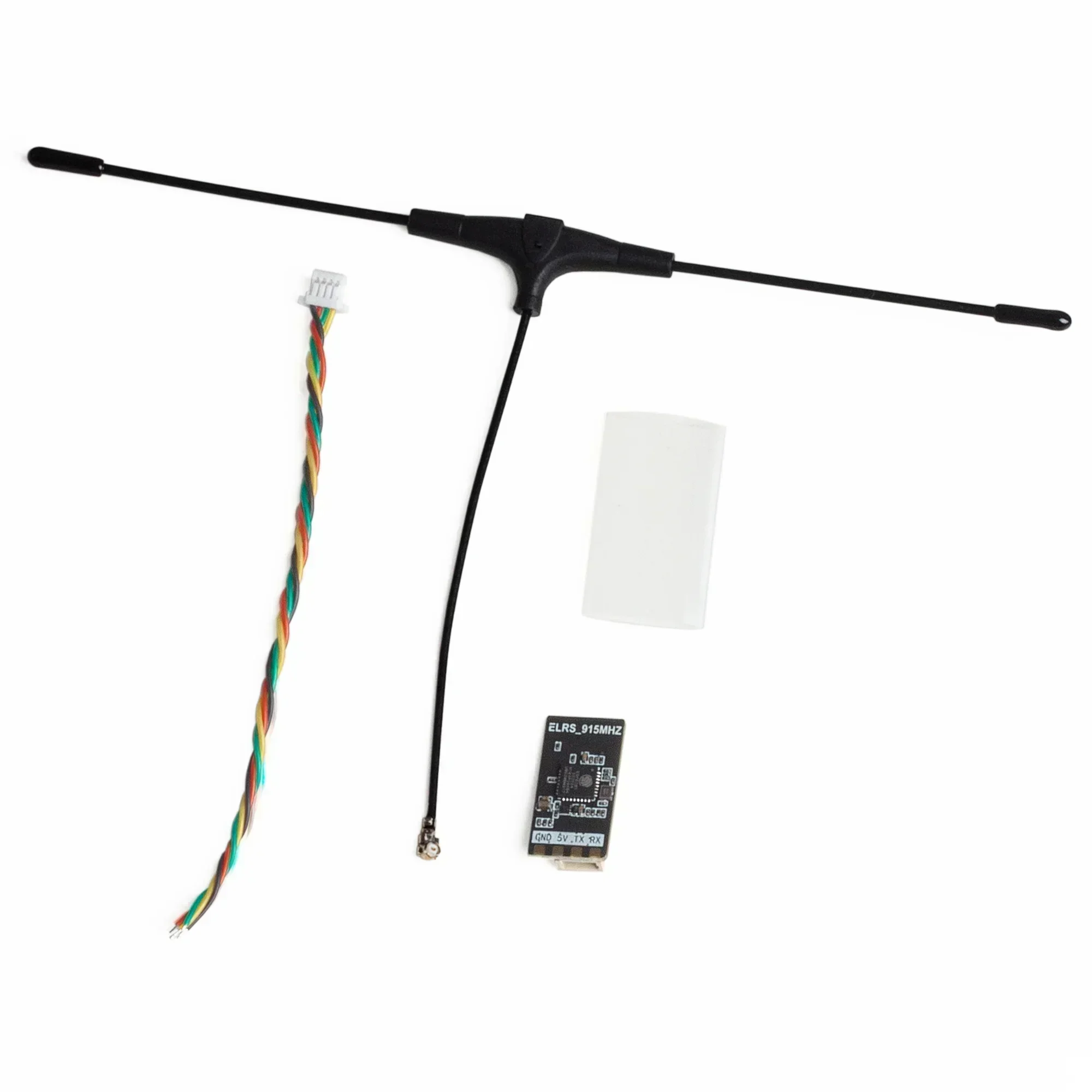

Item name:915M receiver parameters
Model: ELRS-915M-MINI
Name : ExpressLRS Receiver frequency:915Mhz
antenna: T-shaped
chip: SX1276+ESP8285
color: black
Backhaul power: 100mW
Input voltage: 3.6V-5.5V
Antenna connectors: IPEX1
weight: 0.8g(Receiver only)
size: 11mm*22mm

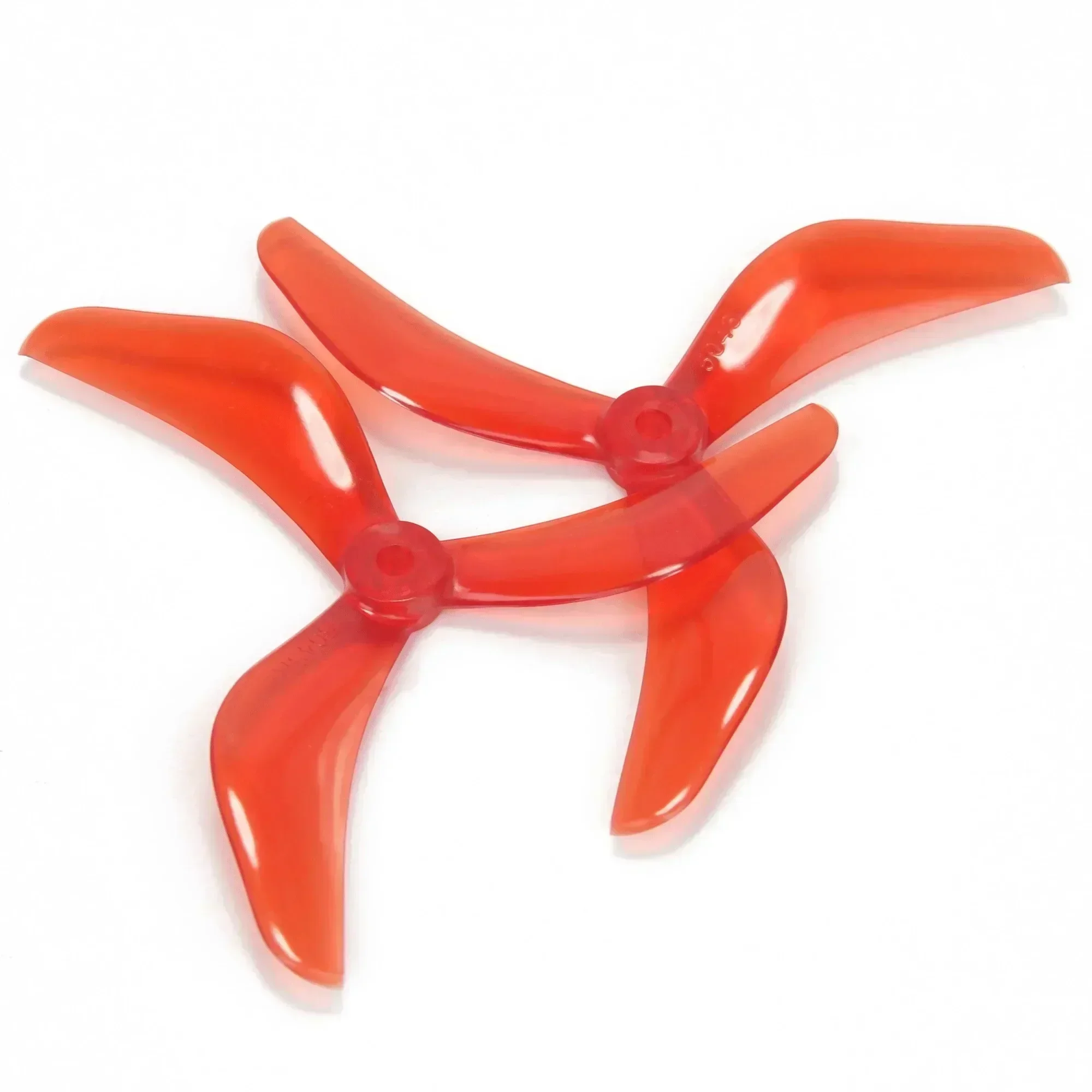

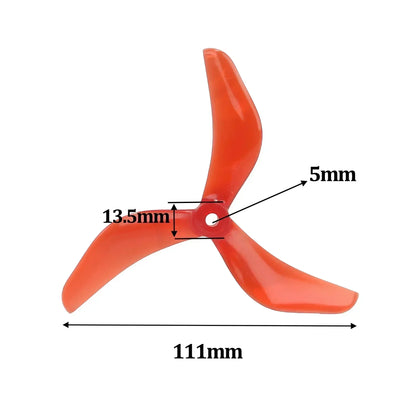

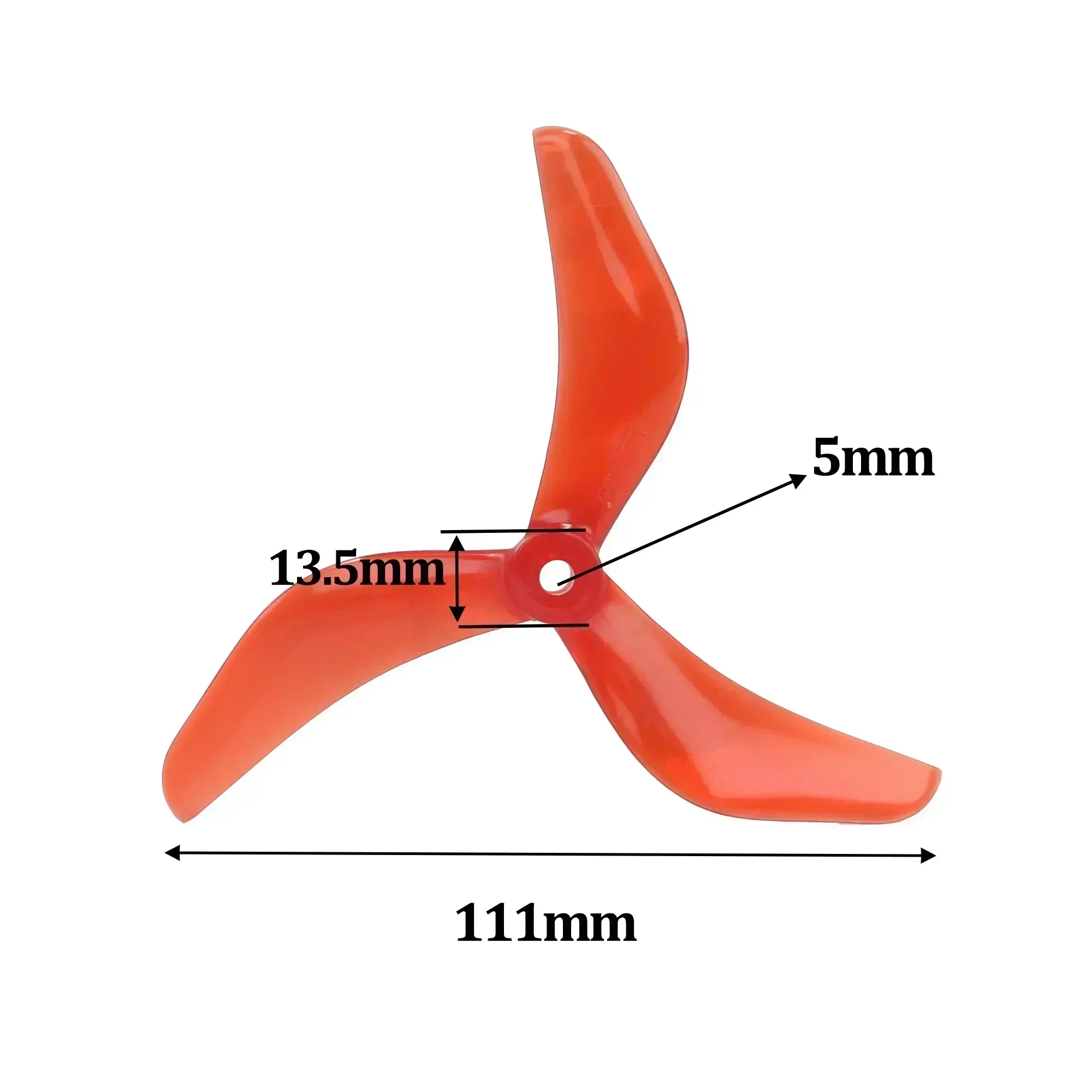

Item Name: 5X4.3X3 3-Blade Propeller

Material: PC

Quantity: 4 pairs
Blades: 3
Length: 111mm
Propeller disc diameter: 13.5mm
Shaft: 5mm
