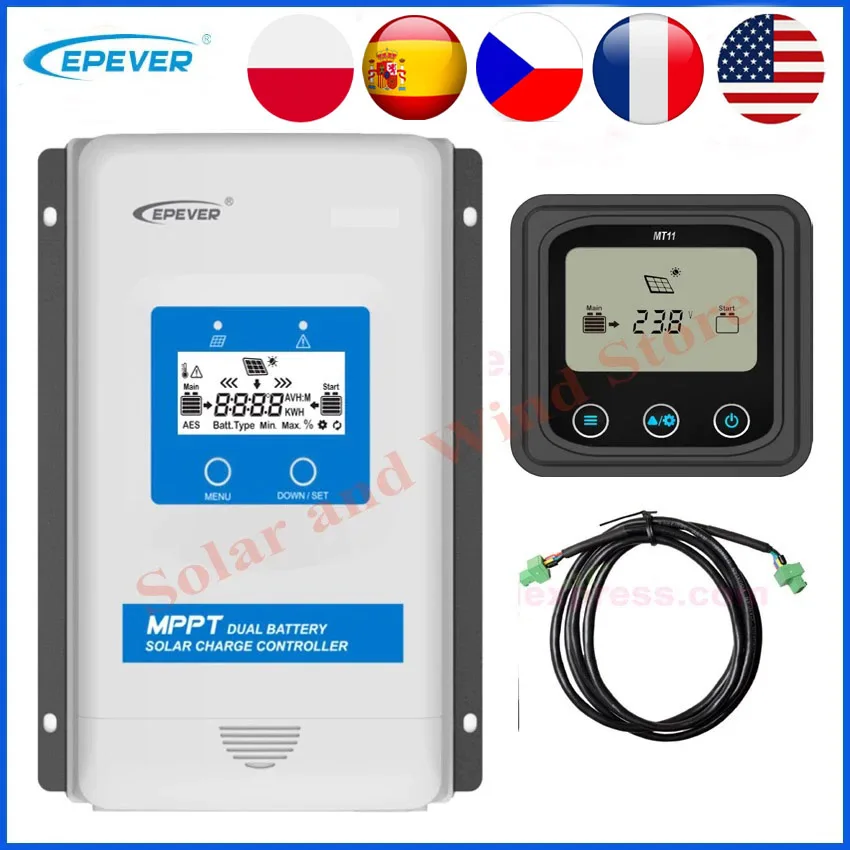

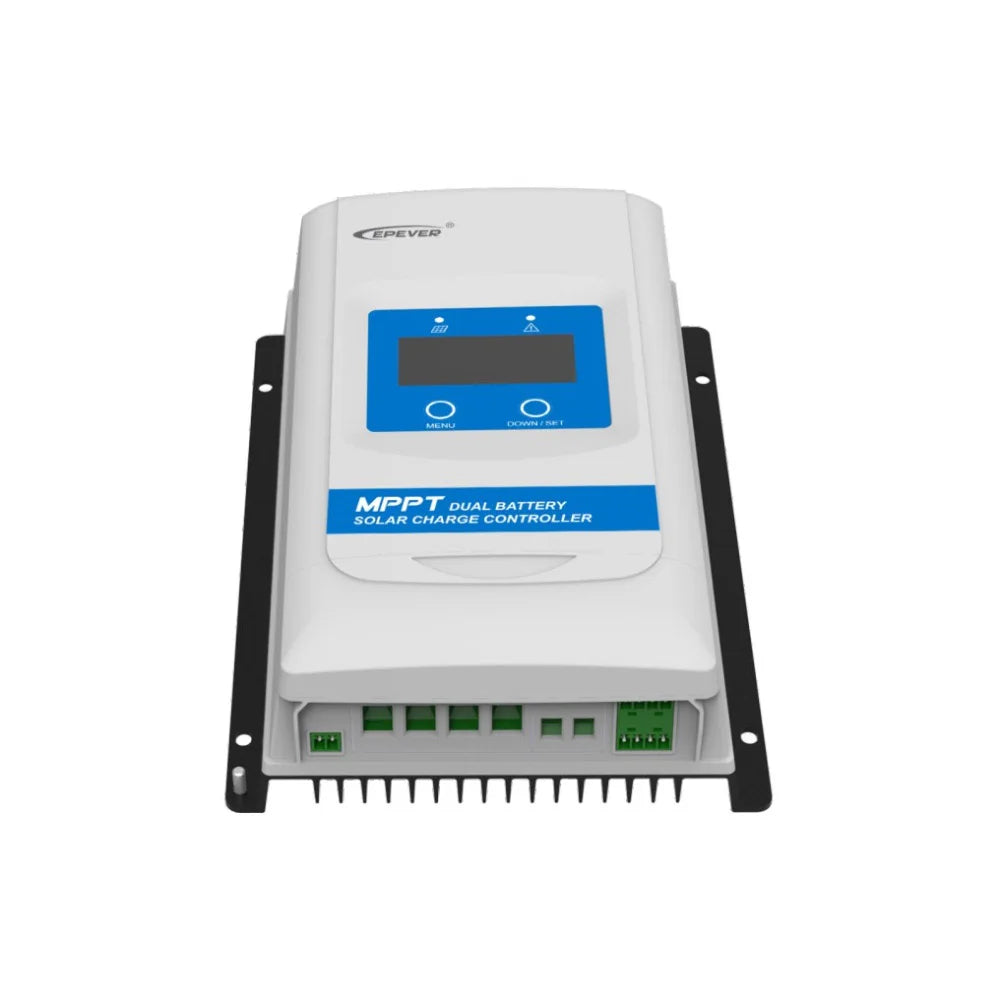

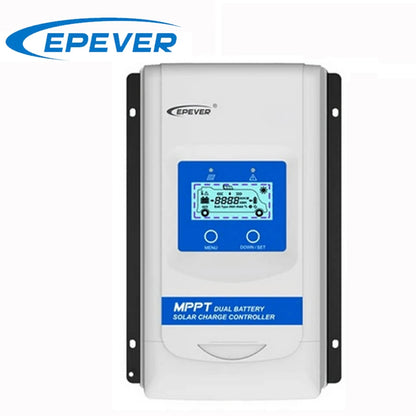

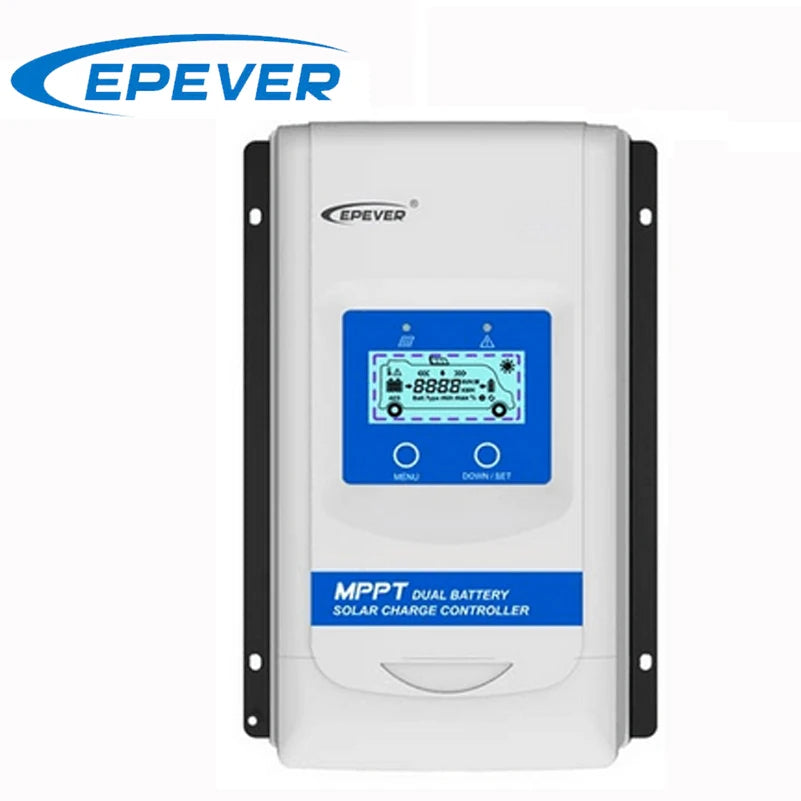

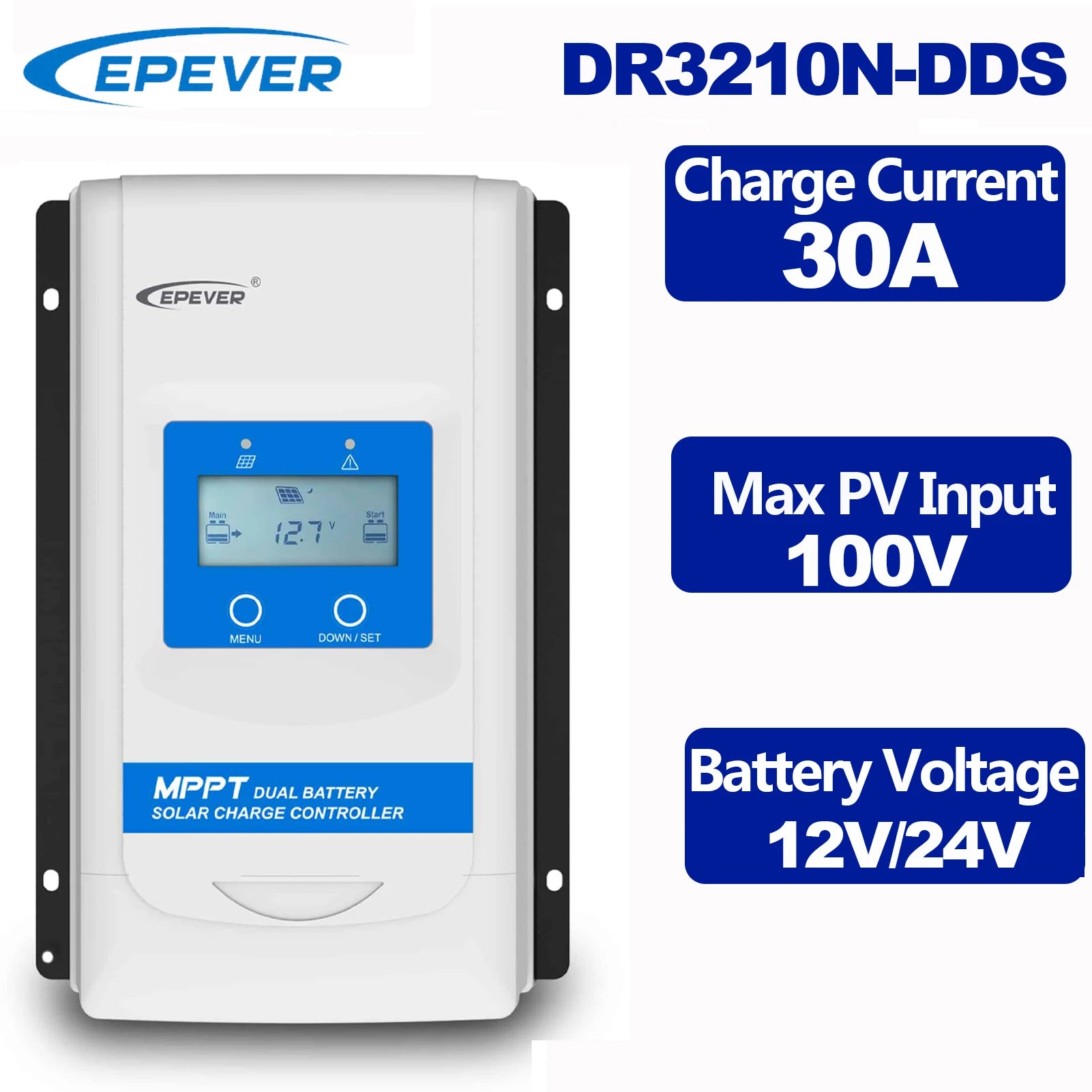

EPEVER DR3210N-DDS 30A MPPT Solar Charge Controller Battery Voltage 12V 24V Max PV Input 100V
EPEVER DR3210N-DDS 30A MPPT Solar Charge Controller Battery Voltage 12V 24V Max PV Input 100V
⭐ Top Rated Product – Loved by Customers
🔥 Limited Stock – Selling Fast
🎁 Perfect Gift – Ready to Impress
Up to 40% OFF 🔥
Regular price
$115.14
Regular price
$115.14
Sale price
$0.00
Unit price
per
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivery
EPEVER DR3210N-DDS 30A MPPT Solar Charge Controller Battery Voltage 12V 24V Max PV Input 100V
Regular price
$115.14
Regular price
$115.14
Sale price
$0.00
Unit price
per
Shipping Policy
Shipping Policy
Thank you for shopping with us! Below you will find important information about our shipping process.
Order Processing Time
All orders are processed within 1–2 ex 3 business days (excluding weekends and holidays). Once your order has been processed and shipped, you will receive a confirmation email with tracking information.
Refund Policy
Refund Policy
Thank you for shopping with us! Below you will find important information about our Refund process.
You may request a return within 30 days of receiving your order.
Free Shipping
Delivery in 1–2 Days
24/7 Support
Free Global Support
SPECIFICATIONS
Brand Name: EPever
High-concerned chemical: None
Origin: Mainland China
Overview:
DuoRacer MPPT charge controller is made for chargingtwo batteries(shown as BATT1 and BATT2 below)at the same timein a solar system. This controller supports multiple life battery (BATT1) types, includingSealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which issuitable for RV, Camper, Boat, and so on. The device recognizes the start battery (BATT2) system voltage automatically, and trickle charges the battery when the conditions are satisfied.
The controller adopts the advanced MPPT control algorithm,which will minimize the maximum power point loss rate and loss time,also fast track the maximum power point(MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method.
When there is no manual operation for a long time, and the charging conditions cannot be reached, the controller will turn to low-power mode, which reduces the loss and battery power waste to enhance the products life. The system parameters are shown andset by LED/LCD or the MT11 remote meter (Accessory).
The AES control signal of the car refrigerator is built in the controller, which will supply the surplus solar power to the refrigerator to avoid energy waste. The controller comes with IP33 protection level, which is waterproof and dustproof. Multiple protection features, includingbattery overcharge protection, over discharge protection, and reverse connection protection of the PV and battery, which effectively ensure the solar system safety, stability, and lifetime.
Features:
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed.
Advanced MPPT control algorithm to minimize the MPPlost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation(BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
BATT1 type can be set via LED/LCD.
Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
100% charging and discharging in operationenvironmental temperature range.
LED and LCD dispiay units selectable.
AES control signal for car refrigerator to avoid energy waste.
Standard Modbus protocol, and RS485 (5V/200mA) communication portfor the customer to expand the application area.
①Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel,Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).
②Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).
NOTE: the BATT1 and BATT2 must be at the same voltage level.

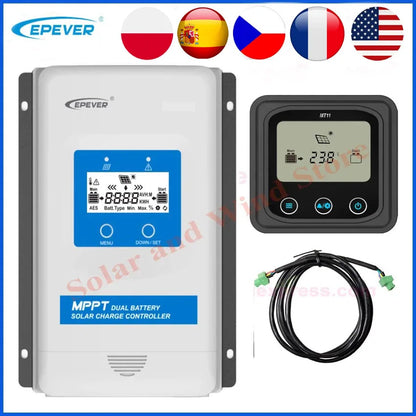

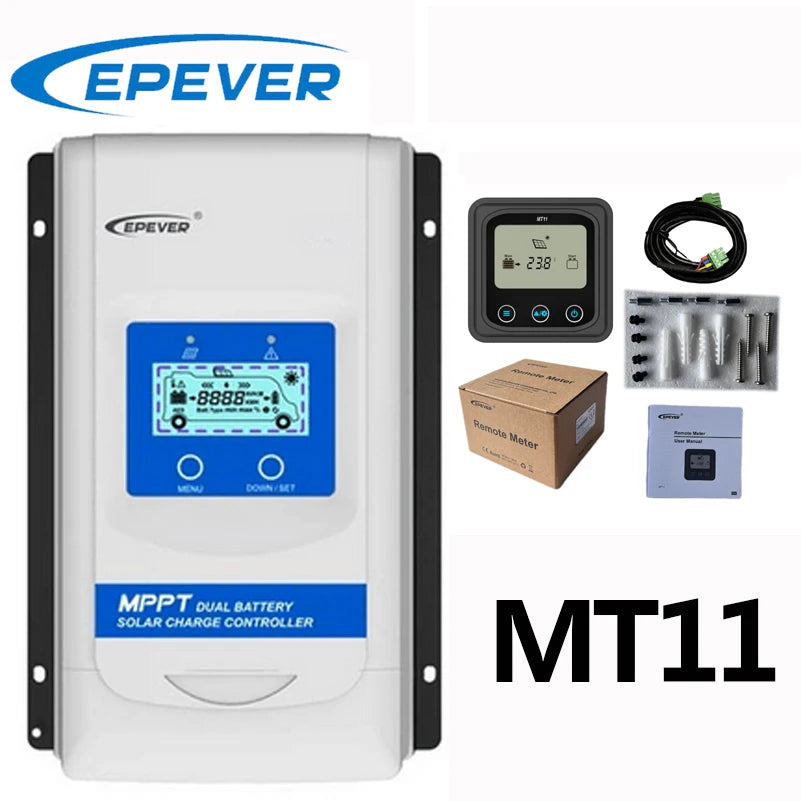

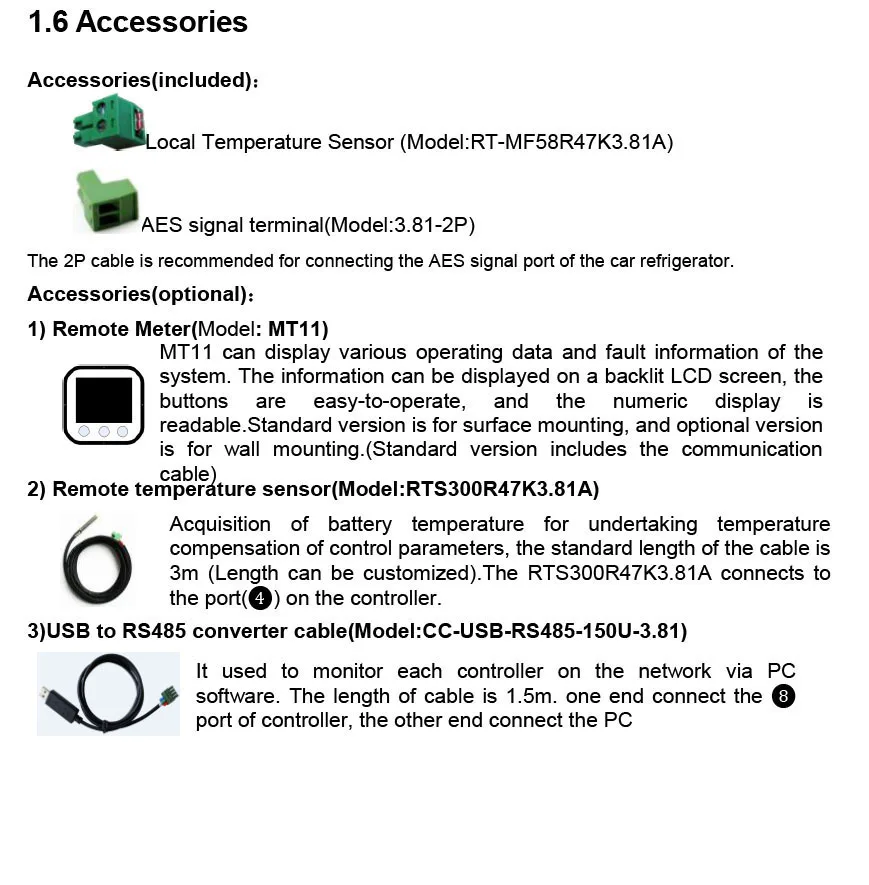

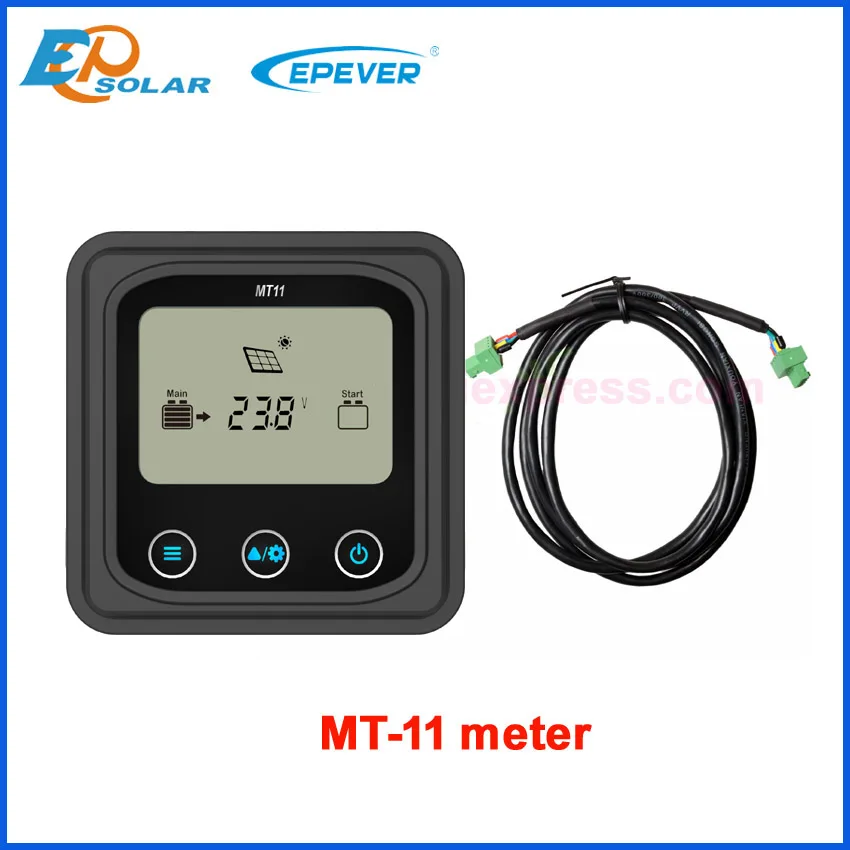

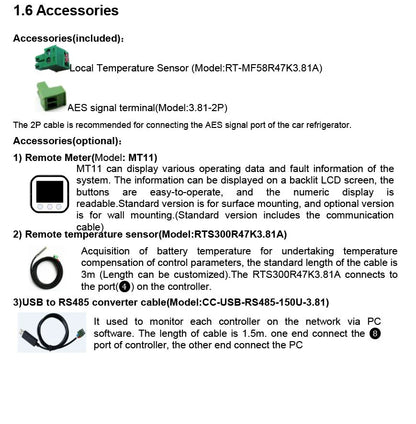

Models:MT11
Overview
The MT series remote meter is an accessory which iscompatible with the DuoRacer series controller.It can monitor the running data and working status of the controller via the remote meter. The remote meter can browse the controller’s parameters, set the battery typeand temperature unit, and clean the generated energy.It is suitable for RV, Camper, Boat, and so on.
Features：
1,Automatically identify and display the type,model and relevant parameter data of controllers.
2,Real-time display the operational data and working status of the connected devices indigital,graphics and textual forms by a large-screen multifunction LCD.
3,Three touch buttons are easy and quick to operate.
4,No need for external power supply. Charge controller supply the power for MT11.
5, It can browse the controller’s parameters, set the battery typeand temperature unit, and clean the generated energy.
6,Real-time display of failure information of the connected devices.
7, Longer communication distance based on RS485.
Technical Specifications:
Model |
MT11 |
Apply to model |
DRN series |
Self-consumption(Power on) |
13mA/5Vdc |
Self-consumption(Power off) |
4mA |
Communication way |
RS485 |
Communication port |
3.81-4P |
RS485 cable |
CC-RS485-RS485-3.81-4P- 150(1.5m) CC-RS485-RS485-3.81-4P-500(5m) CC-RS485-RS485-3.81-4P-1000(10m) |
Environment temperature |
-20℃～+70℃ |
Storage temperature range |
-20℃～+70℃ |
Enclosure |
IP20 |
Dimension |
98.4×98.4mm |
Base cover dimension |
114×114mm |
Weight |
0.11kg |
