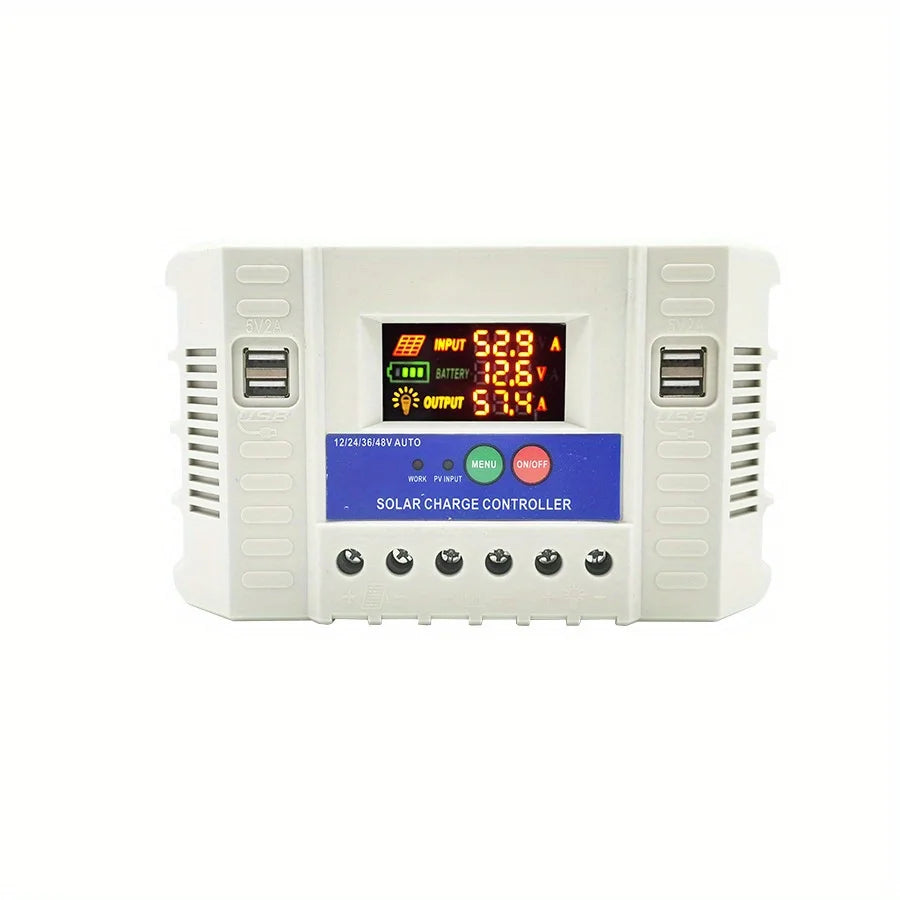

60A Smart Solar Charge Controller 12V/24V/36V/48V Auto,PWM 3-Stage Charging,LCD Display,for Lead-Acid/AGM/Gel/Li-ion/LiFePO4
60A Smart Solar Charge Controller 12V/24V/36V/48V Auto,PWM 3-Stage Charging,LCD Display,for Lead-Acid/AGM/Gel/Li-ion/LiFePO4
⭐ Top Rated Product – Loved by Customers
🔥 Limited Stock – Selling Fast
🎁 Perfect Gift – Ready to Impress
Up to 40% OFF 🔥
Regular price
$39.73
Regular price
$39.73
Sale price
$0.00
Unit price
per
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivery
60A Smart Solar Charge Controller 12V/24V/36V/48V Auto,PWM 3-Stage Charging,LCD Display,for Lead-Acid/AGM/Gel/Li-ion/LiFePO4
Regular price
$39.73
Regular price
$39.73
Sale price
$0.00
Unit price
per
Shipping Policy
Shipping Policy
Thank you for shopping with us! Below you will find important information about our shipping process.
Order Processing Time
All orders are processed within 1–2 ex 3 business days (excluding weekends and holidays). Once your order has been processed and shipped, you will receive a confirmation email with tracking information.
Refund Policy
Refund Policy
Thank you for shopping with us! Below you will find important information about our Refund process.
You may request a return within 30 days of receiving your order.
Free Shipping
Delivery in 1–2 Days
24/7 Support
Free Global Support
SPECIFICATIONS
Application: Thermal Controller,Charger Controller,Water Heater Controller,Voltage Controller,Collector Controller,Lighting Controller,Solar System Controller,Solar Working Station
Battery Type: b01(Lead-acid 12V/24V AUTO), b02(Li-ion 3S 11.1V),b03(LiFePO4 4S 12.8V)
Battery Voltage: 12V-24V AUTO
Brand Name: NONE
Charge Current: MAX 60A
Discharge Reconnect Voltage: 12.6V(b01), 10.5V(b02), 12V(b03)
Discharge Stop Voltage: 10.7V(b01), 9V(b02), 10V(b03)
Equalization Voltage: 14.4V(b01), 12.6V(b02), 14.6V(b03)
High-concerned chemical: None
Max Solar Input (12V Battery): 23V
Max Solar Input (24V Battery): 45V
Max Solar Input (36V Battery): 70V
Max Solar Input (48V Battery): 90
Maximum Current: 60A
Origin: Mainland China
Product Overview

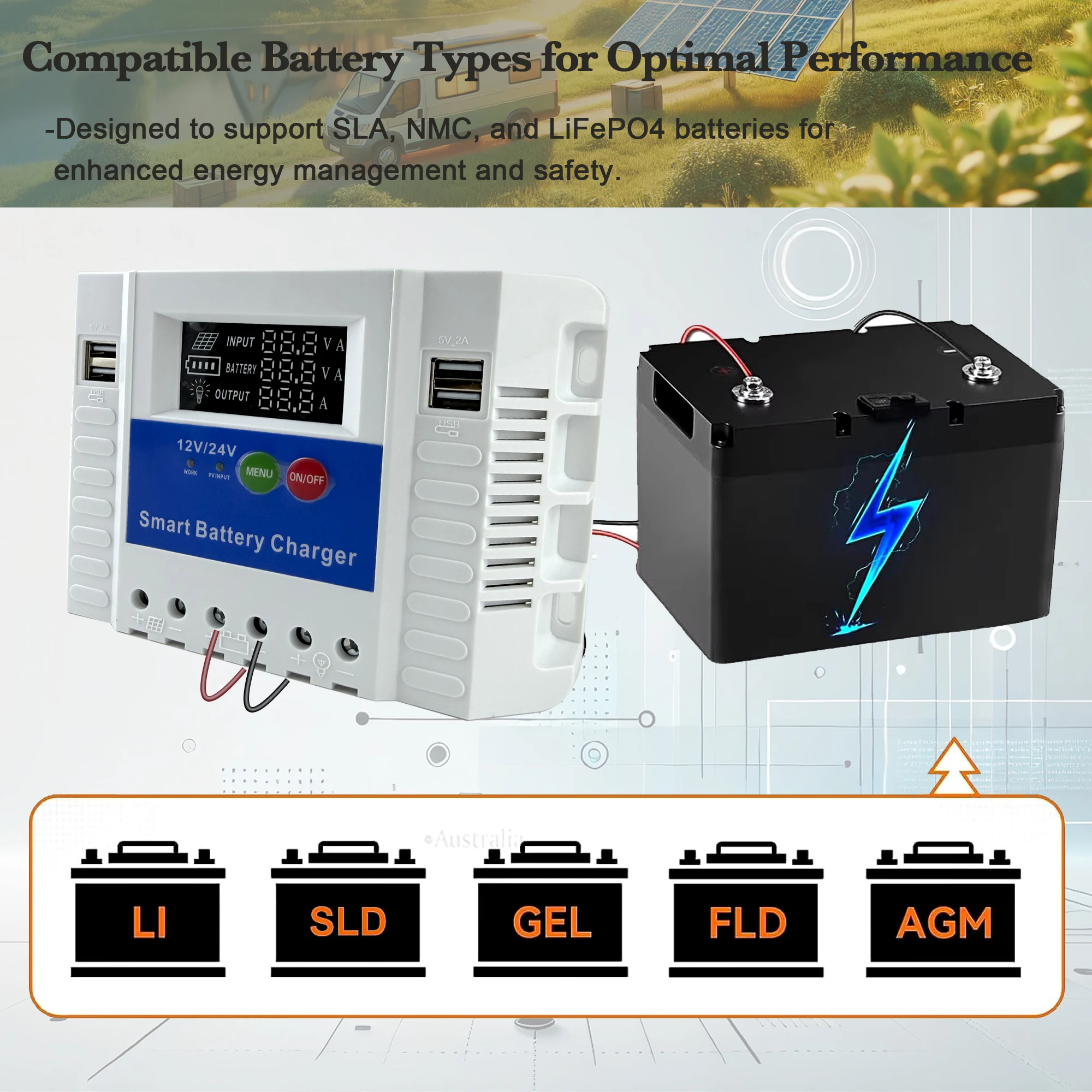

This solar charge controller is designed for 12V/24V/36V/48V lead-acid batteries (OPEN, AGM, Gel), ternary lithium batteries, and LiFePO4 batteries. It adopts high-efficiency 3-stage PWM smart charging technology (Bulk, Boost, Float), supports adjustable parameters for multiple battery types, and handles up to 2880W solar input. Ideal for home energy storage, off-grid systems, and outdoor lighting, it integrates an industrial-grade microcontroller, multi-layer safety protections, and an intuitive interface.
Key Features
-
Smart 3-Stage Charging Management
Bulk Charge Mode: Rapidly replenishes battery power.
Boost Charge Mode: Stabilizes voltage at preset levels (e.g., 14.8V for 12V / 29.6V for 24V / 44.4V for 36V / 59.2V for 48V) to prevent overcharging.
Float Charge Mode: Maintains battery health (e.g., 13.8V for 12V / 27.6V for 24V / 41.4V for 36V / 55.2V for 48V), extending lifespan by over 30%.
Auto Voltage Recognition: Automatically detects 12V/24V/36V/48V systems, with solar input ranges of 15-23V (12V), 30-45V (24V), 45-68V (36V), or 60-90V (48V).
Key Specifications
Industrial-Grade Safety Protections
Circuit Protections: Overcharge, overvoltage, overload, short-circuit, reverse polarity, open-circuit, low-voltage, and high-voltage protections. Dual MOSFET reverse-current blocking.

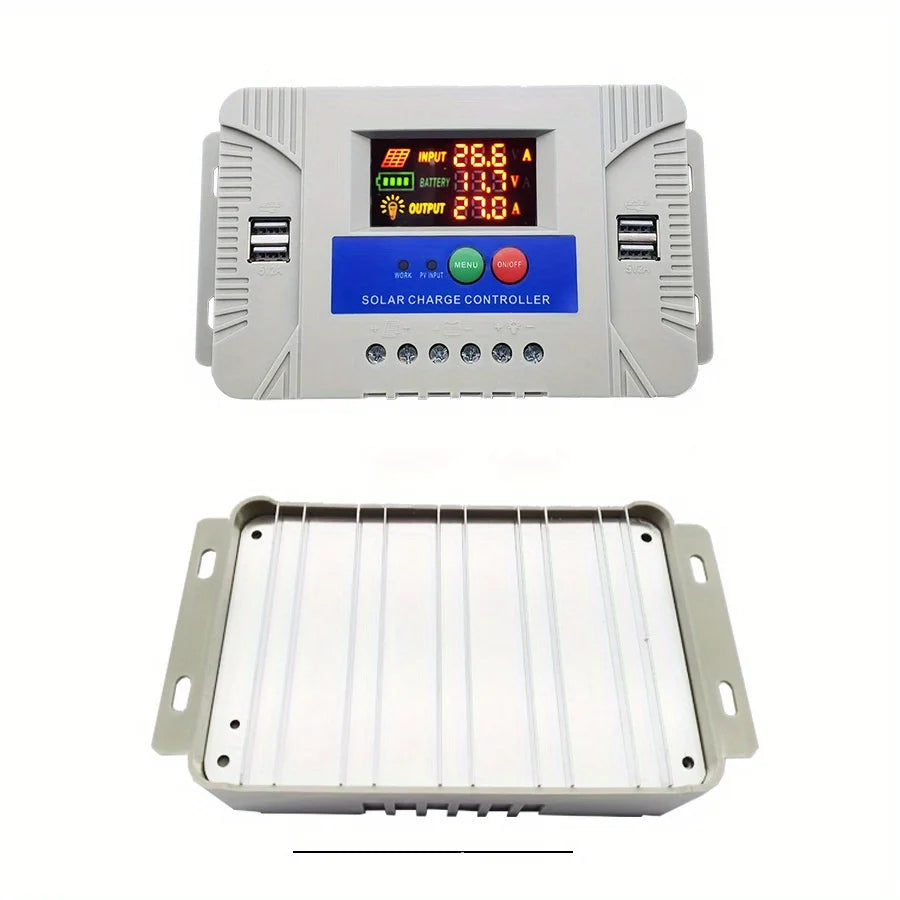

Cooling System: Reinforced alloy heat sink + silicone cooling tubes for stable operation at up to 60°C. Passive cooling with zero noise.

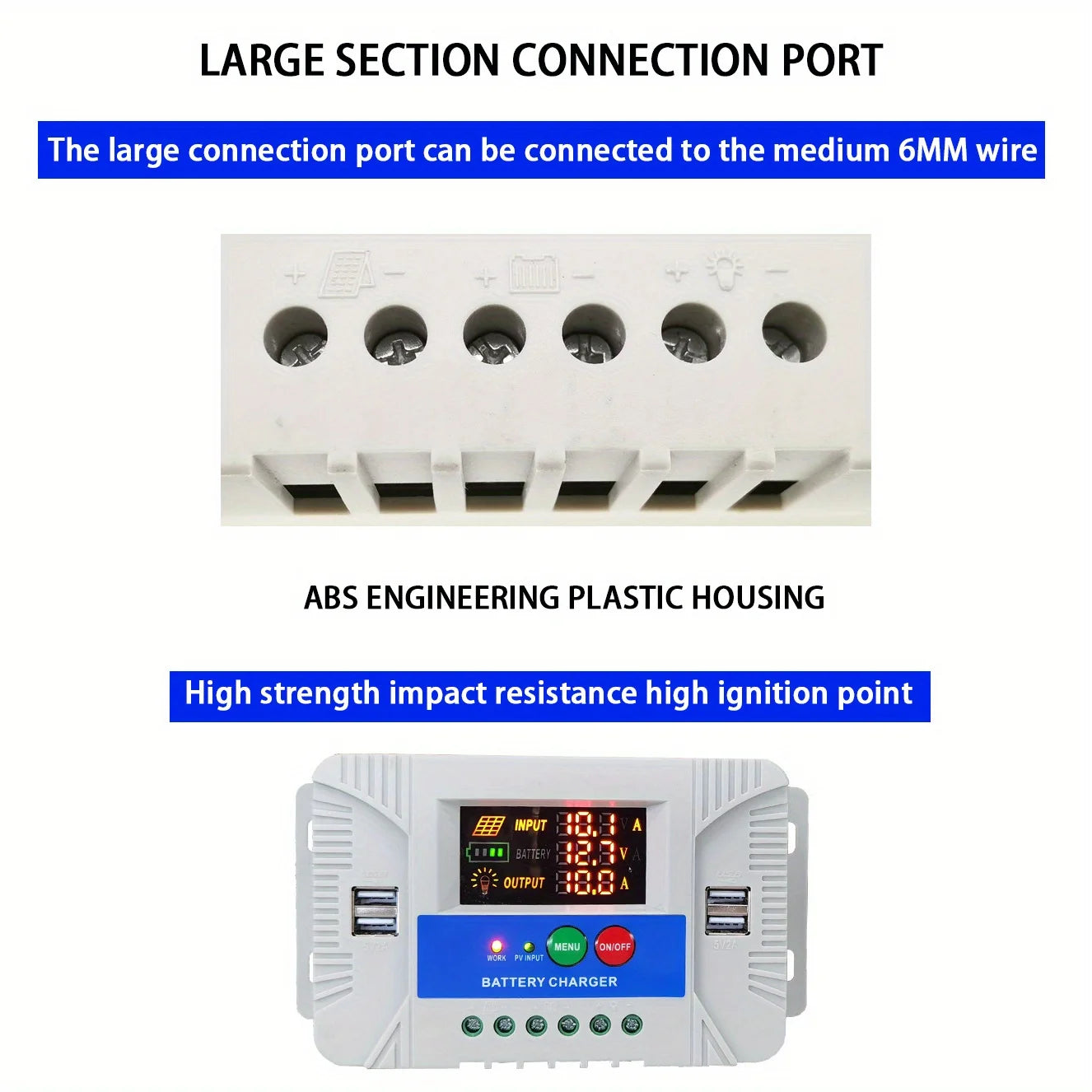

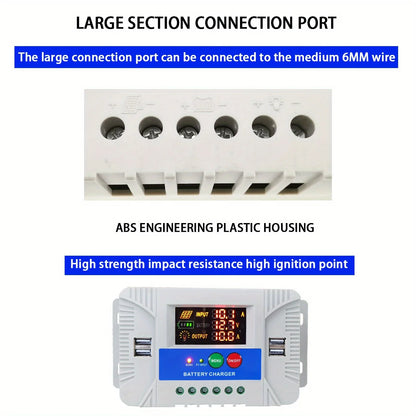

Robust Build: ABS engineering plastic housing (impact-resistant, corrosion-resistant, high ignition point). Large terminals support 10mm² cables with 120mm spacing to reduce heat.
User-Friendly Design

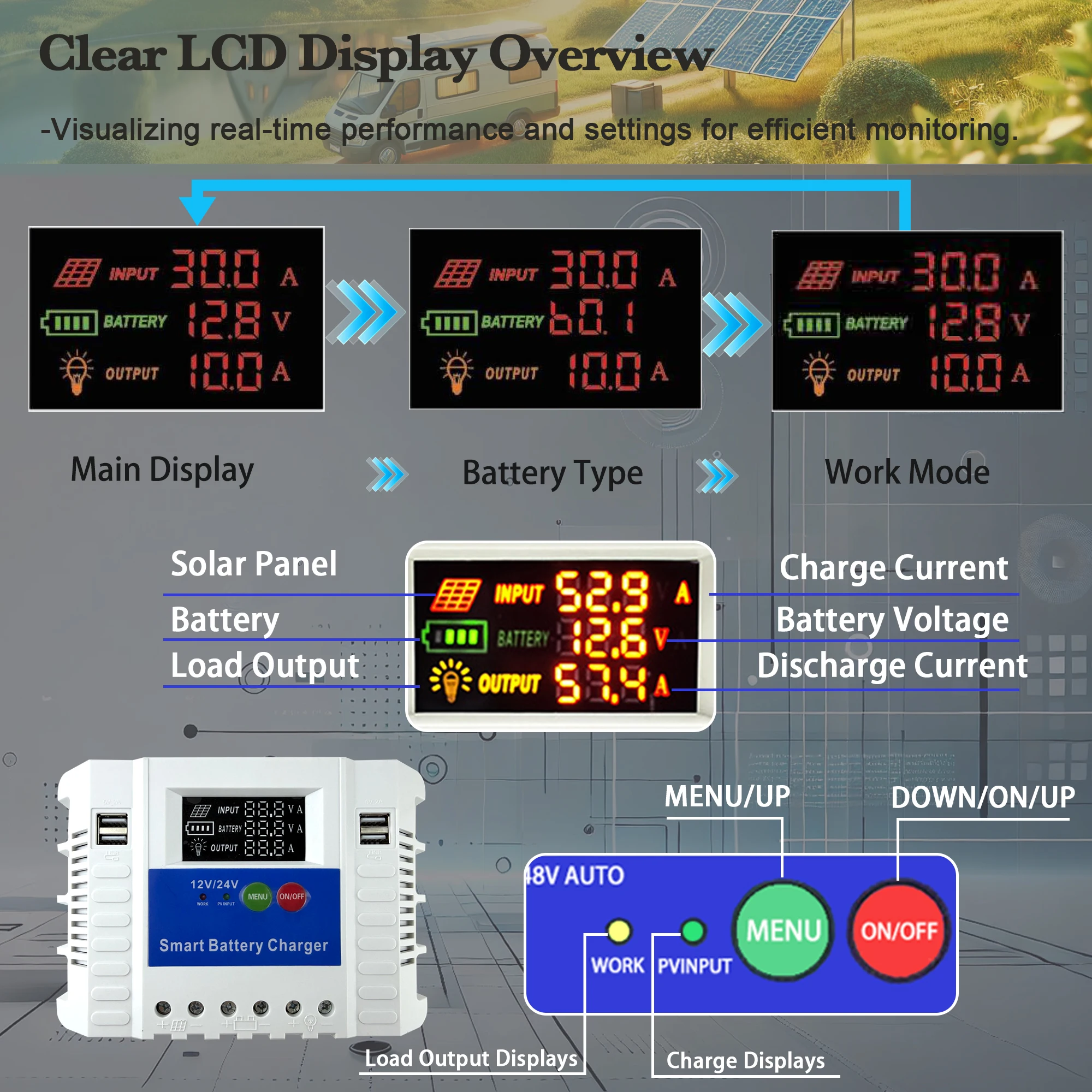

Full-Color LED Display: Real-time monitoring of input/output voltage, current, battery status, and error codes. Auto-sleep after 60 seconds of inactivity.
Multi-Functional Ports: 4 USB outputs (5V/2A) for fast device charging; dedicated load control port with one-touch on/off.
Easy Configuration: Adjust battery type (lead-acid/lithium) and charging parameters via the “MENU” button.
Technical Specifications
Models: AT-60A
Rated Charging Current: 60A
Max Solar Input Power: 12V Battery: 720W / 24V Battery: 1440W / 36V Battery: 2160W / 48V Battery: 2880W
DC Output Current: Matches charging current (60A).
Low-Voltage Protection: 10.7V (12V) / 21.4V (24V) / 32.1V (36V) / 42.8V (48V), adjustable proportionally.
High-Voltage Protection: 15.5V (12V) / 31V (24V) / 46.5V (36V) / 62V (48V), adjustable proportionally.
Operating Temperature: 0~40°C (operation), -15~50°C (storage).
Installation & Usage Guide

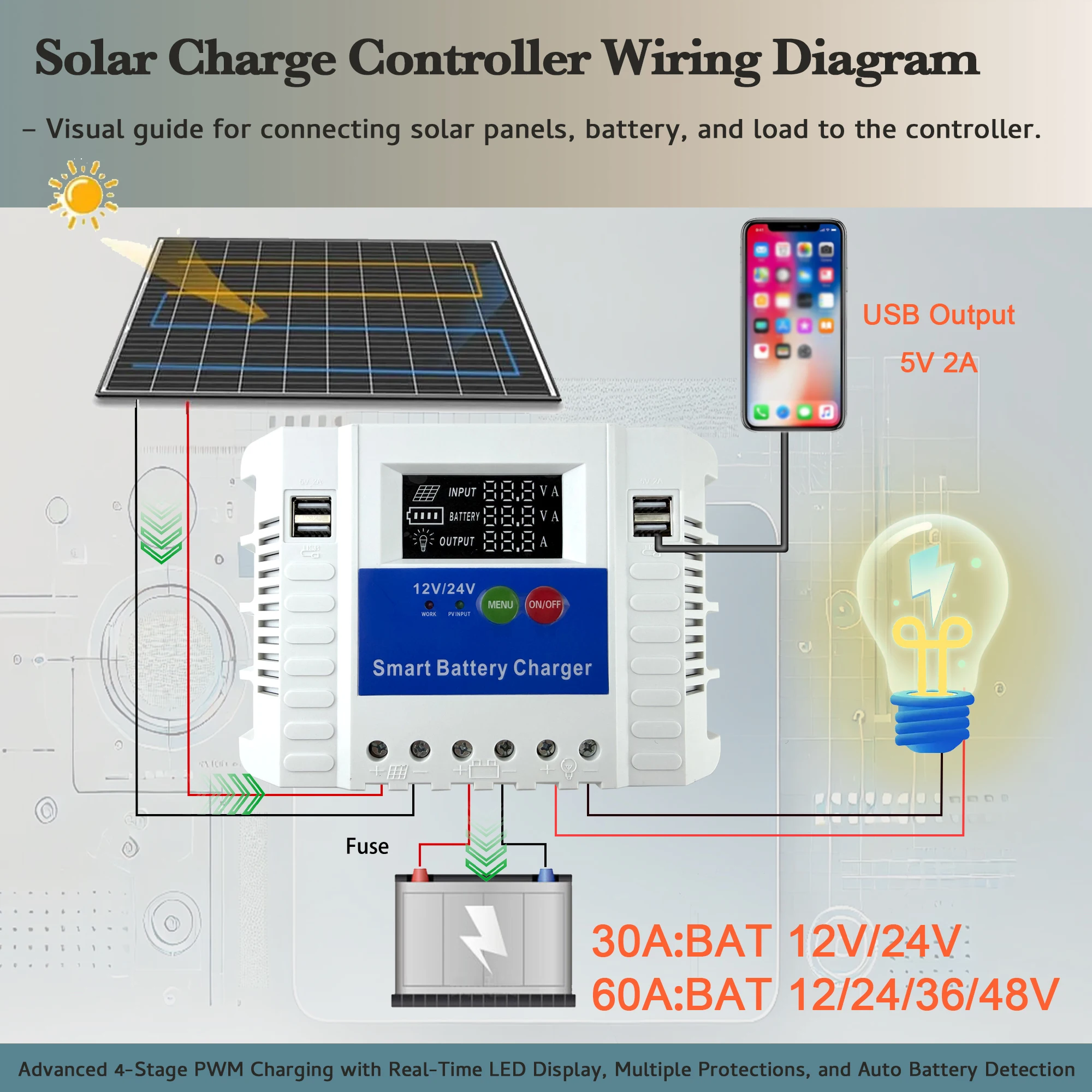

Wiring Steps (Reverse Order for Removal!)
Step 1: Connect the battery (auto voltage detection).
Step 2: Attach the load (e.g., lights, USB devices).
Step 3: Connect solar panels (ensure voltage matches the battery system).
Step 1: Connect the battery (auto voltage detection).
Step 2: Attach the load (e.g., lights, USB devices).
Step 3: Connect solar panels (ensure voltage matches the battery system).
Parameter Settings
Hold “MENU” to enter setup mode. Use “ON/OFF” to toggle battery types.
Press “MENU” briefly to adjust charging voltages.
Troubleshooting
Red Light Flashing: Overload/short circuit—disconnect the load and restart.
“ERR” Display: Solar input overvoltage—check panel voltage compatibility.
Packing List
1 × Solar Controller
1 × User Manual
1 × User Manual
