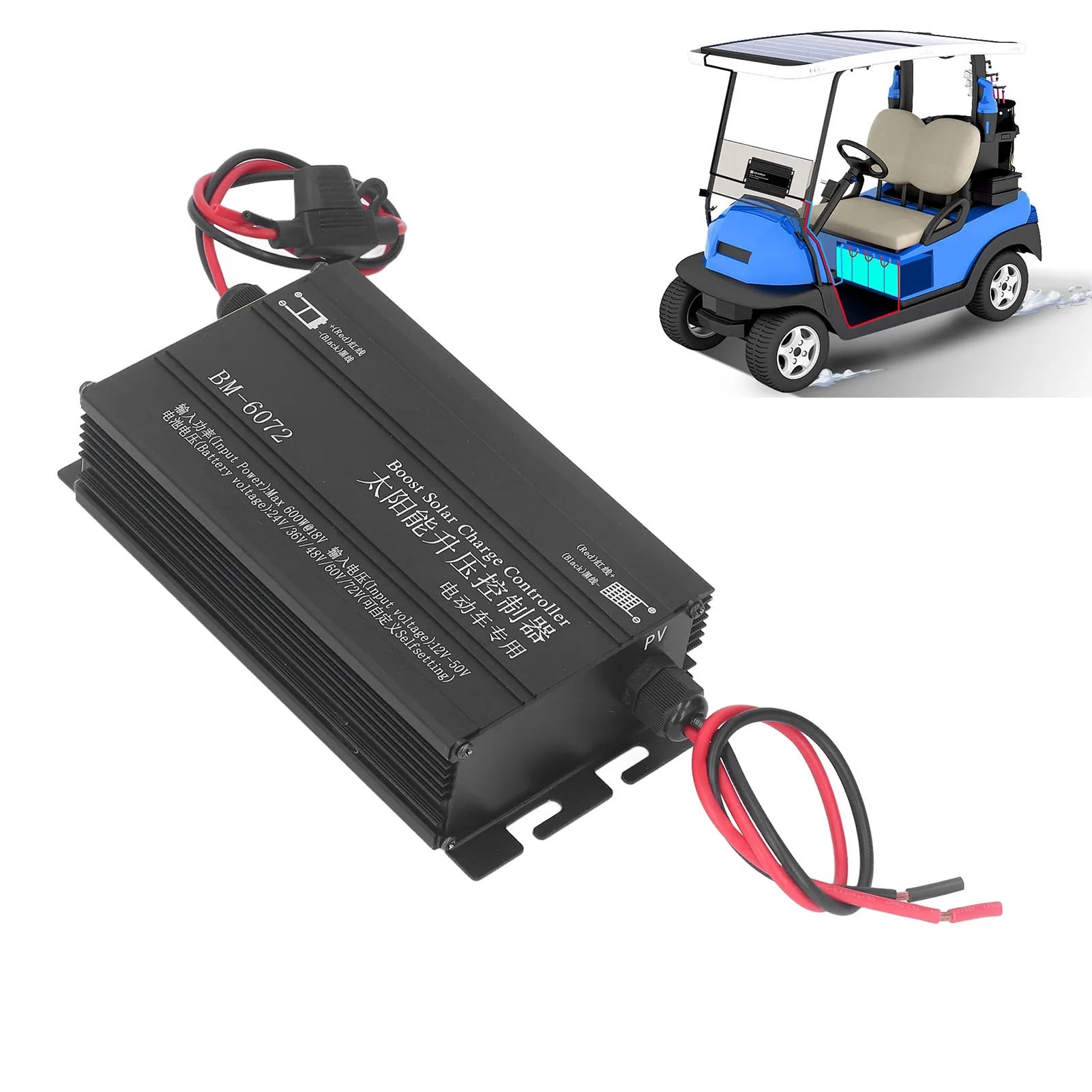

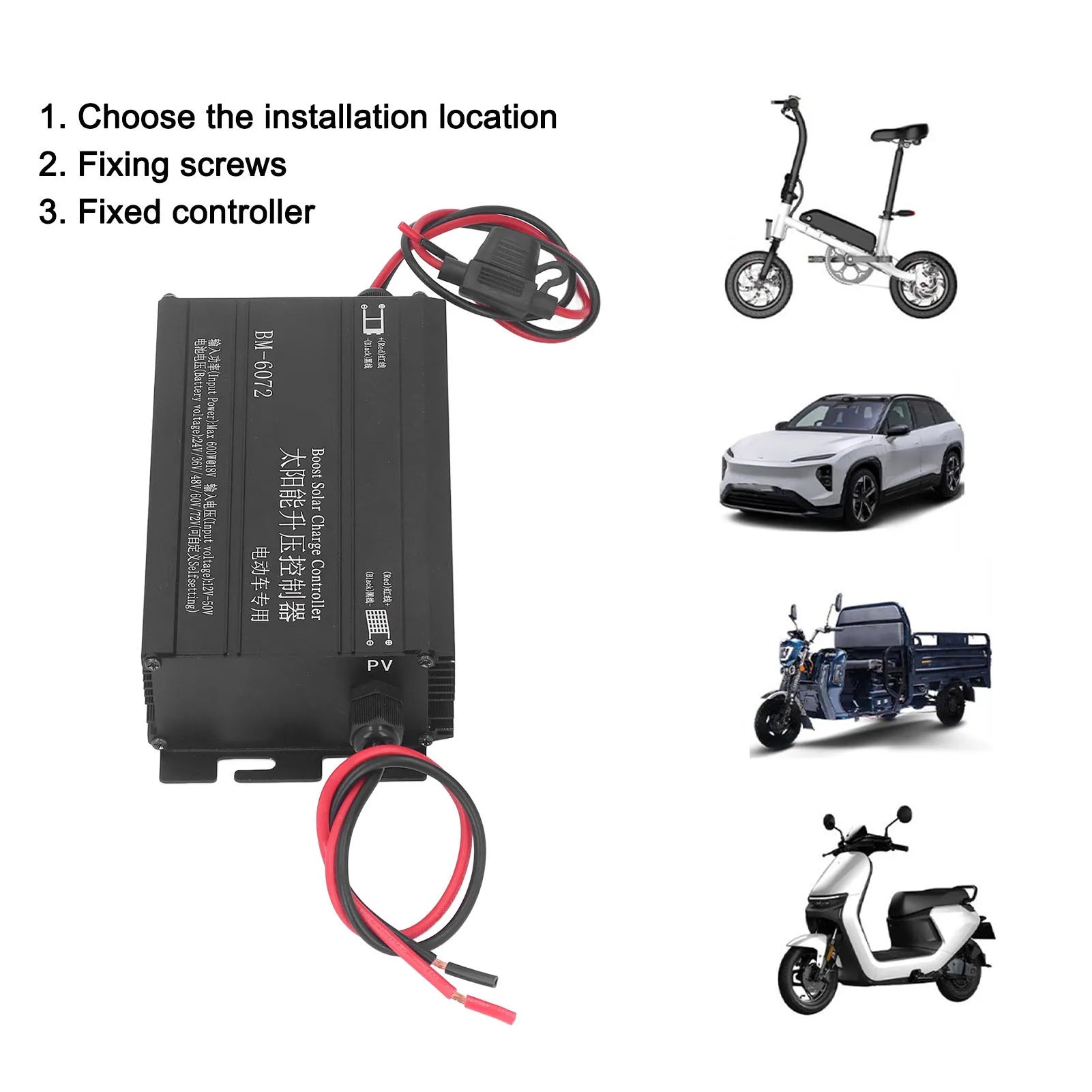

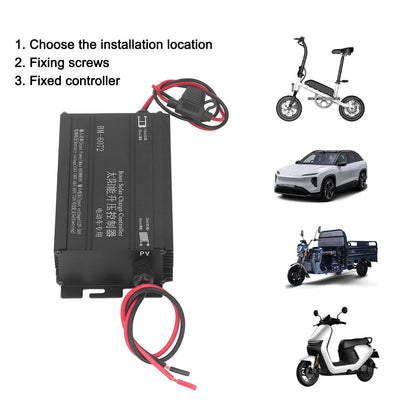

1. BOOST CHARGING: Boost the voltage of 24V solar panels to charge 36V, 48V, 60V, and 72V batteries in electric vehicles and solar system kits. There is no need to add additional solar panels or change the connection of the solar panels.
2. MPPT: Advanced MPPT maximum power point tracking technology, with a maximum tracking efficiency greater than 99%, can save energy on solar panels; Adopting excellent components to improve system performance, with a maximum conversion efficiency greater than 97%. Ultra fast maximum power point tracking speed while ensuring tracking efficiency.
3. MULTIPLE PROTECTION: Overcharge protection function, effectively protecting the battery from overcharging; Reverse protection, both the battery and battery board have reverse protection; Short circuit protection, safe and convenient.

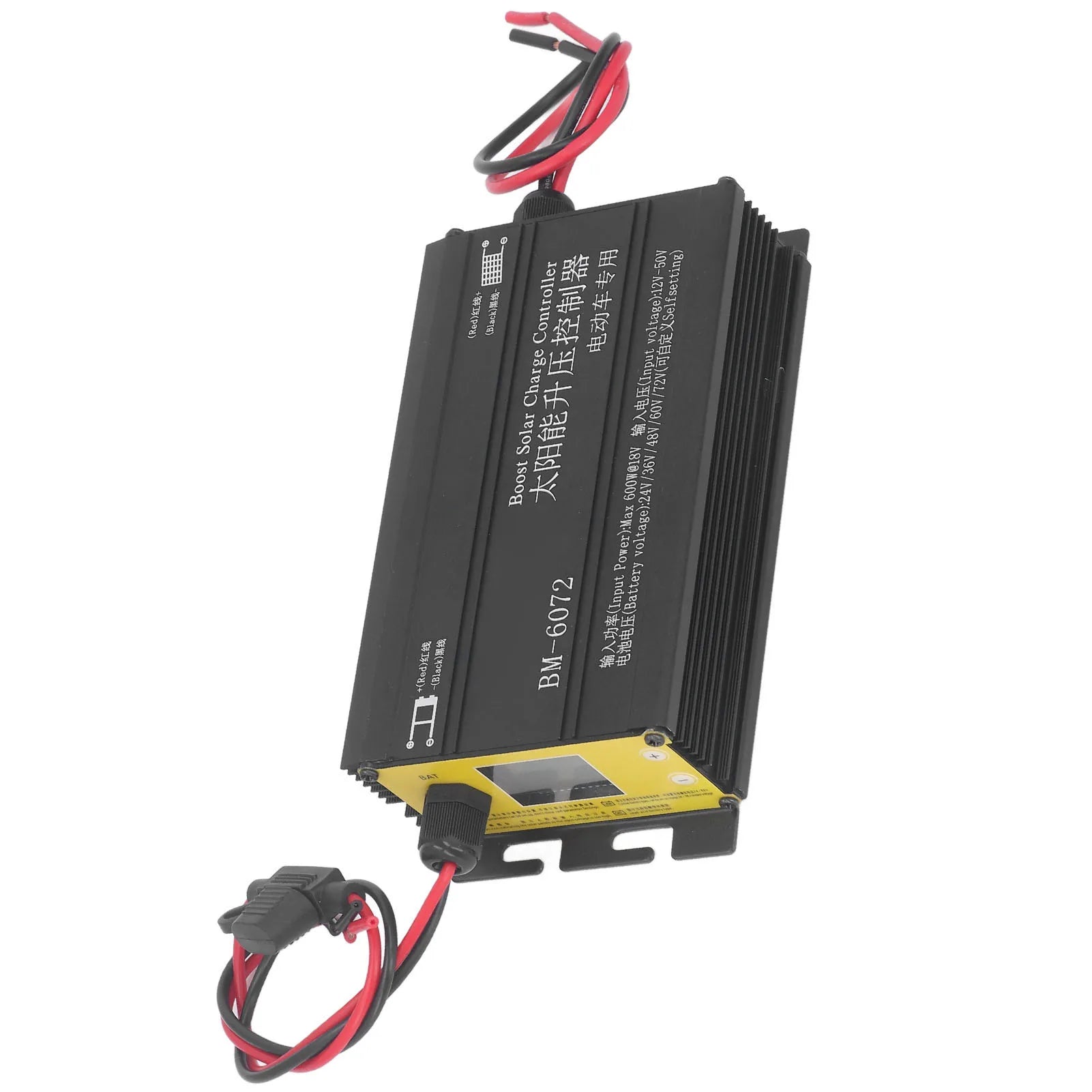

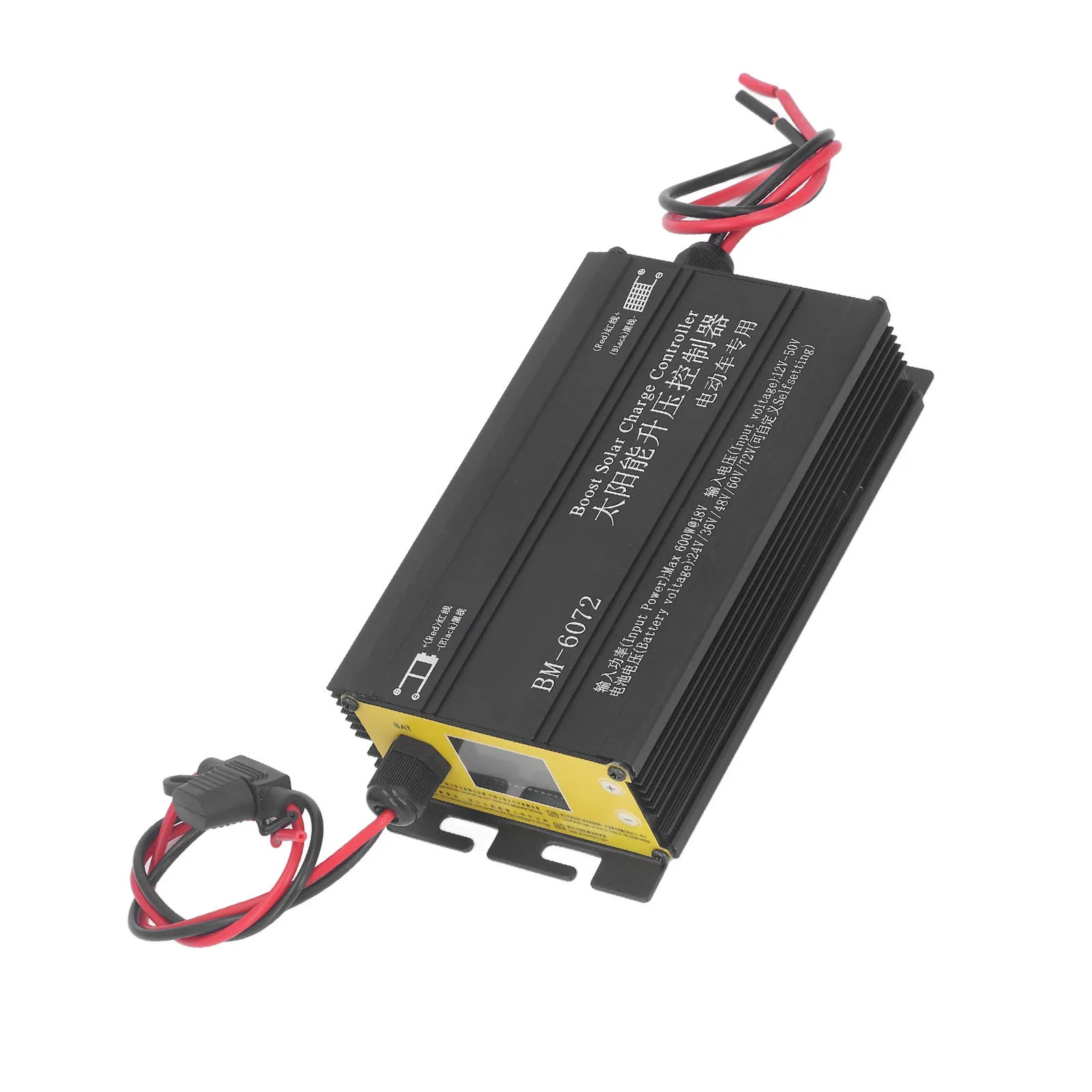

4. LCD DIGITAL DISPLAY: Intuitive display of charging current and voltage, allowing you to easily track the charging status of the battery. The metal shell provides better heat dissipation effect.
5. SUITABLE FOR VARIOUS BATTERIES: Support manual setting of battery voltage and charging parameters through buttons. Suitable for various battery types, such as lithium batteries, iron lithium batteries, nickel hydrogen batteries, acid batteries, gel batteries, and other models.

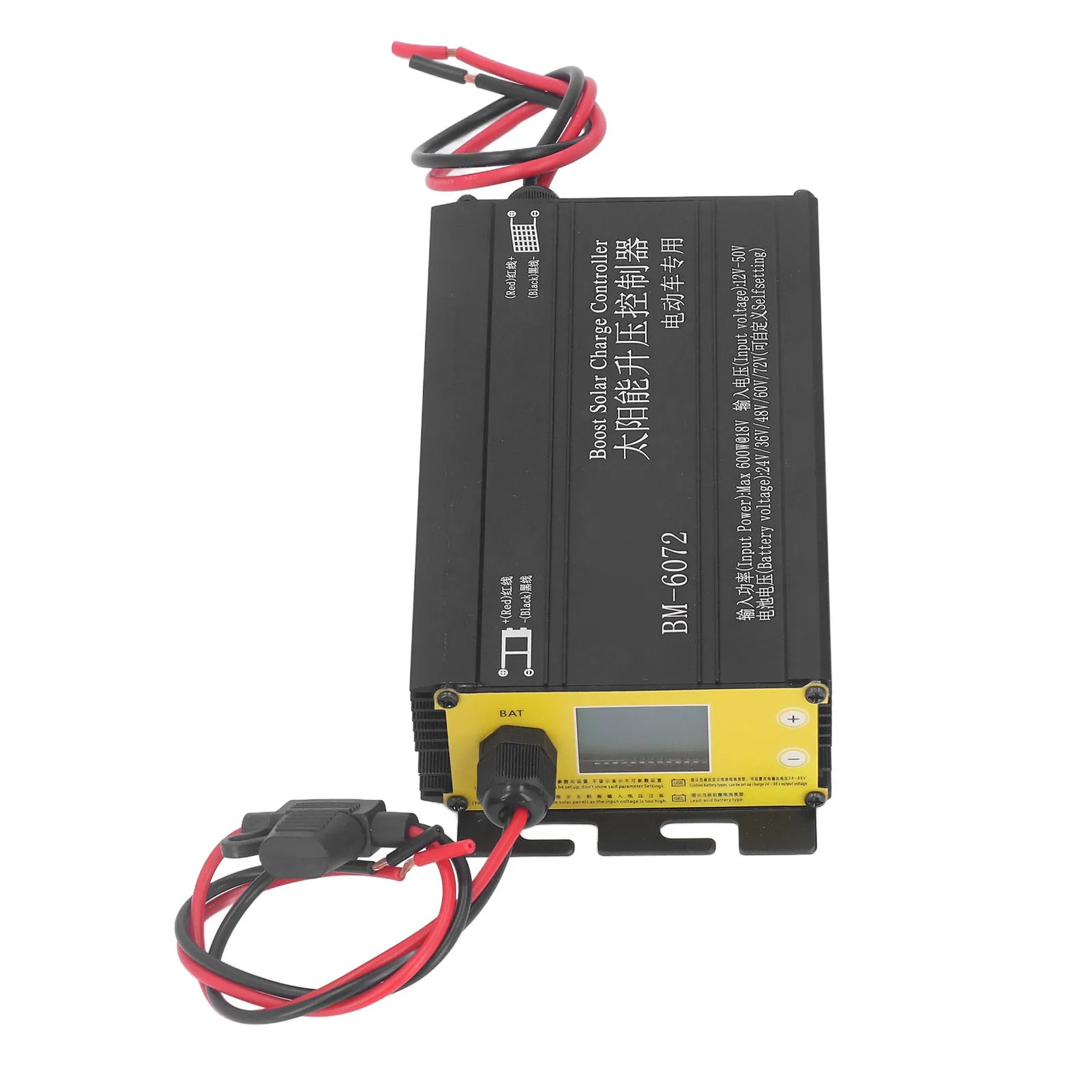

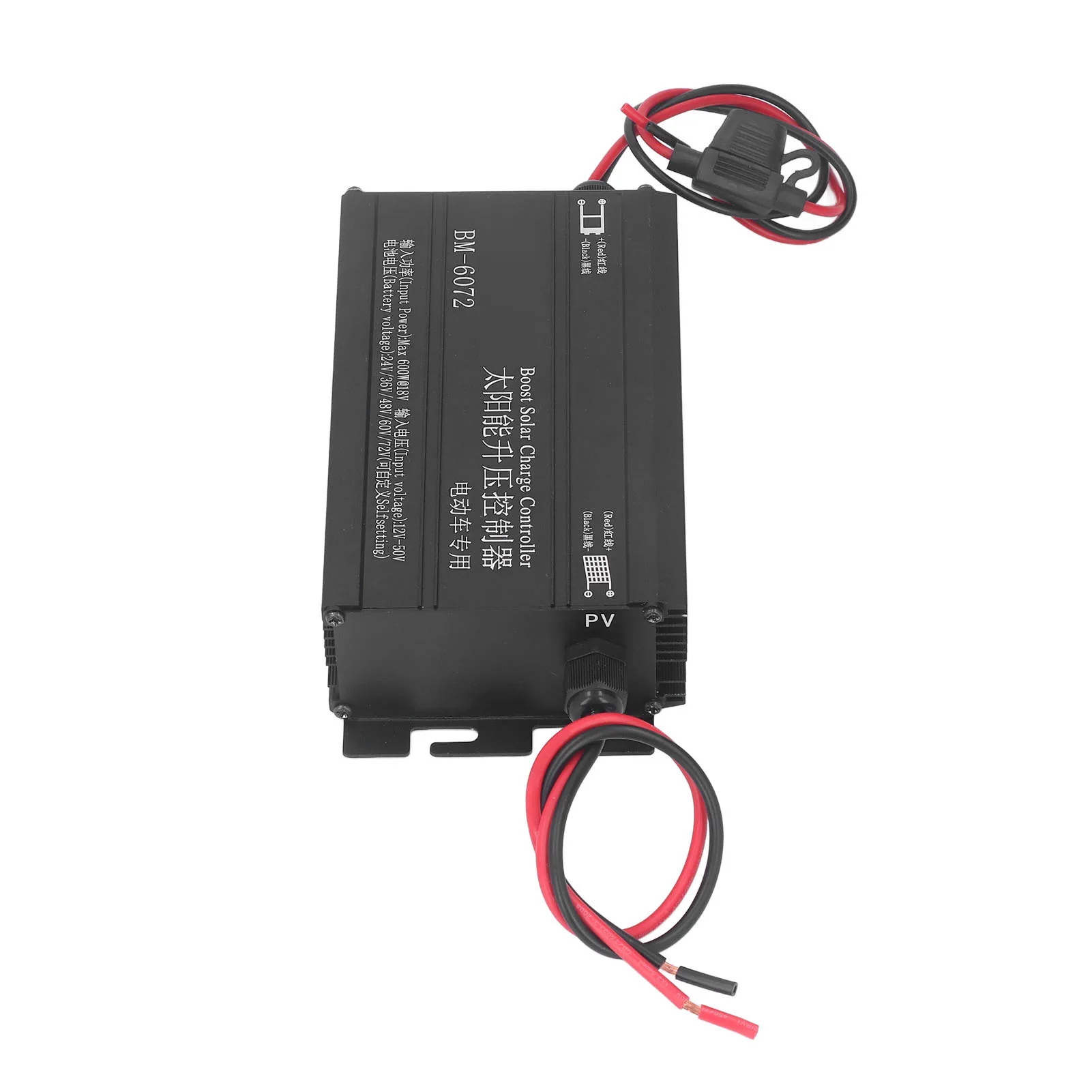

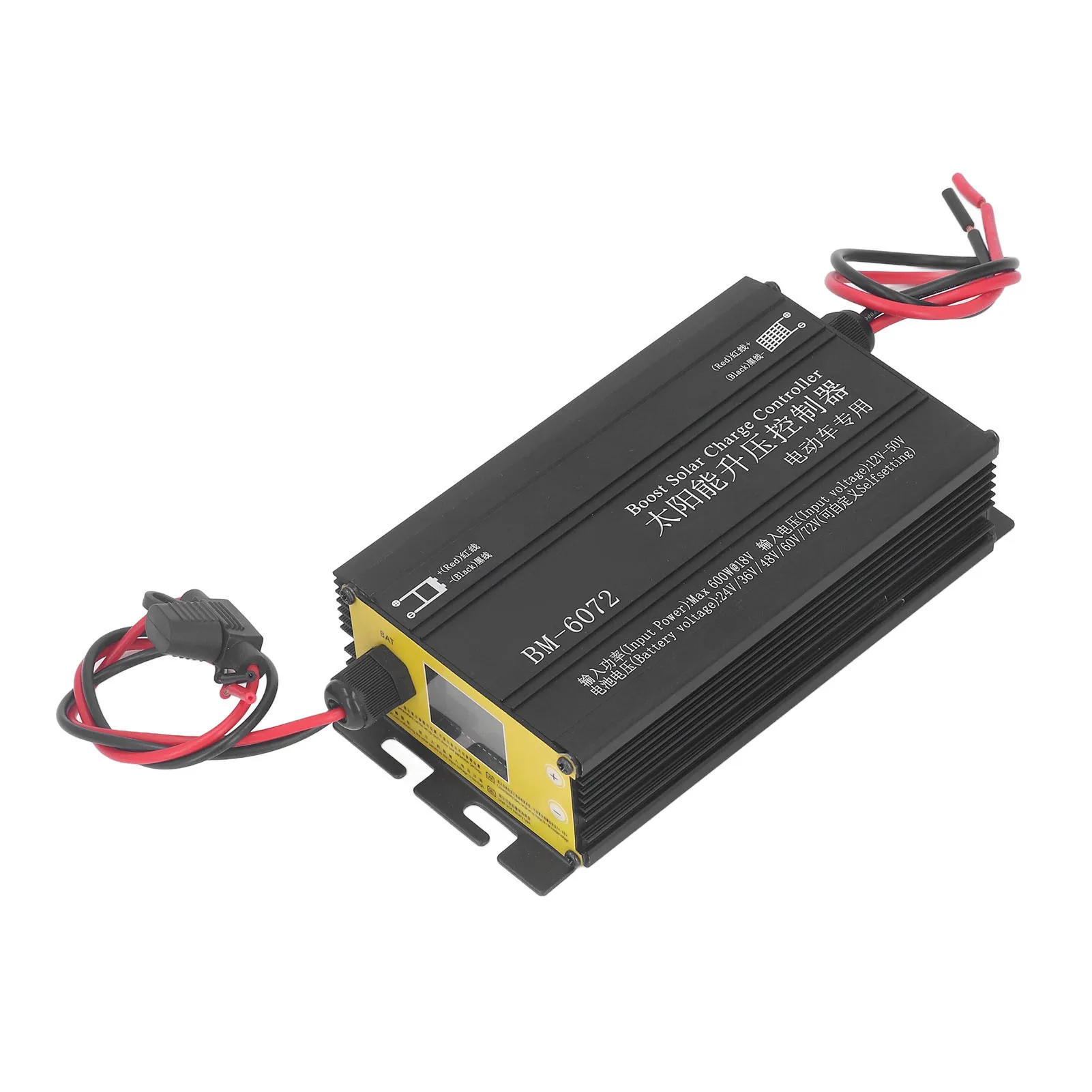

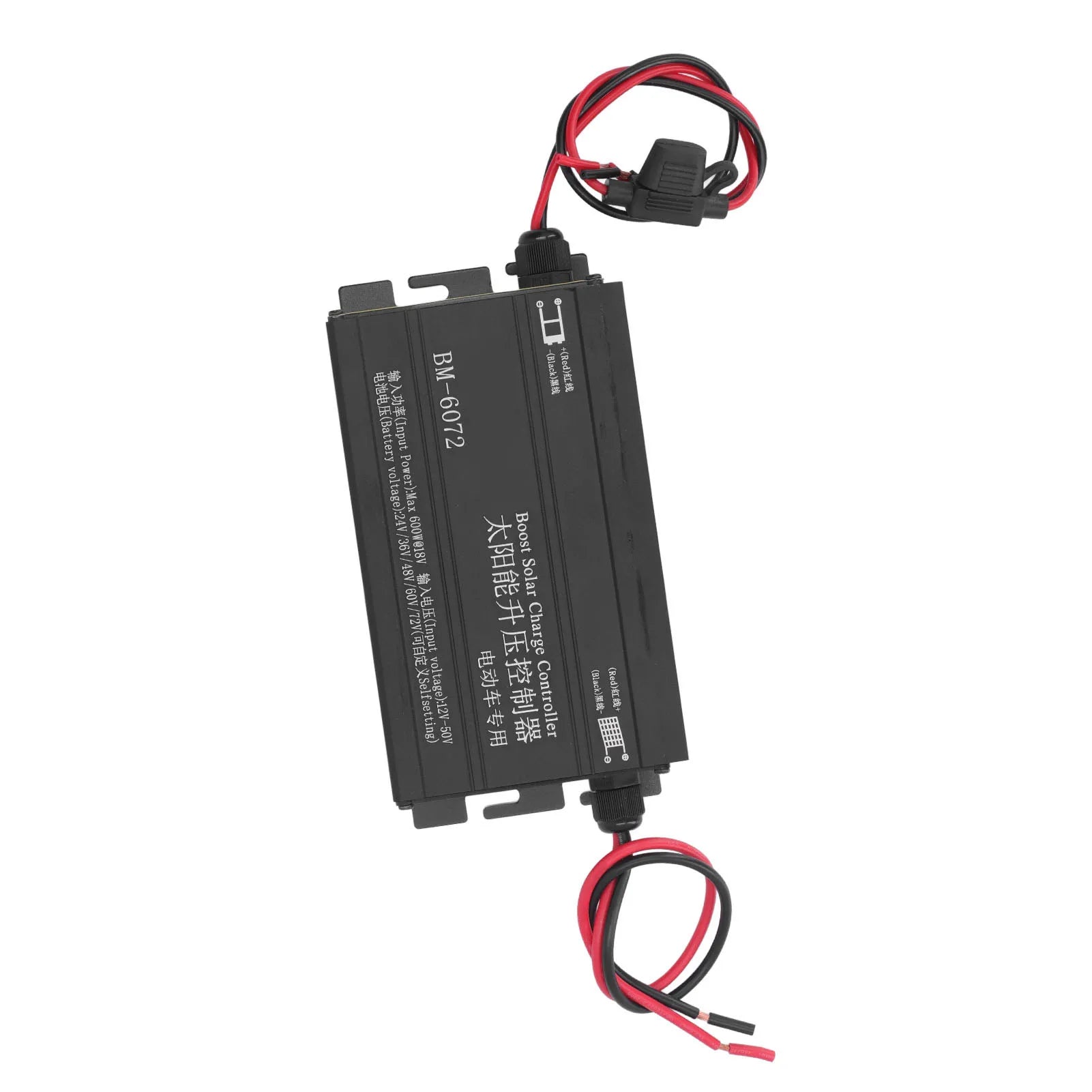

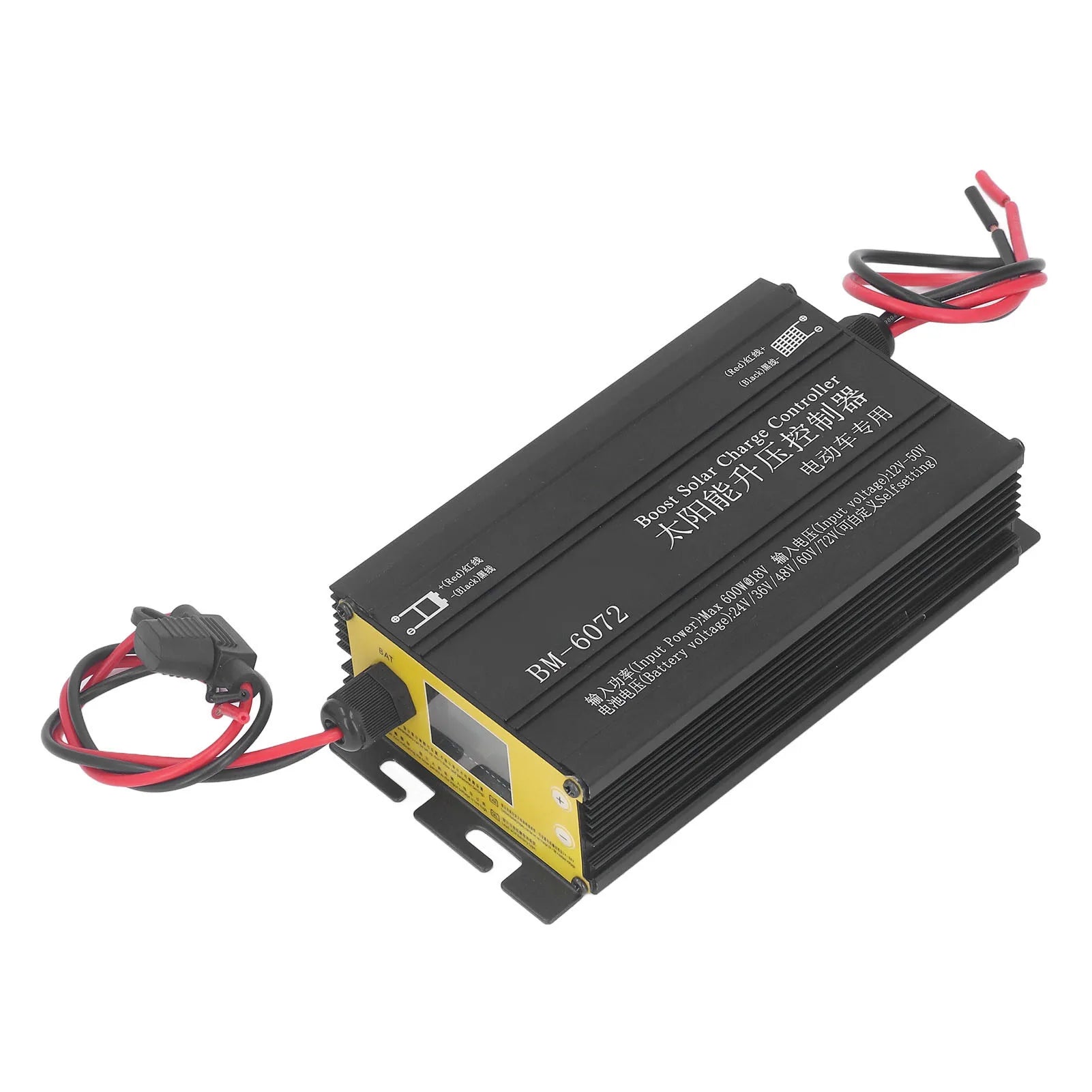

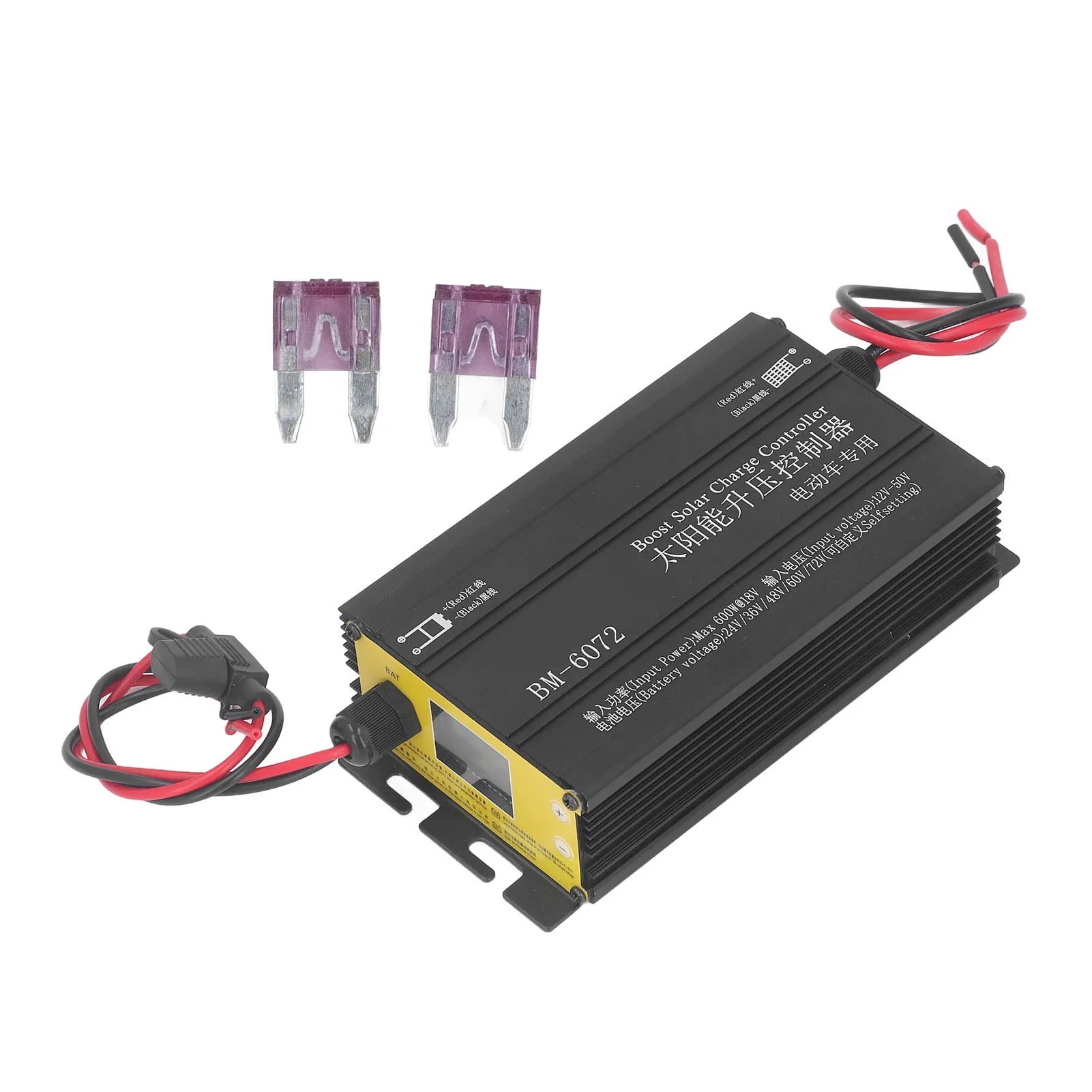

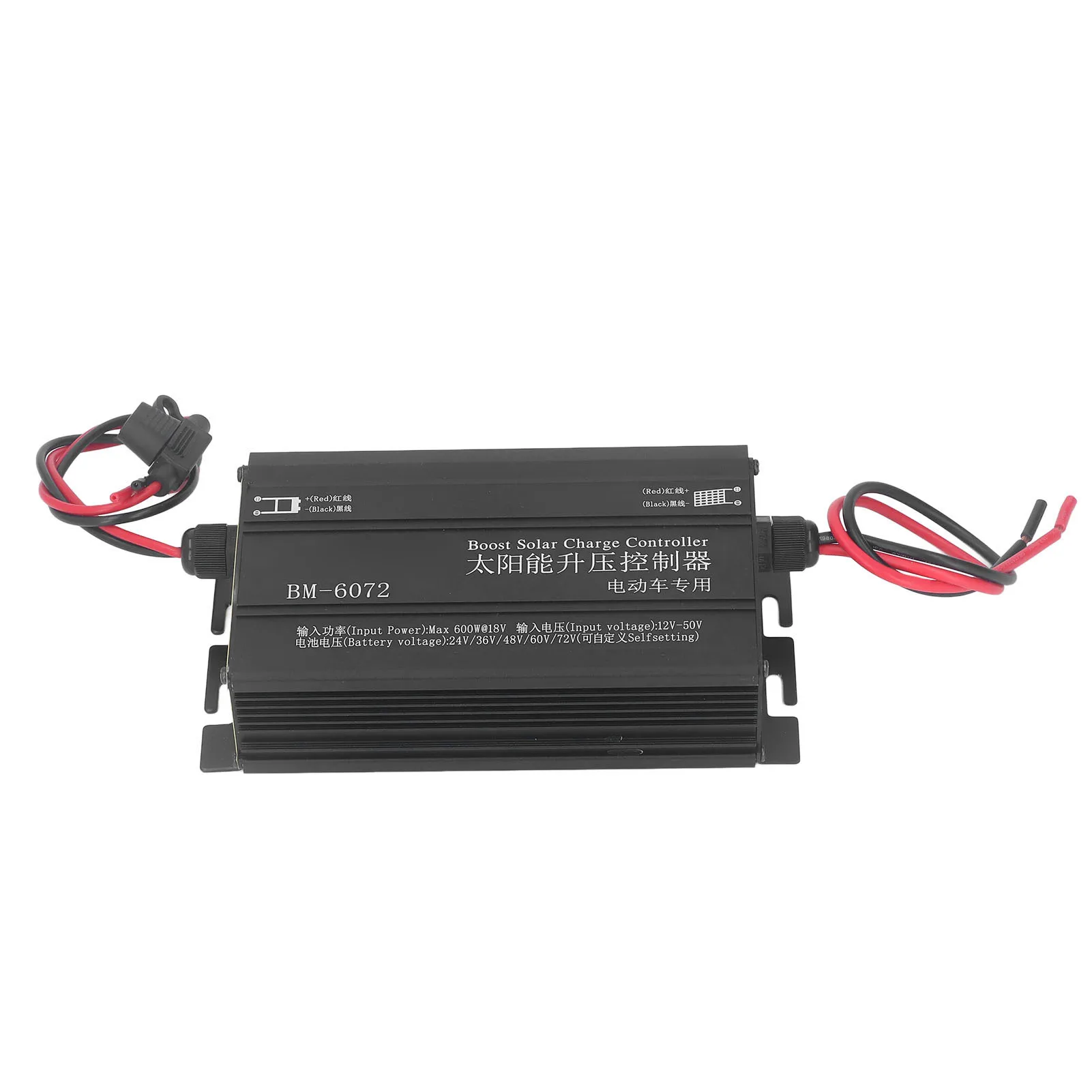

Item Type: MPPT Boost Solar Charge Controller
Material: Aluminum Alloy
Solar Input Voltage: 12V-50V
Maximum Solar Current: 33A
Maximum Solar Power: 600W at 18V
Battery Type: 24V, 36V, 48V, 60V, 72V, custom battery voltage (default 48V)
Battery Overcharging Protection Voltage: 28.8V (24V system), 43.2V (36V system), 57.6V (48V system) 72V (60V system), 86.4V (72V system), custom voltage
No Load Loss: Less than 20mA
Conversion Efficiency: Greater than 97%
MPPT Tracking Efficiency: Greater than 99%
Working Temperature: -20 ℃ to 65 ℃
Protection Level: IP65
Battery Compatibility: In accordance with for EN61000, for EN55022, for EN55024

Follow the instructions.
