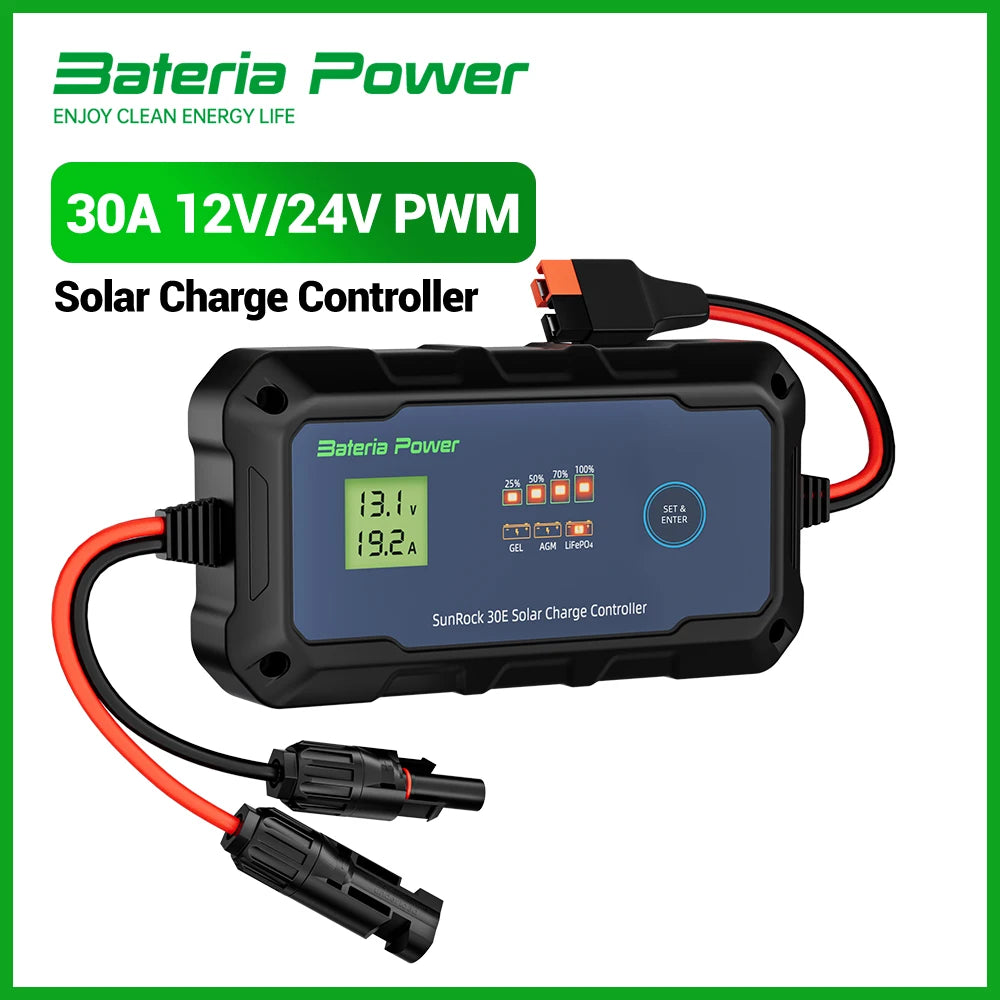

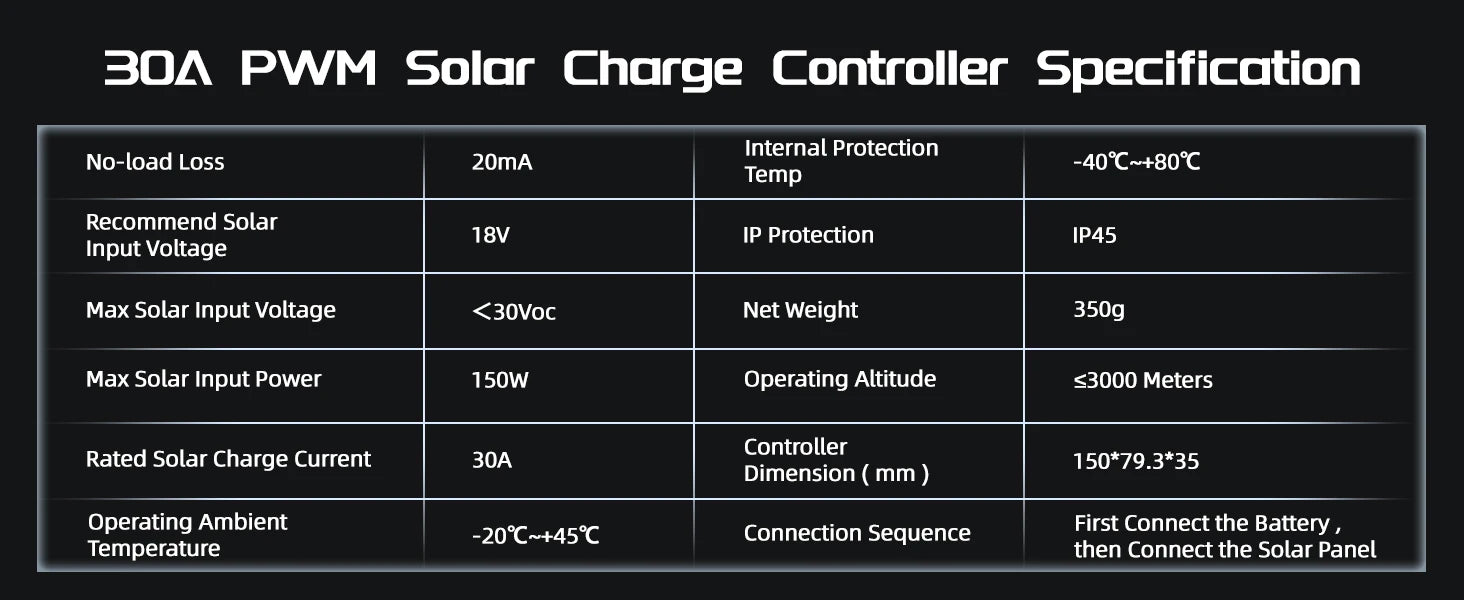

SPECIFICATIONS

Application: Charger Controller,Solar System Controller

Brand Name: Bateria Power

High-concerned chemical: None

Is Smart Device: no

Maximum Current: 30Amp

Model Number: Sunrock 30E

Origin: Mainland China

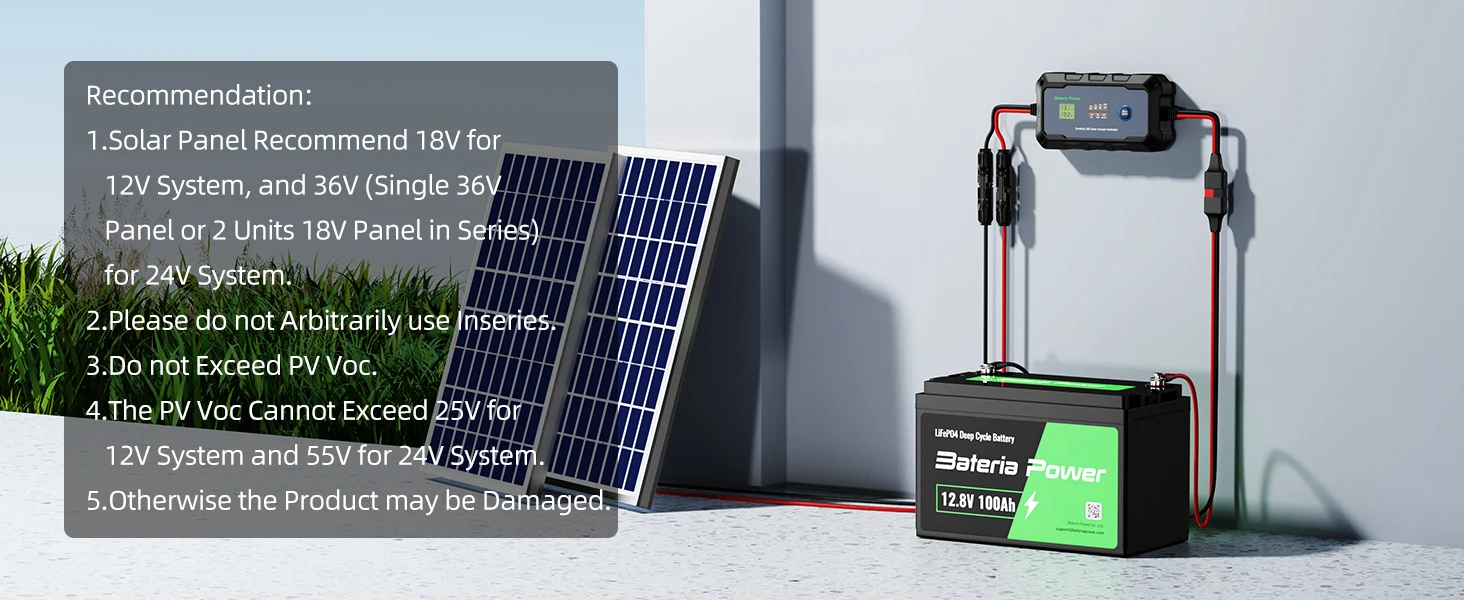

• Notes to buyers ①Designed for 12V and 24V batteries, please don't connect to higher voltage batteries. The PV Voc needs to be higher than the battery voltage, the minimum is 15V, and the maximum should not exceed 25Voc for 12V BAt; and not exceed 55Voc for 24V BAt. ③Connection sequence: first connect the battery, then connect the solar panel.

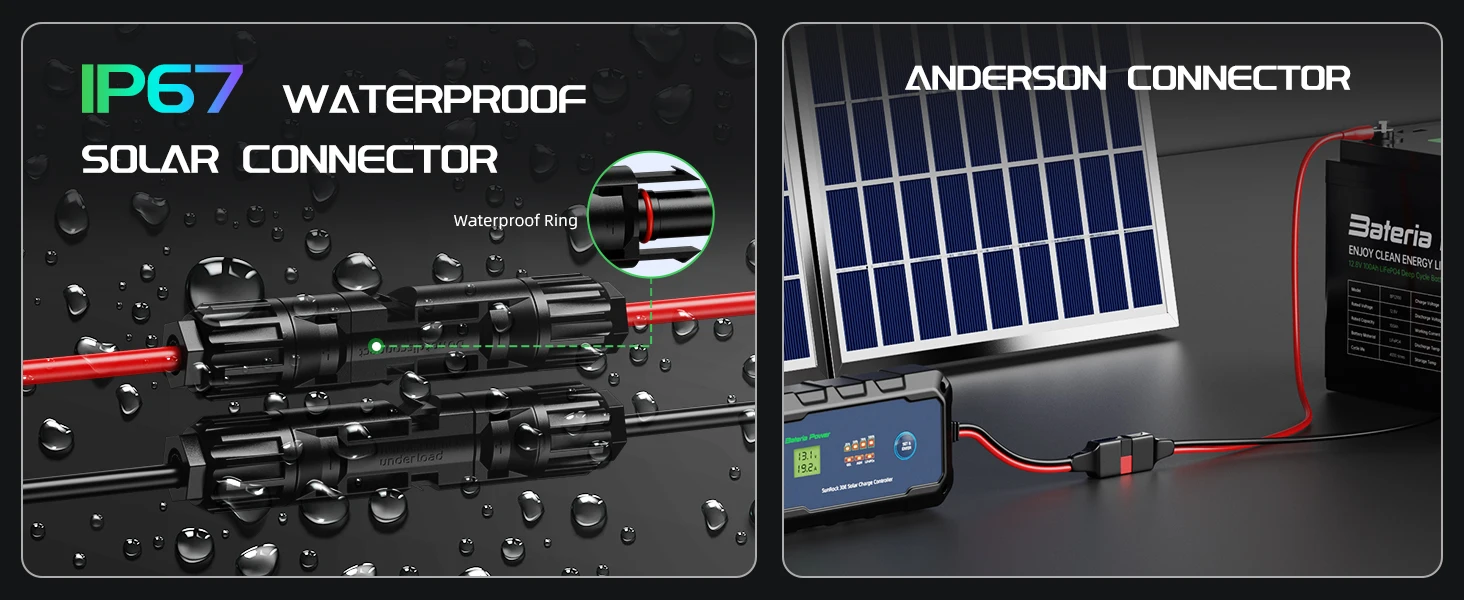

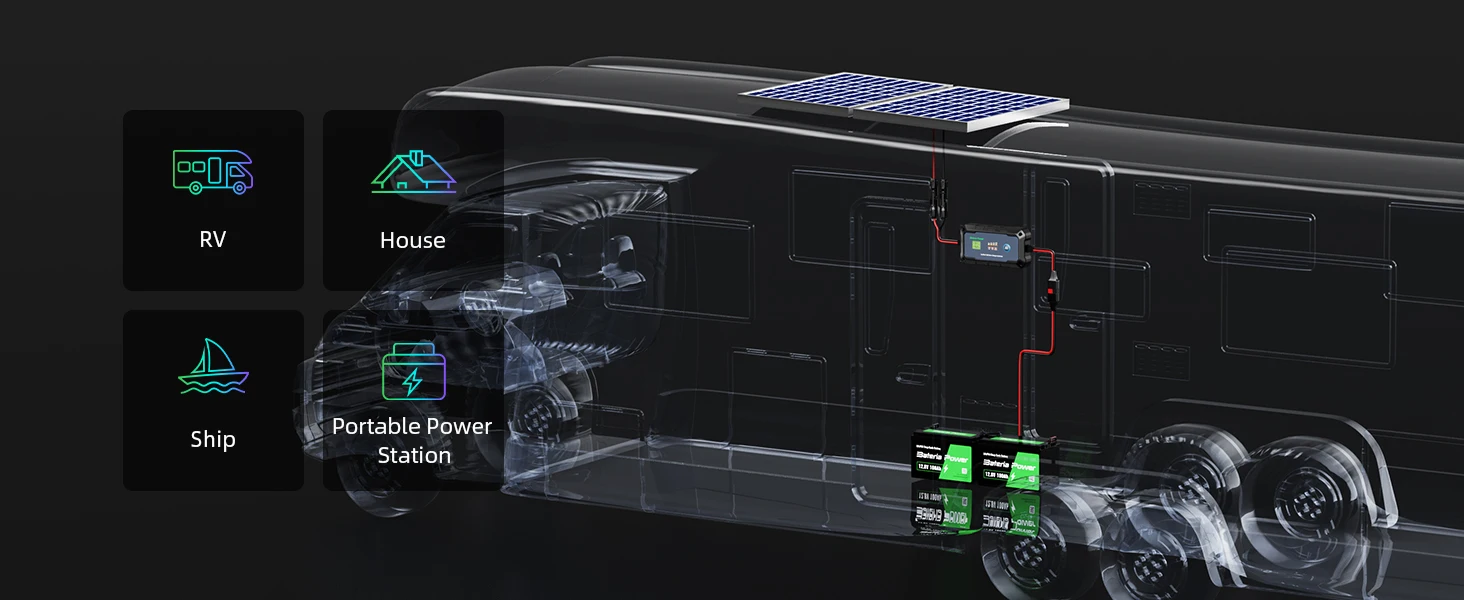

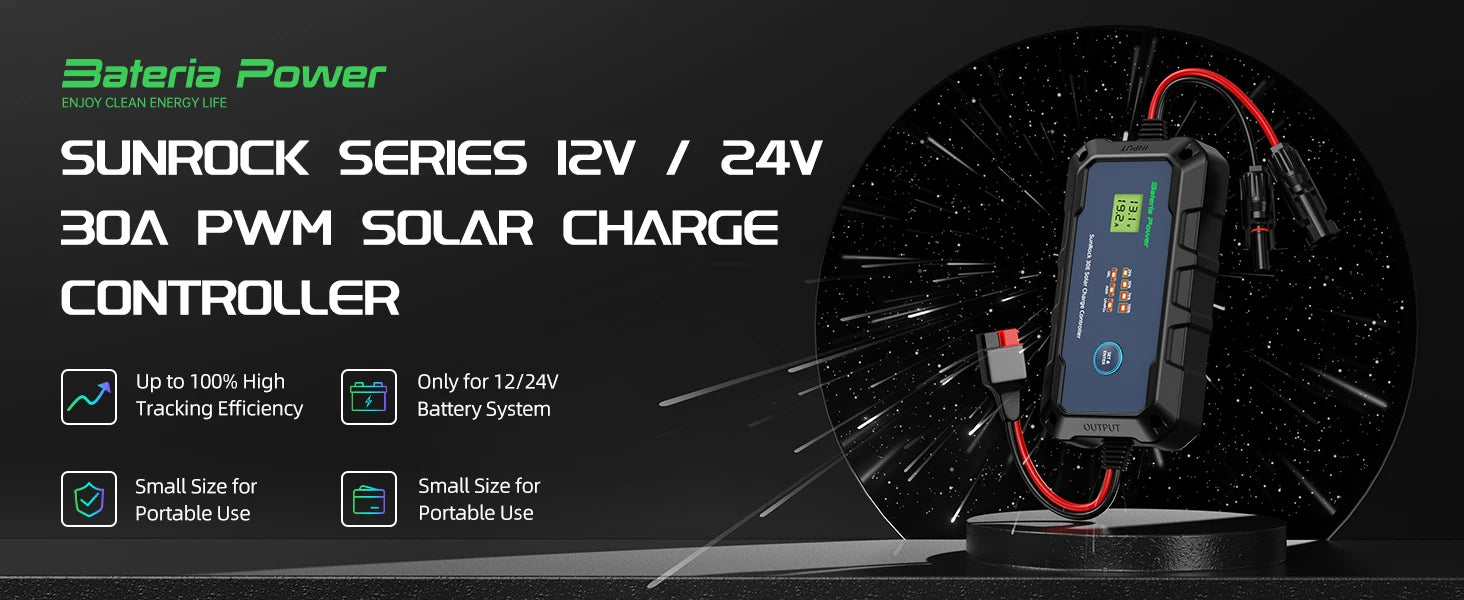

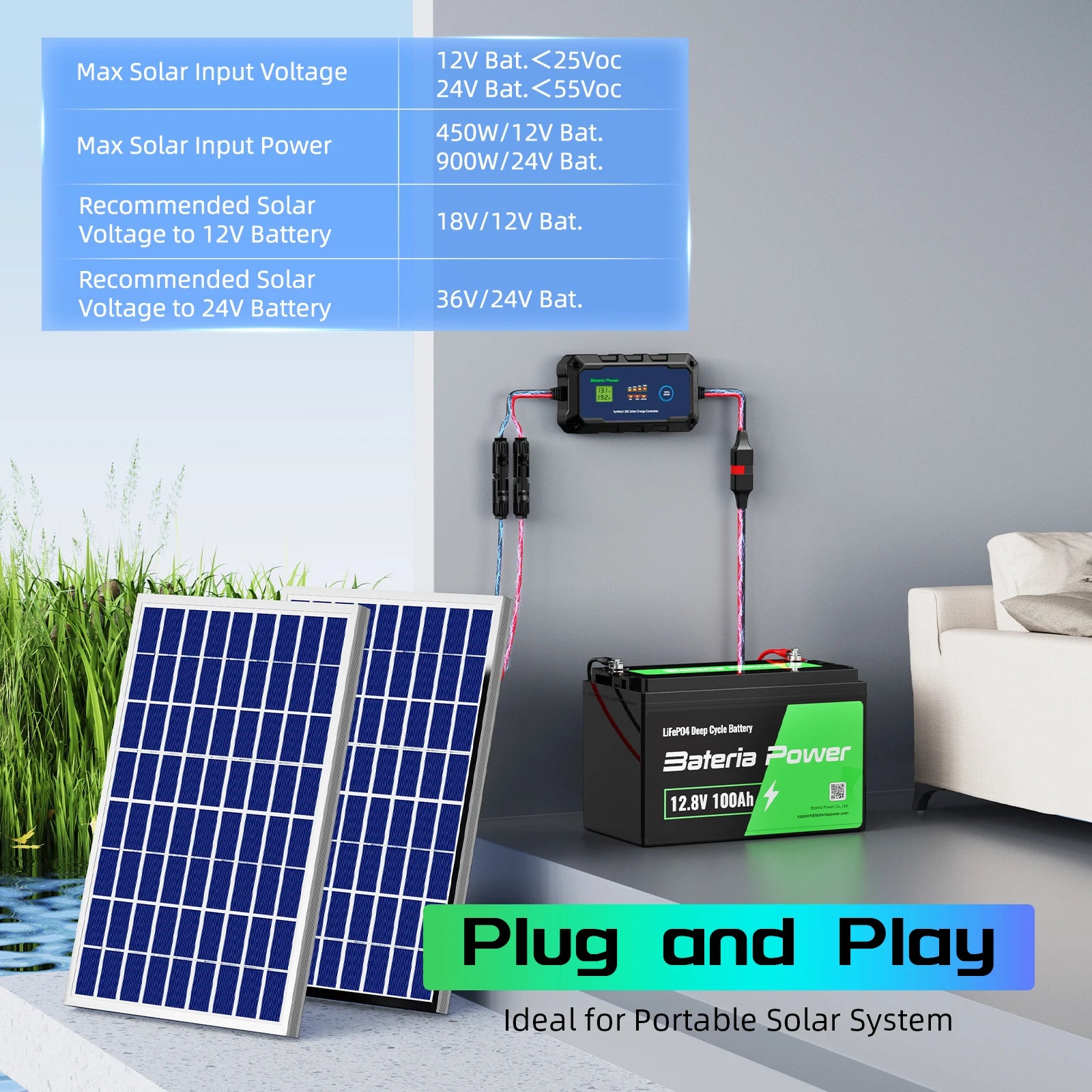

• 【Plug & Play】Anderson connector quickly connects or disconnects, plug and play, convenient and practical. No additional installation is required, making usage simple. The portable 30A PWM controller can be adapted to all your portable solar panels and is a wonderful choice for RV travel.

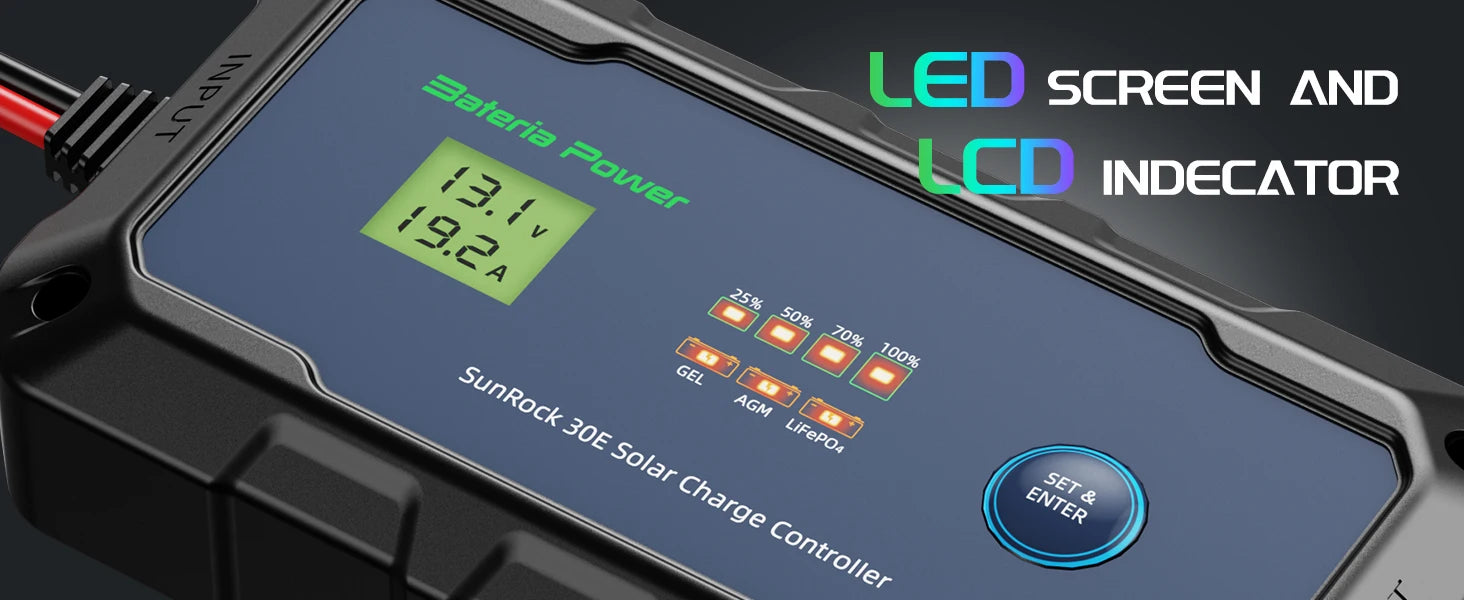

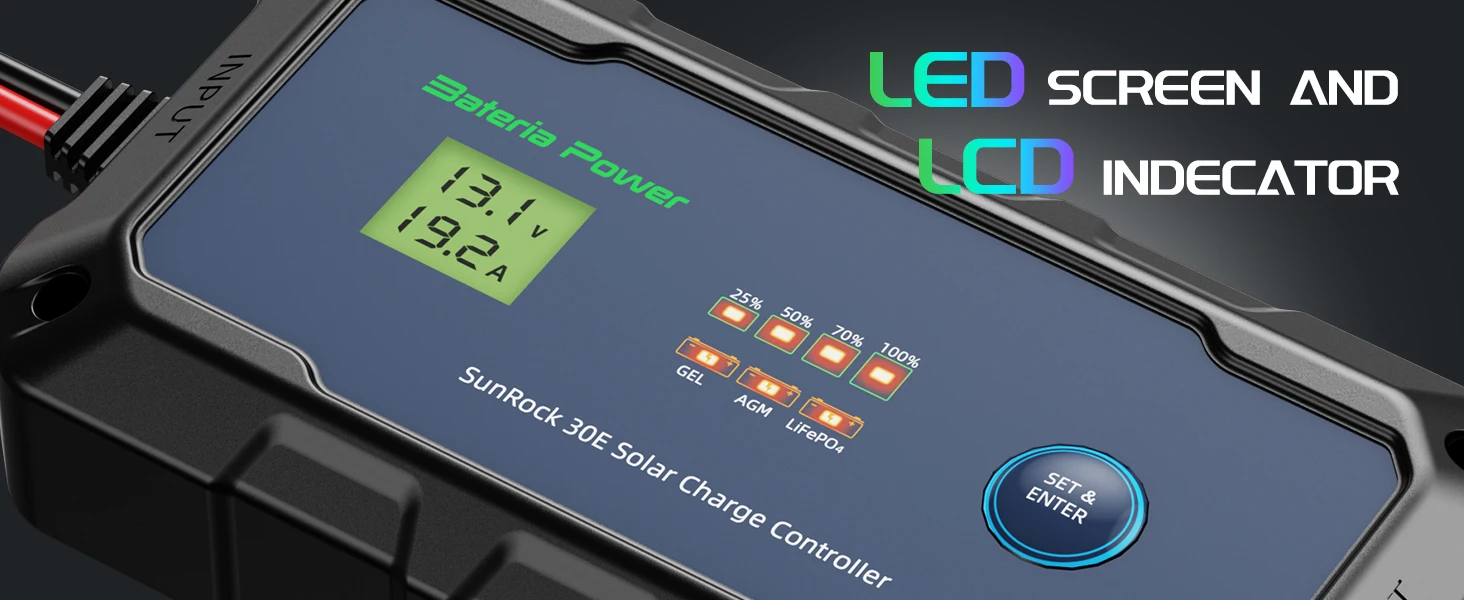

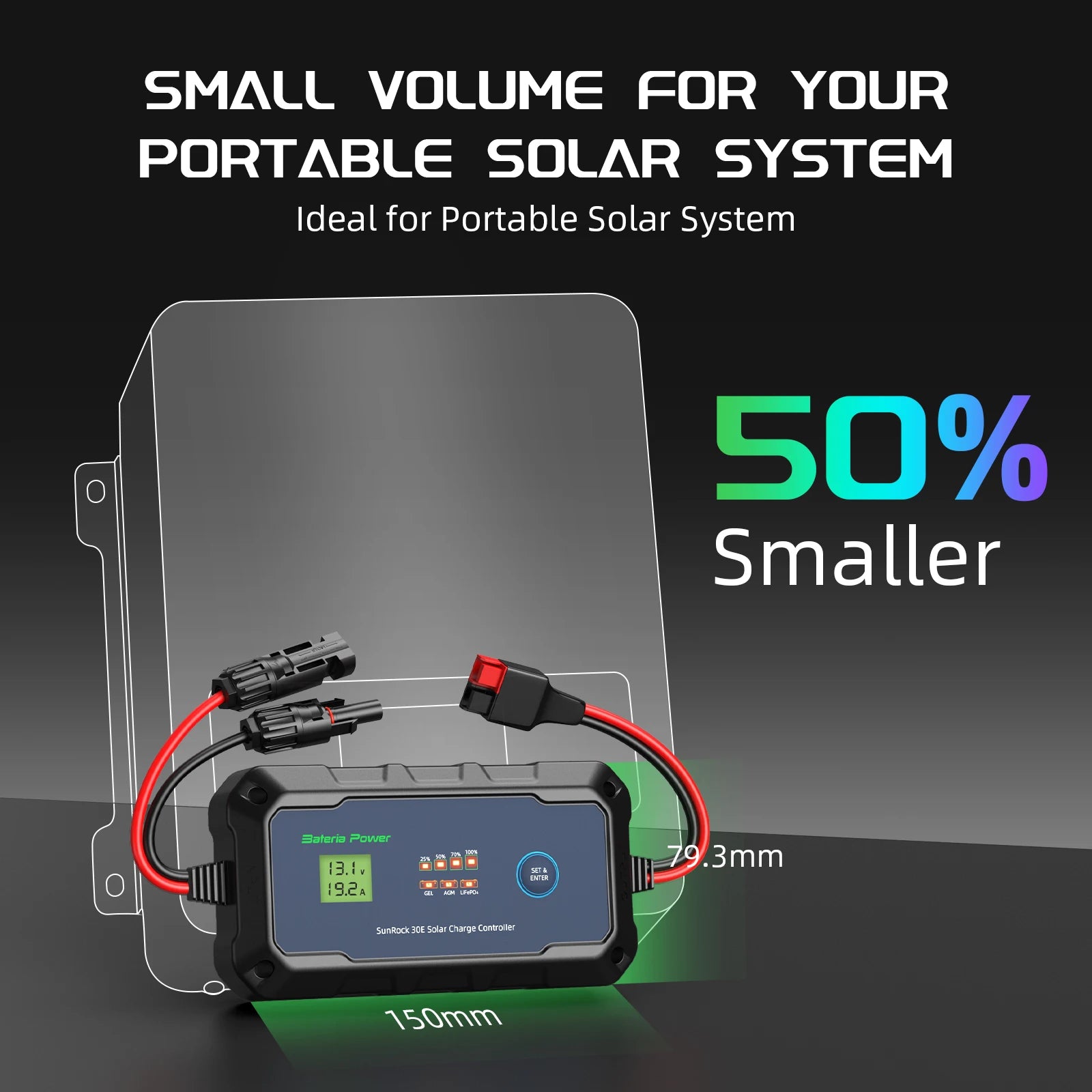

• 【Mini & Portable with LCD Display & LED Indicate Light】The controller is equipped with an LCD Screen and LED indicator light, which is convenient for you to monitor the working condition of the solar panel and battery. In addition, this controller is compact and convenient in appearance. Compared with other controllers, it saves 30% of the space. It is also very convenient to carry and connect when used outdoors.

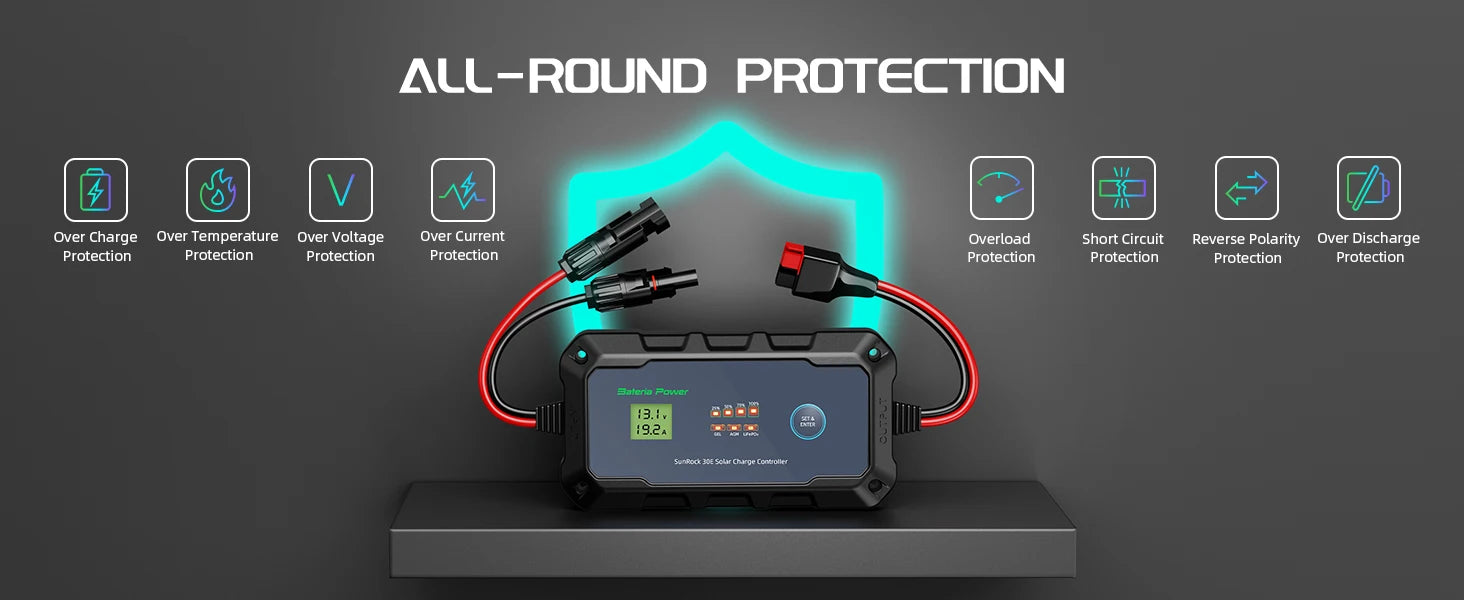

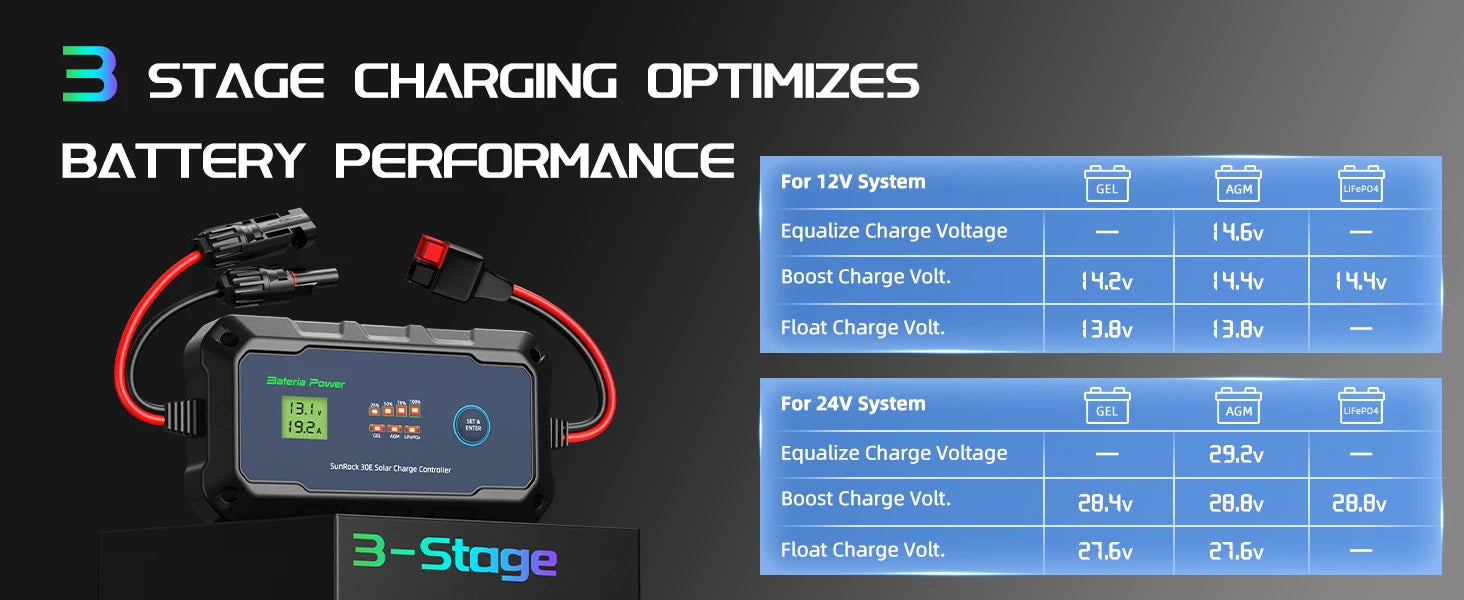

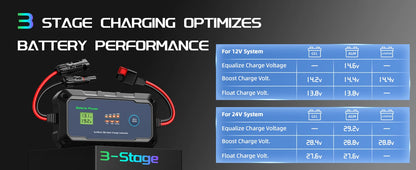

• 【High Security】The controller has a built-in protection system and intelligent 3-stage charging (Equalize, Float, Boost), which means that the solar energy can be used to the maximum extent, and it can also fully protect your battery (Over Charge Protection, Over Temperature Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection, Discharge Protection, Reserve Polarity Protection), it is safer to use.

• 【Dsign for 12V and 24V Battery】Compatible with various 12v and 24v batteries, such as SLD, FLD, GEL, AGM, SLA, LiFePO4, ternary lithium battery, and LTO battery. Max solar input power: 450W for 12V battery; 900W for 24V battery.

• 【Excellent Waterproof Performance】This controller has good waterproof performance, so even if you use it outdoors, you don't have to worry about inclement weather making it unusable. (Reminder: To prolong the service life, we do not recommend soaking the controller in water.)
