SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Product presentation:

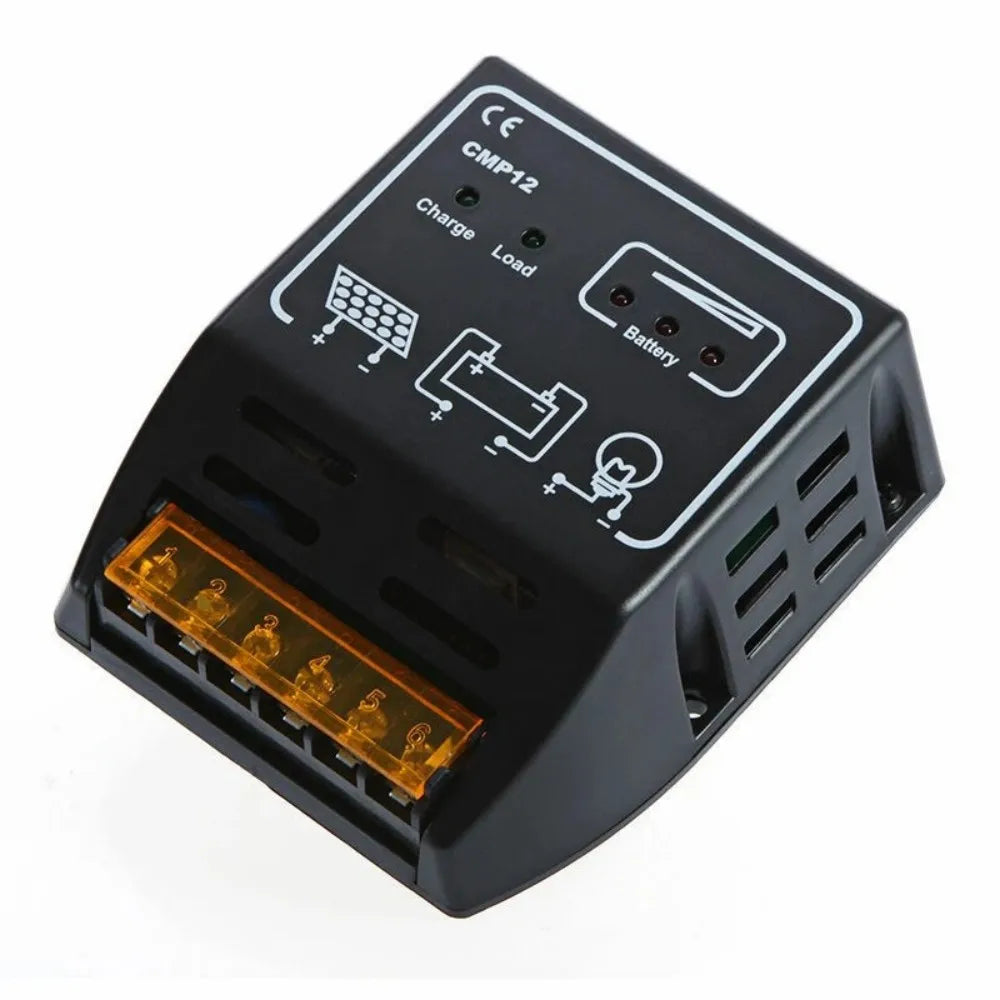

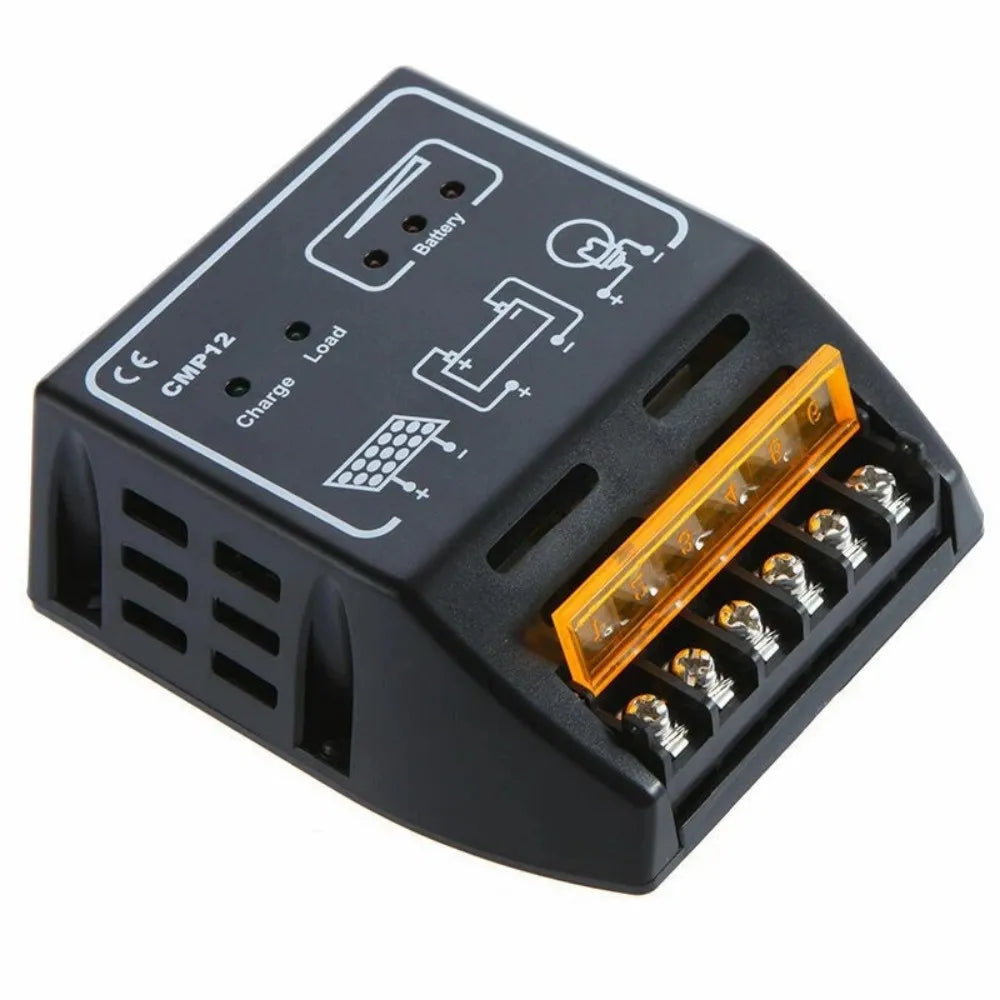

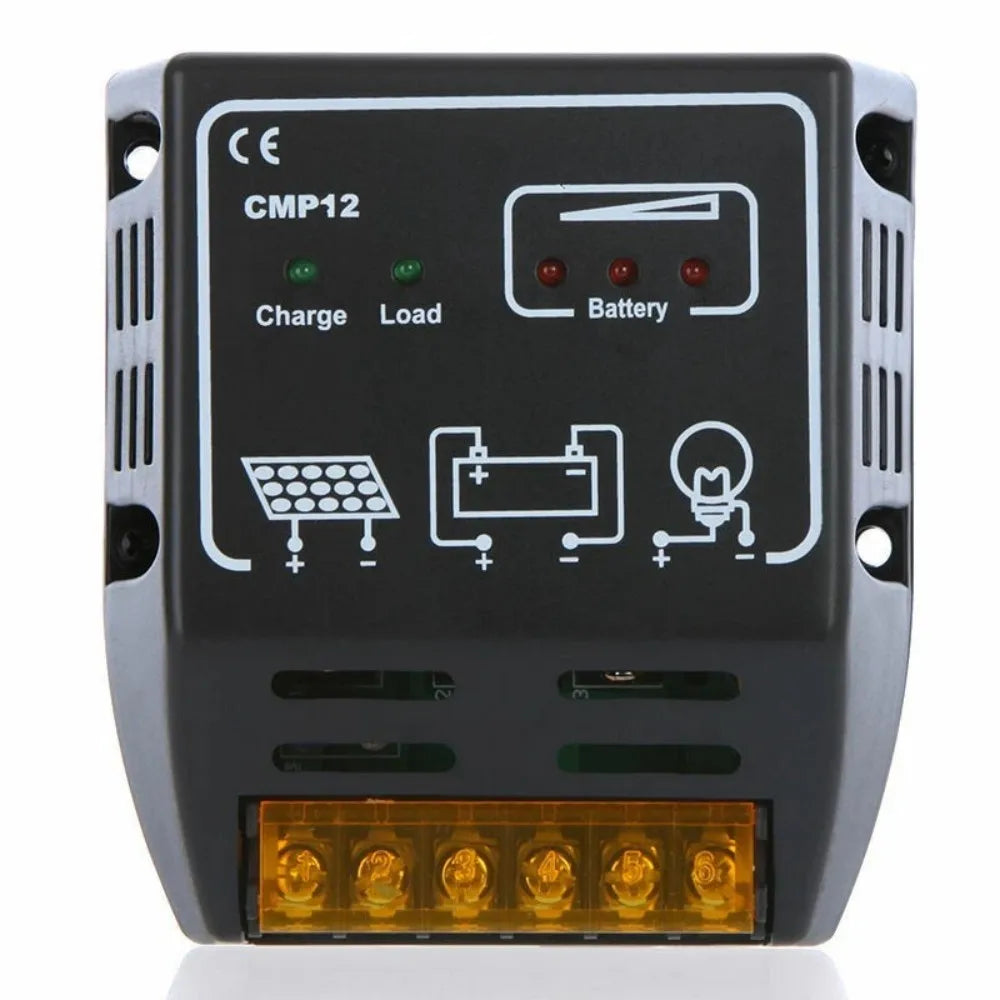

    The product is used to control Solar Panel and battery in Solar System automatically,suitable for 12V (120 watt solar energy)Automatic control of solar panels in 24V or 24V (240 watt solar panels).
    Full use of the chip, high precision components, less failure rate. Two sided board with copper content is 2 times the one side, good heat dissipation, the circuit is connected.
    Industry standard indicator isolation column,indicating lamp two foot protection, and building on the positive, and the shell can the very good contact, accompanied by thermal dorm only protects a foot, and it is easy to crooked.
    ITantalum capacitors, although the cost is high,but the stability is very good.
    The use of fan shaped heat sink, heat better,can work in the hot environment.

Features:
1. Over-load protection
2. Short circuit protection
3. Lightning protection
4. Under-voltage protection
5. Over-charging protection
6. Polarity reverse connection protection

Specifications:
Model:CMP12-10A/CMP12-20A
Rated voltage:6V,12V/24V
Rated charging current:5A 10A 15A 20A
Rated load current:5A 10A 15A 20A
Voltage of stop power supply:5.4V,10.8V/21.6V
Voltage of resume power supply:6.3V,12.6V /25.2V
Voltage of stop charging:7.2V,14.4V /28.8V
Working temperature: -20 ° C ~ +60 ° C
Temperature coefficient of voltage stop charge: -3mV/°C/cell

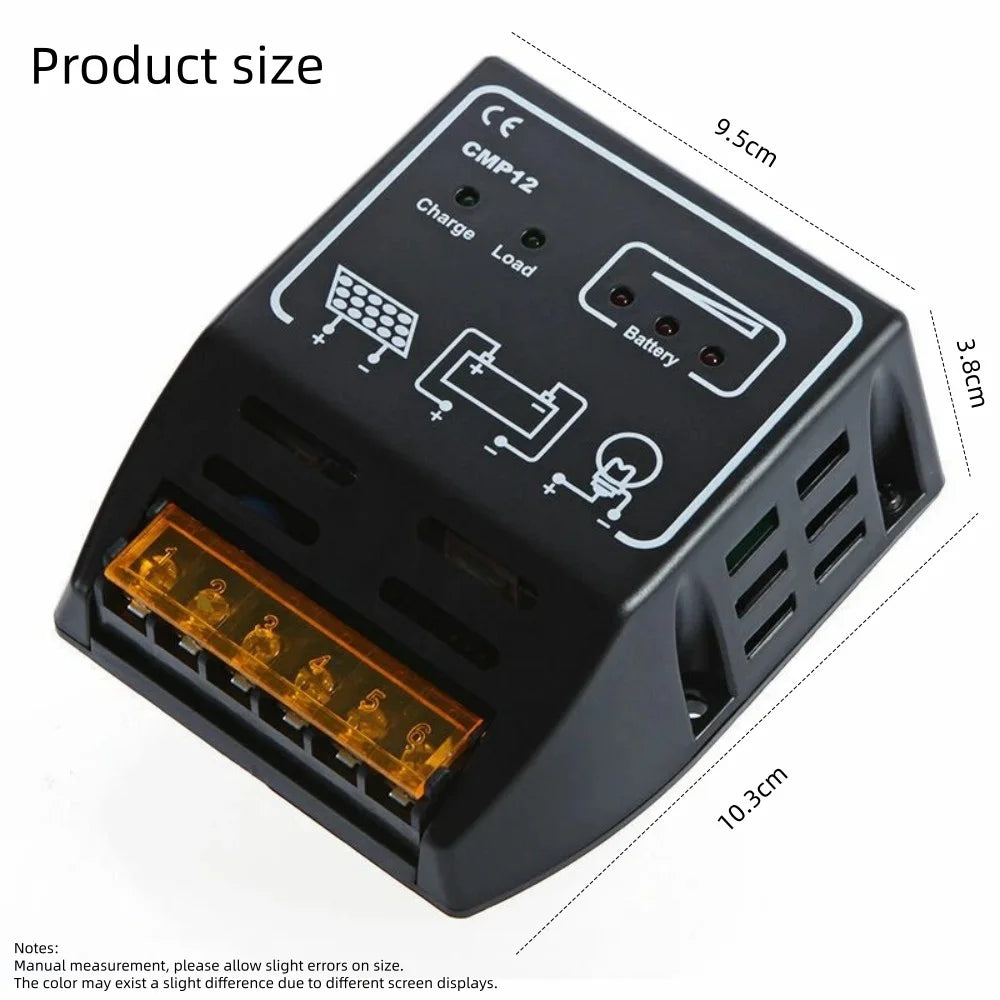

Dimension(L*W*H):approx.103×95×38 mm
Weight:approx.160g

Package contents:

1 X CMP12 10A 20A Solar Charge Controller
1 X User Manual

(Retail package is NOT included)

Notes:

Manual measurement, please allow slight errors on size.

The color may exist a slight difference due to different screen displays.
